Bently Nevada 330104-00-11-10-01-00 Migration-Ready Proximity Probe

Overview

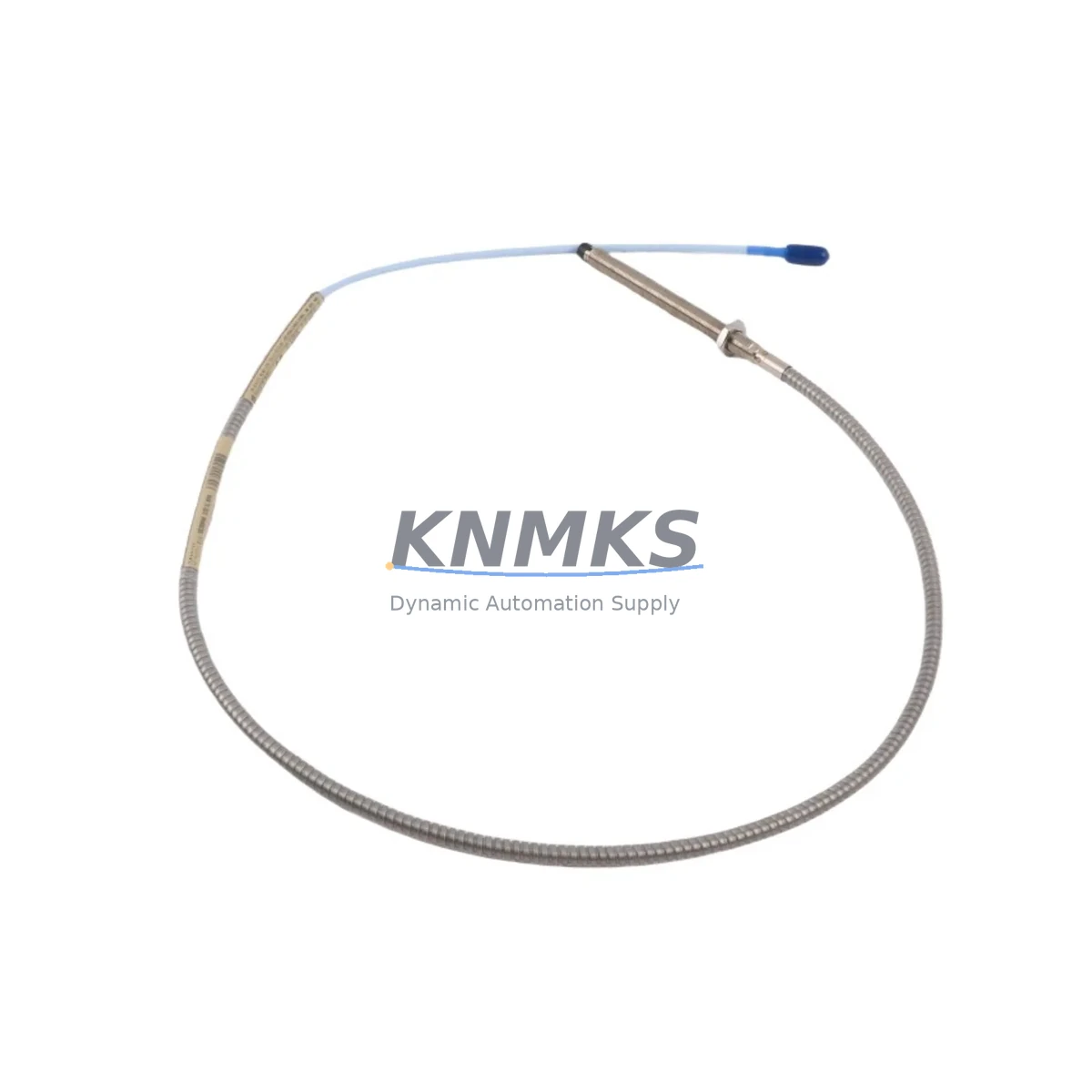

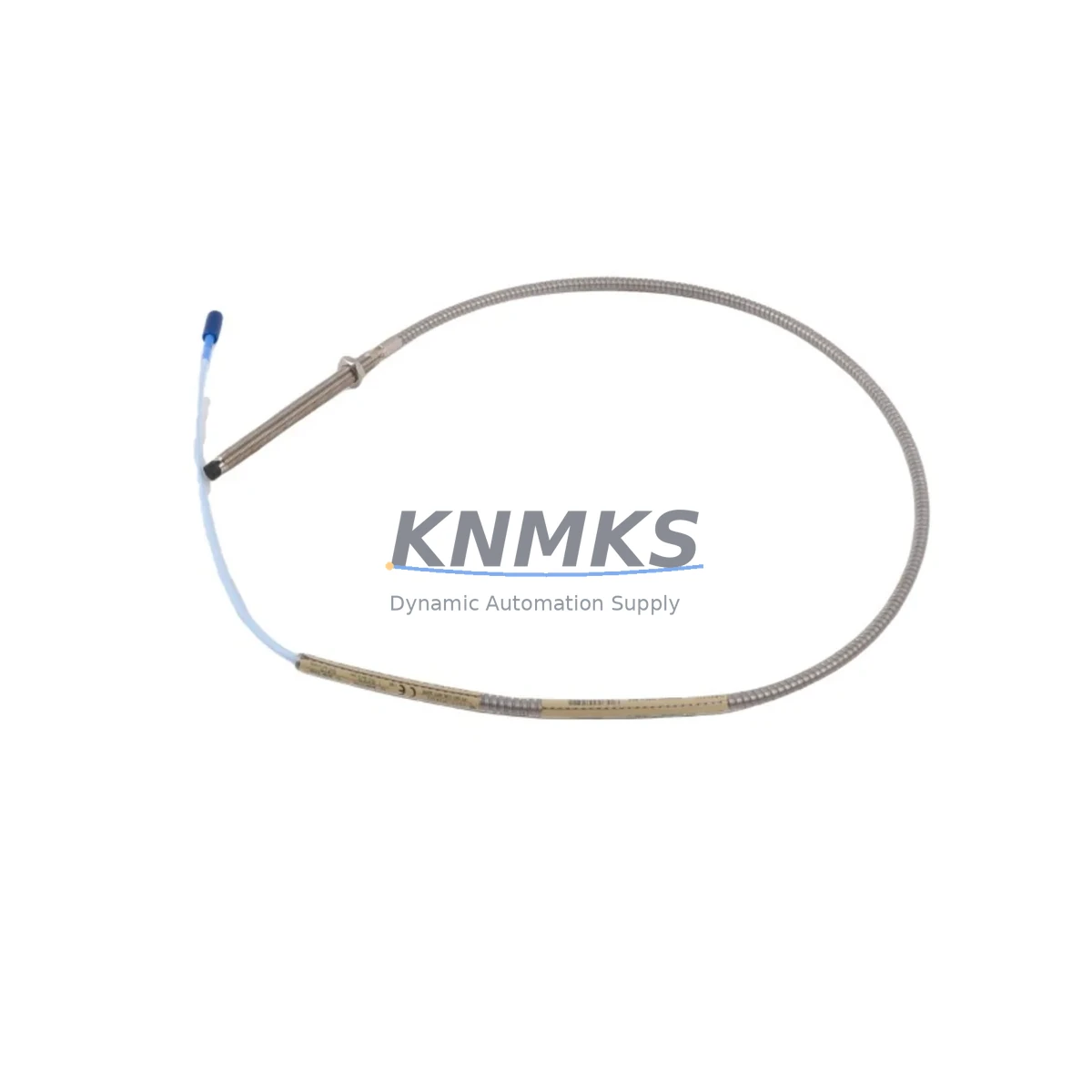

Bently Nevada 330104-00-11-10-01-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-11-10-01-00 is an 8 mm proximity probe designed for the 3300 XL Series continuous machinery monitoring system. As legacy vibration monitoring infrastructure ages and OEM support windows close, maintenance engineers and reliability teams face increasing pressure to source verified drop-in replacements that preserve existing wiring, signal conditioning, and system calibration. This probe is stocked and tested to serve as a direct retrofit replacement for discontinued or end-of-life 330104-series components, enabling facilities to extend the operational life of their 3300 XL monitoring platforms without requiring full system redesign.

When planning a proximity probe replacement within a 3300 XL rack, engineers must confirm several critical parameters before installation. The probe’s 5-metre integral cable length and standard 3/8-24 UNF thread must match the existing mounting boss and conduit routing. The output sensitivity of -7.87 V/mm (-200 mV/mil) must align with the input specification of the paired 3300 XL proximitor/seismic module — typically the 330180 or 330185 series — to avoid recalibration of the gap voltage setpoint. The system gap voltage at the recommended installation gap of 1.27 mm (50 mil) should read approximately -10.0 VDC; any deviation beyond ±0.5 VDC indicates a wiring fault, driver incompatibility, or target material mismatch that must be resolved before returning the machine to service.

For facilities running mixed-generation monitoring architectures, the 330104-00-11-10-01-00 is also compatible with earlier 3300 Series racks where the proximitor driver and signal conditioning chain remain intact. In these environments, the probe can be installed alongside the 3300/16-channel monitor or the 3500/42M position monitor without modification to the existing I/O wiring or DCS interface. If the site is migrating from a 3300 Series rack to a 3500 Series platform, the probe itself remains reusable — only the proximitor driver and monitor card require substitution, which significantly reduces the scope and cost of the upgrade.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a 3300 XL or 3500 Series monitoring system requires a structured approach that accounts for the full signal chain — from the probe tip to the DCS historian. Before removing the failed or end-of-life probe, the maintenance team should document the existing gap voltage, vibration baseline, and alarm setpoints stored in the 3300 XL monitor card. This data serves as the commissioning reference after the new 330104-00-11-10-01-00 is installed and gapped.

In most turbomachinery and rotating equipment applications, the proximity probe works in conjunction with a 330180 proximitor/seismic module mounted in the field junction box. The proximitor provides the oscillator-demodulator function that converts the probe’s eddy-current signal into a usable DC voltage. When replacing the probe, the proximitor should be inspected for connector corrosion, cable shield continuity, and supply voltage integrity — typically -24 VDC from the rack power supply. If the proximitor is also at end-of-life, a simultaneous replacement with a 330180-X1-CN or equivalent avoids a second outage window.

For facilities upgrading from a 3300 Series rack to a 3500 Series platform, the migration path typically involves retaining the existing probe and field wiring while replacing the rack, monitor cards, and I/O modules. The 3500/42M position monitor accepts the same probe signal format, allowing the 330104-00-11-10-01-00 to remain in service. The 3500 rack’s communication module — often a 3500/92 Ethernet or 3500/93 serial interface — then connects to the plant DCS or historian via Modbus TCP or OPC-DA, replacing the older hardwired 4–20 mA outputs. HMI faceplate updates are required to reflect the new tag addresses, but the underlying vibration data structure remains consistent.

Where I/O expansion is part of the upgrade scope, the 3500/20 rack interface module and additional 3500/42M cards can be added to the same chassis without disturbing the existing probe wiring. Signal isolators — such as the MTL or P+F series DIN-rail isolators — may be inserted between the proximitor output and the DCS analog input card if ground loop issues are detected during commissioning. Programming cable access to the 3500 rack is typically via the 3500/94 USB interface, which connects to the System 1 Evolution software for setpoint configuration and alarm management.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging the replacement unit, verifying all tools and documentation before the maintenance window opens, and following a structured hot-swap or cold-swap protocol depending on the machine’s criticality classification.

For critical rotating equipment — compressors, turbines, and pumps with no installed spare — the recommended approach is to pre-gap the replacement 330104-00-11-10-01-00 on a bench fixture before entering the field. Using a calibrated gap tool and a reference target of the same material as the machine shaft, the probe is pre-set to the nominal gap of 1.27 mm and the gap voltage confirmed at -10.0 VDC. This eliminates the need for iterative gap adjustment at the machine, reducing the probe swap time to under 30 minutes in most installations.

The original program logic in the 3300 XL or 3500 monitor card does not require modification for a like-for-like probe replacement. Alarm setpoints, danger limits, and trip multipliers remain valid provided the replacement probe’s sensitivity matches the original specification. If the site’s DCS or safety instrumented system (SIS) receives a hardwired trip signal from the monitor, the output relay state should be verified after commissioning to confirm that the new probe’s gap voltage falls within the normal operating band and does not trigger a spurious trip.

For facilities with a System 1 Evolution or System 1 Classic historian, the probe channel should be placed in bypass mode in the software before physical removal to suppress nuisance alarms during the swap. After installation and gap verification, the bypass is released and the channel’s live vibration trend is compared against the pre-outage baseline to confirm correct installation. This process preserves control continuity and provides a documented commissioning record for the site’s maintenance management system.

Retrofit Support FAQ

Q1: Is the 330104-00-11-10-01-00 a direct replacement for all 330104-series proximity probes?
Yes, within the 8 mm, 5 m cable, 3/8-24 UNF thread family. The suffix digits encode cable length, connector type, and temperature rating — confirm the full part number against your existing probe label before ordering. The -00-11-10-01-00 suffix indicates a 5 m integral cable, standard temperature rating, and BNC-style connector compatible with the 330180 proximitor.

Q2: What commissioning checks are required after installation?
After installation, verify the gap voltage at the proximitor output terminal (nominal -10.0 VDC ± 0.5 VDC at 1.27 mm gap), confirm the vibration channel reads a plausible baseline value in the 3300 XL or 3500 monitor, and check that no alert or danger alarms are active at rest. Document the as-found and as-left gap voltage in the site’s maintenance record.

Q3: Can this probe be used with a 3500 Series rack without rewiring?
Yes. The 330104-00-11-10-01-00 is signal-compatible with the 3500/42M position monitor and the 3500/45 position monitor when paired with the appropriate 330180-series proximitor. No field wiring changes are required at the probe or junction box level. Only the monitor card and rack configuration require updating in the System 1 software.

Q4: What support terms and supply terms apply?
All units are covered by a support terms confirmed by quotation against manufacturing defects and signal performance deviations. Stock is held in regional warehouses to support short lead-time requirements. Each unit undergoes pre-shipment functional testing — gap voltage output, cable continuity, and connector integrity — before dispatch. Contact admin@knmks.com or +86 18359268345 for availability confirmation and bulk pricing.
