Bently Nevada 330104-00-11-05-02-CN Spare Part: Maintenance-Proven Proximity Transducer for Factory Uptime

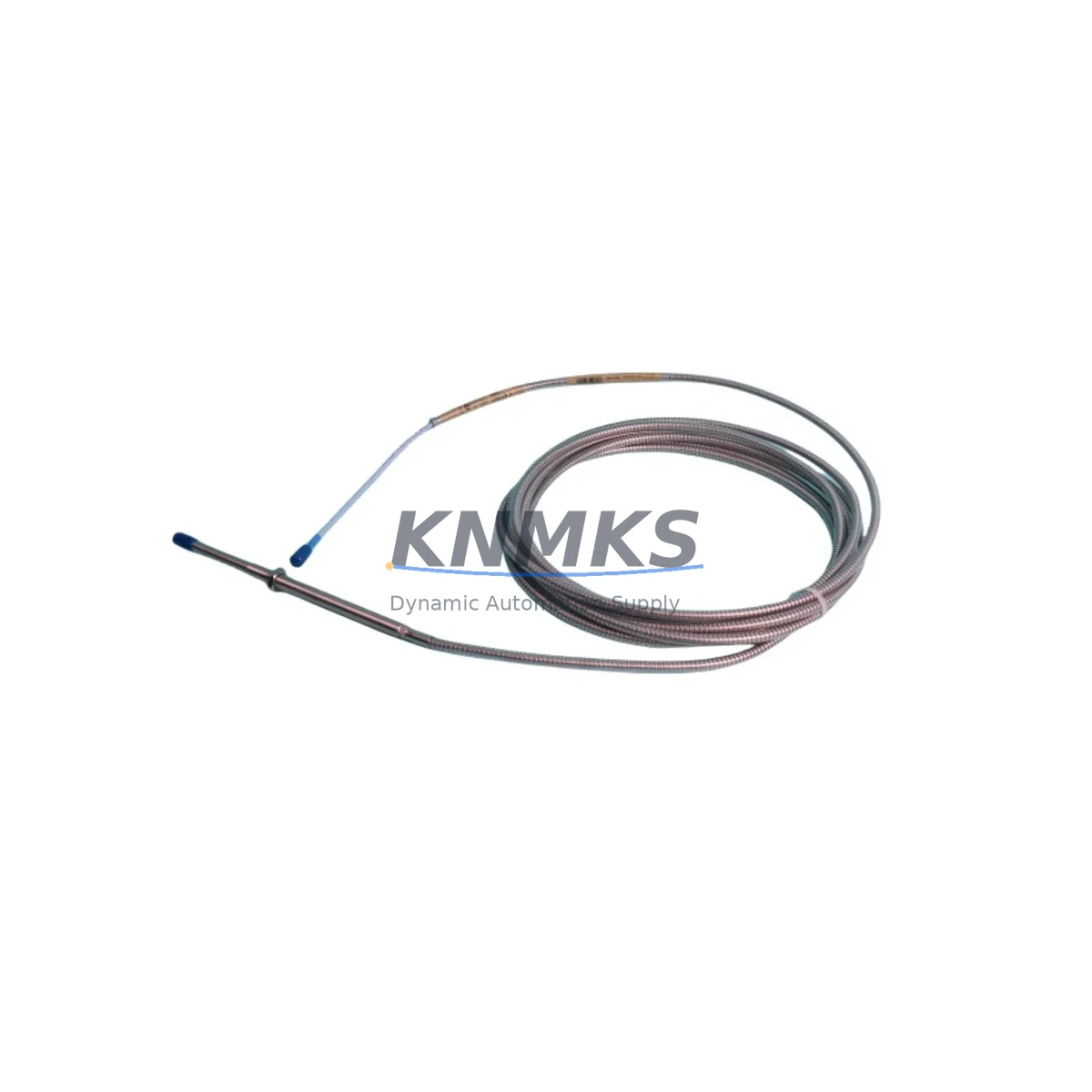

The Bently Nevada 330104-00-11-05-02-CN is an 8mm proximity transducer from the industry-standard 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery environments. For maintenance engineers managing turbines, compressors, pumps, and motors in oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this transducer is a critical front-line component in any predictive maintenance program. When this part fails or degrades, the entire vibration monitoring loop is compromised — making a verified, ready-to-ship spare essential for minimizing unplanned downtime and protecting expensive rotating assets.

At KNMKS, every 330104-00-11-05-02-CN unit is sourced from authorized supply channels, individually inspected, and function-tested prior to shipment. Each unit ships with a support terms confirmed by quotation and full traceability documentation, giving procurement engineers the confidence to stock this part as a long-term inventory asset rather than a one-time emergency purchase.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330104-00-11-05-02-CN in the field is rarely an isolated task. A proximity transducer operates as part of a complete measurement chain, and experienced maintenance engineers know that a single component failure often signals stress across the entire loop. When performing a scheduled or emergency replacement of this transducer, the following associated components should be inspected or replaced as part of the same maintenance window.

The Bently Nevada 330180-X1-05 extension cable connects the probe to the driver and is subject to mechanical fatigue, connector corrosion, and insulation breakdown — especially in high-vibration or high-temperature zones. Always verify cable continuity and insulation resistance before reinstalling. The 330191-00-05 proximitor/driver module (or equivalent 3300 XL driver) should be bench-tested alongside the new transducer to confirm the system gap voltage and sensitivity are within specification before the machine is returned to service.

At the rack level, inspect the 3300 XL monitor module input card for any sign of channel fault history, relay chatter, or alarm setpoint drift. If the monitor has been in service for more than five years without calibration, this replacement event is an ideal opportunity to schedule a full rack calibration. The 3500/42M Proximitor I/O module (for facilities running the 3500 platform) should also be verified for proper channel mapping and OK relay output continuity.

For facilities where the vibration signal feeds into a DCS or safety system, confirm that the 4–20 mA signal isolator or Zener barrier in the intrinsically safe circuit is functioning correctly and has not drifted. A faulty isolator can mask a genuine transducer fault or generate nuisance trips. Additionally, check the terminal strip and field wiring in the junction box for loose connections, moisture ingress, and correct shielding grounding — poor grounding is a leading cause of noise-induced false vibration readings.

Finally, if the machine is part of an API 670-compliant protection system, verify that the replacement transducer’s gap voltage and sensitivity match the system’s configured parameters before re-enabling the protection relay outputs. Procurement engineers should consider stocking a minimum of two 330104-00-11-05-02-CN units per critical machine train, along with matched extension cables and at least one spare driver module, to support both planned outages and emergency response scenarios.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Disable the monitor channel or bypass the protection relay output before removing the transducer to prevent spurious trips during installation.

Step 2 — Remove the Old Transducer: Unthread the probe carefully. Inspect the mounting boss for thread damage, corrosion, or debris. Clean the target area and measure the target surface runout if possible.

Step 3 — Install the 330104-00-11-05-02-CN: Thread the new probe to the correct gap distance (typically 1.0–1.5mm from target, per system calibration sheet). Torque to the manufacturer’s specification. Do not over-torque — the probe tip is precision-machined.

Step 4 — Reconnect and Verify Gap Voltage: Connect the extension cable and driver. Power up the driver and measure the DC gap voltage at the monitor input. Confirm it falls within the linear range (typically -10 VDC ± 1 VDC at nominal gap). Adjust gap if necessary.

Step 5 — Functional Test: With the machine at rest, verify the OK relay is energized and the channel reads a stable, noise-free signal. Check for any alert or danger setpoint violations. Log the as-found and as-left gap voltage in the maintenance record.

Step 6 — Return to Service: Re-enable the protection relay output, remove the bypass, and restore the monitor channel to normal operation. Update the CMMS with the replacement date, new part serial number, and gap voltage reading.

This workflow supports direct replacement of legacy 330104 series probes and is compatible with existing 3300 XL and 3500 series monitor racks without hardware modification, minimizing system reconfiguration time and reducing total downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 330104-00-11-05-02-CN compatible with both the 3300 XL and 3500 Series monitor racks?
A: The 330104-00-11-05-02-CN is natively designed for the 3300 XL Series. It can be used with 3500 Series racks when paired with the appropriate 3500/42M Proximitor I/O module and correct driver configuration. Always verify the system’s gap voltage and sensitivity settings match the transducer’s calibration curve before commissioning.

Q2: What is included with each unit, and how is it tested before shipment?
A: Each 330104-00-11-05-02-CN shipped by KNMKS undergoes visual inspection, connector integrity check, and electrical function testing. Units are shipped with a test report and support terms confirmed by quotation certificate. Packaging is anti-static and shock-protected for international freight.

Q3: How many units should we stock for a critical rotating machine train?
A: Industry best practice for API 670-protected machinery recommends a minimum of two spare transducers per measurement plane, plus one matched extension cable and one spare driver module per critical train. For facilities with multiple identical machines, consolidated spare pooling can reduce total inventory cost while maintaining adequate coverage for emergency response.

Q4: Can KNMKS support long-term supply for this part number?
A: Yes. KNMKS maintains ongoing sourcing relationships for Bently Nevada 3300 XL and 3500 Series components, including the 330104-00-11-05-02-CN and related accessories. We support blanket purchase orders, scheduled delivery programs, and emergency same-day quotation for critical shutdown situations. Contact our team to discuss long-term supply agreements tailored to your maintenance calendar.
