Bently Nevada 330104-00-11-05-01-CN Maintenance-Proven Spare Part for Factory Uptime

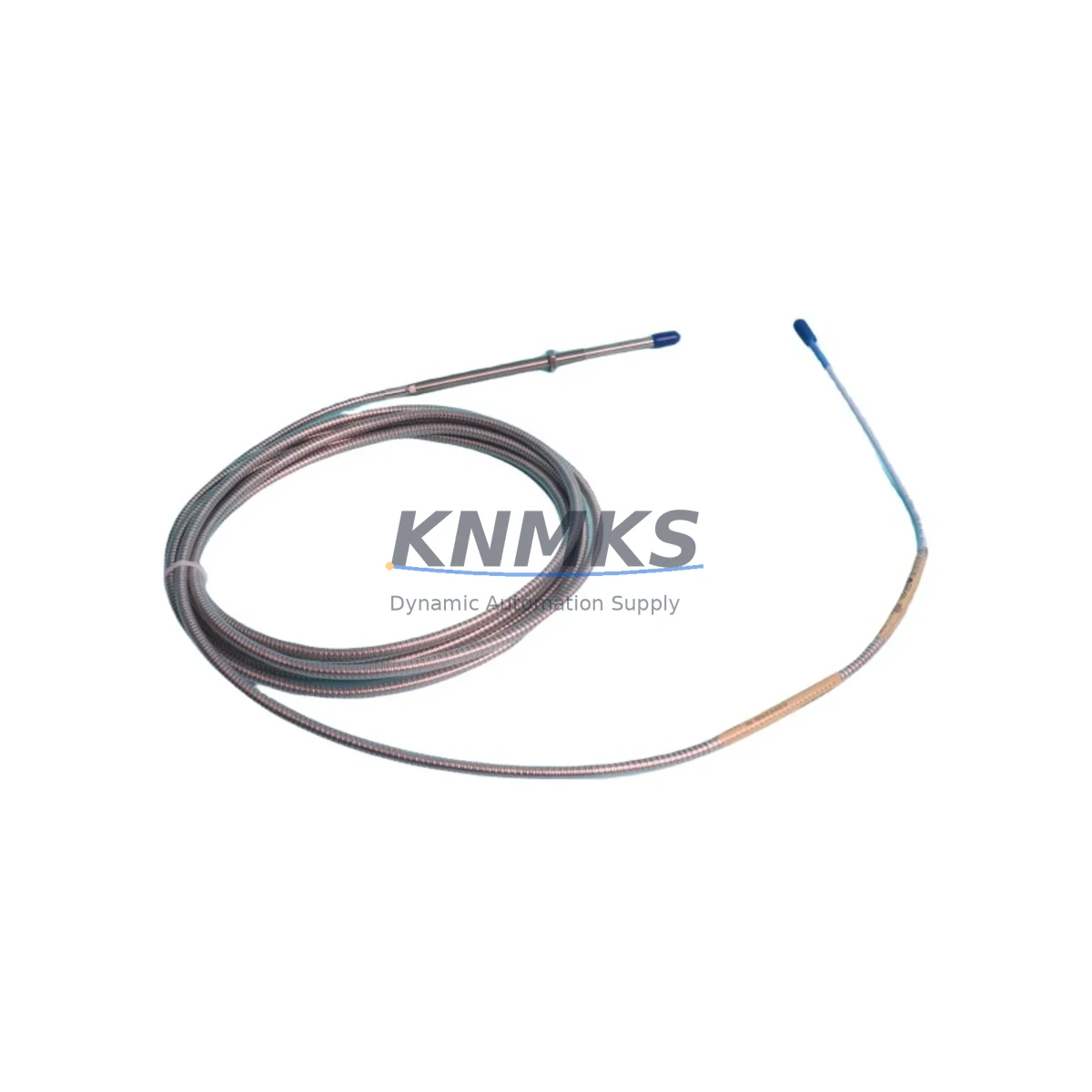

The Bently Nevada 330104-00-11-05-01-CN is an original proximity transducer engineered for continuous vibration monitoring in rotating machinery applications. Designed for the 3300 XL Series monitoring system, this spare part is a critical component in turbine, compressor, pump, and motor protection circuits across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Maintaining a stocked unit of the 330104-00-11-05-01-CN in your spare parts inventory is a proven strategy for minimizing unplanned downtime and ensuring rapid recovery when a monitoring channel fails during operation.

Maintenance engineers and reliability teams rely on this transducer as a direct replacement for worn or damaged sensors in the 3300 XL eddy-current sensing chain. The -CN suffix designates the cable length and connector configuration, making compatibility verification straightforward when cross-referencing against your existing installation drawings. Before installing a replacement 330104-00-11-05-01-CN, it is standard practice to inspect the associated extension cable — typically the Bently Nevada 330130 series — and the proximitor/driver module such as the 3300 XL 8mm proximitor, as these components form a matched sensing system. A fault in any one element of the chain can produce misleading vibration readings or trigger false shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-11-05-01-CN proximity transducer is flagged during a routine control cabinet inspection or condition monitoring review, the replacement workflow should extend beyond the sensor itself. The 3300 XL sensing chain is a system — the transducer, extension cable, and proximitor module must all be evaluated together. Maintenance planners should ensure that the Bently Nevada 330130-080-00-00 extension cable is free of kinks, connector corrosion, and insulation damage, as a degraded cable will introduce noise into the vibration signal even with a new transducer installed.

The proximitor module — such as the Bently Nevada 3300 XL 8mm proximitor (part of the 330180 series) — should be bench-tested for correct bias voltage output (typically -10.0 VDC at the calibrated gap) before the machine is returned to service. In installations where the 3300 XL rack feeds into a 3500 Series monitoring frame, the 3500/42M proximity I/O module should also be inspected for channel integrity and alarm setpoint configuration.

From a control cabinet perspective, procurement engineers should simultaneously review the 24 VDC power supply feeding the proximitor, terminal block torque values, and any signal isolators or barriers in the loop — particularly in hazardous-area installations where Zener barriers or galvanic isolators protect the intrinsically safe circuit. Fuse ratings on the DC supply rail should be verified against the proximitor’s current draw specification. If the machine is part of a turbine protection system, the associated relay output module and trip logic in the 3500 rack should be tested for correct response following sensor replacement.

For facilities managing aging 3300 XL installations, stocking the 330104-00-11-05-01-CN alongside compatible extension cables and a spare proximitor module is a cost-effective life-extension strategy that avoids the lead times and engineering costs associated with full system upgrades. Annual inspection cycles should include gap measurement verification using a calibrated oscilloscope or the Bently Nevada TK-3 calibration kit to confirm the transducer is operating within its linear range.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the monitoring channel is bypassed in the 3500/3300 rack to prevent a spurious trip during sensor removal.

Step 2 — Gap Measurement: Record the existing gap before removal using a dial indicator or the proximitor DC output voltage. Target gap for the 330104-00-11-05-01-CN is typically 1.0–1.5 mm depending on shaft material and surface finish.

Step 3 — Cable Inspection: Disconnect the CN connector and inspect the mating socket on the 330130 extension cable for pin damage, moisture ingress, or corrosion. Replace the extension cable if any defects are found.

Step 4 — Transducer Installation: Thread the new 330104-00-11-05-01-CN into the mounting bracket. Set gap to the specified value using the proximitor output voltage as a reference (-10.0 VDC ± 0.5 V at calibrated gap). Lock the jam nut to the torque value specified in the Bently Nevada installation drawing.

Step 5 — System Verification: Reconnect the extension cable. Power up the proximitor and confirm bias voltage, gap voltage, and channel OK status in the 3300/3500 rack display. Clear the bypass and verify alarm and danger setpoints are active before returning the machine to service.

This workflow supports rapid recovery from unplanned outages and is compatible with both the legacy 3300 XL rack and the current 3500 Series platform, ensuring long-term system continuity without requiring hardware redesign.

Spare Parts Support FAQ

Q1: Is the 330104-00-11-05-01-CN a direct drop-in replacement for other 330104 variants?
The 330104 family shares the same 8mm eddy-current sensing element, but the suffix designates cable length and connector type. The -CN variant must be matched with the correct 330130 extension cable length to maintain system calibration. Always verify the total cable length (transducer + extension) matches the proximitor’s calibrated range before installation.

Q2: How do you verify compatibility with a 3500 Series rack?
The 3300 XL transducer system can interface with the 3500 Series via the 3500/42M proximity I/O module. Confirm that the module’s channel configuration matches the 3300 XL sensitivity (200 mV/mil) and that the proximitor supply voltage is correctly routed. Bently Nevada application notes for the 3500/42M provide the full compatibility matrix.

Q3: What is included in the pre-shipment testing process?
Each 330104-00-11-05-01-CN unit supplied by KNMKS undergoes functional verification including output sensitivity check, insulation resistance test, and connector integrity inspection before dispatch. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q4: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS maintains stock of the 330104-00-11-05-01-CN and related 3300 XL components to support annual maintenance contracts, turnaround planning, and emergency procurement. Long-term supply agreements with reserved inventory allocation are available for facilities with recurring demand. Contact our team to discuss lead times, pricing, and consignment options.
