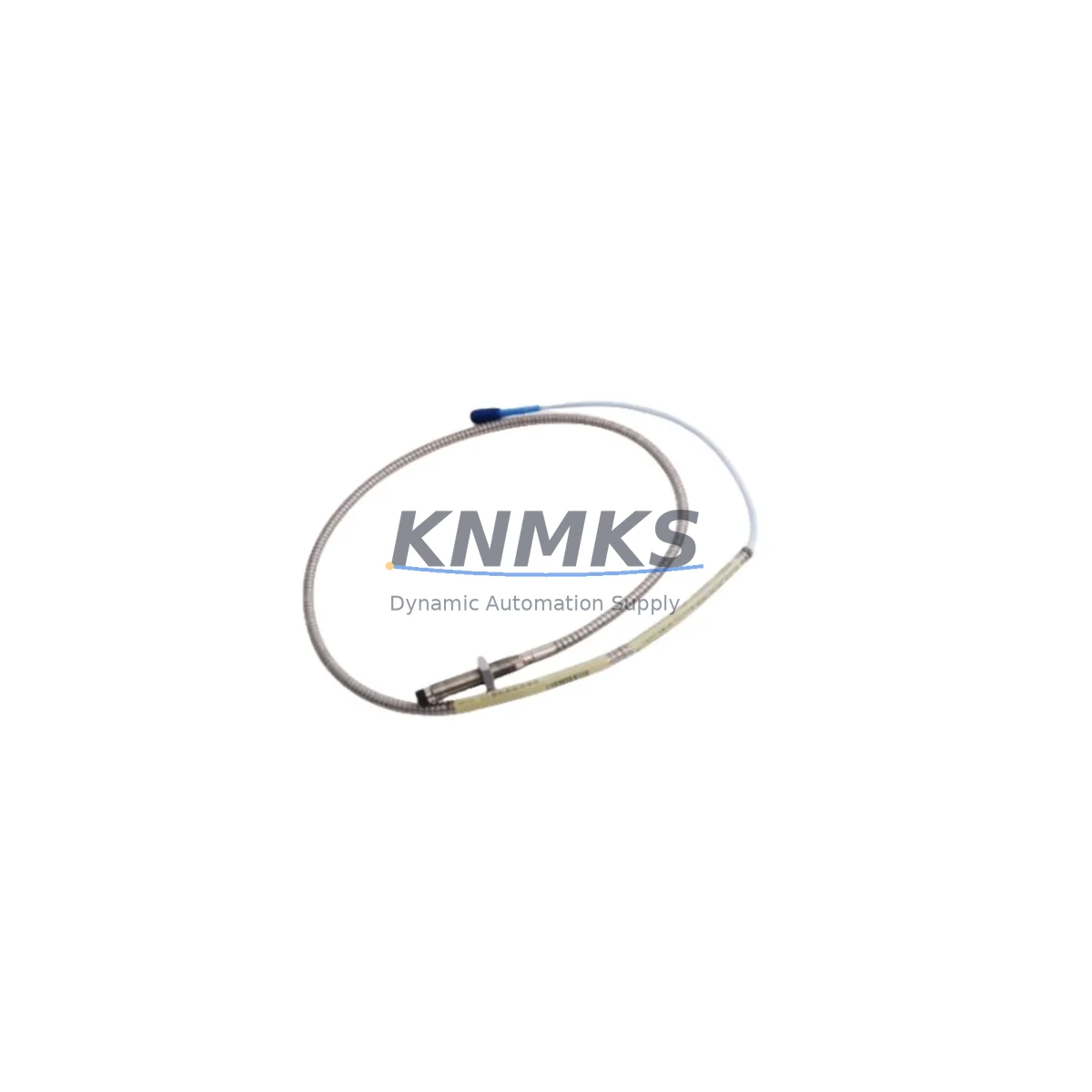

Bently Nevada 330104-00-10-10-02-CN Spare Part for Factory Uptime

Overview

Bently Nevada 330104-00-10-10-02-CN Spare Part for Factory Uptime

The Bently Nevada 330104-00-10-10-02-CN is an original eddy current proximity probe from the 3300 XL series, engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed for use in turbines, compressors, pumps, and motors across oil & gas, power generation, petrochemical, and heavy manufacturing environments, this probe delivers the measurement accuracy and long-term reliability that maintenance engineers depend on to sustain factory uptime.

Sourced as an OEM-compatible spare, the 330104-00-10-10-02-CN is pre-shipment tested to confirm signal output, gap voltage linearity, and cable integrity before dispatch. Each unit ships with a support terms confirmed by quotation, providing procurement teams with the confidence needed for planned maintenance cycles, emergency replacements, and long-term spare parts inventory programs.

Whether you are responding to a vibration alarm, executing a scheduled turnaround, or building a strategic buffer stock for a multi-unit facility, the 330104-00-10-10-02-CN is a direct, drop-in replacement that maintains full compatibility with the Bently Nevada 3300 XL monitoring system architecture.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-10-10-02-CN in the field, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure accurate vibration data after recommissioning. Maintenance engineers should begin by verifying the condition of the Bently Nevada 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the probe signal and provides the -24 VDC excitation. A degraded or contaminated Proximitor can produce erratic gap voltage readings even with a new probe installed.

The interconnect extension cable (such as the 330130 series) running between the probe and the Proximitor should be inspected for jacket damage, connector corrosion, and continuity. Cable faults are a leading cause of false vibration alarms and are frequently overlooked during probe-only replacements. Similarly, the armored conduit and cable gland fittings at the probe entry point should be checked for mechanical integrity, particularly in high-vibration or high-temperature zones.

At the rack level, confirm that the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) is correctly configured for the probe sensitivity and gap range. Verify that the power supply module feeding the monitor rack delivers stable -24 VDC within specification — voltage sag under load is a common source of measurement drift. If the facility uses a Bently Nevada 3500 series rack for integration, confirm that the I/O module and channel configuration match the replacement probe’s output characteristics.

For facilities running DCS or SCADA integration, validate the 4–20 mA or digital output signal from the monitor card after probe replacement to confirm that the process historian is receiving accurate vibration values. Where barrier isolators or signal conditioners are installed in the measurement loop for intrinsic safety compliance, inspect these components for correct range settings and terminal integrity. Finally, review the alarm setpoint configuration in the monitoring system to ensure that alert and danger thresholds remain appropriate for the reinstalled probe gap and the machine’s baseline vibration signature.

Site Replacement Workflow

Replacing the 330104-00-10-10-02-CN follows a structured sequence to minimize downtime and maintain measurement system integrity. Begin by documenting the existing probe gap voltage (typically -10 to -11 VDC at the nominal air gap) and recording the current vibration baseline from the monitor display or DCS historian. This reference data is critical for post-installation verification.

Isolate the measurement loop by disconnecting the extension cable at the Proximitor junction. Remove the probe from the probe holder using the correct spanner, taking care not to damage the probe tip or the holder threads. Install the replacement 330104-00-10-10-02-CN and set the air gap to the manufacturer-specified nominal value using a feeler gauge or gap voltage measurement method. Reconnect the extension cable and verify the gap voltage at the Proximitor output before restoring the monitor channel to active alarm status.

For legacy installations where the original 330104-00-10-10-02-CN has been in service for more than five years, this replacement is also an opportunity to upgrade the probe holder and extension cable to current-specification components, reducing the risk of future measurement loop failures. The 3300 XL system architecture supports this incremental modernization approach without requiring changes to the monitor rack or DCS configuration, making it a cost-effective strategy for extending the operational life of existing machinery protection systems.

Spare Parts Support FAQ

Q: Is the 330104-00-10-10-02-CN compatible with both the 3300 XL 8mm and the standard 3300 XL Proximitor systems?
A: Yes. The 330104-00-10-10-02-CN is designed for the Bently Nevada 3300 XL 8mm eddy current system. It is compatible with the 330180 series Proximitor Sensors and the associated 3300 XL monitor cards. Always confirm the Proximitor part number and system configuration before installation to ensure full loop compatibility.

Q: What pre-shipment testing is performed on each unit?
A: Each 330104-00-10-10-02-CN is tested for gap voltage output across the specified operating range, cable continuity, connector integrity, and sensitivity linearity before dispatch. A support terms confirmed by quotation is provided from the date of shipment, covering manufacturing defects and performance deviations under normal operating conditions.

Q: Can you support long-term supply agreements for this part number?
A: Yes. We support 12–36 month supply agreements for the 330104-00-10-10-02-CN and related 3300 XL series components, including Proximitor Sensors, extension cables, and monitor cards. Long-term agreements provide price stability, guaranteed availability, and priority dispatch for emergency requirements. Contact [email protected] to discuss terms.

Q: How should this spare part be stored to maintain its service life?
A: Store the 330104-00-10-10-02-CN in its original packaging in a dry, temperature-controlled environment (10°C to 40°C) away from strong electromagnetic fields and mechanical shock. Inspect the probe tip and connector for contamination before installation. Properly stored units maintain full performance characteristics for a minimum of three years from the date of manufacture.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-10-10-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-10-10-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
