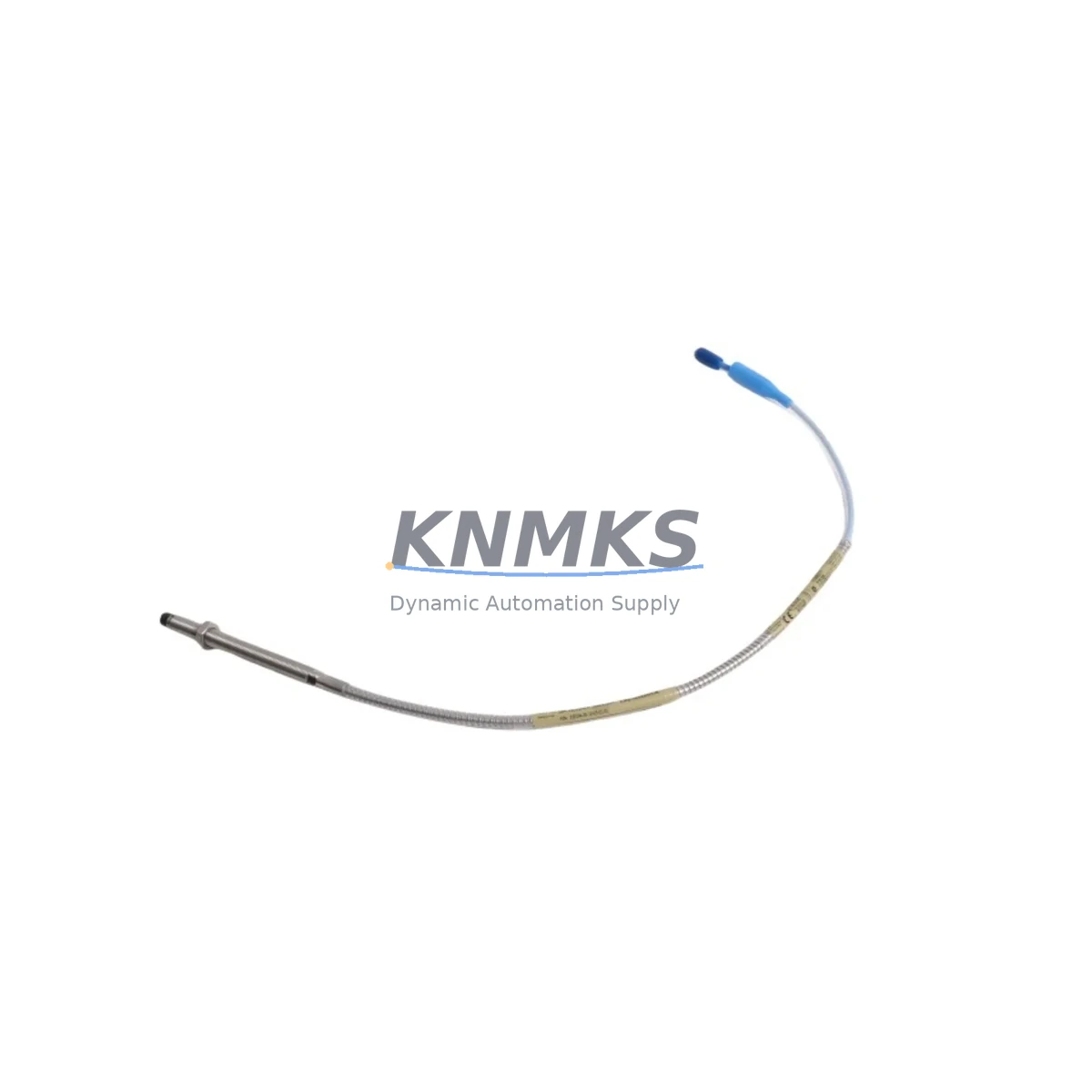

Bently Nevada 330104-00-10-05-01-BR Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-00-10-05-01-BR Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-10-05-01-BR is an 8mm eddy-current proximity probe engineered for direct, migration-ready deployment in legacy rotating machinery protection and condition monitoring systems. Designed as a verified drop-in replacement within the Bently Nevada 3300 XL Series platform, this probe supports plant engineers and reliability teams executing vibration monitoring upgrades, control cabinet retrofits, and spare-parts lifecycle extension programs without requiring full system redesign. Whether you are replacing a discontinued 330104 series probe on a steam turbine, compressor train, or pump skid, the 330104-00-10-05-01-BR delivers the signal integrity and mechanical compatibility required to restore system continuity with minimal downtime.

This probe is rated for a 10 mm (0.394 in) linear measurement range and operates with the standard Bently Nevada 3300 XL proximitor/driver system. The -BR suffix designates a brass-tipped probe body, which is suited for use in environments where non-magnetic tip materials are required for accurate gap measurement on rotating steel shafts. The cable assembly is 5 meters (standard), terminated with the industry-standard Bently Nevada connector interface, ensuring direct compatibility with existing field wiring and junction box terminations in most 3300 XL installations.

Before deploying this probe as a replacement, engineers should confirm the following: the existing proximitor driver model (typically a 3300 XL 8mm proximitor such as the 330180 or 330181 series), the gap voltage calibration range (typically –10 VDC at 2.0 mm gap), the cable extension length and total system resistance, the mounting thread specification (M10 × 1 standard), and the available installation clearance in the bearing housing or probe holder bracket. Firmware or configuration changes in the System 1 condition monitoring software or the 3500 Series rack may be required if the probe is being introduced into a previously calibrated channel.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe in an operating plant is rarely a standalone task. The 330104-00-10-05-01-BR is most commonly deployed as part of a broader vibration monitoring retrofit that involves multiple interdependent components. In a typical 3300 XL or 3500 Series rack installation, the probe works in conjunction with a 3300 XL 8mm proximitor driver (such as the 330180-90-00), which conditions the raw eddy-current signal into a calibrated voltage output for the monitoring rack. Engineers should verify that the proximitor driver is within its calibration interval and that the driver’s sensitivity setting matches the probe’s output characteristics before completing the replacement.

In installations where the 3500 Series monitoring rack is present, the probe channel configuration in the 3500/42M or 3500/40M vibration monitor module must be reviewed to confirm that the channel is mapped to the correct probe type and gap range. If the plant is running Bently Nevada System 1 software for online condition monitoring, the probe replacement event should be logged and the baseline vibration trend reset to avoid false alarm conditions during the initial run-in period after installation.

For plants executing a broader control system migration — for example, transitioning from a legacy DCS platform to a modern Emerson DeltaV or Honeywell Experion PKS architecture — the proximity probe signal chain must be preserved or re-routed through appropriate signal conditioning hardware. In these cases, a signal isolator or barrier module may be required to interface the –24 VDC proximitor output with the new DCS analog input card. The 3500 Series rack’s communication gateway (such as the 3500/92 communication gateway module) can be used to bridge the vibration data to the plant historian or DCS via Modbus or OPC, preserving data continuity during the migration window.

Cable routing and junction box termination should be inspected during the probe replacement. The extension cable connecting the probe to the proximitor driver must be the correct length to maintain the total system resistance within specification — typically the probe cable plus extension cable must not exceed the driver’s rated total cable length. In field installations where the original cable run has been extended or spliced, the total resistance should be measured before the new probe is commissioned. The probe holder bracket and lock nut should also be inspected for thread wear, and the probe gap should be set to the nominal value (typically 1.0–1.5 mm for steel shafts) using a calibrated gap-setting tool before the machine is returned to service.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any proximity probe replacement on a running production asset. For planned maintenance windows, the 330104-00-10-05-01-BR should be pre-staged with the gap pre-set and the cable assembly inspected before the machine is taken offline. Having the replacement probe, extension cable, and a calibrated gap-setting tool ready at the work site eliminates the most common sources of delay during the physical swap.

The original program logic in the 3500 Series rack or the DCS does not need to be modified for a like-for-like probe replacement, provided the new probe is the same model and the gap voltage is re-verified after installation. The alarm setpoints, danger limits, and trip multipliers configured in the 3500/42M or equivalent vibration monitor module remain valid as long as the probe sensitivity and gap calibration are within the original specification. This means the control system can be returned to automatic mode immediately after the probe gap is confirmed, without requiring a full functional test of the protection logic.

For plants where the proximity probe channel feeds a turbine trip or compressor surge protection system, the channel should be placed in bypass mode in the 3500 rack before the probe is disconnected, and the bypass should be removed only after the new probe has been installed, gapped, and the output voltage verified at the rack terminal. This procedure protects the original control logic from nuisance trips during the replacement and ensures that the protection system is fully armed before the machine is restarted. Shipment testing and pre-commissioning verification of the 330104-00-10-05-01-BR prior to dispatch reduces the risk of receiving a non-functional probe and extends the effective service life of the installed monitoring system.

Retrofit Support FAQ

Q1: Is the 330104-00-10-05-01-BR a direct replacement for other 330104 series probes?
Yes, the 330104-00-10-05-01-BR is a direct mechanical and electrical replacement for other 330104 series 8mm proximity probes with the same cable length (5 m) and brass tip (-BR) configuration. If the original probe has a different suffix (e.g., -ST for stainless tip or a different cable length code), verify the tip material and cable run requirements before ordering. The mounting thread (M10 × 1) and connector interface are identical across the 330104 series.

Q2: What commissioning steps are required after installation?
After physical installation, set the probe gap to the nominal value specified in the machine’s vibration monitoring procedure (typically 1.0–1.5 mm for steel shafts). Verify the gap voltage at the proximitor driver output (typically –10 VDC ± 0.5 VDC at nominal gap). Confirm the channel reading in the 3500 rack or System 1 software, reset the vibration baseline if required, and remove any bypass conditions before returning the machine to service. Document the as-found and as-left gap voltage values for the maintenance record.

Q3: Can this probe be used with non-Bently Nevada monitoring systems?
The 330104-00-10-05-01-BR is designed for use with Bently Nevada 3300 XL proximitor drivers. It can be used with compatible third-party eddy-current driver systems that accept an 8mm probe with the same sensitivity specification (200 mV/mil or 7.87 V/mm), provided the driver’s input impedance and supply voltage are compatible. Consult the third-party driver’s datasheet and verify the output voltage range before integrating with non-Bently Nevada hardware.

Q4: What does the support terms confirmed by quotation cover, and is stock available for immediate shipment?
All 330104-00-10-05-01-BR units supplied by KNMKS are covered by a support terms confirmed by quotation against manufacturing defects and functional failure under normal operating conditions. Each unit is tested prior to shipment to verify probe sensitivity, cable continuity, and connector integrity. Stock is maintained for immediate dispatch to support emergency replacement and planned maintenance programs. Contact the sales team to confirm current inventory levels and lead times for your region.
