Bently Nevada 330104-00-09-05-02-00 Maintenance Spare Part

Overview

Bently Nevada 330104-00-09-05-02-00 Maintenance Spare Part for Factory Uptime

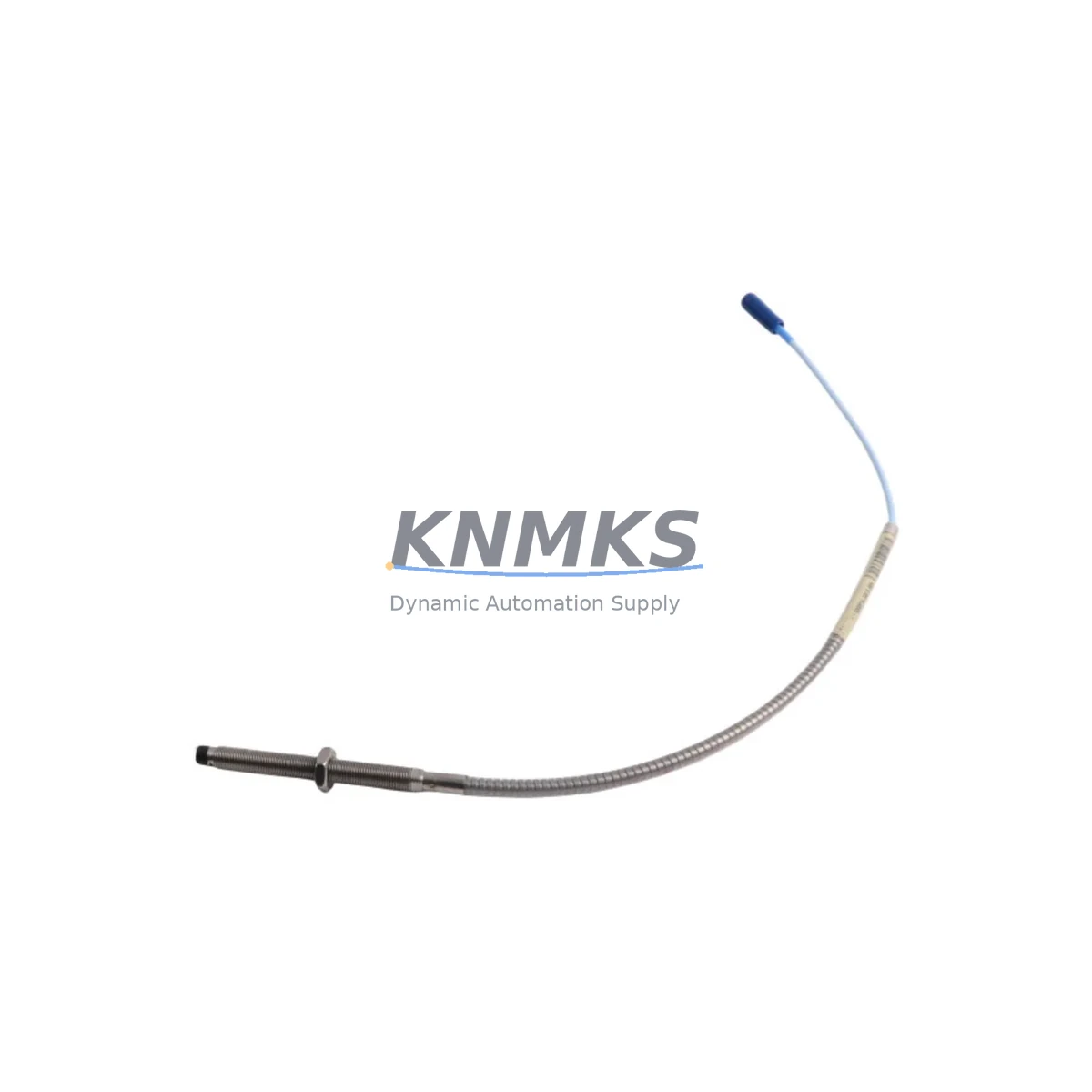

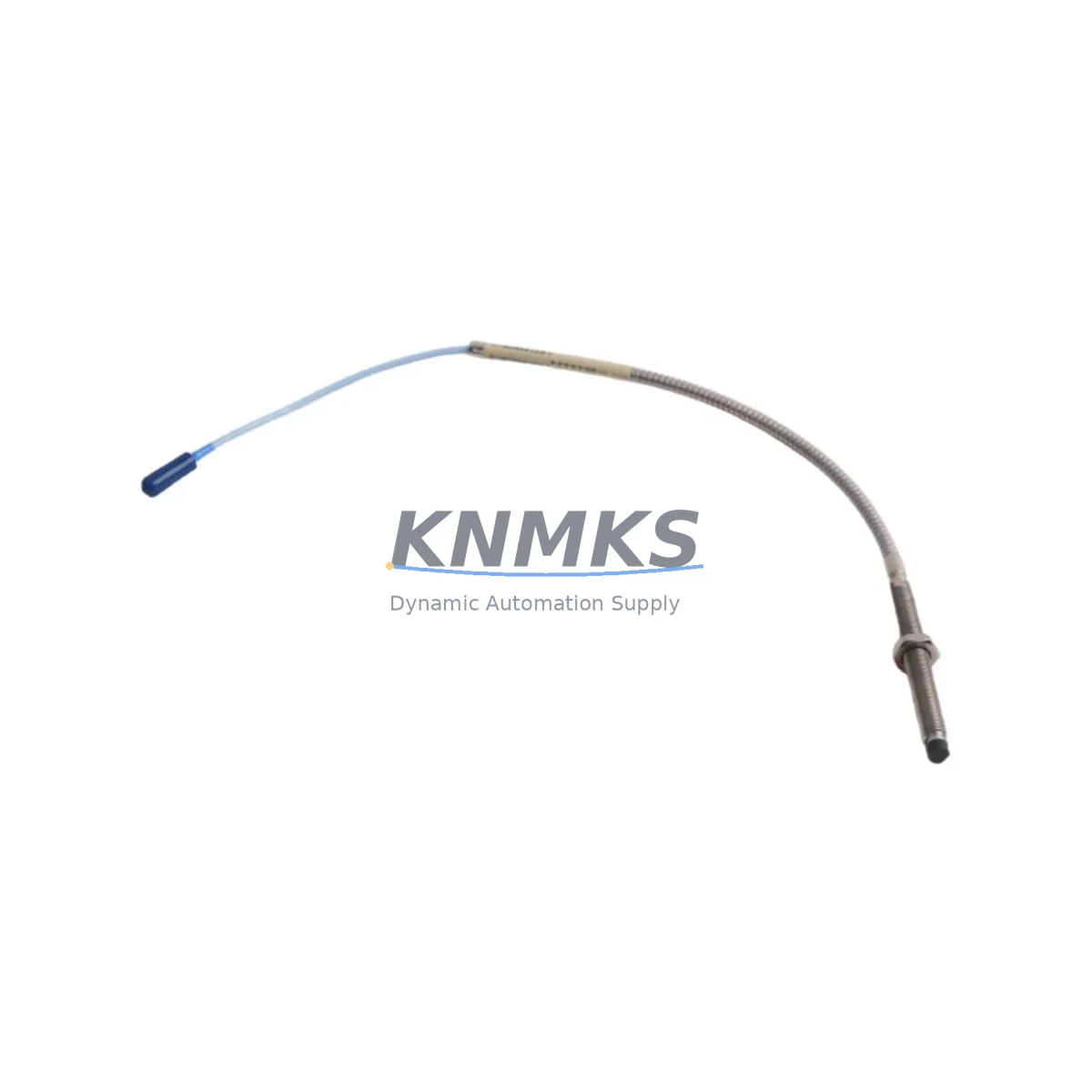

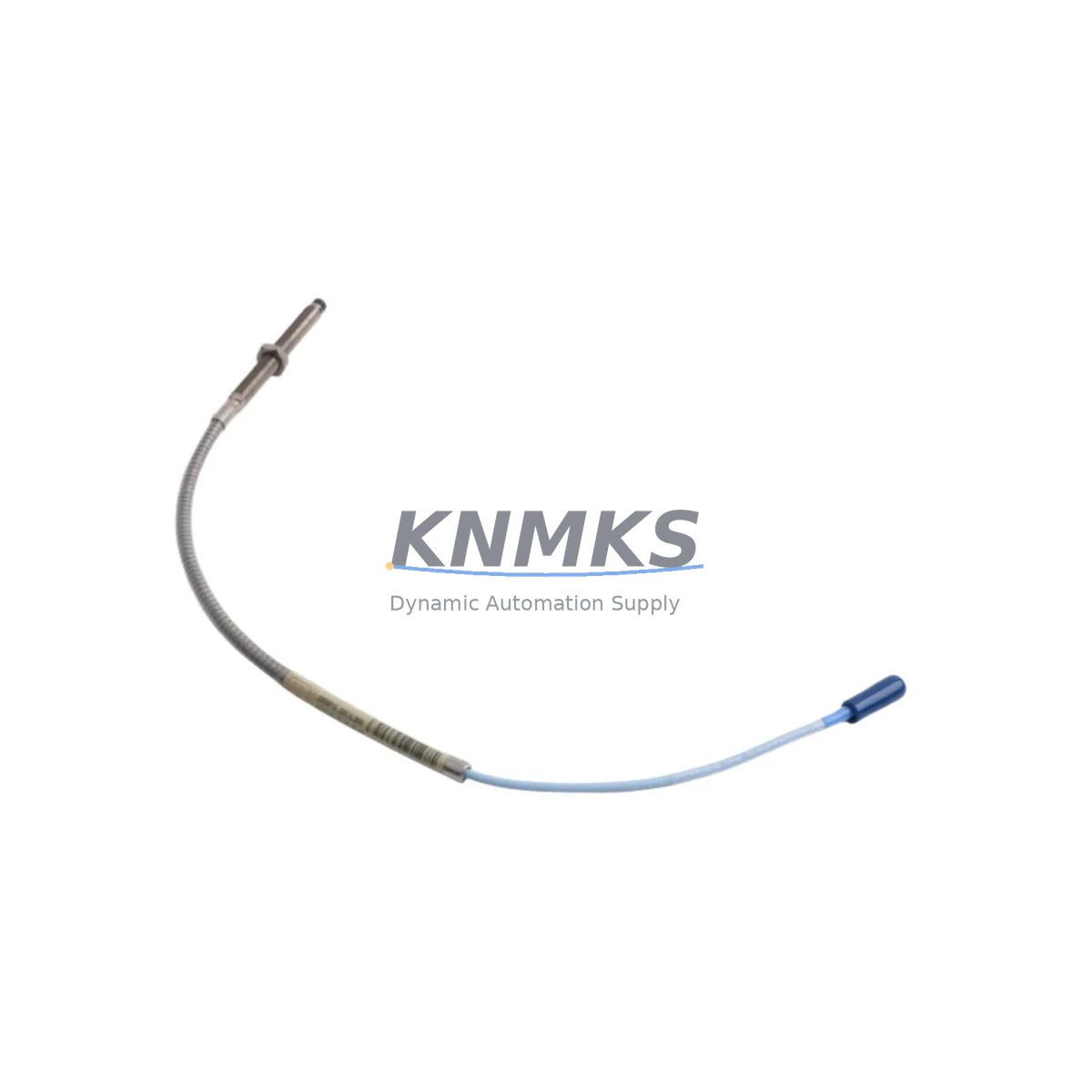

The Bently Nevada 330104-00-09-05-02-00 is an original proximity probe engineered for the 3300 XL continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Designed to deliver precise non-contact displacement measurement, this probe is a critical sensing element in turbine, compressor, pump, and motor protection loops where unplanned downtime carries significant operational and financial risk.

For maintenance engineers managing aging 3300 XL installations, holding a verified spare of the 330104-00-09-05-02-00 in the control room or MRO storeroom is a foundational uptime strategy. Probe failures — whether caused by cable fatigue, connector corrosion, tip damage from debris, or gradual sensitivity drift — can trigger false shutdowns or, worse, missed vibration events. Replacing a failed probe with a pre-tested, wiring-compatible original eliminates the diagnostic uncertainty that comes with non-OEM substitutes and keeps the protection loop fully certified.

This unit ships pre-tested against Bently Nevada factory electrical specifications, with full dimensional and sensitivity verification. Each unit is dispatched with a support terms confirmed by quotation covering manufacturing defects and electrical performance, supporting both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-09-05-02-00 probe is scheduled for replacement — whether during a planned outage, a predictive maintenance interval, or an emergency callout — the replacement event is the right moment to audit the entire vibration measurement chain. A probe swap that ignores adjacent components can introduce new failure modes within weeks.

Begin with the 330180 series Proximitor® Sensor (driver/oscillator module). The Proximitor converts the probe’s eddy-current signal into a DC voltage proportional to gap distance. If the probe has been running in a high-temperature or high-vibration zone, the Proximitor’s internal components may have drifted out of calibration range. Replacing the probe without verifying the Proximitor’s output at the nominal gap will produce erroneous readings even with a new probe installed.

Next, inspect the extension cable assembly — typically a 330130 series armored extension — which bridges the probe body to the Proximitor. Extension cable failures (cracked armor, connector pin corrosion, shield continuity loss) are frequently misdiagnosed as probe failures. Confirm shield-to-ground continuity and center-conductor resistance before closing the loop.

At the monitor rack, verify the 3300 XL monitor card (e.g., 3300/16 or 3300/25 dual-channel card) for alarm setpoint integrity and OK relay status. A probe replacement is also the correct time to confirm that the I/O terminal block connections on the monitor backplane are torqued to specification and free of oxidation — loose terminals are a leading cause of intermittent OK dropouts after maintenance.

For facilities running the 3300 XL in a System 1 or System 1 Evolution data acquisition environment, confirm that the channel configuration (gap voltage, direct amplitude, 1X/2X tracking) is correctly mapped after the probe swap. A channel that was previously masked or bypassed during the fault condition must be re-enabled and verified against baseline vibration signatures before returning the machine to service.

Procurement engineers should also consider stocking the 330103 series (5 mm probe variant) and 330105 series (14 mm probe variant) alongside the 330104 to cover the full range of shaft sizes present in a mixed rotating equipment fleet. A consolidated spare parts list that covers probe, extension cable, and Proximitor as a matched set — rather than individual components — significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the monitor channel is bypassed or the machine is safely de-energized before probe removal. Document the existing gap voltage reading from the System 1 trend or the monitor front panel.

Step 2 — Probe Removal: Unthread the probe from the bracket. Inspect the probe tip for impact marks or debris contamination. Inspect the mounting bracket threads and confirm the bracket is not cracked or deformed — a damaged bracket will prevent correct gap setting on the new probe.

Step 3 — Extension Cable Inspection: Disconnect the extension cable at both the probe and Proximitor ends. Measure center-conductor resistance (typically <5 Ω for a 5 m assembly) and shield continuity. Replace the extension cable if resistance is out of specification or if the connector pins show corrosion.

Step 4 — New Probe Installation: Install the 330104-00-09-05-02-00 into the bracket. Set the gap to the OEM-specified nominal value (typically 1.0 mm / 40 mil for most 3300 XL applications) using a non-ferrous feeler gauge. Verify the Proximitor output voltage at the set gap — target approximately –10.0 VDC ± 0.5 V for standard 3300 XL calibration.

Step 5 — System Verification: Re-enable the monitor channel. Confirm OK relay status is healthy. Verify alarm and danger setpoints are active. Run the machine at low speed if possible and confirm the vibration reading is within expected baseline range before returning to full load.

Step 6 — Documentation: Record the replacement date, new probe serial number, gap voltage at installation, and Proximitor output in the equipment maintenance log. Update the spare parts inventory to trigger reorder of the consumed 330104-00-09-05-02-00 unit.

Spare Parts Support FAQ

Q1: Is the 330104-00-09-05-02-00 a direct drop-in replacement for older 330104 variants?
The 330104-00-09-05-02-00 is dimensionally and electrically compatible with earlier 330104 series probes used in 3300 XL systems. The SKU suffix encodes probe length (09 = 9 inches), cable length (05 = 5 meters), and connector type (02-00). Confirm that your existing bracket, extension cable, and Proximitor match these parameters before installation. If your site uses a different cable length or connector variant, contact our team to identify the correct suffix configuration.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-00-09-05-02-00 unit undergoes sensitivity verification at nominal gap, gap linearity check across the full operating range, insulation resistance measurement between center conductor and shield, and connector pin integrity inspection. Units that do not meet Bently Nevada factory electrical specifications are quarantined and not dispatched. A test record is available upon request for quality-critical applications.

Q3: What does the support terms confirmed by quotation cover, and how is a claim processed?
The support terms confirmed by quotation cover manufacturing defects and electrical performance failures under normal operating conditions as defined by Bently Nevada installation guidelines. It does not cover physical damage from improper installation, incorrect gap setting, or operation outside the rated temperature range. To initiate a support terms claim, contact admin@knmks.com with the order reference, unit serial number, and a description of the failure mode. Replacement units are dispatched upon claim verification.

Q4: Can you support long-term supply agreements for 330104-00-09-05-02-00 and related 3300 XL components?
Yes. For facilities with multiple 3300 XL installations or annual maintenance programs requiring predictable spare parts availability, we offer forward-stock arrangements and scheduled dispatch agreements. Long-term supply contracts help procurement teams avoid spot-market lead times — which can extend to 8–16 weeks for OEM-sourced components — and ensure that critical vibration monitoring spares are available on demand. Contact admin@knmks.com or +86 18359268345 to discuss volume pricing and supply terms.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345
