Bently Nevada 330104-00-08-90-02-CN Maintenance-Proven Spare for Factory Uptime

Overview

Bently Nevada 330104-00-08-90-02-CN Maintenance-Proven Spare for Factory Uptime

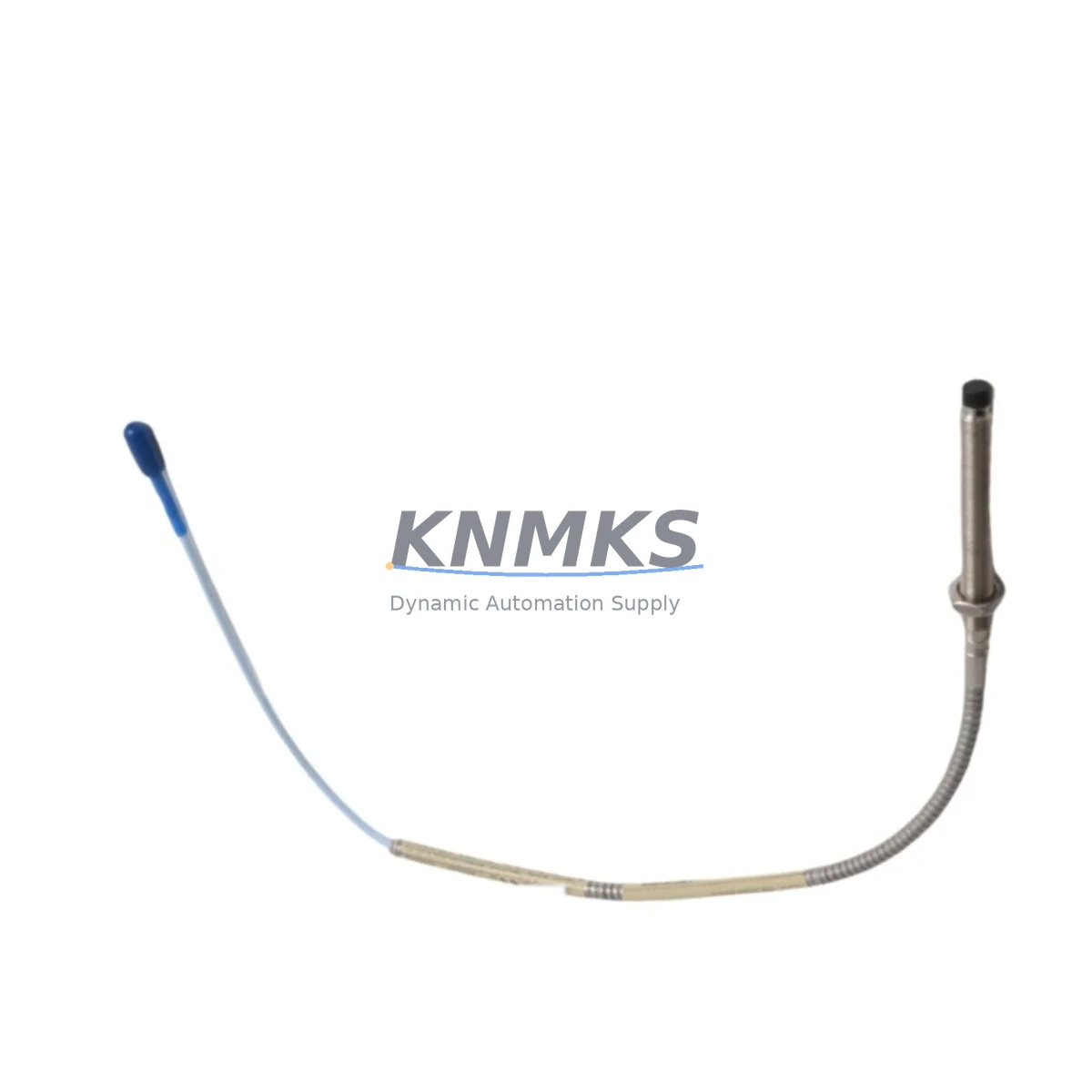

The Bently Nevada 330104-00-08-90-02-CN is an original 8mm proximity probe designed for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection across energy, petrochemical, power generation, and heavy manufacturing industries. Maintaining a verified spare of this probe in your critical spare parts inventory is a fundamental strategy for reducing unplanned downtime and ensuring rapid recovery during fault isolation or scheduled turnaround maintenance.

This probe is engineered for non-contact measurement of shaft radial vibration, axial position, and differential expansion on turbines, compressors, pumps, and motors. Its metric thread configuration (M10 x 1) and 8mm tip diameter make it a direct fit for existing 3300 XL installations without requiring bracket or cable modifications. Each unit is tested before shipment and backed by a support terms confirmed by quotation, giving maintenance engineers and procurement teams confidence in both performance and long-term supply continuity.

Whether you are responding to a vibration alarm, executing a planned outage, or building a resilient spare parts buffer for a critical asset, the 330104-00-08-90-02-CN delivers the compatibility, reliability, and traceability required for industrial-grade maintenance operations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-08-90-02-CN proximity probe is flagged during routine inspection or triggers a high-vibration alarm, the replacement workflow extends beyond the probe itself. A disciplined maintenance engineer will treat this event as an opportunity to audit the entire measurement chain and associated protection circuit.

Begin with the 3300 XL Extension Cable (330130 series) — the coaxial cable connecting the probe to the Proximitor sensor. Inspect for jacket damage, connector corrosion, and continuity. A degraded extension cable is a common source of signal noise that is frequently misattributed to probe failure. Next, verify the 3300 XL Proximitor Sensor (330180 or 330185 series), which conditions the eddy current signal and provides the DC output to the monitoring system. Check the Proximitor’s power supply input (typically -24 VDC) and confirm output voltage is within the calibrated linear range.

At the control cabinet level, inspect the 3300 XL Rack (3500 series rack or equivalent) backplane connections and I/O module seating. Loose backplane contacts can introduce intermittent faults that are difficult to distinguish from probe degradation. If the installation includes a 3500/42M Proximitor/Seismic Monitor or similar Bently Nevada monitor card, verify channel configuration and alarm setpoints have not drifted following any firmware update or power cycle event.

For installations where the proximity signal feeds into a DCS or safety instrumented system, confirm that the signal isolator or barrier (commonly a Zener barrier or galvanic isolator rated for the -24 VDC loop) is functioning correctly. A failed isolator can clamp or distort the probe output, producing false readings without triggering a hard fault. Additionally, check the terminal block and field wiring at the junction box — loose terminations and moisture ingress are leading causes of intermittent vibration signal faults in outdoor or high-humidity environments.

For assets in continuous service, it is best practice to maintain at least one verified spare 330104-00-08-90-02-CN probe, one matched extension cable, and one Proximitor sensor per critical machine train. This three-component spare set enables a complete measurement chain swap during a forced outage, minimizing mean time to repair (MTTR) and reducing the risk of returning a machine to service with an unverified sensor chain.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the Proximitor sensor supply before disconnecting the probe. Confirm the monitoring system channel is bypassed or inhibited to prevent spurious trips during replacement.

Step 2 — Probe Removal: Using the appropriate spanner, unthread the 330104-00-08-90-02-CN from the probe holder. Note the gap voltage reading prior to removal if the machine is still rotating at low speed — this provides a baseline for comparison after installation.

Step 3 — Gap Setting: Install the replacement probe and set the air gap to the OEM-specified value (typically 1.0 mm / 40 mil for 8mm probes in standard 3300 XL installations). Use a calibrated gap-setting tool or feeler gauge. Confirm the Proximitor output voltage is within the linear range (typically -10 VDC ± 0.5 VDC at nominal gap).

Step 4 — System Verification: Re-energize the Proximitor, confirm channel output at the monitor, and verify alarm and danger setpoints are active. Perform a slow-roll check if the machine can be brought to low speed before returning to full load.

Step 5 — Documentation: Record the replacement in the asset maintenance log, including the new probe serial number, gap voltage, and date. Update the spare parts inventory to trigger replenishment of the consumed spare.

This workflow is compatible with direct replacement of legacy 330104-00-08 series probes, enabling seamless upgrades without modification to existing probe holders, extension cables, or Proximitor sensors — preserving system compatibility and reducing installation risk.

Spare Parts Support FAQ

Q1: Is the 330104-00-08-90-02-CN compatible with existing 3300 XL extension cables and Proximitor sensors?
Yes. The 330104-00-08-90-02-CN is fully compatible with the 3300 XL extension cable (330130 series) and Proximitor sensors (330180 / 330185 series). The M10 x 1 metric thread and CN coaxial connector are standard across the 3300 XL probe family, allowing direct replacement without cable or bracket modifications.

Q2: How is each unit tested before shipment?
Every 330104-00-08-90-02-CN is subject to electrical continuity verification and functional output testing against OEM sensitivity specifications (7.87 V/mm) prior to dispatch. A test report is available upon request. Units are packaged to prevent transit damage to the probe tip and connector.

Q3: What is the recommended spare parts stocking strategy for critical rotating machinery?
For assets classified as critical (single-train compressors, main turbines, boiler feed pumps), we recommend maintaining a minimum of one complete measurement chain spare set: one 330104-00-08-90-02-CN probe, one matched 330130 series extension cable, and one 330180/330185 Proximitor sensor. This enables a full channel swap within a single maintenance window, eliminating the risk of extended downtime due to sequential component failures.

Q4: Is long-term supply available for the 330104-00-08-90-02-CN?
Yes. KNMKS maintains ongoing inventory and sourcing commitments for the 3300 XL probe series to support customers with legacy installations and extended asset life programs. Long-term supply agreements and scheduled delivery programs are available for procurement teams managing multi-site or multi-unit fleets. Contact our team to discuss volume pricing and supply continuity arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-08-90-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-08-90-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
