Bently Nevada 330104-00-08-10-02-00 Migration-Ready Proximity Transducer

Overview

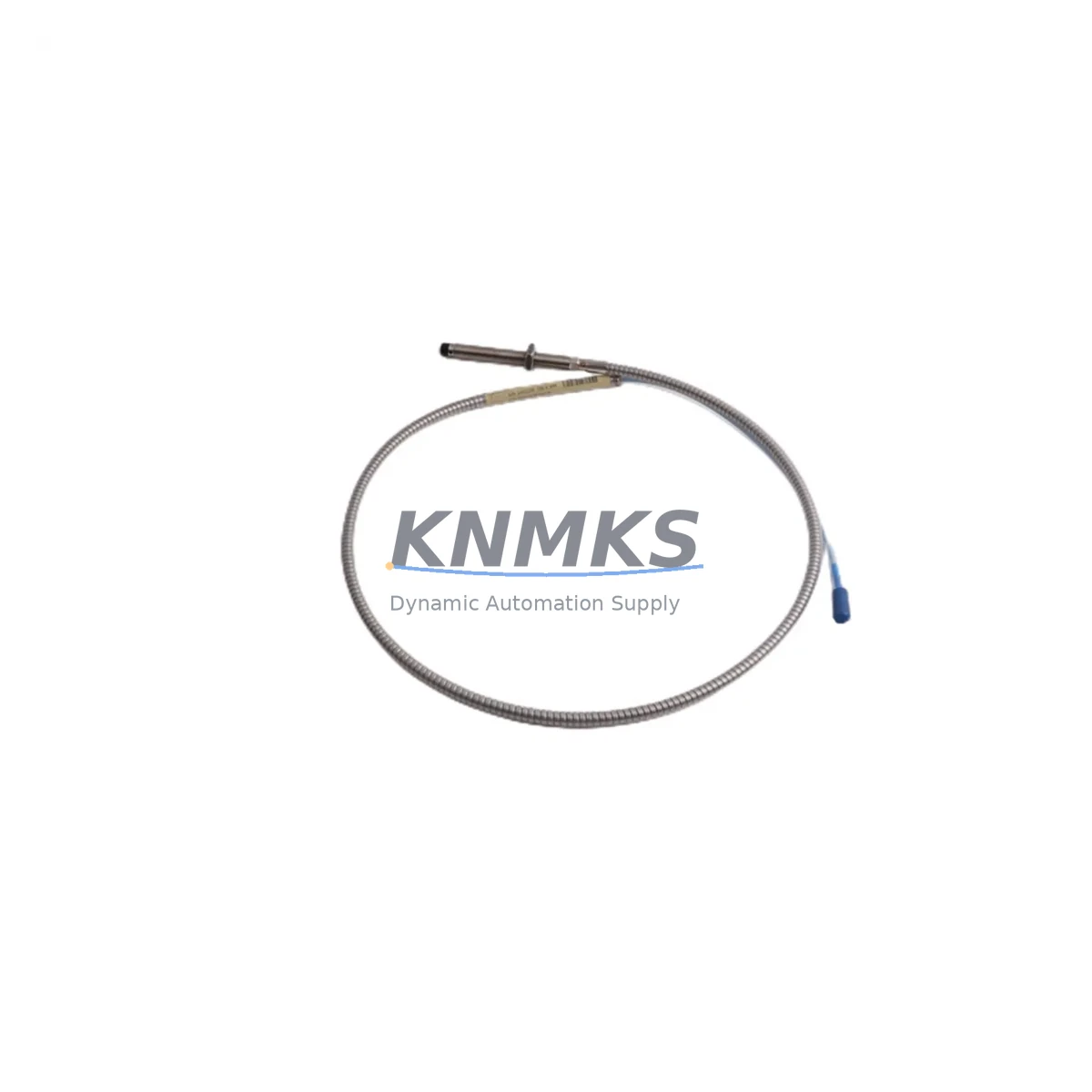

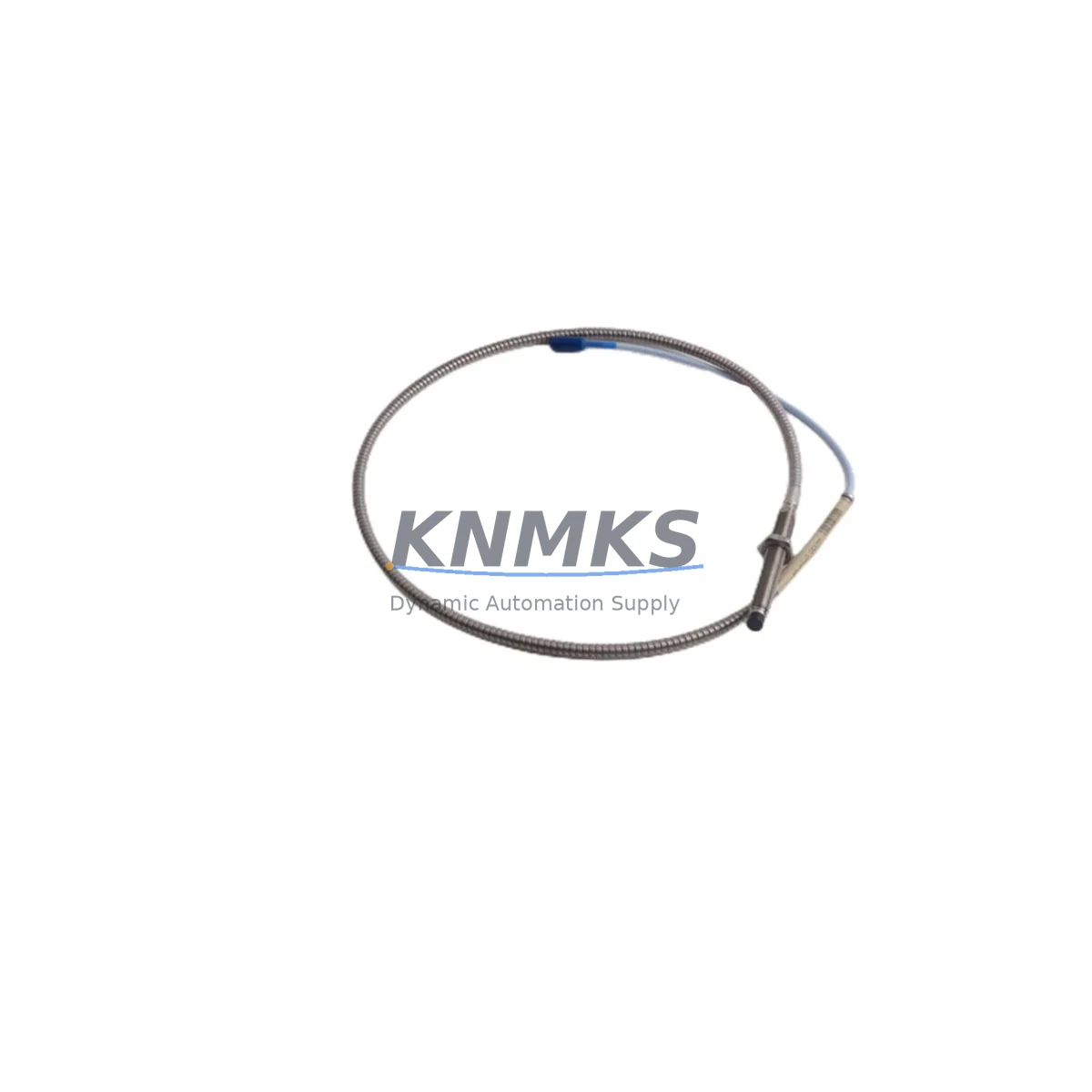

Bently Nevada 330104-00-08-10-02-00 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330104-00-08-10-02-00 is an 8mm proximity transducer from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series installations approach end-of-support cycles, this unit serves as a verified migration-ready replacement that preserves existing wiring infrastructure, rack compatibility, and signal conditioning logic — dramatically reducing retrofit risk and unplanned downtime.

For facilities operating aging turbomachinery protection systems, the 330104-00-08-10-02-00 provides a direct upgrade path without requiring full panel redesign. Its 8mm sensing tip, standard 5-metre extension cable interface, and -24 VDC bias voltage output are fully compatible with existing 3300 Series monitor racks, including the 3300/16 and 3300/20 rack assemblies. Engineers migrating from discontinued 330104-00-05 or 330104-00-06 variants can retain original terminal block wiring and avoid costly re-termination work during the changeover window.

Before committing to a replacement, site engineers should verify the following parameters against the existing installation: power supply capacity (typically -24 VDC at the junction box), terminal block pin assignments on the proximitor/driver module, available backplane slot addressing if the monitor rack is being partially upgraded, and the gap voltage calibration range (typically -10 VDC at 2.0 mm nominal gap for 8mm probes). If the control system includes a Bently Nevada 3500 Series rack running alongside legacy 3300 hardware, confirm that the proximitor output scaling matches the 3500/42M or 3500/45 monitor card input range before finalising the swap.

Program compatibility is another critical checkpoint. DCS or safety system logic referencing the transducer’s 4–20 mA or voltage output should be reviewed in the PLC or DCS engineering workstation before the outage window begins. If the plant uses a GE Mark VI or Emerson Ovation DCS platform, verify that the I/O module channel configuration reflects the correct transducer sensitivity (typically 7.87 V/mm or 200 mV/mil) to prevent false alarm trips during commissioning. HMI faceplate scaling and alarm setpoints should be cross-checked against the new unit’s calibration certificate prior to loop testing.

Installation space confirmation is essential in congested machinery skids. The 330104-00-08-10-02-00 uses a standard M10 x 1 thread mount with a 5/16-inch hex lock nut, compatible with most OEM probe holder brackets. Confirm that the extension cable routing path is free of high-temperature zones exceeding 121°C and that the armoured cable is not routed adjacent to high-voltage power cables to avoid signal interference. Firmware version compatibility on the associated monitor card should also be confirmed — particularly for 3300/16 cards running firmware below revision 3.x, which may require a field update before the new transducer is recognised correctly.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-08-10-02-00 into an existing turbomachinery protection system requires coordinated planning across mechanical, electrical, and control disciplines. The transducer itself is only one element of a complete measurement chain. The associated Bently Nevada 3300 XL proximitor (driver) module — typically a 330130 or 330180 series proximitor — must be inspected for output drift and connector corrosion before the new probe is installed. A degraded proximitor will produce erratic gap voltage readings even with a new transducer, leading to false diagnostics during commissioning.

For plants upgrading from a 3300 Series rack to a 3500 Series rack as part of a broader control system modernisation, the 3500/42M Proximitor/Seismic Monitor or 3500/45 Position Monitor cards are the recommended migration targets. These cards accept the same 8mm probe and extension cable assembly but offer enhanced diagnostics, Modbus RTU and Ethernet/IP communication options, and integration with the System 1 condition monitoring software platform. If the plant’s DCS communicates via FOUNDATION Fieldbus or PROFIBUS DP, a 3500 rack with the appropriate communication gateway module will be required to bridge the legacy analogue signal to the digital bus.

I/O expansion considerations are also relevant when the retrofit coincides with a broader panel upgrade. If additional vibration measurement points are being added — for example, extending monitoring to a gearbox or auxiliary pump — the 3300/16 rack’s available slot count should be audited before the outage. A Bently Nevada 3300 I/O module or a supplementary 3500 rack section may be required. Signal isolators, such as a DIN-rail mounted galvanic isolator, should be considered for any new measurement loops sharing a common ground with variable-frequency drive (VFD) circuits to prevent ground loop interference from corrupting the proximity signal.

Programming cable access is another pre-outage requirement. If the 3300 or 3500 monitor card configuration needs to be updated — for example, to adjust alarm setpoints, change the measurement mode from radial vibration to axial position, or update the transducer sensitivity constant — a Bently Nevada System 1 workstation with the appropriate rack communication cable must be available on-site before the maintenance window begins. Attempting to reconfigure monitor cards without the correct programming interface during a live outage significantly extends downtime.

Downtime Control During System Migration

Minimising production downtime during a proximity transducer replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330104-00-08-10-02-00 unit should be bench-tested against a calibrated gap simulator to verify output voltage at the nominal 2.0 mm gap. This pre-shipment verification — which is included as part of our standard outgoing inspection — confirms that the unit will produce the expected -10 VDC ± 0.5 VDC output before it reaches the field, eliminating the risk of installing a non-conforming unit during a time-critical outage.

Original program logic should be backed up from the DCS or safety PLC before any hardware is disturbed. If the plant uses a Triconex or Rockwell ControlLogix safety system interfacing with the Bently Nevada rack via hardwired relay outputs or a serial communication link, the existing I/O mapping and safety function configuration should be documented and saved to a secure engineering workstation. This backup ensures that if the monitor card requires reconfiguration during the swap, the original logic can be restored without relying on memory or outdated paper records.

Field control continuity can be maintained during the transducer swap by placing the affected monitor channel into bypass mode before disconnecting the probe. Most 3300 and 3500 Series monitor cards support a software-initiated bypass that suppresses alarm and trip outputs for the affected channel while leaving adjacent channels fully active. This prevents a spurious machinery trip during the physical probe removal and reinstallation sequence, protecting both the equipment and the production schedule.

After reinstallation, the gap voltage should be measured at the proximitor output terminals and compared against the calibration certificate supplied with the unit. Loop testing should confirm that the DCS or safety system receives the correct analogue value and that all alarm and trip setpoints respond correctly to a simulated gap change. Total field commissioning time for a like-for-like 330104-00-08-10-02-00 replacement is typically 2–4 hours when pre-outage preparation has been completed correctly.

Retrofit Support FAQ

Q: Is the 330104-00-08-10-02-00 a direct replacement for the discontinued 330104-00-05 and 330104-00-06 models?
A: Yes. The 330104-00-08-10-02-00 is mechanically and electrically compatible with the 330104-00-05 and 330104-00-06 variants. The M10 x 1 thread, 8mm sensing diameter, -24 VDC supply, and 7.87 V/mm output sensitivity are identical. No bracket modification or wiring change is required for a direct swap.

Q: What wiring checks are required before installation?
A: Verify that the junction box terminal block connections match the standard Bently Nevada colour-coded wiring scheme (shield, positive, negative). Inspect the extension cable connector for pin corrosion or mechanical damage. Confirm that the proximitor module output terminals are clean and that the supply voltage at the junction box is within the -24 VDC ± 1 VDC tolerance before connecting the new probe.

Q: How is outgoing testing performed and what documentation is provided?
A: Each 330104-00-08-10-02-00 unit undergoes a bench calibration check against a certified gap simulator prior to shipment. A calibration record confirming the output voltage at 1.0 mm, 2.0 mm, and 3.0 mm gap distances is included with the unit. This documentation supports your incoming inspection process and provides a baseline for future condition monitoring comparisons.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects, output calibration drift beyond the published specification (±0.5 VDC at nominal gap), and connector or cable assembly integrity failures under normal operating conditions. Support requests are supported by KNMKS with advance replacement where stock is available, minimising the impact of any field failure on production continuity. Contact admin@knmks.com or +86 18359268345 to initiate a support terms claim.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-08-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-08-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
