Bently Nevada 330104-00-08-10-01-CN Migration-Ready Proximity Probe

Overview

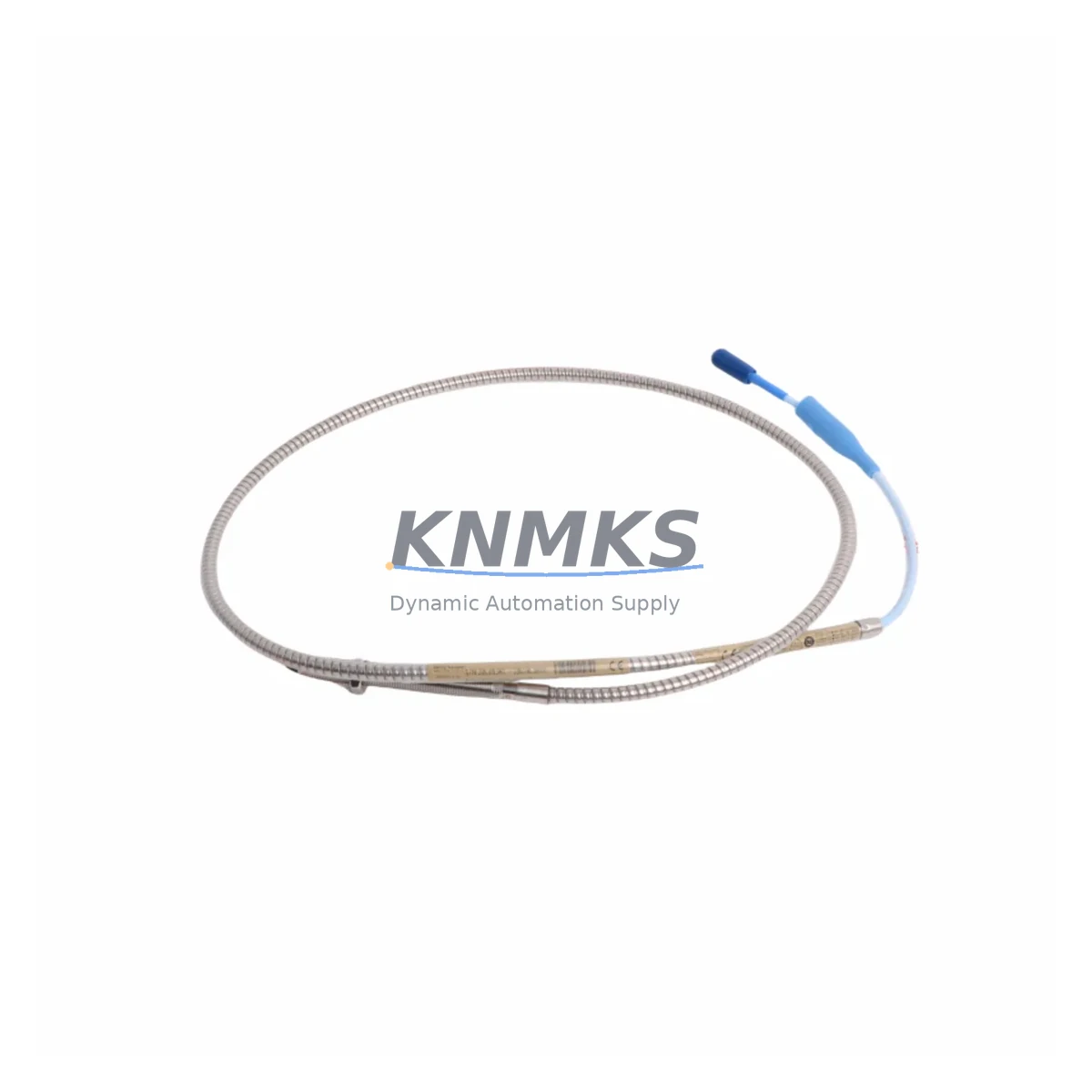

Bently Nevada 330104-00-08-10-01-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-08-10-01-CN is an 8mm eddy current proximity probe engineered for direct drop-in replacement within the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life or face discontinued OEM support, this probe provides a verified, migration-ready solution for facilities managing turbines, compressors, pumps, and gearboxes across oil & gas, power generation, and petrochemical industries. With pre-shipment functional testing, confirmed dimensional and electrical compatibility, and a support terms confirmed by quotation, the 330104-00-08-10-01-CN is a reliable choice for both emergency replacement and planned retrofit programs.

When integrating this probe into an existing 3300 XL monitoring loop, engineers must verify the full signal chain: the probe pairs with a compatible extension cable — typically the Bently Nevada 330130 series — and a proximitor/oscillator driver such as the 3300 XL 8mm Proximitor (330180 series). The complete transducer system must be gap-calibrated to the target shaft material, with output voltage typically ranging from −2 VDC to −18 VDC across the linear range. Any deviation in cable length from the original installation will affect the system’s calibrated sensitivity and must be compensated during commissioning.

For facilities migrating from older 7200 Series or 3300/16 monitoring systems to the 3300 XL platform, the 330104-00-08-10-01-CN serves as a key hardware anchor in the transition. The migration process requires careful attention to terminal block wiring differences between legacy and current-generation I/O modules, rack backplane connector compatibility, and the address mapping of each transducer channel within the monitoring rack. Where the original system used analog buffered output signals routed to a DCS or SCADA historian, the new configuration must replicate those signal paths — including any 4–20 mA conversion modules or signal conditioners — to maintain continuity of vibration trend data and alarm setpoints.

Retrofit planning should also account for the physical installation envelope. The 330104-00-08-10-01-CN uses a standard M8 thread mount with a defined probe body length; if the original probe bracket or proximity mount was designed for a different body diameter or thread pitch, a machined adapter or replacement bracket may be required. Probe tip-to-shaft gap must be set within the manufacturer’s specified range — typically 1.0 mm to 2.25 mm for 8mm probes on steel targets — and verified with a calibrated gap meter before the system is returned to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-08-10-01-CN into an operating plant begins well before the physical swap. The first step is a full loop audit: document the existing probe serial number, cable length, proximitor model, and the current gap voltage recorded in the DCS historian. This baseline allows the commissioning team to verify that the replacement probe — once installed and gapped — reproduces the same quiescent voltage, confirming that alarm and danger setpoints remain valid without reconfiguration.

In multi-channel monitoring racks, the 3300 XL system assigns each transducer a specific rack slot and channel address. Before removing the legacy probe, confirm the channel address in the rack configuration software and note any custom scale factors or OK limit settings applied to that channel. If the rack is running a 3300 XL 16-channel I/O module, verify that the module firmware is current, as older revisions may require a firmware update before accepting a replacement transducer with a different cable assembly revision.

The extension cable — typically a 330130-XX-XX series — must be ordered to match the exact length of the original installation. Mismatched cable lengths alter the total system inductance and capacitance, shifting the proximitor’s calibrated output curve. Where cable routing has changed due to panel modifications or conduit rerouting, a new cable length calculation must be performed and the system recalibrated end-to-end. In some installations, a 3300 XL Termination Module or a dedicated signal conditioning card handles the interface between the proximitor output and the rack’s analog input — these modules should be inspected for corrosion, loose terminals, and correct DIP switch settings before the new probe is energized.

For plants that have integrated vibration data into a broader condition monitoring platform — such as a System 1 Evolution software suite or a third-party SCADA historian — the retrofit must also include a verification step at the software layer. Confirm that the channel tag name, engineering unit scaling, and alarm threshold configuration in the monitoring software match the physical installation after the probe swap. Where HMI faceplate graphics display real-time vibration trends, a brief functional test with the machine at low speed will confirm that the new probe’s signal is being correctly received, scaled, and displayed before the unit is returned to full load.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330104-00-08-10-01-CN should be bench-tested against a reference proximitor to confirm output linearity and OK status. All required tools — gap meter, torque wrench, terminal screwdrivers, and a laptop with the rack configuration software — should be staged at the work site. The DCS operator should be briefed on the expected duration of the channel bypass and the alarm inhibit sequence required to prevent spurious trips during the swap.

During the outage, the original probe’s gap voltage should be recorded before disconnection. The replacement probe is installed, gapped to the nominal setpoint, and the output voltage verified at the proximitor before the terminal connections are restored to the rack I/O module. If the rack uses a 3300 XL Keyphasor module for phase reference, confirm that the Keyphasor signal is unaffected by the probe replacement and that the once-per-revolution trigger is still correctly detected after the new probe is energized.

Once the probe is live and the channel is returned to normal monitoring mode, a short coast-down or run-up test — if operationally feasible — provides the most reliable confirmation that the replacement is functioning correctly. Vibration amplitude and phase readings should be compared against the pre-outage baseline stored in the historian. Any deviation greater than the system’s established acceptance band should be investigated before the machine is returned to full load. Retaining the original probe as a tested spare — if it passed a bench check — provides an additional layer of protection against repeat downtime in the event of a future failure.

Retrofit Support FAQ

Q1: Is the 330104-00-08-10-01-CN a direct replacement for the standard Bently Nevada 330104-00-08-10-01?
The -CN suffix designates the country-of-origin variant manufactured for the Chinese market. Electrically and dimensionally, it is equivalent to the standard 330104-00-08-10-01 and is compatible with the same 330130 extension cables and 330180 proximitor drivers used in 3300 XL systems. Confirm the cable assembly revision matches your existing installation before ordering.

Q2: What commissioning steps are required after installing the replacement probe?
After physical installation, set the probe-to-shaft gap to the nominal value (typically 1.0–2.25 mm for 8mm probes on steel targets) and verify the proximitor output voltage is within the OK window. Confirm the channel status in the 3300 XL rack configuration software, check that alarm and danger setpoints are active, and perform a functional signal trace to the DCS or SCADA historian to confirm correct data flow before releasing the machine to service.

Q3: Can this probe be used in a system that is being migrated from a 7200 Series or 3300/16 platform?
Yes, with careful planning. The 330104-00-08-10-01-CN is designed for the 3300 XL platform. When migrating from a 7200 or 3300/16 system, the rack, I/O modules, proximitor, and cable assembly must all be updated to 3300 XL-compatible components. The probe itself is not backward-compatible with 7200 Series proximitors. A full system migration plan — including terminal wiring mapping, channel address reassignment, and DCS tag reconfiguration — is required.

Q4: What support terms and pre-shipment testing does this unit include?
Every 330104-00-08-10-01-CN shipped by KNMKS includes a pre-shipment functional test covering output linearity, OK status verification, and dimensional inspection. The unit is covered by a support terms confirmed by quotation from the date of shipment. In-stock units are available for same-week dispatch to support emergency replacement and planned maintenance schedules. Contact our technical team for lead time confirmation and bulk order availability.
