Bently Nevada 330104-00-08-10-01-00 Spare for Factory Uptime: Maintenance-Proven Proximity Probe for Continuous Industrial Operation

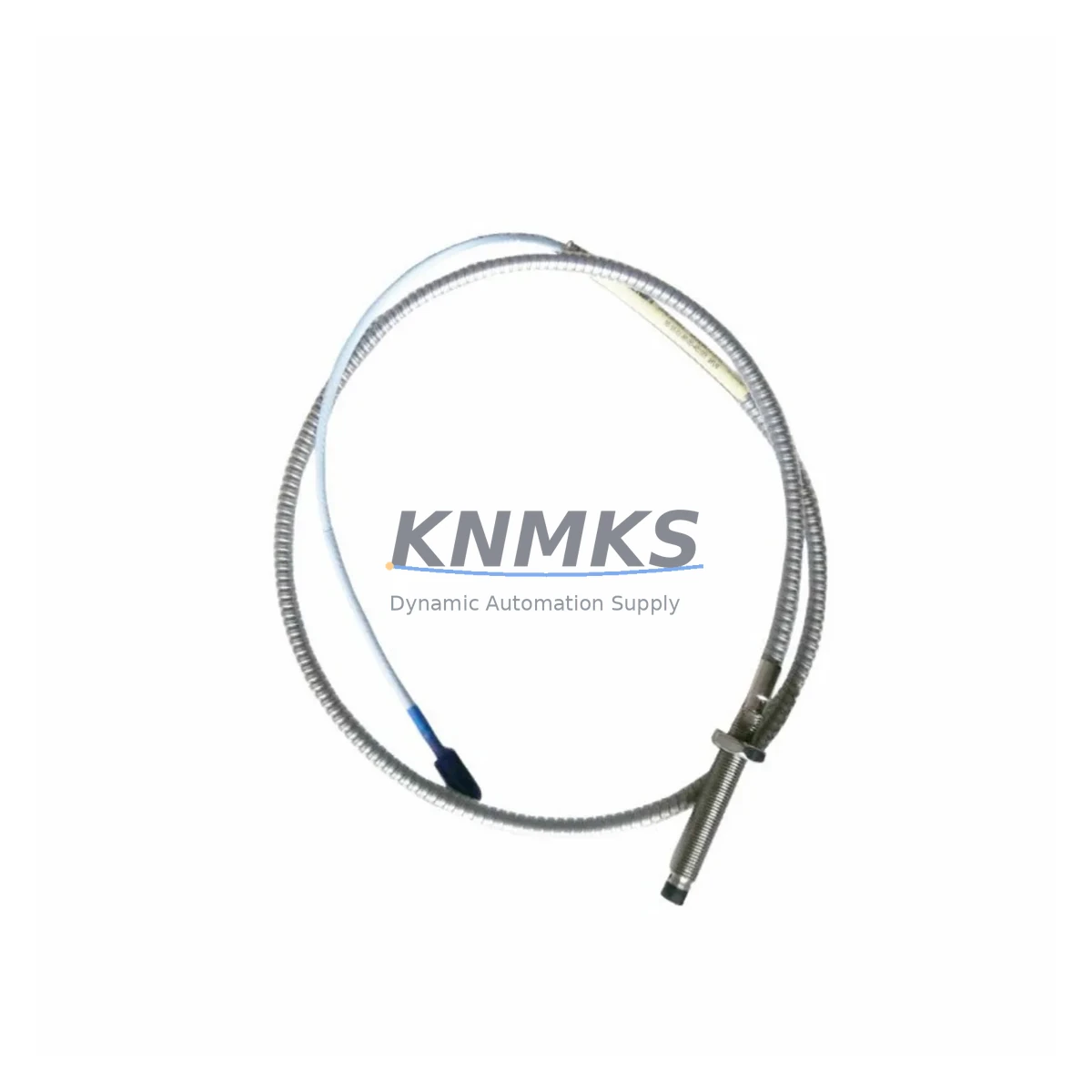

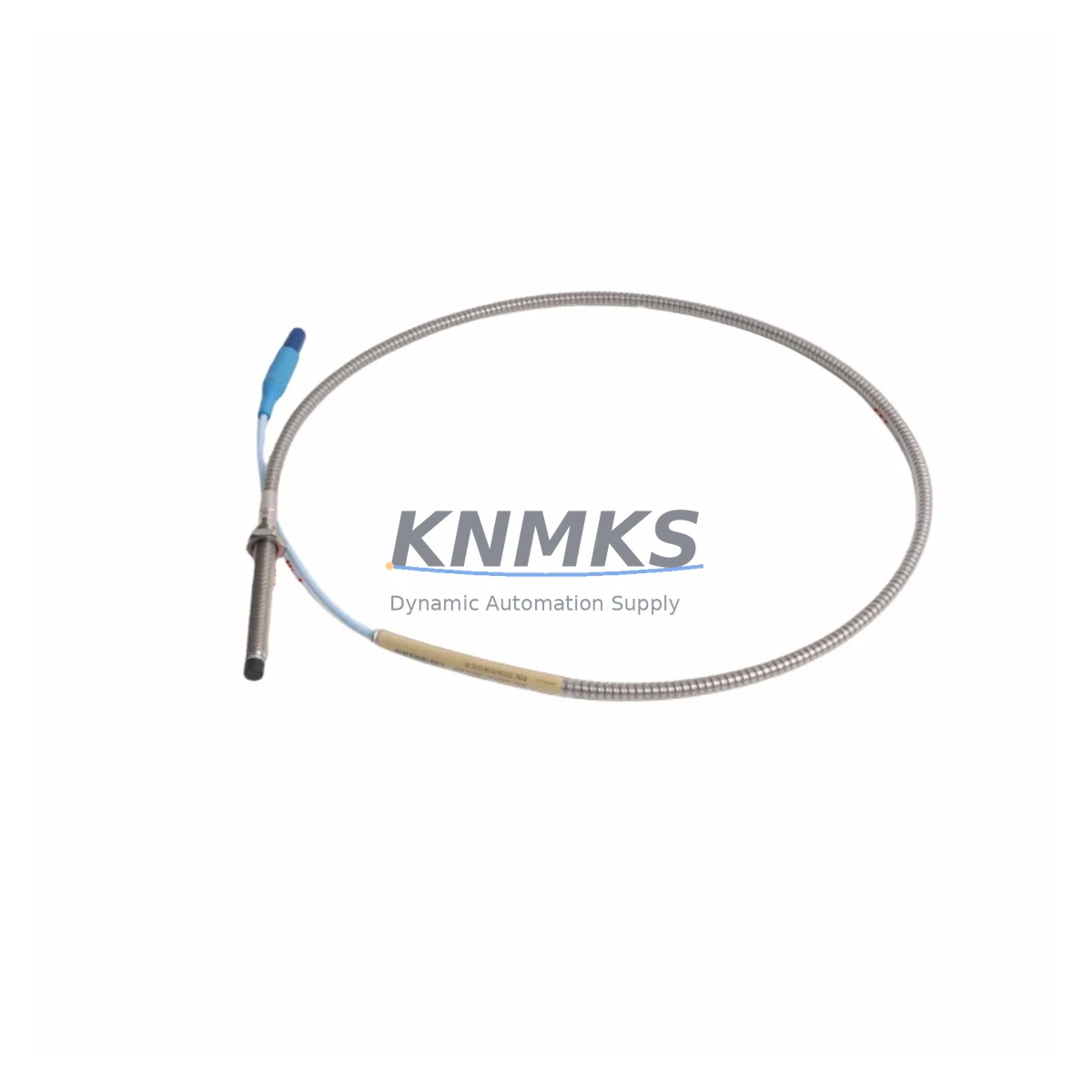

The Bently Nevada 330104-00-08-10-01-00 is an 8mm proximity transducer designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across petrochemical, power generation, oil & gas, and heavy manufacturing facilities. This original spare part is stocked, tested, and ready for immediate dispatch to support planned maintenance schedules and emergency replacement scenarios where machine uptime is non-negotiable.

Proximity probes in the 3300 XL series are critical sensing elements in shaft vibration, axial position, and differential expansion measurement loops. When a probe degrades or fails, the entire protection channel is compromised — triggering nuisance trips, masking real machinery faults, or leaving rotating assets unprotected. Maintaining a verified spare of the 330104-00-08-10-01-00 in your site inventory is a fundamental risk mitigation strategy for any facility operating turbines, compressors, pumps, or gearboxes under continuous duty cycles.

Each unit shipped from KNMKS undergoes pre-shipment functional verification, including output voltage linearity check and cable continuity confirmation, ensuring the replacement probe is field-ready upon arrival. All units carry a support terms confirmed by quotation covering manufacturing defects and performance deviations from published specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-08-10-01-00 proximity probe during a scheduled outage or emergency shutdown, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration monitoring loop. The probe does not operate in isolation — its performance is directly dependent on the condition and calibration of the associated 3300 XL 8mm Proximitor driver (330180 series), which converts the probe’s oscillator signal into a DC voltage proportional to gap distance. If the Proximitor has accumulated operating hours comparable to the failed probe, simultaneous replacement eliminates the risk of a secondary failure shortly after restart.

Extension cables — typically the 330130 series armored extension cable — are a frequently overlooked failure point. Mechanical abrasion, thermal cycling, and connector corrosion degrade signal integrity over time, producing erratic gap readings that can be misdiagnosed as probe failure. Inspect the full cable run from probe tip to Proximitor input during every probe replacement event.

At the rack level, verify the 3300/16 or 3300/20 monitor card input channel for correct gap voltage at the new probe’s installed position. A gap voltage outside the linear range (typically -10 VDC to -18 VDC for 8mm probes) indicates either incorrect installation gap or a driver issue. Confirm the I/O terminal block connections and check for loose or corroded terminals that may introduce noise into the measurement chain.

For facilities running integrated machinery protection systems, the 3300 XL rack may also house 3300/55 tachometer input modules and 3300/46M temperature monitor cards. During a planned outage, cross-check all channel OK status indicators on the front panel and review the system’s System 1 or Orbit software trend data for any channels showing gradual drift — a leading indicator of probe or cable degradation before hard failure occurs.

Procurement engineers should note that the 330104-00-08-10-01-00 is part of a probe-cable-driver system. Stocking the probe alone without verified compatible extension cables and a tested Proximitor driver creates a gap in your spare parts coverage. KNMKS recommends maintaining at minimum one complete channel kit — probe, extension cable, and Proximitor — per critical machine train to support same-shift replacement capability.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Coordinate with operations to place the affected machine in a safe state. For online replacement on non-critical channels, confirm bypass authorization through your site MOC procedure. Isolate the monitor channel at the rack to prevent spurious trip signals during probe removal.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the installed gap voltage from the Proximitor output. This baseline confirms the target reinstallation gap for the new 330104-00-08-10-01-00 and provides a reference for post-installation verification.

Step 3 — Probe Removal: Disconnect the extension cable at the probe connector. Remove the probe from the bracket using the appropriate spanner, taking care not to damage the probe tip or the target surface. Inspect the target area for scoring, pitting, or runout anomalies that may affect the new probe’s readings.

Step 4 — Installation and Gap Setting: Thread the new 330104-00-08-10-01-00 into the bracket and adjust to achieve the nominal gap voltage specified for your application (typically -12 VDC ± 1 VDC for mid-range gap). Use a calibrated gap tool or the Proximitor output voltage as the reference. Lock the probe in position with the locknut.

Step 5 — System Verification: Reconnect the extension cable, restore the monitor channel, and confirm OK status at the rack. Review the live gap voltage and compare against the pre-removal baseline. Perform a slow-roll check if the machine can be brought to turning gear speed to verify vibration channel response before returning to full load.

This workflow is compatible with legacy 3300 series installations and current 3300 XL deployments, supporting system continuity without requiring rack reconfiguration or software parameter changes in most standard applications.

Spare Parts Support FAQ

Q1: Is the 330104-00-08-10-01-00 compatible with both legacy 3300 and current 3300 XL racks?
Yes. The 330104-00-08-10-01-00 is designed for the 3300 XL system but maintains backward compatibility with standard 3300 series Proximitor drivers and monitor racks in most configurations. Always verify the driver part number and gap range specification against your installed system documentation before installation. If your rack uses an older 7200 series driver, a different probe model is required.

Q2: How does KNMKS verify units before shipment?
Each 330104-00-08-10-01-00 unit undergoes pre-shipment inspection covering physical integrity (connector, cable jacket, probe tip), output voltage linearity across the specified gap range, and cable continuity end-to-end. Units that do not meet Bently Nevada published specifications are quarantined and not shipped. A test record is available upon request for critical applications.

Q3: What is the recommended spare parts stocking strategy for this probe?
For machines classified as critical (single-train, no installed spare), KNMKS recommends stocking a minimum of two complete channel sets — probe, extension cable, and Proximitor driver — per machine train. For non-critical or parallel-train applications, one channel set per two machines is a common industry practice. Probe service life varies significantly by installation environment; high-temperature or high-vibration environments typically require more frequent inspection intervals.

Q4: What support terms and long-term supply commitment does KNMKS provide?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and performance deviations from published specifications. KNMKS maintains ongoing stock of the 330104-00-08-10-01-00 and associated 3300 XL series components to support long-term maintenance programs. For facilities requiring annual supply agreements or blanket purchase orders, contact our sales team to discuss volume pricing and reserved inventory arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-08-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-08-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
