Bently Nevada 330104-00-07-10-02-00 Maintenance-Proven Spare

Overview

Bently Nevada 330104-00-07-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

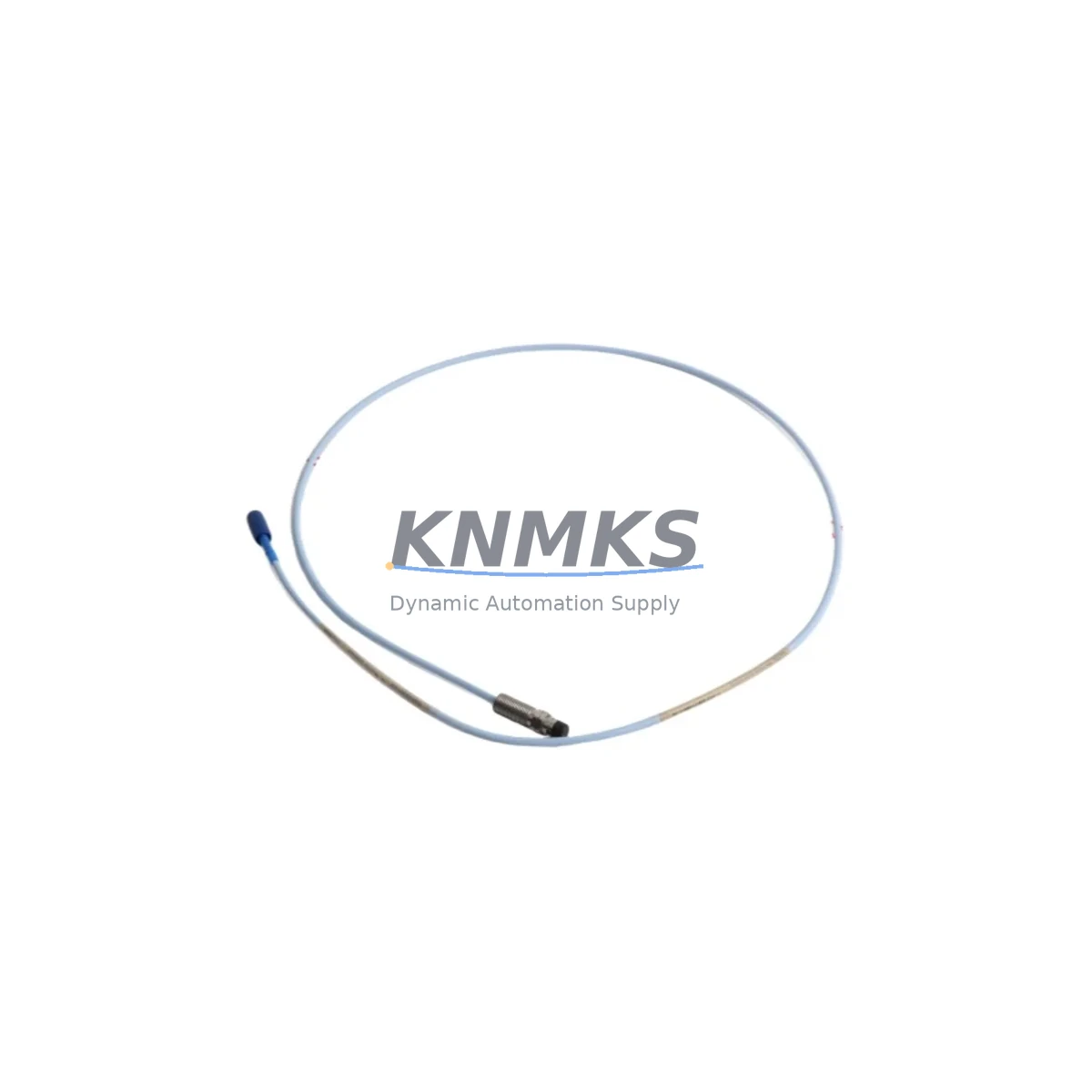

The Bently Nevada 330104-00-07-10-02-00 is an 8mm eddy-current proximity transducer engineered for continuous vibration and position monitoring in rotating machinery. As a core component of the Bently Nevada 3300 XL Series condition monitoring system, this transducer delivers reliable shaft displacement measurements in turbines, compressors, pumps, and other critical rotating assets. Maintenance engineers and procurement teams managing aging machinery protection systems rely on this part to sustain uninterrupted plant operations, avoid unplanned shutdowns, and meet predictive maintenance schedules.

This listing offers an original, tested spare unit of the 330104-00-07-10-02-00, sourced to support emergency replacement, planned annual overhaul, and long-term spare parts inventory strategies. Each unit undergoes pre-shipment functional verification and ships with a support terms confirmed by quotation, giving procurement engineers confidence in both quality and supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-07-10-02-00 in the field, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should begin by verifying the condition of the 330130-080-01-00 extension cable — the coaxial interconnect between the probe and driver — as cable insulation degradation or connector corrosion is a leading cause of false vibration alarms and measurement drift. The 330180-X1-05 proximitor/driver module mounted in the field junction box should be tested for correct bias voltage output (typically -10.0 VDC ±0.5 VDC at mid-gap) before the new probe is commissioned.

At the rack level, inspect the 3300 XL 16-channel monitor module for alarm setpoint integrity and channel configuration. If the plant runs a Bently Nevada 3500 Series rack in parallel or as a migration target, confirm that the transducer sensitivity and gap voltage settings are correctly mapped to avoid nuisance trips during the transition period. For systems where the proximity transducer feeds a Bently Nevada 3500/42M or 3500/44M position monitor, verify that the I/O module terminal assignments and scaling factors remain consistent after the swap.

Procurement engineers building annual spare parts kits should also stock the 330104-00-07-10-02-00 companion probe for the opposing measurement plane (typically Y-axis), as asymmetric probe aging can introduce measurement bias. Additionally, consider maintaining a buffer stock of 330130 series extension cables and 330180 series proximitor drivers to cover the full measurement chain — reducing mean time to repair (MTTR) when a channel fault is isolated during a planned outage or emergency shutdown.

For control cabinet inspections, check terminal block torque on the signal wiring, inspect shielding continuity on the coaxial cable run, and confirm that the cable routing avoids proximity to high-voltage power conductors or variable frequency drive (VFD) output cables that can induce electromagnetic interference into the low-level millivolt signal path.

Site Replacement Workflow

The 330104-00-07-10-02-00 is a direct replacement for earlier 3300 XL 8mm probe variants with equivalent cable length and connector suffix. Before installation, confirm the gap voltage specification with the existing proximitor driver datasheet — the standard target gap for steel shafts is 1.27 mm (50 mil), corresponding to approximately -10.0 VDC output. Use a calibrated gap-setting tool or feeler gauge to achieve the correct installation gap before locking the probe locknut.

After mechanical installation, power up the measurement channel and verify the static gap voltage at the monitor rack or local junction box test point. Confirm that the channel reads within the linear range and that no alarm or danger setpoints are triggered at the resting gap. Document the as-found and as-left gap voltages in the maintenance record to support future trend analysis and predictive maintenance scheduling.

For systems where the original probe has been in service for more than five years, consider replacing the extension cable and proximitor driver simultaneously to restore the full measurement chain to a known-good baseline. This approach minimizes the risk of a secondary failure shortly after the probe replacement and reduces the likelihood of a repeat maintenance intervention during the next scheduled outage window.

KNMKS maintains stock of the 330104-00-07-10-02-00 and related 3300 XL series components to support both emergency same-week dispatch and planned procurement cycles. Long-term supply agreements are available for customers managing large rotating machinery fleets or multi-site maintenance programs.

Spare Parts Support FAQ

Q1: Is the 330104-00-07-10-02-00 compatible with both the 3300 XL and 3500 Series monitor racks?
The 330104-00-07-10-02-00 is natively designed for the Bently Nevada 3300 XL system. It can also be used with 3500 Series monitors when the channel is configured for the correct sensitivity (7.87 V/mm) and the appropriate proximitor driver is installed. Always verify rack channel configuration before commissioning in a 3500 Series application.

Q2: What pre-shipment testing is performed on each unit?
Each 330104-00-07-10-02-00 unit is functionally tested prior to shipment to verify output linearity, bias voltage response, and connector integrity. A support terms confirmed by quotation is provided from the shipment date, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage long-term spare parts inventory for the 3300 XL system?
For rotating machinery fleets with four or more monitored machines, we recommend maintaining a minimum of two probe units per measurement plane, one extension cable set, and one proximitor driver per critical machine train. Annual inventory reviews aligned with planned outage schedules help prevent stockout risk during emergency shutdowns. KNMKS can support blanket order arrangements for customers requiring guaranteed supply over 12–36 month horizons.

Q4: What is the lead time for the 330104-00-07-10-02-00, and is long-term supply available?
In-stock units are dispatched within 3–5 business days. For customers requiring guaranteed availability over extended periods, KNMKS offers long-term supply agreements with reserved stock allocation. Contact our sales team to discuss volume requirements and delivery scheduling tailored to your maintenance calendar.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-07-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-07-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
