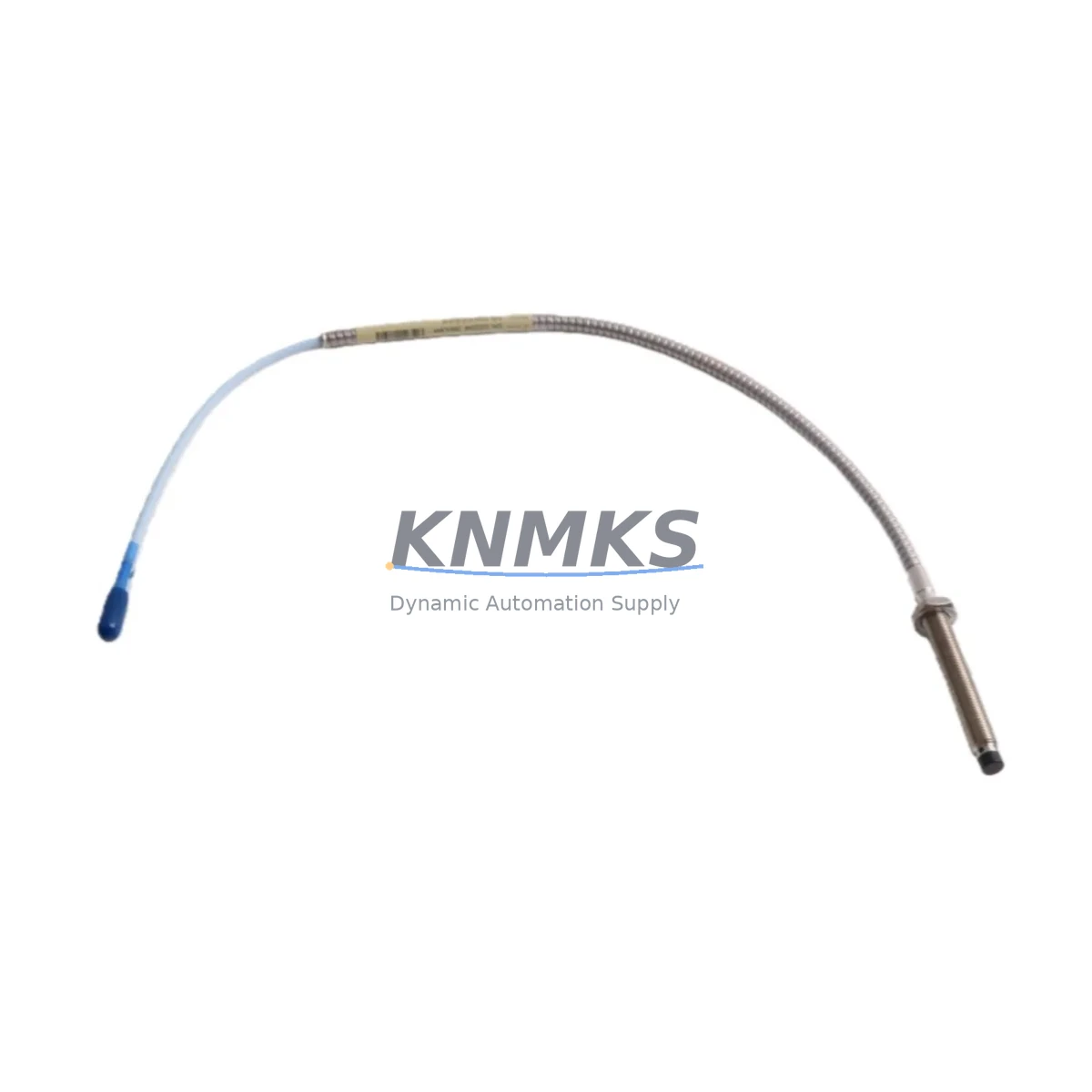

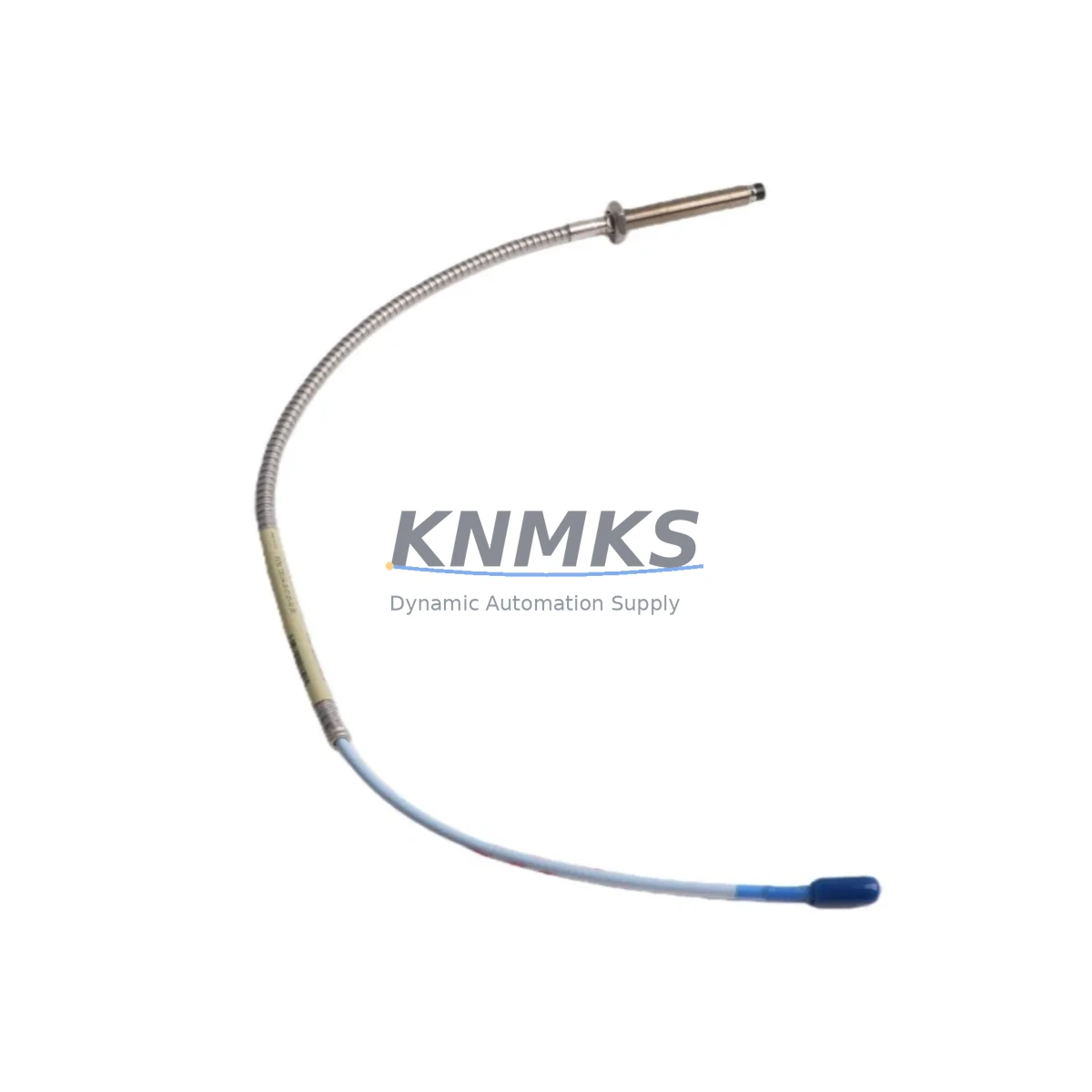

Bently Nevada 330104-00-07-05-01-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-07-05-01-05 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330104-00-07-05-01-05 is a high-precision, fail-safe eddy-current proximity probe engineered for the most demanding continuous industrial operations. As a core component of the Bently Nevada 3300 XL Series machinery protection system, this 5mm proximity probe delivers uninterrupted shaft vibration and position monitoring in environments where control interruption, signal drift, or sensor failure can trigger catastrophic unplanned downtime. Designed for critical rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — the 330104-00-07-05-01-05 provides the measurement accuracy and environmental resilience that safety-critical industrial sites demand.

In petrochemical refineries, power generation plants, mining operations, and continuous manufacturing facilities, proximity probe integrity is not optional — it is a fundamental layer of the machinery protection strategy. The 330104-00-07-05-01-05 is built to maintain stable output under high electromagnetic interference (EMI), shaft runout variation, temperature cycling, and mechanical vibration, ensuring that the protection system receives a clean, reliable signal at all times. Its robust construction resists moisture ingress, particulate contamination, and thermal stress, making it equally suited for offshore platforms, water treatment facilities, and metallurgical processing lines.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330104-00-07-05-01-05 proximity probe does not operate in isolation — it is the sensing front-end of a layered machinery protection architecture. In a properly engineered control cabinet, the probe signal is conditioned by the Bently Nevada 3300 XL Proximitor® Sensor, which converts the raw eddy-current signal into a calibrated DC voltage output suitable for the Bently Nevada 3500/40M Proximitor® Monitor. This monitor card, housed within the 3500 Series rack, performs real-time vibration and position analysis, triggering alarm and trip outputs when shaft displacement exceeds safe thresholds.

To protect the entire signal chain from power-line disturbances and voltage transients, the control cabinet should incorporate a dedicated Bently Nevada 3500/15 Power Supply Module, which provides clean, regulated DC power to the monitoring rack and eliminates the risk of measurement corruption caused by upstream power fluctuations. In high-EMI environments — common in motor control centers, variable frequency drive (VFD) enclosures, and switchgear rooms — the shielded coaxial extension cable of the Bently Nevada 330130 Series Extension Cable should be used to maintain signal fidelity between the probe and the Proximitor sensor over longer routing distances.

For facilities operating safety instrumented systems (SIS) in accordance with IEC 61511, the vibration trip output from the 3500 monitor can be integrated with a Bently Nevada 3500/32 4-Channel Relay Module, providing hardwired trip signals to the emergency shutdown (ESD) system. This configuration ensures that a high-vibration event on a critical compressor or turbine shaft results in a deterministic, fail-safe shutdown response — independent of DCS communication health. Additionally, pairing the proximity probe system with a Bently Nevada 3500/22M Transient Data Interface enables full waveform capture during trip events, supporting post-incident root cause analysis and reducing mean time to repair (MTTR) across the plant.

Critical Industrial Safety Applications

The 330104-00-07-05-01-05 is deployed across the full spectrum of heavy industrial and process-critical environments where rotating machinery reliability is non-negotiable.

In petrochemical and refinery operations, this probe monitors shaft radial vibration on feed gas compressors, reactor charge pumps, and crude distillation column overhead compressors. Any deviation beyond the API 670 alarm setpoint triggers an immediate alert to the control room, allowing operators to take corrective action before a mechanical failure escalates into a process safety event or environmental release.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 330104-00-07-05-01-05 provides continuous shaft position monitoring on steam turbine rotors and generator shafts. The probe’s ability to maintain calibrated output across wide temperature swings (from cold standby to full-load thermal expansion) ensures that the protection system remains accurate throughout the entire operating cycle, including startup, load ramp, and emergency trip sequences.

In mining and mineral processing plants, where high dust concentrations, ground vibration from blasting, and aggressive chemical environments challenge conventional instrumentation, the 3300 XL proximity probe’s sealed construction and EMI-hardened signal path maintain reliable shaft monitoring on SAG mill pinion drives, slurry pump motors, and conveyor drive gearboxes — preventing undetected bearing failures that could halt production for days.

In water and wastewater treatment infrastructure, the probe supports continuous monitoring of high-speed centrifugal blowers and vertical turbine pumps in humid, corrosive atmospheres. In port and marine applications, it protects propulsion system auxiliary machinery and cargo pump drives against vibration-induced fatigue failures during extended operational cycles at sea.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-00-07-05-01-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported with replacement dispatch or full technical review, ensuring minimal disruption to your maintenance schedule.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-00-07-05-01-05 proximity probe undergoes functional verification prior to dispatch, including sensitivity output check, cable continuity and insulation resistance test, and connector integrity inspection. Units are packaged in anti-static, shock-protected packaging to preserve calibration integrity during transit.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330104-00-07-05-01-05 is a direct OEM-equivalent replacement for Bently Nevada 3300 XL system installations. It is fully compatible with the 3300 XL Proximitor® Sensor and the 3500 Series monitoring rack without requiring recalibration of the existing system, provided the target material and gap setting match the original installation specification.

Q4: Can KNMKS support long-term supply commitments for critical spare parts programs?
Yes. KNMKS maintains dedicated inventory for high-demand Bently Nevada proximity probe models and can support blanket order agreements, consignment stock arrangements, and scheduled delivery programs for facilities operating planned maintenance cycles. Contact our team to discuss a supply agreement tailored to your plant’s critical spare parts strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-07-05-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-07-05-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
