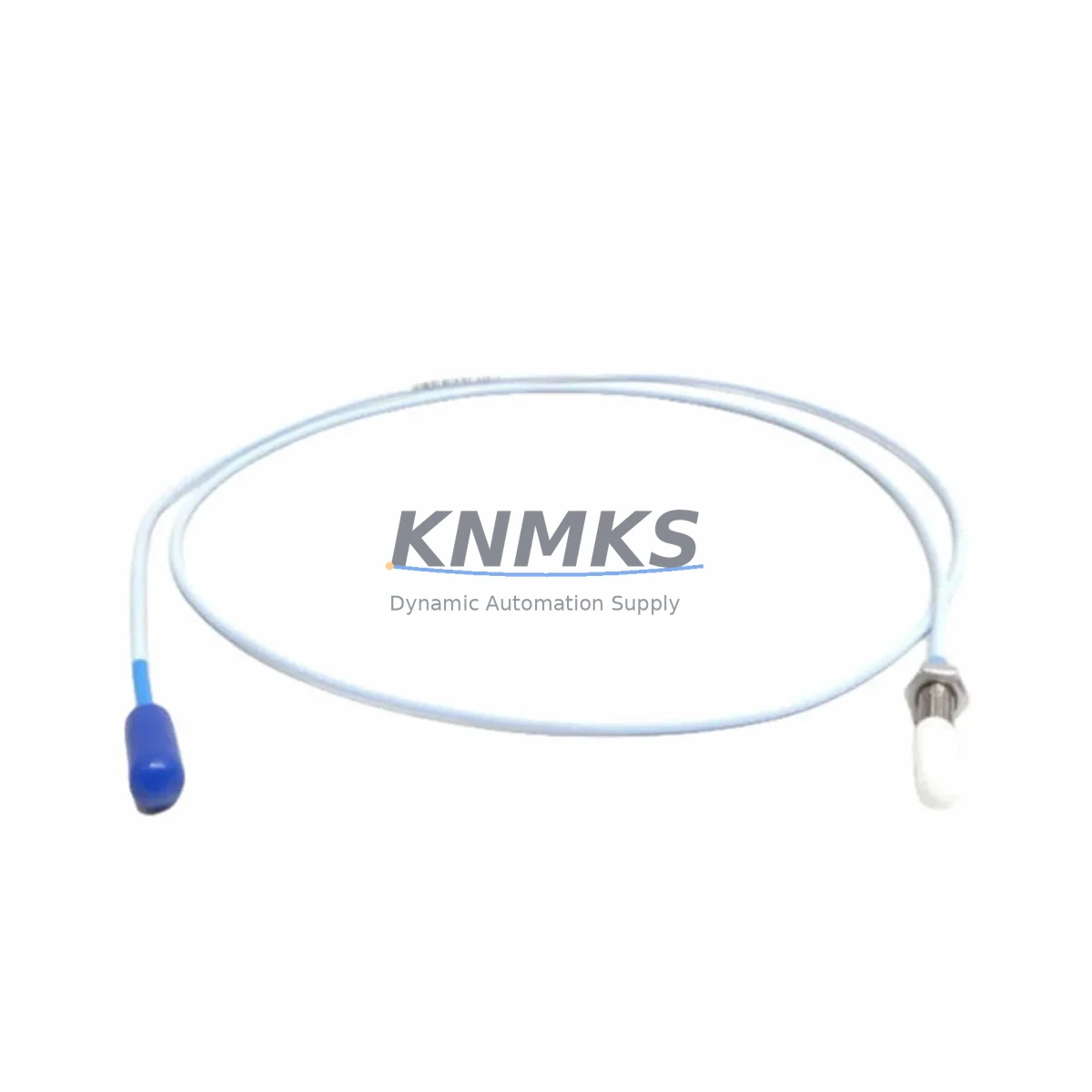

Bently Nevada 330104-00-06-10-02-CN Fail-Safe Proximity Transducer

Overview

Bently Nevada 330104-00-06-10-02-CN Fail-Safe Proximity Transducer: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330104-00-06-10-02-CN is an 8mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered specifically for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers unwavering signal integrity even under conditions of high electromagnetic interference, mechanical vibration, extreme temperature cycling, and corrosive or moisture-laden atmospheres. For plant engineers and reliability teams responsible for critical rotating assets — turbines, compressors, pumps, and motors — the 330104-00-06-10-02-CN represents a proven, safety-rated solution that minimizes the risk of unplanned shutdowns and protects both personnel and capital equipment.

In continuous production facilities, a single point of signal failure in a vibration monitoring loop can cascade into catastrophic machinery damage or a full process shutdown. The 330104-00-06-10-02-CN is built to eliminate this risk. Its precision-wound sensing coil and thermally stable housing maintain calibrated output across the full operating temperature range, preventing the signal drift that can trigger false trips or, more dangerously, mask developing faults. The transducer’s shielded cable assembly and robust connector interface resist ingress of dust, moisture, and process fluids, ensuring reliable operation in IP-rated control enclosures and open field installations alike.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the sensor but depends on a complete, well-engineered signal chain. The 330104-00-06-10-02-CN transducer is designed to work seamlessly within the Bently Nevada 3300 XL ecosystem. In a typical critical machinery protection cabinet, it is paired with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-X1-05 driver module), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance. This conditioned output feeds directly into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module, which performs real-time vibration analysis, alarm management, and relay trip output for machinery protection.

Within the control cabinet, power supply stability is critical. Voltage fluctuations or transient surges on the -24 VDC supply rail can introduce measurement noise or cause nuisance trips. Pairing the monitoring system with a dedicated Bently Nevada 3500/15 Power Supply module — or an equivalent industrial DIN-rail DC/DC converter with surge suppression — ensures the transducer and Proximitor® driver receive clean, regulated power even in environments with significant electrical noise from variable frequency drives (VFDs), large motor starters, or arc welding equipment nearby.

For installations in hazardous areas or where long cable runs are unavoidable, the Bently Nevada 330130-Series extension cables provide the correct impedance matching and shielding continuity required to maintain signal integrity between the 330104-00-06-10-02-CN transducer and its driver. Improper cable selection is a leading cause of signal drift and false alarms in field installations — using the correct matched cable assembly eliminates this risk entirely.

In safety instrumented systems (SIS) where the vibration monitoring loop must satisfy IEC 61511 functional safety requirements, the relay output from the 3500 rack can be integrated with a safety relay module (such as a Pilz PNOZ or equivalent SIL-rated device) to form a certified safety function. This architecture ensures that a transducer fault, cable break, or signal loss results in a defined safe state — typically a de-energize-to-trip output — rather than a silent failure that could allow machinery damage to progress undetected.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-06-10-02-CN proximity transducer is deployed across the full spectrum of heavy industry wherever rotating machinery protection is non-negotiable:

Petrochemical and Refining: In crude distillation units, catalytic crackers, and compressor trains, continuous shaft vibration and axial position monitoring is mandated by API 670. The 330104-00-06-10-02-CN provides the real-time gap measurement that allows the protection system to initiate an emergency shutdown before a bearing failure or rotor rub causes secondary damage to seals, casings, or downstream process equipment. In these environments, where a single unplanned outage can cost hundreds of thousands of dollars per day, the reliability of the sensing element is paramount.

Power Generation: Steam turbines and gas turbines in utility and industrial power plants operate at high shaft speeds where even minor imbalance or misalignment develops rapidly into catastrophic failure. The 330104-00-06-10-02-CN’s wide frequency response (DC to 10,000 Hz) and stable sensitivity across the full operating temperature range make it suitable for both low-speed auxiliary equipment and high-speed turbine shafts, providing the protection system with accurate data at all operating conditions.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments characterized by extreme vibration, heavy dust loading, and frequent water ingress. The robust construction of the 330104-00-06-10-02-CN, combined with its resistance to electromagnetic interference from large variable-speed drives, ensures that the protection system receives a clean, reliable signal even in these harsh conditions — reducing nuisance trips that interrupt production and ensuring genuine fault conditions are detected promptly.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require continuous monitoring to prevent bearing failures that could interrupt supply to municipalities. The 330104-00-06-10-02-CN’s compatibility with the 3500 rack system allows integration with plant DCS and SCADA systems via standard 4–20 mA or digital outputs, enabling centralized condition monitoring without dedicated local instrumentation panels.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives present extreme electromagnetic environments. The shielded coaxial cable assembly of the 330104-00-06-10-02-CN provides effective rejection of common-mode interference, maintaining measurement accuracy even when installed adjacent to high-current bus bars or large transformer installations.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drives require vibration monitoring solutions that can withstand salt spray, humidity cycling, and the mechanical shock loads associated with marine operations. The 330104-00-06-10-02-CN’s temperature range and environmental robustness make it a reliable choice for these demanding installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330104-00-06-10-02-CN?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the confirmed support period, we provide replacement or repair at no additional cost. Our support terms reflects our confidence in the quality of every unit we ship — we do not supply untested or unverified stock.

Q2: How is each unit tested before shipment?
Prior to dispatch, every 330104-00-06-10-02-CN undergoes a full functional verification including output sensitivity check, linearity confirmation across the specified gap range, and cable continuity and insulation resistance testing. Units that do not meet Bently Nevada’s published specifications are quarantined and not shipped. A test record is available upon request for critical applications requiring documented traceability.

Q3: Is the 330104-00-06-10-02-CN compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330104-00-06-10-02-CN is a standard 3300 XL Series 8mm transducer and is fully compatible with all Bently Nevada 3300 XL Proximitor® drivers and 3500 Series rack monitors. It is a direct replacement for worn or damaged transducers in existing installations and requires no recalibration of the monitor when replacing a like-for-like unit on the same target material. For installations on non-standard target materials, a gap calibration verification is recommended.

Q4: Can KNMKS support long-term and emergency supply requirements?
KNMKS maintains dedicated inventory of the 330104-00-06-10-02-CN and related 3300 XL Series components to support both planned maintenance schedules and emergency breakdown situations. We understand that machinery protection spares cannot wait weeks for delivery — our standard lead time for in-stock items is 1–3 business days for international shipments, with expedited options available for critical shutdowns. Contact our technical sales team to discuss consignment stock arrangements for high-volume or long-term supply agreements.
