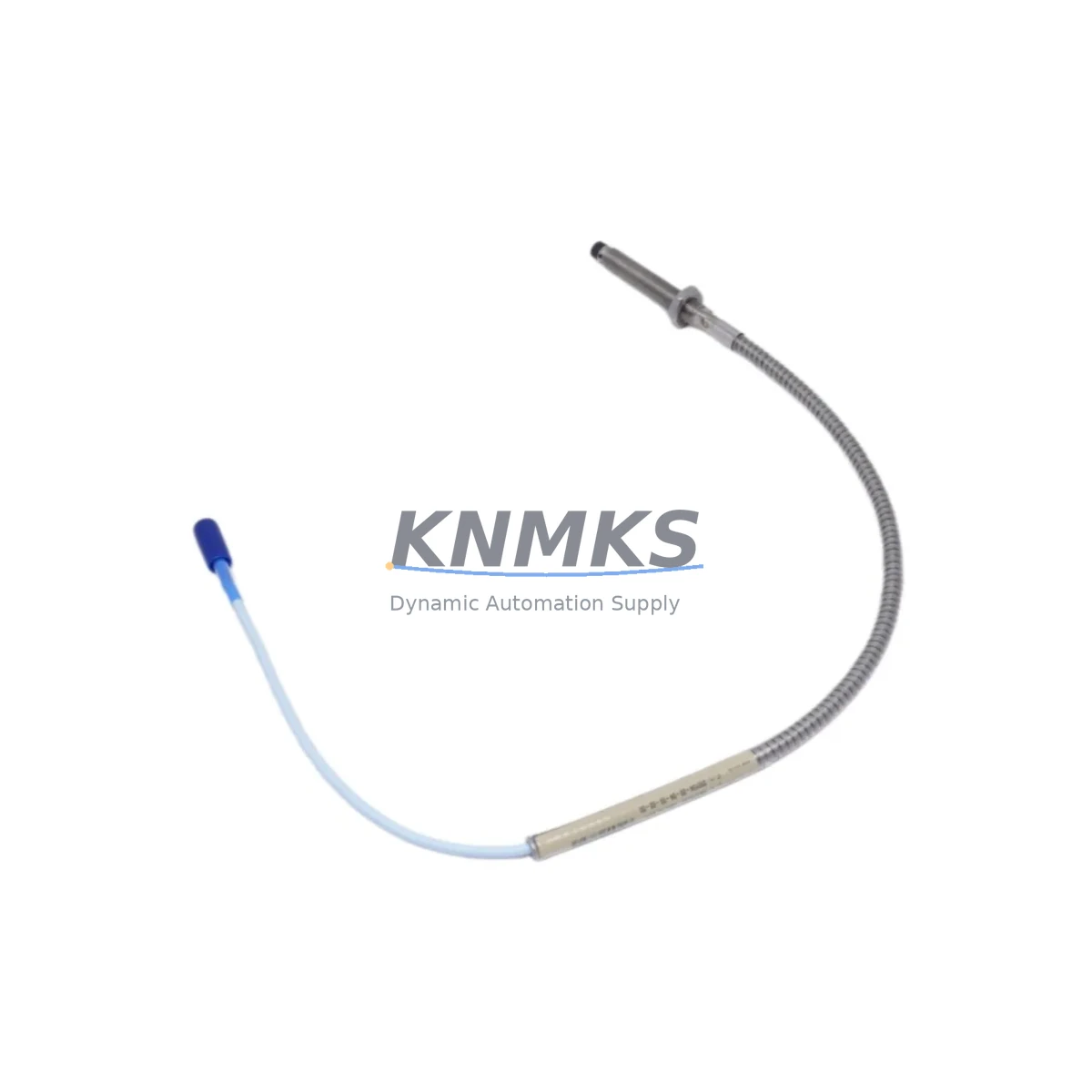

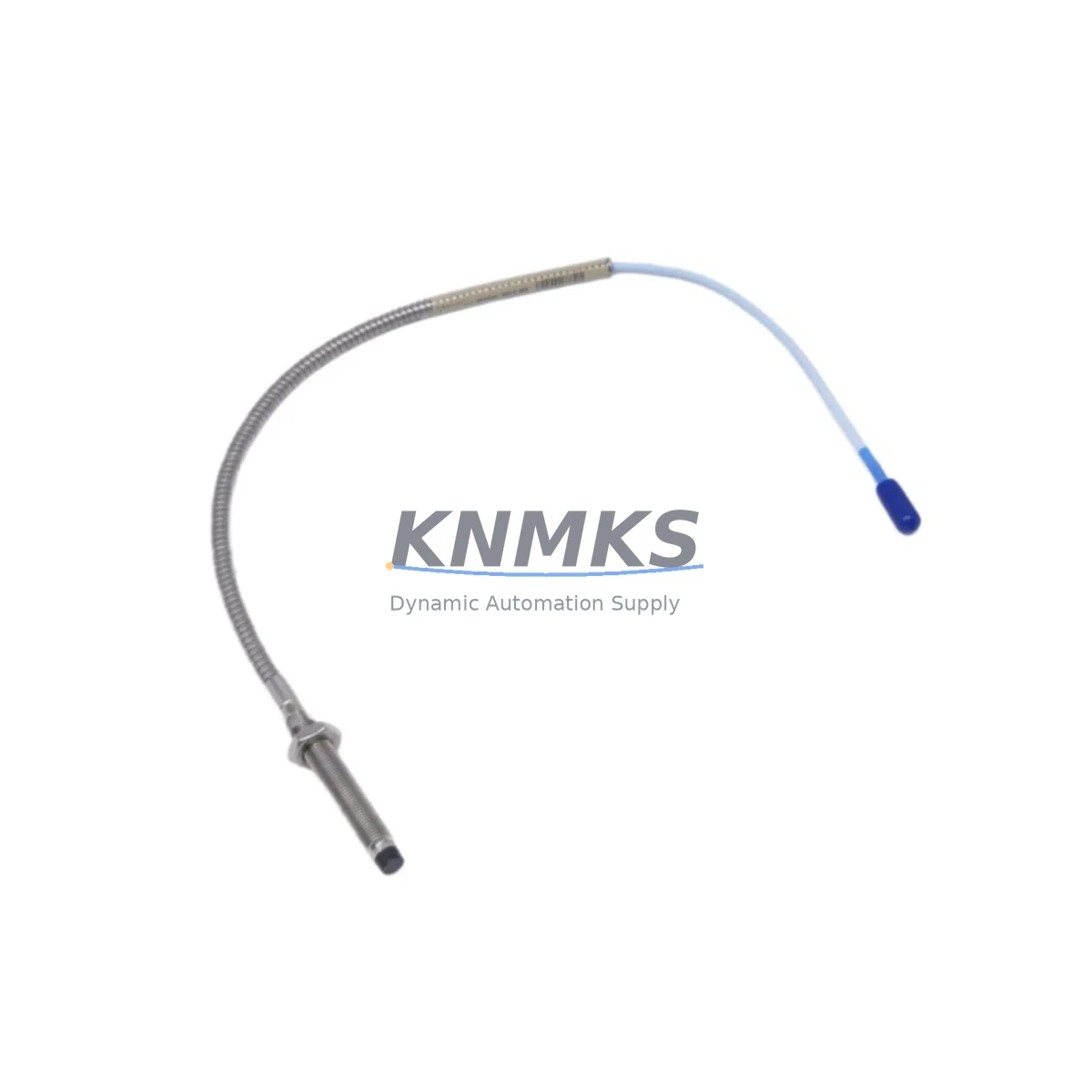

The Bently Nevada 330104-00-06-05-11-05 is an original eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned annual overhaul, responding to an unscheduled shutdown, or building a strategic spare parts inventory for a critical asset, this probe delivers the dimensional accuracy, signal linearity, and environmental resilience that maintenance engineers depend on to restore full system confidence and keep production lines running.

Sourced directly from authorized supply channels, every unit undergoes pre-shipment functional verification covering gap voltage output, sensitivity coefficient, and cable continuity before dispatch. A support terms confirmed by quotation is included as standard, covering manufacturing defects and performance deviations under normal operating conditions. Stocking this part eliminates the lead-time risk that turns a minor sensor fault into a multi-day production loss.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-06-05-11-05 probe is flagged during routine vibration trending or a gap voltage alarm is triggered at the monitor rack, the fault is rarely isolated to the probe alone. A disciplined maintenance engineer will treat the event as a trigger for a broader inspection of the entire transducer loop before returning the machine to service.

Begin at the 3300 XL driver/oscillator module — typically a 330180 or 330130 series driver — which conditions the probe signal and provides the −24 VDC excitation. A degraded driver can mimic probe failure symptoms including erratic gap voltage, high noise floor, or loss of signal. Confirm the driver output voltage and replace it from your cabinet spare stock if readings fall outside tolerance.

Next, inspect the 3300 XL extension cable (commonly the 330130-080-00-00 or equivalent armored type) that bridges the probe to the driver. Extension cables routed through high-vibration or high-temperature zones are prone to micro-fractures in the coaxial shield, which introduce noise and offset errors. A cable swap is low-cost insurance when the probe is already removed from the bearing housing.

At the monitor rack, verify the 3500/40M or 3500/42M proximitor monitor card channel configuration — gap voltage setpoints, alert and danger thresholds, and OK relay logic. A probe replacement is the right moment to audit these parameters against the original machinery OEM specification and update them if the machine has undergone any rerating or bearing change since commissioning.

For facilities running integrated machinery protection, also check the 3500 rack backplane and power supply module (3500/15 or 3500/05). Backplane connector corrosion or a marginal power supply rail can cause intermittent channel faults that are incorrectly attributed to the probe. Cleaning backplane contacts and verifying supply rail voltages under load takes less than 30 minutes and eliminates a common misdiagnosis.

Where the 3300 XL system feeds a DCS or safety system via 4–20 mA or relay output, confirm that the signal isolator or barrier module in the marshalling cabinet is functioning correctly. A failed isolator can clamp the output signal and trigger spurious shutdowns even after a good probe is installed. Brands such as MTL or P+F signal isolators are commonly found in these loops and should be part of the cabinet inspection checklist.

Finally, review the terminal block and field wiring from the junction box to the monitor rack. Loose terminations, moisture ingress at the junction box, and incorrect shield grounding are among the most frequent causes of recurring probe alarms in outdoor or high-humidity installations. Torque all terminals to specification and apply conformal coating or terminal block covers where environmental exposure is a concern.

Maintaining a minimum of two 330104-00-06-05-11-05 probes in your on-site spare parts cabinet — alongside matched extension cables and at least one driver module — is the industry-standard approach for critical rotating equipment such as steam turbines, compressors, and large pumps where unplanned downtime carries significant production and safety consequences.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow your site LOTO procedure. De-energize the monitor channel at the rack before disconnecting the probe to avoid false OK-relay dropout that could affect interlock logic.

Step 2 — Record as-found gap voltage: Before removal, note the existing gap voltage reading at the monitor display or via the system software. This baseline confirms whether the probe or another loop component is the root cause of the alarm.

Step 3 — Remove the probe: Using the correct spanner for the M10 × 1 thread, back the probe out carefully. Inspect the bearing housing bore for contamination, scoring, or oil residue that could affect the new probe’s gap setting.

Step 4 — Install the 330104-00-06-05-11-05 replacement: Thread the new probe in by hand first, then advance to the target gap. The nominal gap for a 5 mm probe on a steel shaft is typically 1.0–1.5 mm (40–60 mil), yielding approximately −10 to −12 VDC at the driver output. Verify against the machine-specific datasheet.

Step 5 — Reconnect and verify: Reconnect the extension cable and driver. Power up the channel and confirm gap voltage is within the linear range. Check that the OK relay is energized and that the monitor channel shows a clean, stable reading with no excessive noise.

Step 6 — Return to service and document: Log the replacement in your CMMS with the new probe serial number, installation date, and as-left gap voltage. Schedule the next inspection interval per your predictive maintenance program — typically 12 months or at the next planned outage.

This workflow applies equally when upgrading from an older 330104 standard series probe to the 330104-00-06-05-11-05 variant, ensuring backward compatibility with existing 3300 XL drivers and monitor cards without any rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330104-00-06-05-11-05 compatible with my existing 3300 XL drivers and 3500 series monitor cards?
Yes. The 330104-00-06-05-11-05 is a standard 3300 XL series proximity probe and is fully compatible with all 3300 XL oscillator/driver modules and 3500 series monitor cards configured for 3300 XL transducers. No recalibration of the monitor card is required provided the gap is set within the specified linear range. Always verify the channel configuration against your system documentation after any probe replacement.

Q2: What is your spare parts inventory strategy and can you guarantee long-term supply?
We maintain dedicated buffer stock of high-demand Bently Nevada 3300 XL series components to support both emergency replacement and planned annual maintenance programs. For customers with critical asset fleets, we offer blanket order arrangements that lock in pricing and reserve allocated stock for scheduled outages. Long-term supply continuity is a core part of our service commitment — contact admin@knmks.com to discuss your annual volume requirements.

Q3: How is the probe tested before shipment, and what does the support terms confirmed by quotation cover?
Every 330104-00-06-05-11-05 unit is functionally tested prior to dispatch. Testing covers gap voltage output at the nominal linear midpoint, sensitivity coefficient verification, and cable/connector continuity. The support terms confirmed by quotation cover manufacturing defects and performance deviations under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits. A test report can be provided upon request.

Q4: Can this probe replace older or discontinued 330104 variants in legacy systems?
In most cases, yes. The 330104-00-06-05-11-05 maintains dimensional and electrical compatibility with earlier 330104 series probes. However, customers should verify the thread size, cable length, and connector type against their existing installation before ordering, particularly in systems that have not been serviced for several years. Our technical team can assist with compatibility confirmation — provide your existing part number and system configuration details to admin@knmks.com or call +86 18359268345.
