Bently Nevada 330104-00-05-50-11-00 Maintenance-Proven Spare

Overview

Bently Nevada 330104-00-05-50-11-00 Maintenance-Proven Spare Part for Factory Uptime

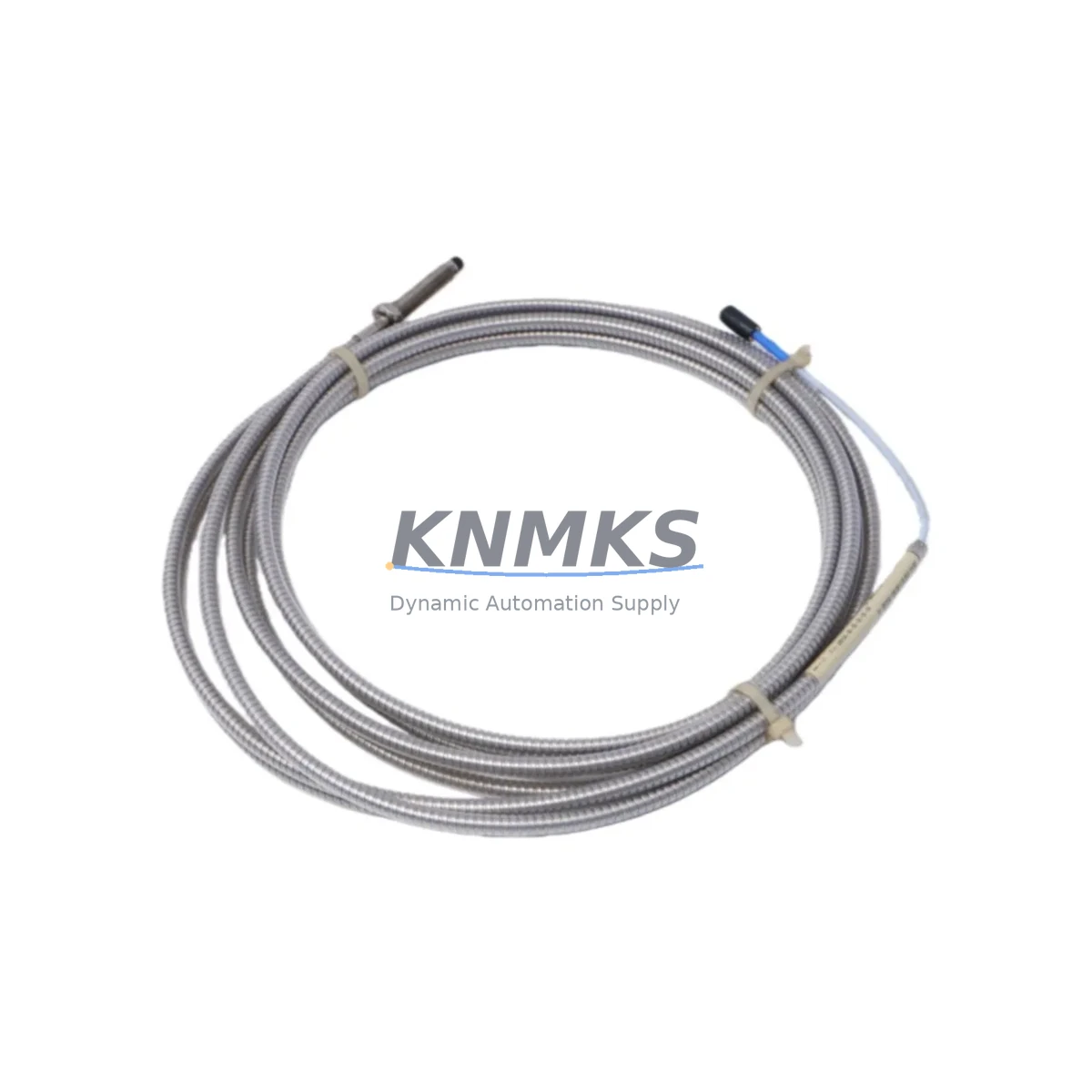

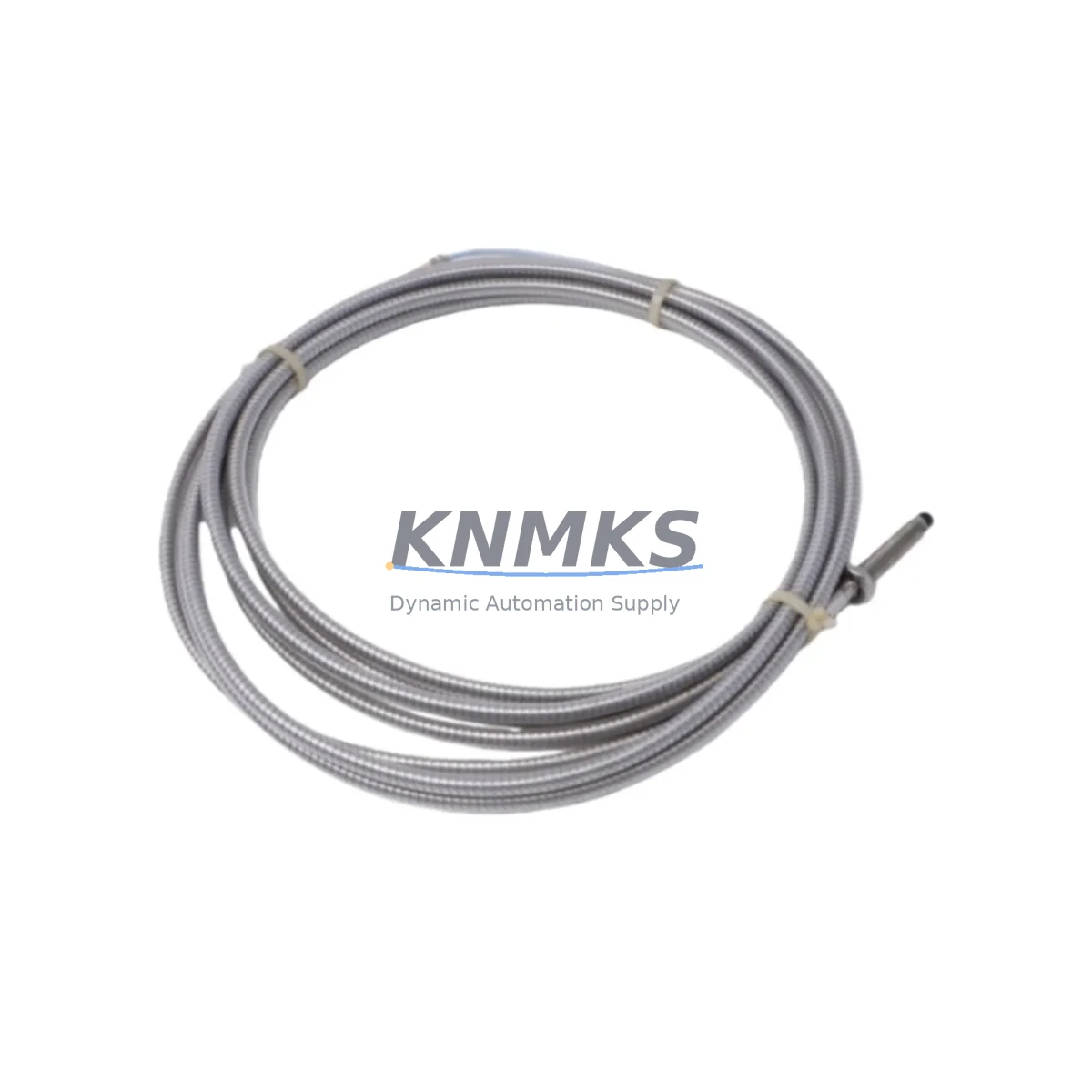

The Bently Nevada 330104-00-05-50-11-00 is an original proximity probe designed for continuous vibration monitoring in rotating machinery applications. As a core component of the 3300 XL Series monitoring system, this probe delivers reliable eddy-current displacement sensing for turbines, compressors, pumps, and other critical rotating assets across energy, petrochemical, manufacturing, and infrastructure sectors. Maintaining an on-hand spare of the 330104-00-05-50-11-00 is a proven strategy for minimizing unplanned downtime and ensuring rapid restoration of machine protection systems during emergency replacement events.

This unit is sourced as an original Bently Nevada spare part, fully tested prior to shipment, and backed by a support terms confirmed by quotation. It is suitable for direct replacement in existing 3300 XL installations without requiring system reconfiguration, provided cable length and target material specifications are matched during installation planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330104-00-05-50-11-00 proximity probe, maintenance engineers should treat the event as an opportunity for a broader inspection of the associated vibration monitoring loop. The probe does not operate in isolation — its signal integrity depends on the condition of the companion extension cable (typically a 330130 series cable matched to the probe’s cable length) and the proximitor/driver module, such as the Bently Nevada 3300 XL 8mm Proximitor, which conditions the raw eddy-current signal into a usable 4–20 mA or voltage output for the monitor rack.

Before declaring the probe as the root cause of a fault, technicians should verify the output voltage at the proximitor driver under static conditions. A reading outside the –10 VDC to –18 VDC linear range (at nominal gap) typically indicates either a probe gap error, a damaged extension cable, or a failed proximitor — not necessarily a defective probe. Inspect the 330130 extension cable for kinking, connector corrosion, or shield continuity breaks, as these are common failure points in high-vibration environments.

At the monitor rack level, confirm that the 3300/16-channel monitor card or equivalent I/O module is receiving a clean signal. Loose terminal block connections on the rack backplane are a frequent source of intermittent alarms that are misdiagnosed as probe failures. If the facility uses a Bently Nevada 3500 series rack for more advanced machinery protection, ensure the probe’s sensitivity factor is correctly entered in the rack configuration software to avoid calibration drift after replacement.

Procurement engineers managing spare parts inventory for rotating equipment should consider stocking the 330104-00-05-50-11-00 alongside its associated extension cable and at least one spare proximitor driver per monitored machine train. For facilities with multiple identical compressor or turbine trains, a minimum buffer of two probe assemblies per train type is recommended to support both planned annual overhauls and unplanned emergency replacements without waiting on lead times. Long-term supply agreements with verified distributors reduce procurement risk for legacy 3300 XL systems that may no longer be in active production.

Site Replacement Workflow

Replacing the 330104-00-05-50-11-00 in the field follows a structured sequence to minimize downtime and avoid introducing new faults during the swap. Begin by isolating the affected monitoring channel at the rack — do not remove the probe while the machine is running unless the safety plan explicitly permits hot-swap procedures for that asset. Record the existing gap voltage before disconnection as a baseline for post-installation verification.

Remove the old probe by unscrewing it from the probe holder, taking care not to damage the threads or disturb adjacent probes in multi-probe configurations (e.g., XY radial pairs). Install the replacement 330104-00-05-50-11-00, set the gap to the manufacturer-specified distance (typically 1.0 mm to 2.0 mm for 5 mm probes, confirmed against the original calibration sheet), and reconnect the extension cable. Re-energize the monitoring channel and verify the gap voltage falls within the linear range before returning the channel to active protection status.

Document the replacement in the maintenance management system with the new probe serial number, installation date, and gap voltage reading. This record supports support requests, future troubleshooting, and lifecycle tracking for the 3300 XL monitoring system. For facilities migrating from older 3300 series probes to the 3300 XL standard, the 330104-00-05-50-11-00 provides a direct upgrade path with improved temperature stability and connector reliability compared to legacy probe variants.

Spare Parts Support FAQ

Q1: Is the 330104-00-05-50-11-00 compatible with both the 3300 XL and older 3300 series monitor racks?
The 330104-00-05-50-11-00 is designed for the 3300 XL series. Compatibility with older 3300 series racks depends on the specific monitor card and proximitor driver in use. We recommend confirming the system’s sensitivity factor and connector pinout before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this spare part?
Each unit undergoes electrical verification before dispatch, including output voltage linearity checks and connector integrity inspection. A test report is available upon request. All units are shipped with protective packaging to prevent transit damage to the probe tip and cable connector.

Q3: What is the support terms coverage and what does it include?
This spare part is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and electrical failures under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, or operation outside the specified temperature and environmental range.

Q4: Can you support long-term supply for facilities with multiple 3300 XL monitoring systems?
Yes. We support long-term supply agreements for facilities requiring consistent availability of the 330104-00-05-50-11-00 and associated 3300 XL components. Blanket orders and scheduled delivery programs are available to reduce procurement lead times and ensure spare parts inventory continuity for critical rotating equipment fleets.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-05-50-11-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-05-50-11-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
