Bently Nevada 330104-00-05-10-02-CN Migration-Ready Proximity Transducer

Overview

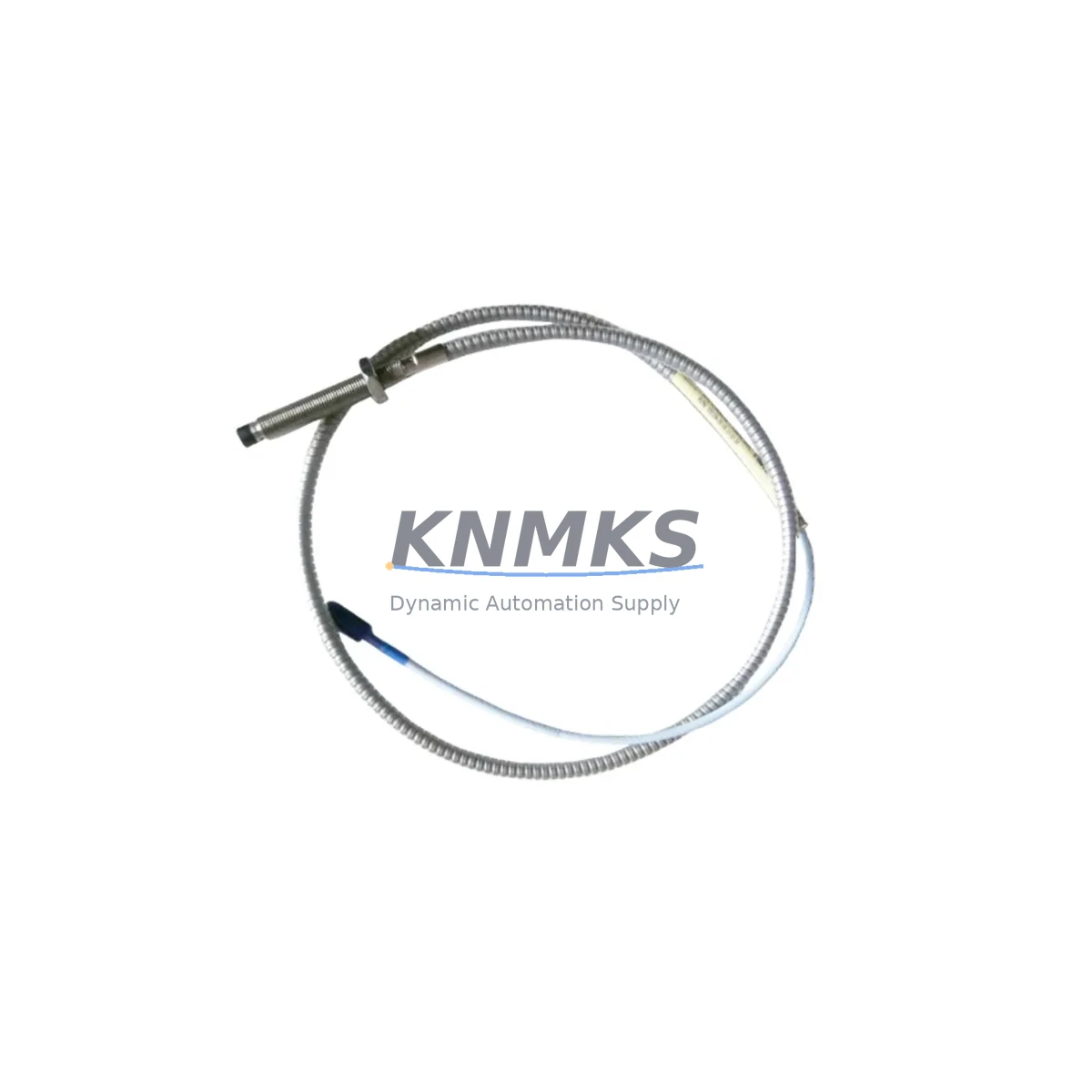

Bently Nevada 330104-00-05-10-02-CN Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330104-00-05-10-02-CN is an 8mm proximity transducer engineered for the 3300 XL Series condition monitoring platform. As legacy vibration monitoring systems reach end-of-life and OEM support is discontinued, this transducer serves as a direct, migration-ready replacement for aging 3300 XL installations across rotating machinery applications including turbines, compressors, pumps, and gearboxes. Whether you are executing a planned control system upgrade or responding to an unplanned failure of a discontinued component, the 330104-00-05-10-02-CN delivers verified compatibility with existing field wiring, terminal blocks, and monitor rack configurations — minimizing engineering rework and reducing total retrofit cost.

For facilities managing legacy Bently Nevada 3300 XL racks, this transducer integrates directly with the 3300 XL 8mm Extension Cable (330130 series) and the 3300 XL Proximitor Sensor, preserving the original signal chain without requiring recalibration of the monitor module. Engineers replacing worn or failed probes should confirm the existing cable length and connector type before installation, as the -05-10-02-CN suffix designates a 5-meter armored cable with 2-meter extension and a standard MIL-spec connector. Verifying these parameters against the installed 3300 XL Monitor (such as the 3300/16 or 3300/20 series) ensures seamless signal continuity and avoids false alarm conditions during commissioning.

When integrating this transducer into a broader system migration — for example, transitioning from a standalone 3300 XL rack to a System 1 Evolution platform or a third-party condition monitoring solution — engineers must validate the output voltage range (-18 VDC nominal gap voltage), sensitivity (7.87 V/mm), and frequency response against the new monitor’s input specifications. In mixed-generation installations where some channels have already been upgraded to Bently Nevada 3500 Series monitors, the 330104-00-05-10-02-CN can continue to serve legacy channels, allowing a phased migration strategy that avoids full-system shutdown.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330104-00-05-10-02-CN into an operating plant requires a structured pre-installation review. Begin by auditing the existing 3300 XL rack for available power supply headroom — each transducer channel draws approximately 10–15 mA from the -24 VDC bus, and aging power supply modules (such as the 3300 XL Power Supply, 3300/05) may be operating near capacity in fully populated racks. If the power budget is marginal, consider replacing the power supply module concurrently to avoid nuisance trips after the new transducer is energized.

Terminal block wiring should be documented before disconnecting the old probe. The 3300 XL system uses a three-wire connection (power, common, and signal) at the monitor terminal strip. Photograph or sketch the existing wiring before removal, and verify wire labeling against the original loop drawing. In older installations where wire markers have degraded, a continuity check from the junction box to the monitor rack will confirm correct identification before reconnection.

For facilities also upgrading their HMI layer — for example, migrating from a legacy Wonderware or iFIX SCADA screen to a modern System 1 Evolution dashboard — the transducer signal path remains unchanged, but the monitor’s communication output (typically Modbus RTU or a proprietary Bently Nevada protocol via the 3300 XL Data Manager) must be reconfigured to match the new HMI driver. In these cases, the 3300 XL Communication Gateway or a third-party Modbus-to-OPC bridge may be required to maintain data continuity during the transition period.

Where I/O expansion is part of the upgrade scope — for instance, adding shaft absolute vibration channels alongside the existing radial vibration measurement — the 330104-00-05-10-02-CN can be paired with a Bently Nevada 3300 XL Thrust Position Monitor or a 3500/42 Proximitor Monitor to extend coverage without replacing the entire rack. This modular approach allows maintenance teams to prioritize critical measurement points and phase the upgrade across multiple planned outage windows, keeping total project cost and risk manageable.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing proximity transducers on operating machinery. The 330104-00-05-10-02-CN is supplied with a pre-shipment functional test report confirming output sensitivity, gap voltage linearity, and cable integrity — allowing maintenance teams to verify the replacement unit before the machine is taken offline. This pre-verification step eliminates the risk of discovering a defective replacement during a time-critical outage window.

Where process conditions permit, a hot-swap approach can be used: the new transducer is installed in a spare probe boss adjacent to the original measurement point, its output is verified against the running machine’s vibration signature, and the monitor channel is then switched to the new probe before the old one is removed. This technique preserves continuous vibration monitoring throughout the replacement process and is particularly valuable on critical machinery where the 3300 XL monitor is configured to initiate an automatic shutdown on loss of signal.

For sites where the 3300 XL rack must be de-energized during the replacement — for example, when the probe boss is not accessible without removing a bearing housing — the original monitor configuration should be exported from the System 1 software or the monitor’s front-panel memory before power is removed. This configuration backup protects alarm setpoints, transducer type assignments, and channel scaling factors, ensuring that the monitor can be restored to its pre-outage state within minutes of the new transducer being installed and gapped. Post-installation, a brief bump test or coast-down run should be performed to confirm that the vibration trend baseline is consistent with historical data before the machine is returned to full load.

Retrofit Support FAQ

Q: Is the 330104-00-05-10-02-CN a direct replacement for the original Bently Nevada 330104-00-05-10-02-CN installed in my 3300 XL system?
A: Yes. This is an OEM-equivalent replacement with identical mechanical dimensions, electrical specifications, and connector type. No wiring modifications or monitor reconfiguration are required for a like-for-like swap in an existing 3300 XL installation.

Q: Can this transducer be used with a Bently Nevada 3500 Series monitor during a phased migration?
A: The 330104-00-05-10-02-CN is compatible with the 3500/42 Proximitor Monitor provided that the monitor’s transducer type is configured to match the 7.87 V/mm sensitivity. A sensitivity verification test is recommended after installation to confirm correct scaling before the channel is returned to service.

Q: What pre-shipment testing is performed, and what documentation is included?
A: Each unit undergoes a functional output test covering gap voltage linearity, sensitivity verification, and cable continuity before shipment. A test report is included with the delivery. All units are covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment.

Q: What is the typical lead time, and do you maintain stock for urgent replacement requirements?
A: We maintain inventory of the 330104-00-05-10-02-CN to support urgent breakdown and planned maintenance requirements. Standard orders ship within 1–3 business days. For critical plant emergencies, please contact our sales team directly to confirm same-day dispatch availability.
