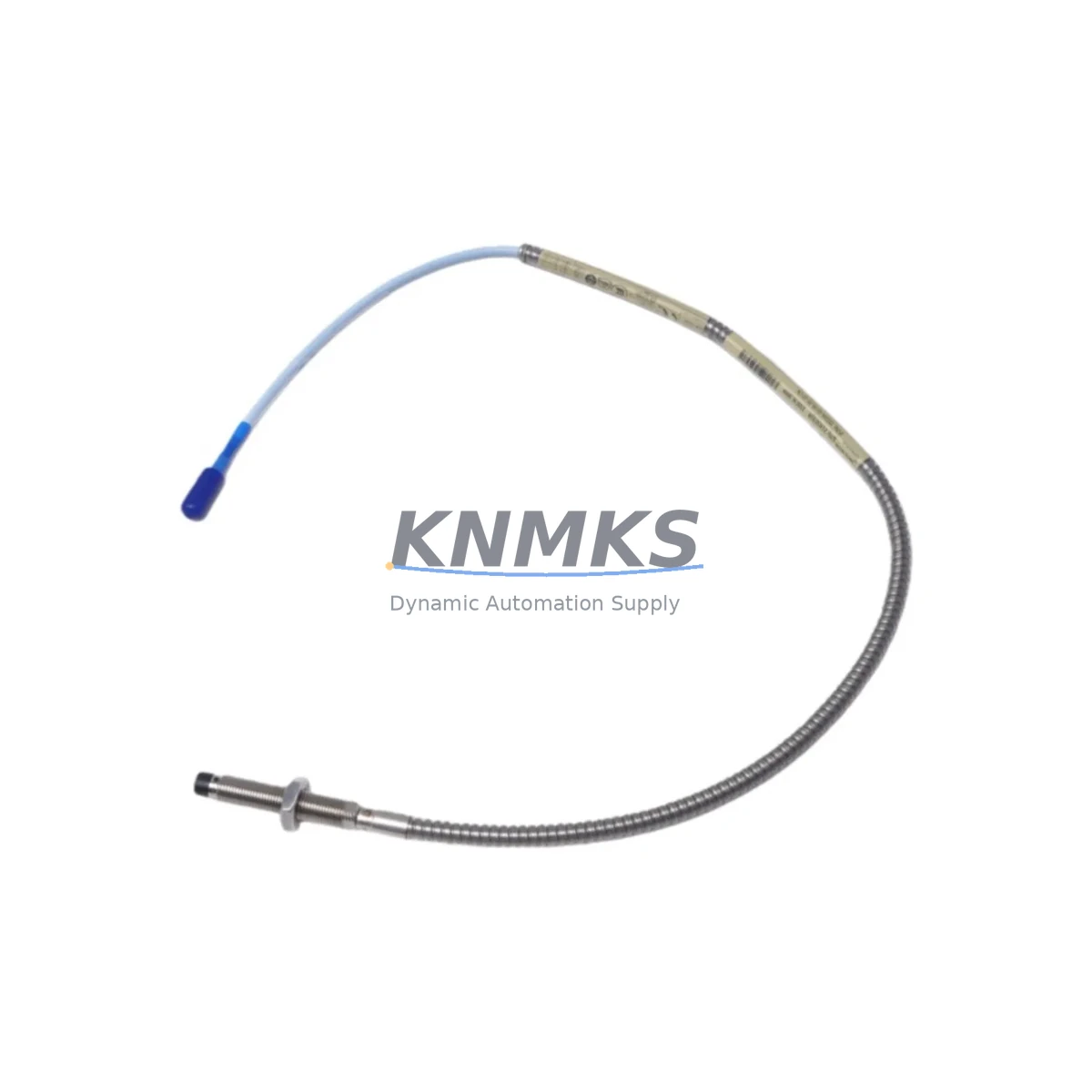

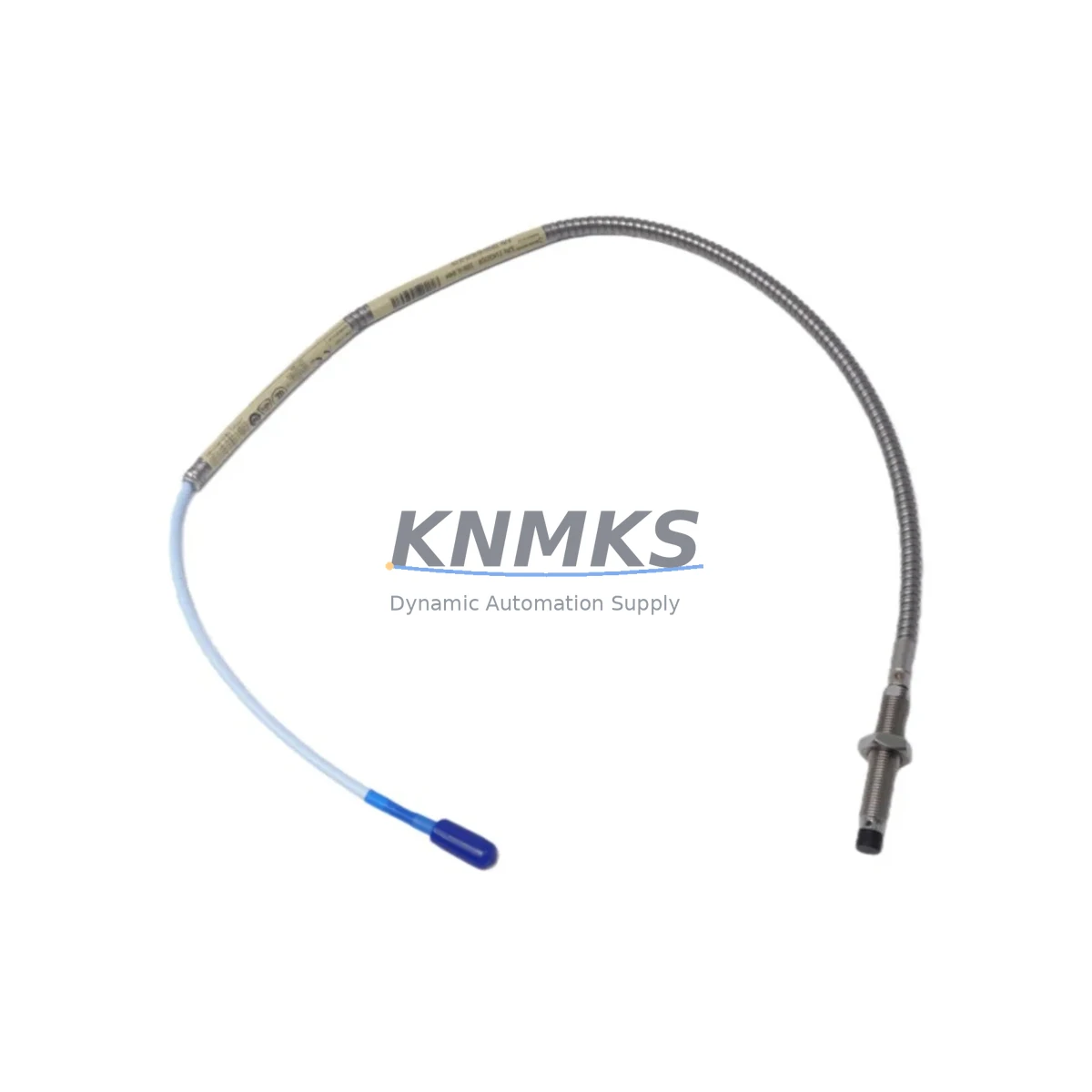

Bently Nevada 330104-00-05-05-01-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330104-00-05-05-01-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330104-00-05-05-01-05 is a 5-mm proximity probe engineered for direct retrofit into existing 3300 XL vibration monitoring systems. As legacy Bently Nevada installations approach end-of-support milestones, plant engineers and reliability teams face increasing pressure to source verified replacement components that maintain signal integrity, dimensional compatibility, and system certification without triggering a full platform overhaul. This probe addresses that challenge precisely — it is a migration-ready, drop-in replacement that preserves your existing wiring infrastructure, Proximitor signal conditioning chain, and DCS integration without requiring firmware changes or panel redesign.

Designed for continuous shaft vibration and position monitoring in rotating machinery, the 330104-00-05-05-01-05 operates within the standard Bently Nevada 3300 XL measurement chain. It pairs directly with the 330180 Proximitor® Seismic Transducer and is fully compatible with the 3300 XL 8-mm and 5-mm probe driver ecosystem. Engineers replacing worn or failed probes in turbines, compressors, pumps, and gearboxes can install this unit without recalibrating the full loop — a critical advantage when minimizing planned outage windows.

For facilities managing multi-train machinery protection systems, this probe supports seamless integration with existing 3500 Series rack-based monitoring hardware when used alongside appropriate signal conditioning modules. The probe’s 5-mm tip diameter and standard armored extension cable configuration allow it to fit existing probe holders and conduit runs without mechanical modification, reducing installation time and eliminating the need for custom machining or bracket fabrication.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330104-00-05-05-01-05 into an operating plant environment requires a structured pre-installation review. Before scheduling the outage window, engineers should confirm the following: the existing 330180 Proximitor is within calibration and shows no drift on the gap voltage output; the 330130 extension cable shows no shield continuity faults; and the DCS analog input card assigned to the vibration channel is configured for the correct engineering unit scaling (typically mils peak-to-peak or µm).

In control cabinets where the 3500 Series rack is installed alongside the 3300 XL Proximitor panel, technicians should verify that the rack’s I/O module — such as the 3500/42M Proximitor/Seismic Monitor — is configured to accept the probe’s signal range. If the existing rack uses an older 3300/16 monitor card, a module-level compatibility check is required before assuming a direct signal handoff. In some installations, a signal isolator or barrier may be present between the Proximitor output and the DCS input; these devices should be inspected for correct range configuration before the new probe is energized.

For plants running Bently Nevada System 1 software for condition monitoring, the probe replacement does not require a database reconfiguration provided the measurement point tag, engineering units, and alarm setpoints remain unchanged. However, if the replacement is part of a broader migration from the 3300 XL platform to the 3500 Series, the System 1 configuration will need to be updated to reflect the new rack address and channel mapping. In parallel, any HMI screens displaying shaft vibration trends should be reviewed to confirm that the tag references remain valid after the hardware change.

Where the retrofit involves replacing multiple probes across a machinery train — for example, replacing both the X and Y probes on a compressor bearing — it is advisable to replace the associated 330130 extension cables simultaneously to eliminate the risk of intermittent faults from aged cable assemblies. Similarly, if the Proximitor housing shows signs of moisture ingress or connector corrosion, replacing the 330180 Proximitor as a matched set with the new probe ensures the measurement chain is fully restored to OEM specification.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires preparation that begins well before the maintenance window opens. The most effective approach is to pre-configure and bench-test the replacement probe assembly — including the 330104-00-05-05-01-05 probe, the 330130 extension cable, and the 330180 Proximitor — as a matched set before the machine is taken offline. Gap voltage should be verified on the bench using a target material that matches the shaft material in the field (typically 4140 steel or equivalent), and the output should be confirmed at the nominal -10 to -18 VDC range before the assembly is packaged for installation.

During the outage, the original program logic in the DCS or safety system should not be modified. The probe replacement is a hardware-only intervention; the control logic, alarm setpoints, and interlock configurations should remain locked throughout the procedure. If the plant uses a Safety Instrumented System (SIS) that monitors shaft vibration as a process variable, the SIS channel should be bypassed in accordance with the site’s Management of Change (MOC) procedure before the probe is disconnected, and the bypass should be removed only after the new probe has been verified in service.

Field commissioning should include a full gap voltage check at the installed probe tip, a dynamic signal check during machine coast-up, and a comparison of the new probe’s vibration reading against adjacent measurement points to confirm consistency. If the plant uses a portable data collector for cross-reference, a baseline reading should be taken immediately after commissioning and archived in the predictive maintenance database. This baseline becomes the reference point for future trend analysis and supports the support terms confirmed by quotation claim process if a defect is identified during the confirmed support period.

Retrofit Support FAQ

Q1: Is the 330104-00-05-05-01-05 a direct replacement for all 330104 series variants?
The 330104-00-05-05-01-05 is a direct dimensional and electrical replacement for other 330104 series variants sharing the same cable length (5 m) and tip diameter (5 mm) configuration. Variants with different cable lengths (e.g., 330104-00-05-10-01-05 with 10 m cable) are not interchangeable without adjusting the Proximitor’s internal calibration resistor. Always confirm the full part number before ordering.

Q2: What commissioning steps are required after installation?
After mechanical installation, verify the probe gap voltage at the Proximitor output terminal. The nominal gap for a 5-mm probe on a steel target is typically set to produce -10 VDC at the mid-range gap distance (approximately 1.0 mm). Confirm the DCS is receiving a valid signal within the expected engineering unit range, check for alarm inhibits that may have been applied during the outage, and remove any SIS bypasses in the correct sequence per your site MOC procedure.

Q3: Can this probe be used with non-Bently Nevada signal conditioning equipment?
The 330104-00-05-05-01-05 is optimized for use with Bently Nevada Proximitor signal conditioners. Use with third-party drivers is possible in principle, but requires verification of the driver’s sensitivity setting (typically 200 mV/mil for 5-mm probes) and target material correction factors. KNMKS recommends using the probe within the validated Bently Nevada measurement chain to maintain accuracy and support terms coverage.

Q4: What does the support terms confirmed by quotation cover, and how is it claimed?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from incorrect installation, gap voltage misconfiguration, or use outside the specified operating environment. To initiate a support terms claim, contact KNMKS at admin@knmks.com with the original order number, a description of the fault, and photographic evidence of the installation condition. Replacement units are dispatched after fault verification, with typical lead time of 3–5 business days.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-05-05-01-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-05-05-01-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
