Bently Nevada 330104-00-05-05-01-00 Spare Part for Uptime: Maintenance-Proven Proximity Probe for Factory Continuous Operation

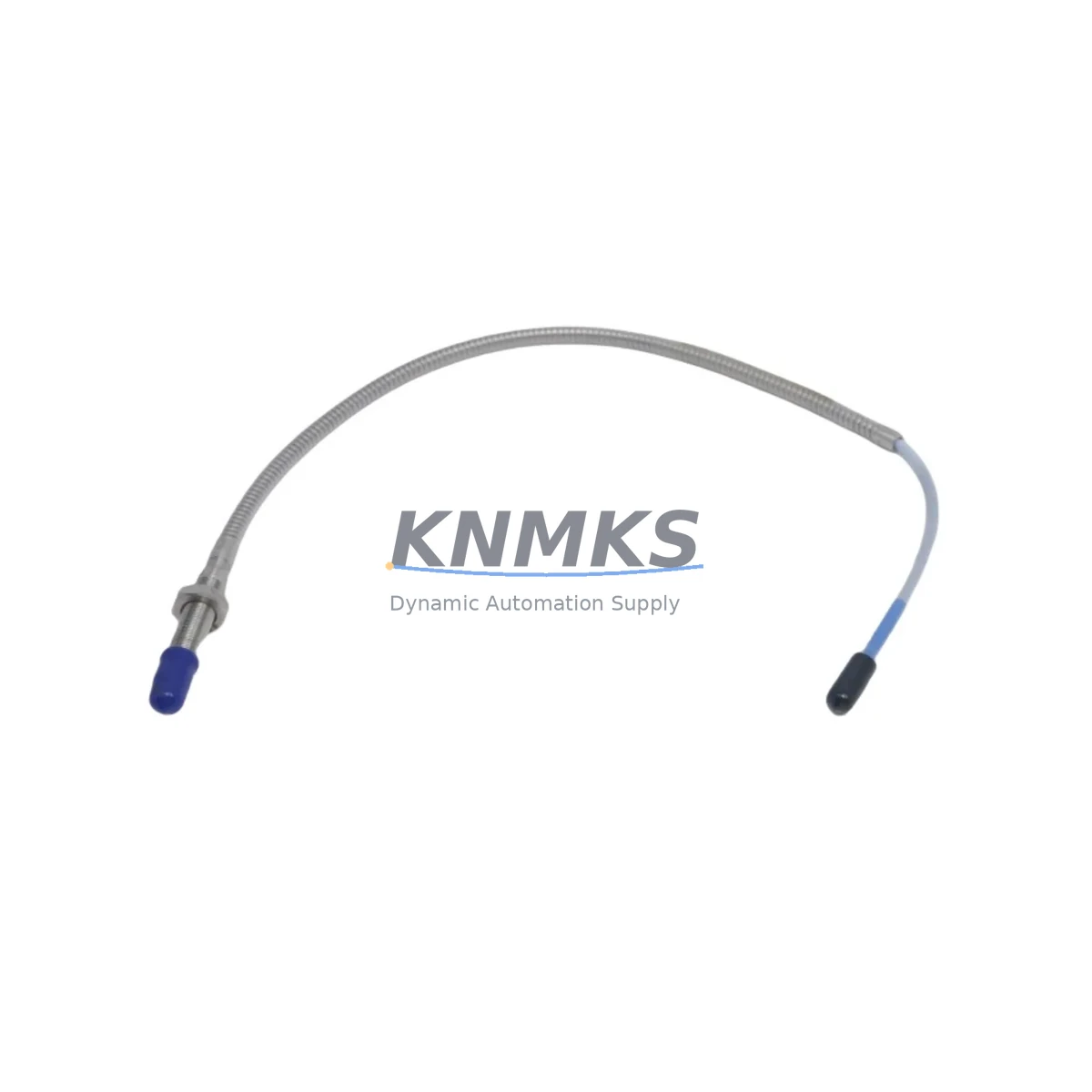

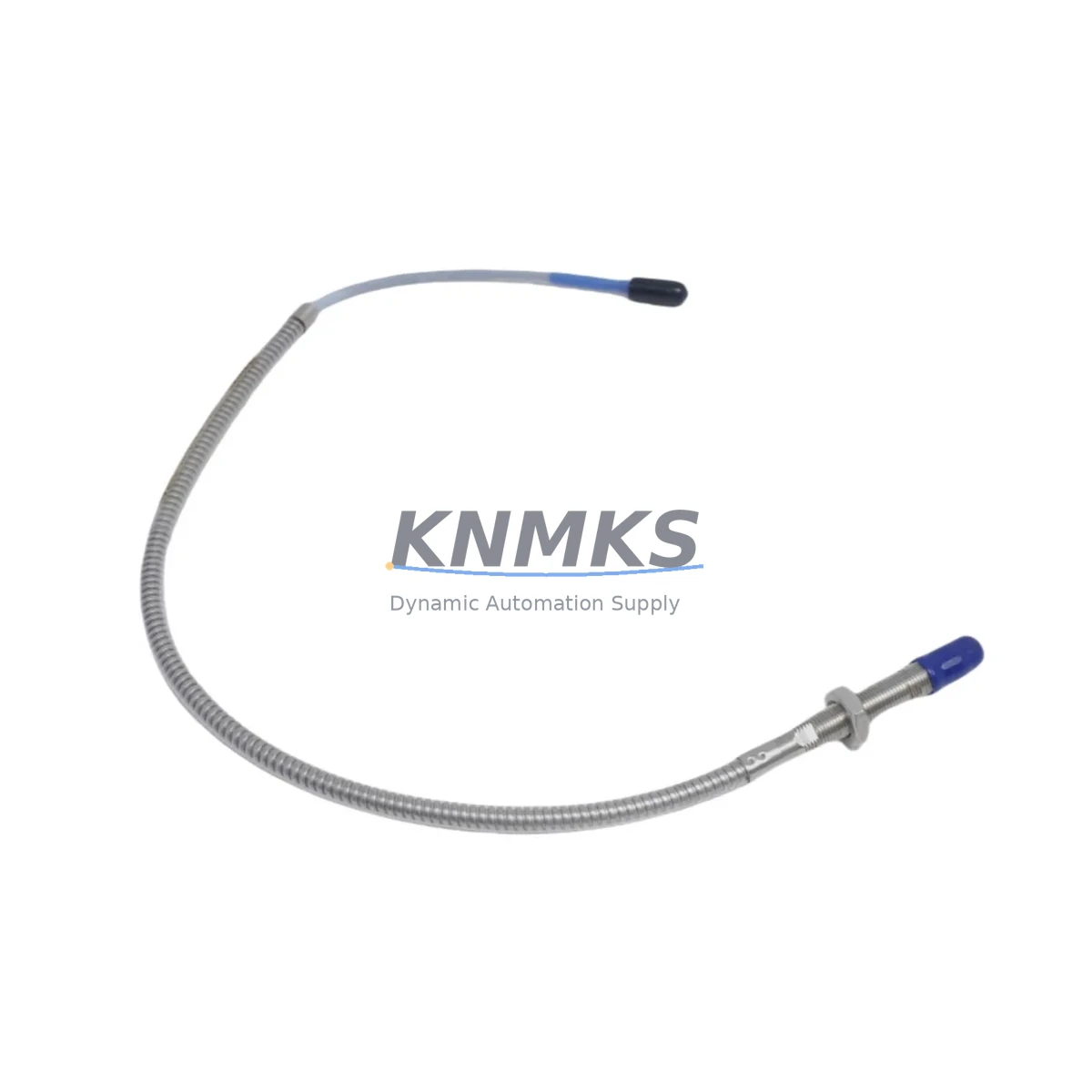

The Bently Nevada 330104-00-05-05-01-00 is an 8mm proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery applications including turbines, compressors, pumps, and motors. As a maintenance-proven spare part, this probe is a critical component in any MRO inventory strategy for facilities running Bently Nevada vibration monitoring systems. Its eddy-current sensing principle delivers non-contact, high-resolution displacement measurement, making it indispensable for predictive maintenance programs and machinery protection systems in oil & gas, power generation, petrochemical, and heavy industrial environments.

Sourced as an original spare, the 330104-00-05-05-01-00 is fully compatible with the Bently Nevada 3300 XL monitoring system architecture. Each unit is tested prior to shipment and backed by a support terms confirmed by quotation, ensuring confidence for both emergency replacement and planned stock replenishment. Long-term supply availability is maintained to support facilities managing aging Bently Nevada installations where OEM lead times may be extended.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330104-00-05-05-01-00 proximity probe in a 3300 XL vibration monitoring loop, a thorough inspection of the entire measurement chain is essential to restore full system integrity and prevent repeat failures. Maintenance engineers should treat this replacement as an opportunity to audit all interconnected components within the same monitoring channel.

Begin with the 3300 XL 8mm Proximitor Sensor (typically mounted in the junction box or machinery monitor rack). The Proximitor converts the probe’s eddy-current signal into a DC voltage proportional to gap distance; a degraded or mismatched Proximitor will produce erroneous readings even with a new probe installed. Verify the Proximitor’s output voltage at the nominal air gap (typically 1.27 mm / 50 mil) and confirm it falls within the ±0.5 V tolerance band.

Next, inspect the extension cable connecting the probe to the Proximitor. The 3300 XL system uses a matched probe-cable-Proximitor set; substituting an unmatched extension cable will shift the system scale factor and introduce measurement error. Check the cable for jacket damage, connector corrosion, and continuity. Replace with the correct Bently Nevada 330130 series extension cable if any anomaly is found.

Within the 3300 XL monitor rack, inspect the I/O module and terminal block connections for the affected channel. Loose or corroded terminals on the signal input, power supply, and relay output circuits are a common source of intermittent alarms. Torque all terminal screws to specification and apply contact cleaner where oxidation is visible.

The 3300/20 Rack Power Supply feeding the monitor rack should be verified for output voltage stability. An unstable or out-of-tolerance power supply (-24 VDC rail) will affect Proximitor bias voltage and degrade probe sensitivity. If the power supply is shared across multiple monitor channels, a single failing supply can trigger simultaneous alarms across the entire rack — a scenario that is frequently misdiagnosed as a probe failure.

For facilities running System 1 Evolution or legacy System 1 condition monitoring software, confirm that the channel configuration (scale factor, gap voltage, alarm setpoints) is updated to match the replacement probe’s calibration data. Mismatched software configuration is a leading cause of false alarms following probe replacement.

Finally, review the relay output module and any associated barrier or isolator in the signal path, particularly in hazardous area installations where Zener barriers or galvanic isolators are used. These components have finite service lives and should be included in the annual inspection checklist alongside the probe and Proximitor.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement probe SKU (330104-00-05-05-01-00) matches the installed probe’s part number, cable length, and extension cable length. Cross-reference the Bently Nevada system drawing for the specific machine train to verify probe orientation, mounting thread (M10×1), and target material. Do not substitute a different probe diameter or cable length without recalibrating the Proximitor.

Step 2 — Safe Isolation: Follow site lock-out/tag-out (LOTO) procedures. For online replacement on non-critical machines, consult the site machinery protection bypass procedure. Notify the control room before bypassing any vibration trip channel to prevent spurious shutdowns.

Step 3 — Probe Removal and Gap Setting: Remove the old probe and inspect the probe tip and target surface for wear, scoring, or contamination. Clean the target area before installing the new probe. Set the air gap to the system-specified nominal value (typically 1.27 mm / 50 mil) using a non-ferrous feeler gauge. Verify the Proximitor output voltage at the set gap before securing the probe locknut.

Step 4 — System Verification: With the probe installed and the channel taken out of bypass, observe the vibration and gap readings in the monitor display or System 1 software. Confirm readings are stable and within normal operating range before returning the machine to service. Document the as-found and as-left gap voltage readings in the maintenance record.

Step 5 — Spare Stock Replenishment: After consuming a probe from stock, initiate a replenishment order to maintain the minimum spare quantity defined in the site critical spare parts list. For facilities with multiple machines on 3300 XL monitoring, maintaining a minimum of two probes per machine train is recommended to support rapid response to unplanned failures.

Spare Parts Support FAQ

Q1: Is the 330104-00-05-05-01-00 a direct drop-in replacement for older 3300 series probes?
The 330104-00-05-05-01-00 is designed for the 3300 XL system and is not directly interchangeable with earlier 3300 series probes without verifying Proximitor compatibility. The 3300 XL Proximitor is matched to the XL probe series. If your installation uses an older 3300 Proximitor, contact our technical team to confirm compatibility before ordering.

Q2: How is the probe tested before shipment?
Each 330104-00-05-05-01-00 unit undergoes functional verification including output sensitivity check, insulation resistance test, and connector integrity inspection prior to shipment. A test report is available upon request. Units are packaged in anti-static, shock-resistant packaging to prevent transit damage.

Q3: What is the lead time and long-term supply availability?
In-stock units ship within 1–3 business days. For facilities requiring blanket stock agreements or scheduled delivery programs to support annual maintenance cycles, long-term supply arrangements are available. We maintain dedicated inventory for 3300 XL series components to mitigate the risk of OEM allocation constraints and extended lead times on discontinued or slow-moving parts.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, mismatched system configuration, mechanical impact, or operation outside the specified environmental limits. Support requests are processed with priority to minimize machine downtime.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-05-05-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-05-05-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
