Bently Nevada 330104-00-03-90-11-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330104-00-03-90-11-00 Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

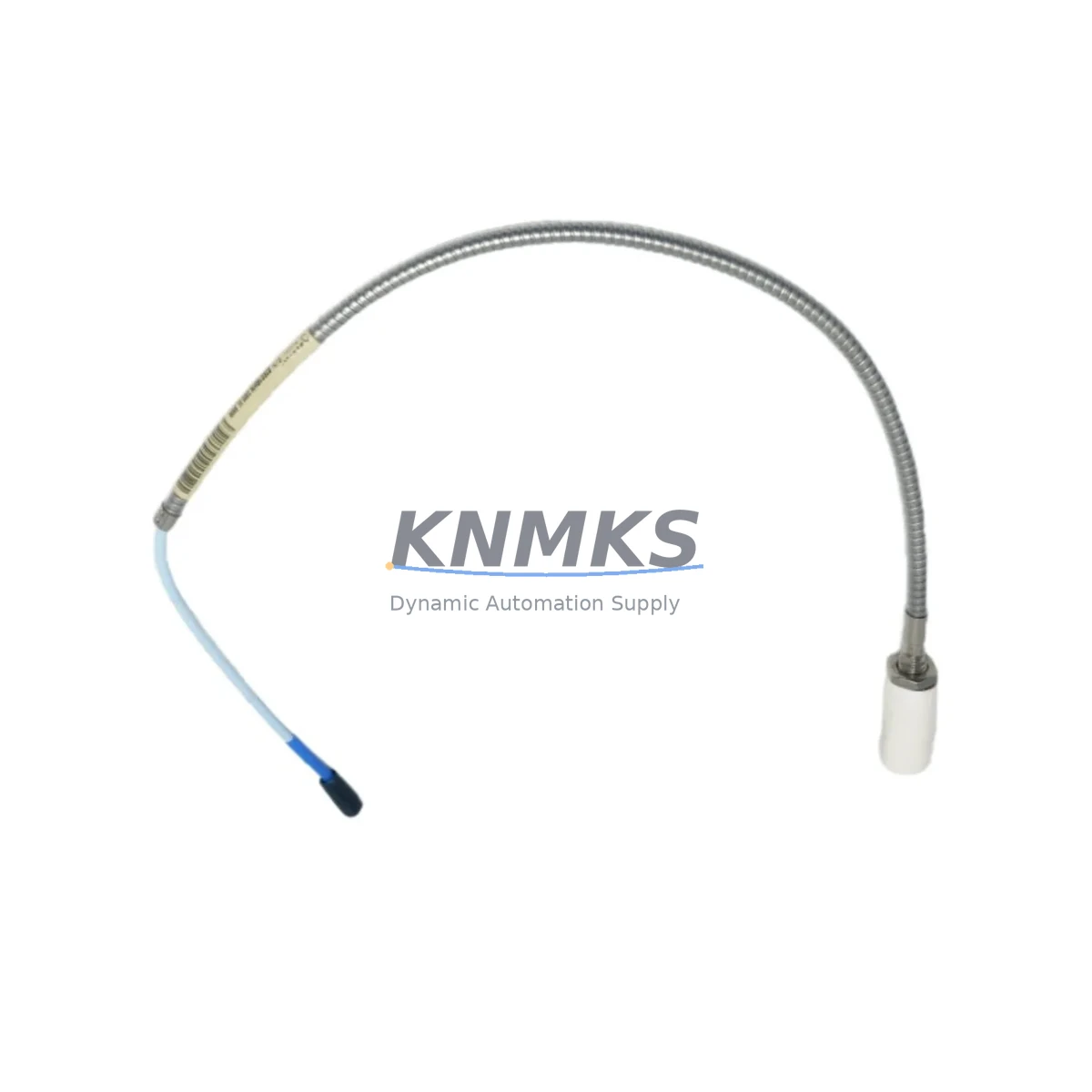

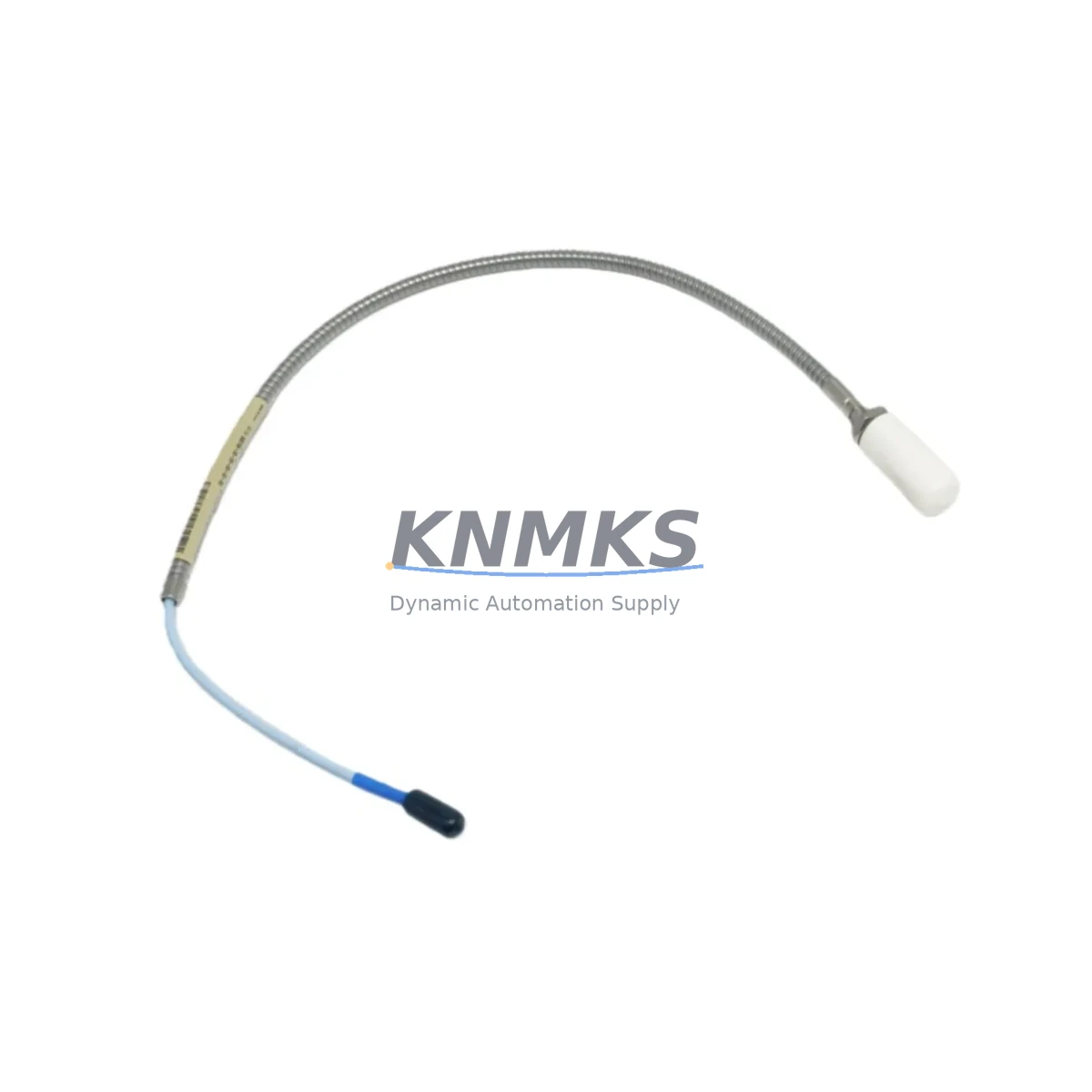

The Bently Nevada 330104-00-03-90-11-00 is a 90 mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to deliver uninterrupted shaft displacement and vibration data in the most demanding industrial environments, this probe is a cornerstone of fail-safe machinery protection strategies across petrochemical, power generation, mining, water treatment, metallurgy, port, and continuous manufacturing facilities worldwide.

Where control interruption, signal drift, or unplanned downtime carry catastrophic consequences, the 330104-00-03-90-11-00 provides the measurement integrity and environmental resilience that safety-critical rotating machinery demands. Its robust construction and SIL-compatible design make it a trusted choice for engineers specifying protection systems on steam turbines, gas compressors, centrifugal pumps, and large induction motors.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In safety-critical control architectures, the 330104-00-03-90-11-00 proximity probe does not operate in isolation. It functions as the primary sensing element within a layered machinery protection strategy. The probe connects directly to the Bently Nevada 3300 XL Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output, ensuring measurement accuracy even under high electromagnetic interference generated by variable frequency drives and large motor starters.

Within the control cabinet, the conditioned signal feeds into a Bently Nevada 3500/42M Proximitor®/Seismic Monitor or equivalent 3500 Series rack module, where trip and alarm setpoints are enforced in real time. To protect the entire monitoring loop from power-quality events — including voltage sags, surges, and conducted EMI — engineers typically pair this system with a Bently Nevada 3500/15 Power Supply or a dedicated DIN-rail UPS module rated for 24 VDC instrument bus applications.

For facilities operating in hazardous classified areas (Zone 1 / Division 1), the probe assembly is often deployed alongside Bently Nevada 3300 XL Barrier Assemblies or certified Zener barriers to maintain intrinsic safety compliance. In high-dust or high-humidity enclosures, cabinet thermal management — achieved through filtered fan units or heat exchangers — is essential to prevent signal drift caused by elevated ambient temperatures acting on the Proximitor® electronics. Surge protection devices installed at the field terminal strip further guard against lightning-induced transients that could corrupt vibration trend data or trigger spurious trips.

When integrated with a System 1® Evolution condition monitoring platform, the 330104-00-03-90-11-00 enables continuous waveform capture, orbit plot analysis, and automated alert escalation — transforming raw proximity data into actionable machinery health intelligence without manual intervention.

Critical Industrial Safety Applications

Petrochemical & Refinery: On API 670-compliant machinery protection systems for centrifugal compressors and process pumps, the 330104-00-03-90-11-00 provides the shaft radial vibration and position data required to trigger emergency shutdown before bearing failure propagates to catastrophic seal or casing damage. Its high-temperature rating supports installation on hot-section compressors operating near process streams.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity probes to detect rotor eccentricity, differential expansion, and thrust position. The 3300 XL probe’s wide linear range and stable sensitivity across temperature extremes make it suitable for both base-load and peaking units where rapid load cycling creates dynamic shaft movement.

Mining & Mineral Processing: In ball mill, SAG mill, and crusher drive trains, high vibration amplitudes and heavy dust ingress challenge conventional sensors. The armored cable construction and IP67-rated probe body of the 330104-00-03-90-11-00 maintain measurement integrity in these abrasive, high-shock environments, supporting predictive maintenance programs that reduce unplanned concentrator shutdowns.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in municipal water infrastructure require continuous vibration oversight to meet uptime commitments. The probe’s corrosion-resistant housing and compatibility with 3500 Series safety monitors make it a reliable choice for wet, chemically aggressive pump station environments.

Metallurgy & Steel: Rolling mill main drives and continuous caster pinch roll assemblies operate under extreme radial loads and thermal cycling. Proximity probes in these applications must maintain calibration stability across wide temperature swings — a requirement the 330104-00-03-90-11-00 meets through its thermally compensated design and robust armored cable.

Port & Marine: Shipboard propulsion systems and port crane slewing drives benefit from the probe’s EMI immunity in environments saturated with VHF radio, radar, and high-current motor noise. Its compact 90 mm form factor allows installation in space-constrained machinery spaces without compromising measurement quality.

Safety and Quality FAQ

Q1: What support terms does the 330104-00-03-90-11-00 carry, and what does it cover?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects, calibration failures, and premature component degradation under normal operating conditions. Support requests are processed with priority turnaround to minimize machinery downtime at your facility.

Q2: What pre-shipment testing is performed on each probe?
Each 330104-00-03-90-11-00 unit undergoes functional verification prior to dispatch, including sensitivity confirmation, cable continuity and insulation resistance checks, and connector integrity inspection. Units are shipped with test documentation available upon request to support your incoming inspection and commissioning records.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330104-00-03-90-11-00 is a direct-fit replacement for 3300 XL proximity probe assemblies and is fully compatible with Bently Nevada 3300 XL Proximitor® Sensors and the 3500 Series monitoring rack. No recalibration of the Proximitor® is required when replacing a like-for-like probe of the same length and cable configuration.

Q4: Can KNMKS support long-term supply commitments for critical spare parts programs?
Yes. KNMKS maintains standing inventory of high-demand Bently Nevada 3300 XL components and can support blanket purchase orders, scheduled release agreements, and emergency expedite requests. Contact our team to discuss consignment stock arrangements or multi-year supply contracts tailored to your plant’s maintenance strategy.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-03-90-11-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-03-90-11-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
