Bently Nevada 330104-00-02-50-02-05 Maintenance-Proven Spare Part for Factory Uptime

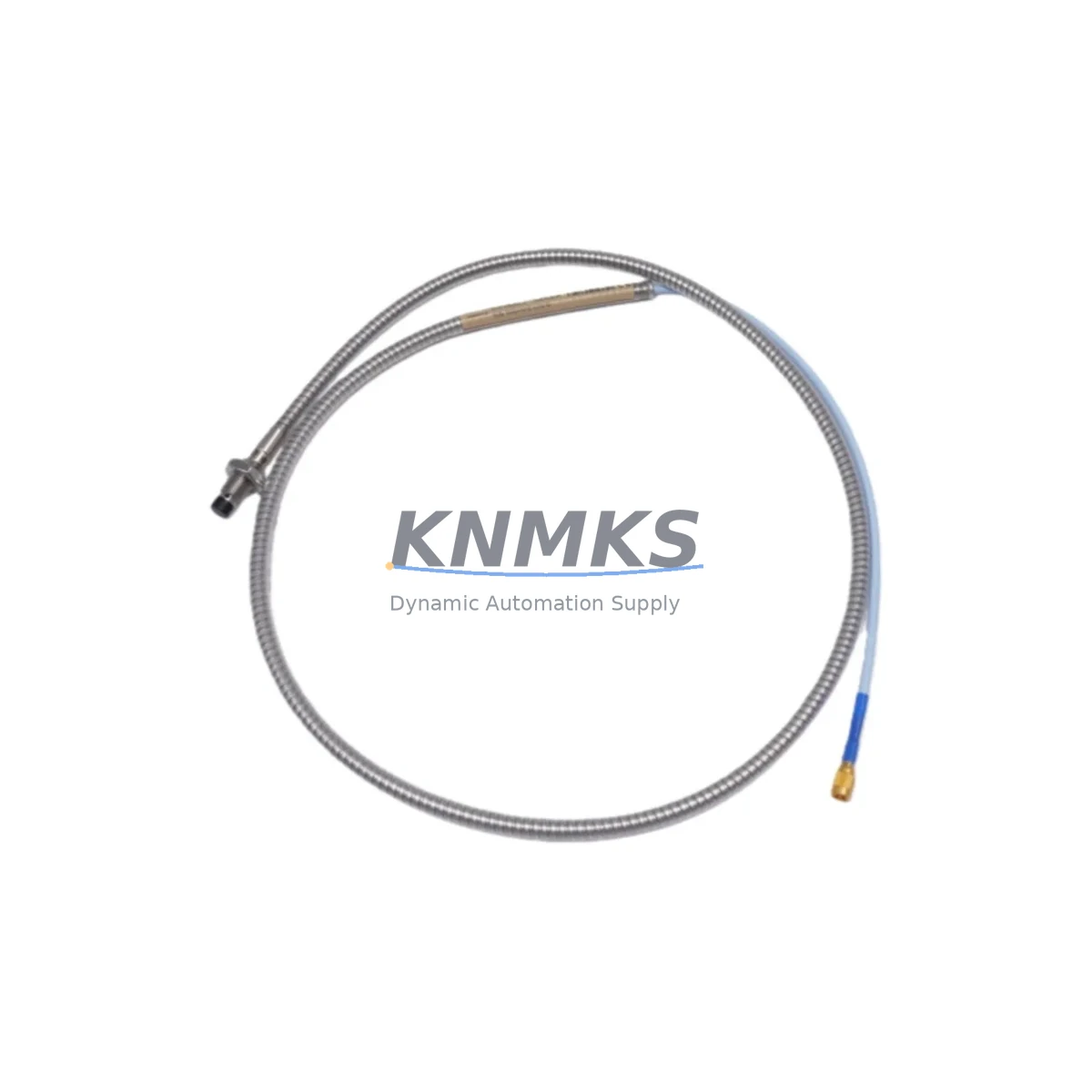

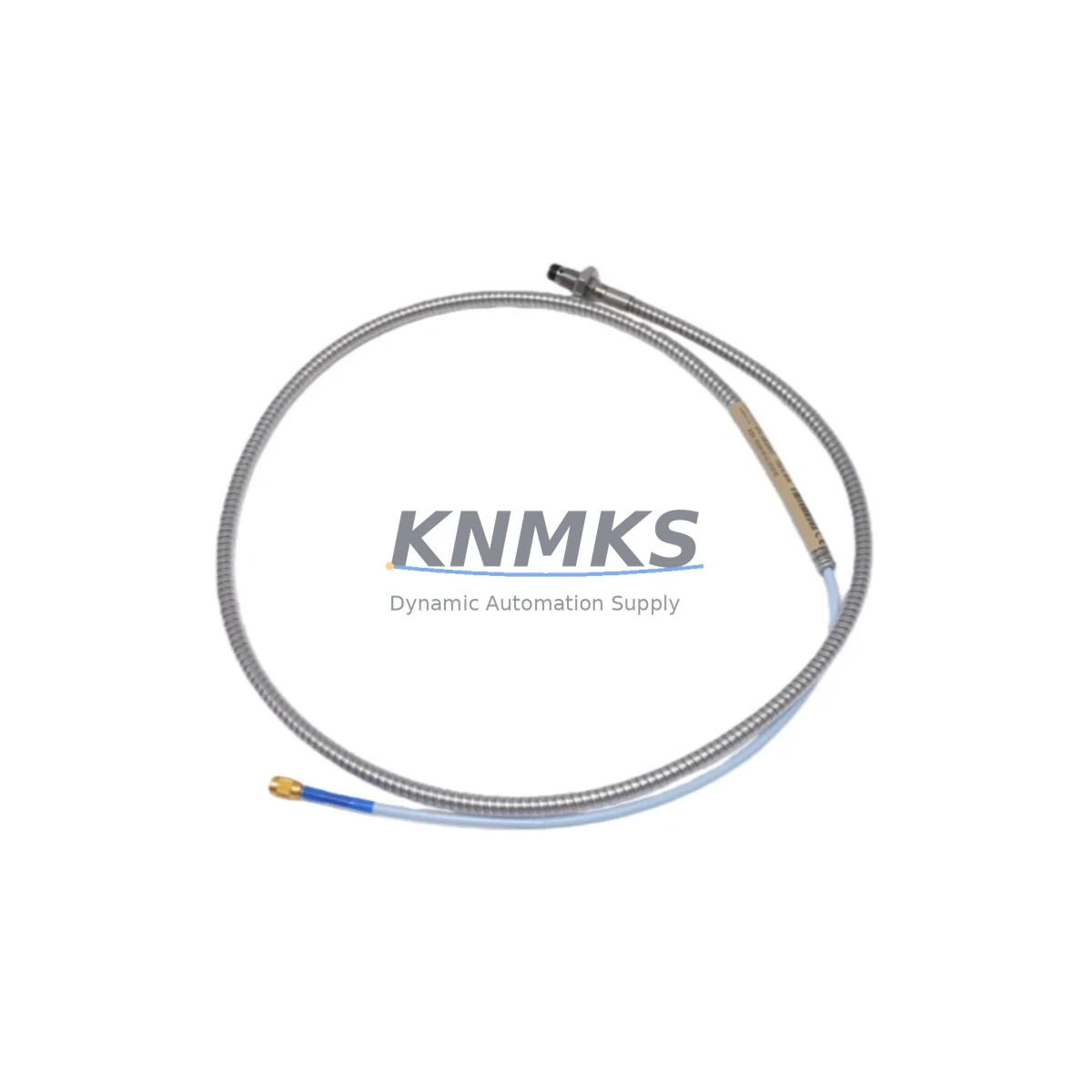

The Bently Nevada 330104-00-02-50-02-05 is an original proximity probe designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications across power generation, petrochemical, oil & gas, and heavy manufacturing industries. Maintaining a verified spare of this probe in your critical spares inventory is a fundamental requirement for any maintenance strategy targeting zero unplanned downtime on turbines, compressors, pumps, and gearboxes monitored by Bently Nevada 3300 XL systems.

This SKU — 330104-00-02-50-02-05 — specifies a 5-meter (50-02) cable extension probe with a 25 mm (02) tip diameter, configured for standard 3300 XL driver compatibility. It is a direct OEM-equivalent replacement for aging or damaged probes in existing installations, requiring no recalibration of the monitoring rack when installed within the same system configuration. Procurement engineers and maintenance planners can source this part with confidence: each unit is individually tested prior to shipment, backed by a support terms confirmed by quotation, and available for long-term supply commitment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-02-50-02-05 proximity probe is flagged during routine vibration data review or fails during a scheduled outage inspection, the replacement workflow extends beyond the probe itself. A complete bearing proximity measurement chain in a 3300 XL system consists of the probe, the extension cable (typically a 330130 series armored extension cable matched to the probe cable length), and the driver module — most commonly a 330180-51-05 or equivalent 3300 XL 8mm driver. All three components must be verified as a matched set; substituting a probe without confirming driver compatibility can introduce scale factor errors that invalidate vibration alarm setpoints.

At the monitor rack level, maintenance engineers should simultaneously inspect the 3300/16-02-01-00 or equivalent 3300 XL Radial Vibration Monitor card for any latched fault indicators, verify the OK relay output is functioning correctly, and confirm that the Keyphasor signal — typically sourced from a separate 330980 series Keyphasor probe — is stable and correctly phased. A degraded Keyphasor signal can mask true vibration amplitude readings and lead to misdiagnosis of probe failure when the root cause lies upstream.

For thrust position monitoring applications, the replacement of a proximity probe should trigger a simultaneous check of the 3300/20 Thrust Position Monitor card’s gap voltage reading and a physical inspection of the thrust collar surface for scoring or wear. In differential expansion applications on steam turbines, probe replacement should be coordinated with a review of the 3300/46 or 3300/55 monitor configuration to ensure the new probe’s gap is set within the linear range before the machine is returned to service.

From a spares inventory perspective, maintenance planners managing large rotating equipment fleets should hold a minimum of one matched probe-extension-driver set per critical machine train. For facilities operating multiple 3300 XL racks, stocking a 3500/22M compatible probe set alongside 3300 XL spares provides cross-generation coverage as systems are upgraded. Power supply modules feeding the 3300 XL rack — such as the 3300/05 Power Supply — should also be included in the critical spares list, as a power supply failure can simultaneously invalidate all channel readings and trigger unnecessary machine trips.

Site Replacement Workflow

Step 1 — Isolation and Permit: Coordinate with operations to obtain a work permit. For online replacement on non-trip-critical channels, confirm with the control room that the channel can be bypassed at the monitor before disconnecting the probe.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the existing gap voltage from the monitor front panel or DCS historian. This baseline confirms the probe was within its linear range and provides a reference for setting the replacement probe.

Step 3 — Matched Set Verification: Confirm the replacement 330104-00-02-50-02-05 probe, its extension cable, and the installed driver are a matched set per the Bently Nevada system TDR (Transducer Data Record). Mismatched sets will produce incorrect sensitivity and must not be installed.

Step 4 — Installation and Gap Setting: Install the probe into the bearing housing bracket, adjusting the gap to achieve the target gap voltage (typically -10.0 VDC ± 0.5 VDC for standard 3300 XL configurations). Use a calibrated gap-setting tool and verify the OK LED illuminates on the driver before reconnecting to the monitor.

Step 5 — Functional Verification: With the channel taken out of bypass, confirm the vibration reading is within expected baseline range, the OK relay is energized, and no fault codes are present on the monitor. Log the replacement in the equipment maintenance record and update the spare parts inventory accordingly.

This workflow minimizes downtime to under two hours for a prepared maintenance team and eliminates the risk of returning a machine to service with an incorrectly configured measurement channel.

Spare Parts Support FAQ

Q1: Is the 330104-00-02-50-02-05 compatible with both 3300 XL and 3500 series monitors?
The 330104-00-02-50-02-05 is designed and calibrated for the 3300 XL 8mm proximity transducer system. While the physical connector may be similar, the 3500 series uses a different TDR-based calibration approach. Direct substitution into a 3500 rack without a matching TDR is not recommended. For 3500 series applications, the equivalent probe from the 330730 or 330900 series should be specified.

Q2: What is included in the support terms confirmed by quotation and what does pre-shipment testing cover?
Each 330104-00-02-50-02-05 unit shipped from KNMKS undergoes electrical continuity testing, sensitivity verification against the 7.87 V/mm specification, and insulation resistance measurement before dispatch. The support terms confirmed by quotation cover manufacturing defects and out-of-specification performance under normal operating conditions. It does not cover damage resulting from installation errors, mechanical impact, or operation outside the specified temperature and gap range.

Q3: Can KNMKS support long-term supply agreements for this SKU?
Yes. KNMKS maintains stock of the 330104-00-02-50-02-05 and can support blanket purchase orders and long-term supply commitments for facilities requiring guaranteed availability. Contact admin@knmks.com to discuss volume pricing, lead time guarantees, and consignment stocking arrangements tailored to your maintenance planning cycle.

Q4: How should this spare be stored to maintain its condition before installation?
Store the probe in its original packaging in a dry, temperature-controlled environment (10°C – 40°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or sources of mechanical vibration. Inspect the probe tip and cable connector for physical damage before installation, even if the unit has been in storage for less than 12 months. Probes stored beyond 24 months should be re-tested for sensitivity before use.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330104-00-02-50-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330104-00-02-50-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
