Bently Nevada 330103-06-15-10-12-CN Maintenance-Proven Spare Part for Factory Uptime

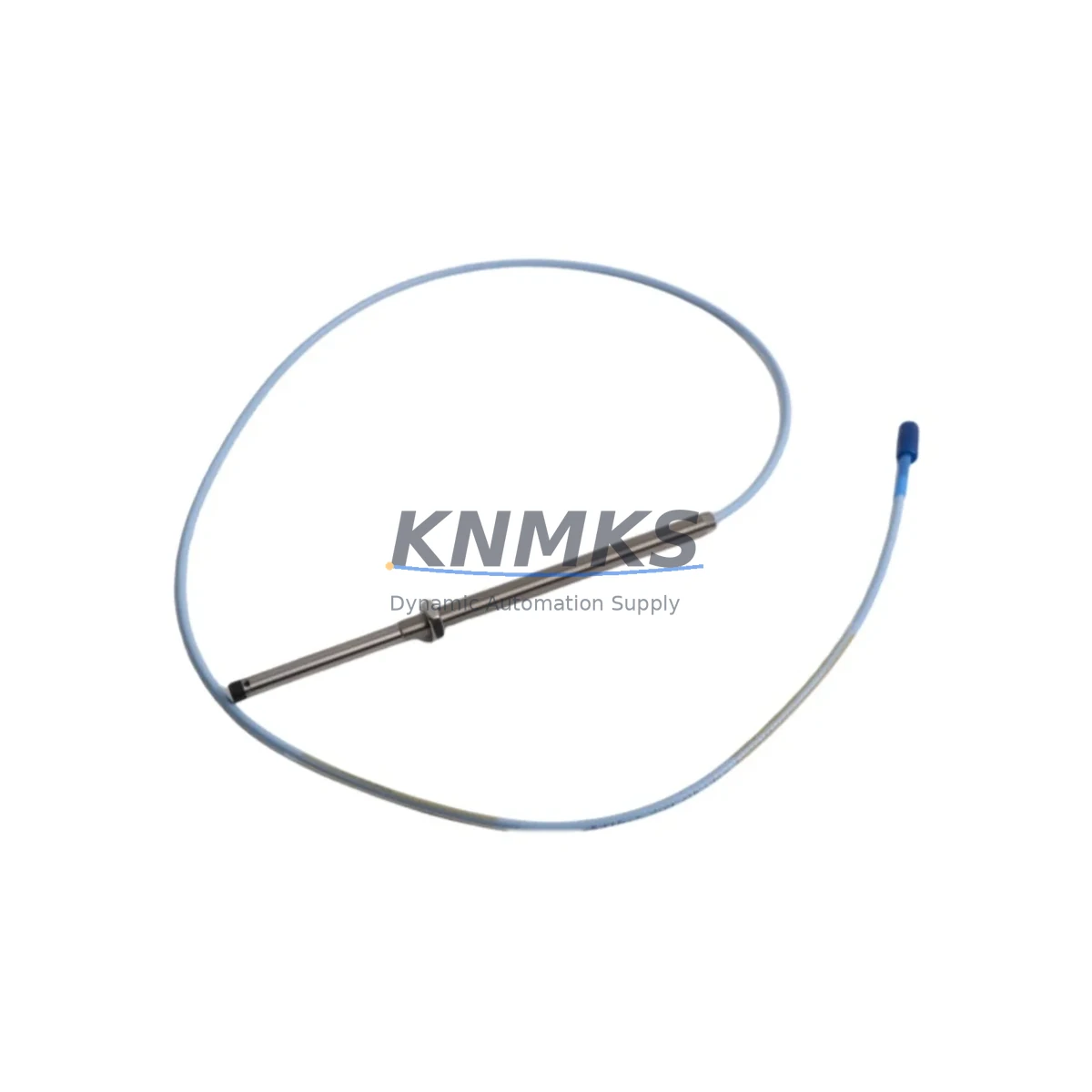

The Bently Nevada 330103-06-15-10-12-CN is an 8mm eddy-current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration, position, and speed monitoring in rotating machinery. As a maintenance-proven original spare, it is a critical component in turbine protection panels, compressor trains, pump skids, and motor-driven equipment where unplanned downtime carries significant operational and financial risk. Stocking this probe as a verified replacement ensures your maintenance team can execute rapid swap-outs during scheduled outages or emergency fault-isolation events without waiting on extended lead times.

For maintenance engineers managing aging DCS or PLC-integrated vibration monitoring systems, the 330103-06-15-10-12-CN provides a direct, pin-compatible replacement for worn or damaged probes in the 3300 XL monitoring loop. Its 5-metre integral cable (10-12 designation) and standard -18 VDC bias voltage output make it fully interchangeable within existing 3300 XL driver and monitor card installations without requiring recalibration of the full channel. Procurement engineers can source this part with confidence: each unit ships after functional output verification, backed by a support terms confirmed by quotation covering manufacturing defects and electrical performance.

Whether you are executing a planned annual overhaul, responding to a high-vibration trip alarm, or building a strategic spare parts inventory for a critical asset, the 330103-06-15-10-12-CN is the correct original-specification component to maintain system integrity and regulatory compliance in your condition monitoring architecture.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL vibration monitoring loop extends well beyond the probe itself. When replacing the 330103-06-15-10-12-CN during a scheduled outage or emergency repair, maintenance engineers should simultaneously inspect and, where necessary, replace the associated 3300 XL 8mm extension cable (typically a 330130 series), as cable connector wear and coaxial shield degradation are common root causes of erratic gap voltage readings that are often misdiagnosed as probe failure.

The 3300 XL driver module (e.g. 330180-51-05) should be bench-tested for correct output impedance and bias voltage after any probe replacement, since a faulty driver can damage a new probe within hours of commissioning. If the monitoring system feeds into a Bently Nevada 3500 rack, verify that the 3500/42M or 3500/45S monitor card channel configuration matches the new probe’s scale factor — a mismatch will produce false alarm thresholds and may mask genuine machinery faults.

For installations where the vibration signal feeds into a DCS I/O card or PLC analogue input module, confirm that the 4–20 mA or voltage signal conditioning at the marshalling cabinet is correctly ranged. Inspect terminal blocks, signal isolators, and any galvanic isolation barriers in the signal path, as ground loops introduced at these points are a frequent source of noise on proximity probe channels. Where the system uses a Keyphasor module (e.g. 3500/25) for phase reference, verify the Keyphasor probe gap and output simultaneously — a degraded Keyphasor signal will corrupt all phase-referenced vibration vectors across the rack.

Procurement teams building a resilient spare parts inventory for 3300 XL or 3500 series installations should consider stocking the probe alongside its matched extension cable, at least one spare driver module, and a set of terminal block connectors and coaxial adaptors specific to the rack interface. This ensures that any single-component failure in the measurement chain can be resolved within a single maintenance window, minimising mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the existing probe, record the installed gap voltage (typically -10 V to -18 V) from the monitor card front panel or DCS historian. This baseline confirms the target installation gap for the replacement probe and provides a reference for post-installation verification.

Step 2 — Mechanical removal: Loosen the probe locknut and carefully back the probe out of the bracket. Inspect the probe tip for physical damage, contamination, or target surface scoring. Clean the probe bore and bracket threads before installing the replacement 330103-06-15-10-12-CN.

Step 3 — Gap setting: Thread the new probe in until the gap voltage reads within the linear range centre (approximately -12 V for a standard steel target at 1.0 mm gap). Tighten the locknut to the specified torque. Do not rely on thread count alone — always verify electrically.

Step 4 — System verification: Confirm that the monitor card channel shows a stable gap voltage within the configured OK limits. Check that vibration and position readings are within expected baseline values before returning the machine to service. Log the replacement in the asset maintenance record with the new probe serial number and installation date.

Step 5 — Compatibility confirmation: The 330103-06-15-10-12-CN is a direct replacement for earlier 330103 series probes used in 3300 XL systems. It is also compatible with 3500 series racks configured for 8mm probe inputs. No firmware or configuration changes are required in the monitor card when replacing a like-for-like probe within the same series.

Spare Parts Support FAQ

Q1: Is the 330103-06-15-10-12-CN a genuine original spare or a third-party equivalent?
This is an original Bently Nevada 330103-06-15-10-12-CN proximity probe sourced from authorised supply channels. Each unit is individually tested for bias voltage output, scale factor accuracy, and cable insulation integrity before shipment. A support terms confirmed by quotation is provided covering manufacturing defects and electrical performance from the date of delivery.

Q2: How do I confirm compatibility with my existing 3300 XL or 3500 series installation?
Compatibility is determined by three factors: probe diameter (8mm), cable length (5 metres integral), and driver series (3300 XL 8mm). If your current installation uses a 330103 series probe with a 330130 or 330180 series driver, the 330103-06-15-10-12-CN is a direct replacement. For 3500 series racks, verify that the monitor card channel is configured for 8mm probe input with a 200 mV/mil scale factor. If you are unsure, contact our technical team with your rack configuration and we will confirm compatibility before shipment.

Q3: What is your long-term supply commitment for this part number?
We maintain dedicated stock of the 330103-06-15-10-12-CN to support long-term maintenance programmes for 3300 XL and 3500 series installations. For customers managing critical assets with multi-year maintenance contracts, we offer blanket order arrangements and reserved inventory allocation to eliminate lead-time risk. Contact our sales team to discuss annual volume requirements and supply continuity agreements.

Q4: Can I return or exchange the probe if it does not fit my installation?
Yes. If the probe does not match your installation requirements due to a specification mismatch, we accept returns within 30 days of delivery provided the unit is unused and in original packaging. Our technical team is available pre-purchase to verify compatibility and prevent mismatched orders. All units are shipped with a test report; if a unit fails to perform within specification on arrival, it is covered under the support terms confirmed by quotation and will be replaced or refunded at no additional cost.
