Bently Nevada 330103-05-10-02-00 Fail-Safe Proximity Probe

Overview

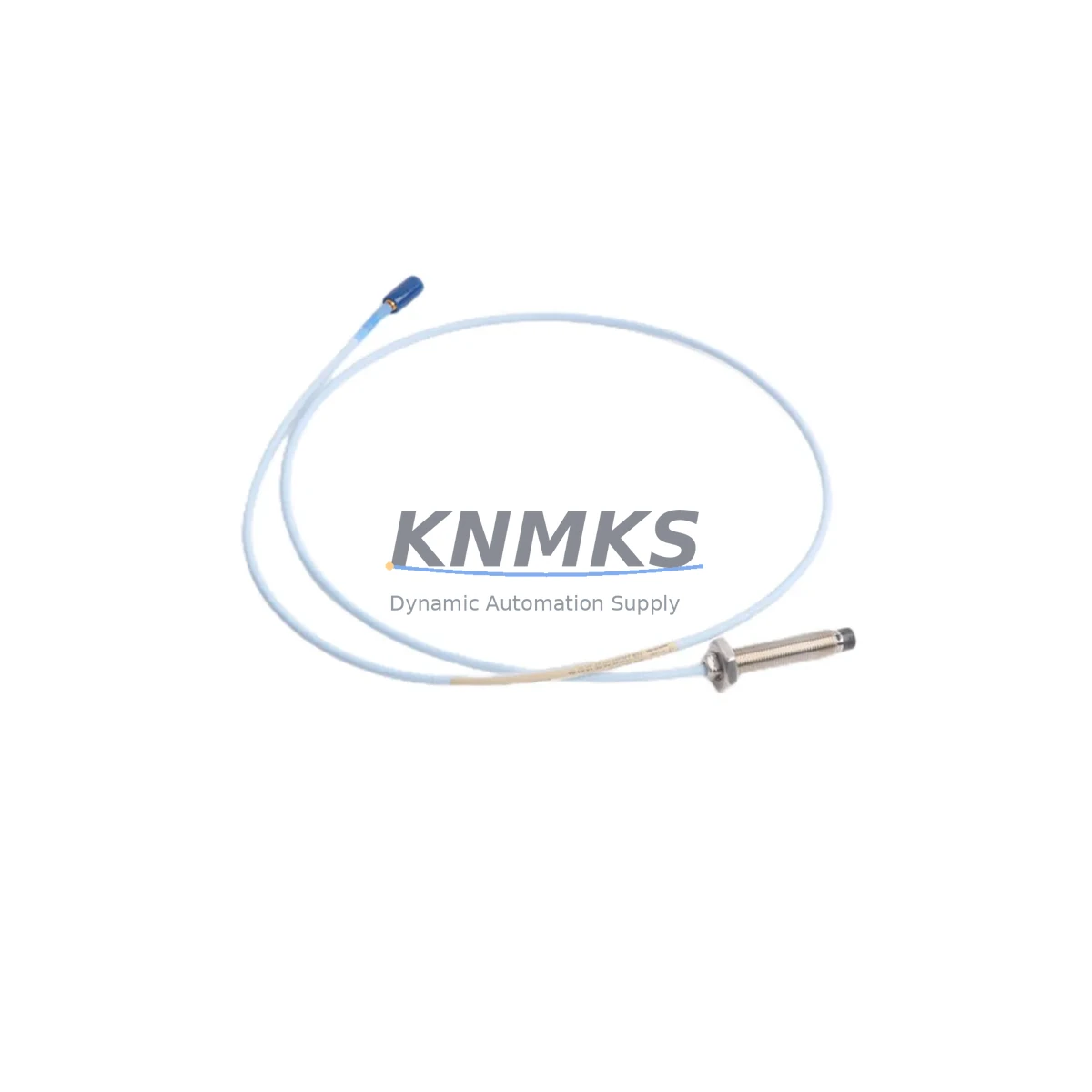

Bently Nevada 330103-05-10-02-00 Fail-Safe Proximity Probe: Critical Machinery Protection for Industrial Reliability

The Bently Nevada 330103-05-10-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for fail-safe vibration monitoring and shaft position sensing in the most demanding industrial environments. Designed to integrate seamlessly with Bently Nevada 3300 XL signal conditioning systems, this probe delivers continuous, high-accuracy displacement measurement that forms the backbone of machinery protection strategies across rotating equipment fleets worldwide.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical mills, port terminals, and marine propulsion systems — unplanned machinery downtime is not merely a cost event; it is a safety event. The 330103-05-10-02-00 addresses this reality by providing a stable, interference-resistant sensing signal that enables control systems to detect shaft vibration anomalies, rotor imbalance, bearing wear, and critical clearance deviations before they escalate into catastrophic failures. Its eddy-current operating principle is inherently non-contact, eliminating mechanical wear and ensuring measurement integrity over extended service intervals without recalibration drift.

Signal integrity is maintained even in environments characterized by high electromagnetic interference (EMI), variable temperature gradients, airborne particulate contamination, moisture ingress, and mechanical vibration of the sensor mounting structure itself. The probe’s shielded coaxial cable construction and robust stainless-steel housing resist the electrical noise generated by variable-frequency drives, high-current bus bars, arc furnaces, and adjacent power cabling — conditions routinely encountered in heavy industrial control cabinets and field junction boxes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection is never the result of a single component — it is the outcome of a coordinated system architecture. The 330103-05-10-02-00 probe operates as the field-sensing element within a protection loop that typically includes the Bently Nevada 3300 XL Proximitor Sensor (signal conditioner), which converts the probe’s raw impedance signal into a calibrated DC voltage proportional to gap distance. This conditioned signal feeds directly into the Bently Nevada 3500 Series Machinery Protection System rack, where dedicated monitor cards — such as the 3500/42M Proximitor/Seismic Monitor — apply configurable alert and danger setpoints, triggering relay outputs to the plant DCS or safety instrumented system (SIS) upon threshold breach.

Within the control cabinet, power supply stability is critical to measurement accuracy. Regulated 24 VDC instrument power supplies with surge suppression and redundant feed capability ensure that the Proximitor sensor maintains its bias voltage within specification, preventing false readings caused by supply transients. In high-EMI environments, proper cable routing — segregating the probe’s coaxial extension cable from power conductors and using dedicated cable trays — is equally important for preserving signal fidelity.

For installations requiring SIL-rated protection, the 330103-05-10-02-00 probe is commonly paired with Bently Nevada 3500/22M Transient Data Interface modules and integrated into safety loops governed by a Triconex or Rockwell GuardLogix Safety PLC, where the vibration signal serves as a process input to emergency shutdown (ESD) logic. Complementary field instruments such as Bently Nevada 330500 Series velocity transducers or 330400 Series accelerometers are often deployed alongside proximity probes to provide multi-parameter machinery health coverage — vibration amplitude, velocity, and high-frequency bearing defect detection — within the same protection cabinet architecture.

Critical Industrial Safety Applications

Petrochemical & Refinery: Centrifugal compressors, reactor charge pumps, and turbine-driven blowers in hydrocarbon processing require continuous shaft monitoring to prevent seal failures and bearing collapses that can trigger fire or toxic release events. The 330103-05-10-02-00 provides the real-time radial vibration data that allows operators to trend bearing condition and schedule maintenance within planned turnaround windows rather than responding to emergency trips.

Power Generation: Steam turbines, gas turbines, and large synchronous generators operate at speeds and power densities where a bearing failure can result in catastrophic rotor damage within seconds. API 670-compliant proximity probe systems using the 330103-05-10-02-00 are standard practice for turbine shaft monitoring, providing the eccentricity and vibration data required by both OEM protection systems and plant safety management systems.

Mining & Mineral Processing: Ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes operate in environments with extreme dust loading, moisture, and structural vibration. The sealed, robust construction of the 330103-05-10-02-00 maintains measurement reliability in these conditions, supporting predictive maintenance programs that reduce unplanned concentrator shutdowns.

Water & Wastewater Treatment: High-service pumps, blowers, and centrifuges in water infrastructure must operate continuously with minimal maintenance access. Proximity probe monitoring enables condition-based maintenance scheduling, extending mean time between failures (MTBF) and ensuring regulatory compliance for continuous service obligations.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and blast furnace blowers operate under severe thermal and mechanical stress. The 330103-05-10-02-00’s wide operating temperature range and EMI resistance make it suitable for the electrically noisy, high-temperature environments characteristic of steel plant motor control centers and drive cabinets.

Marine & Port: Propulsion shaft monitoring on vessels and crane drive systems in port terminals benefit from the probe’s compact 8mm form factor and robust cable construction, which withstand the vibration, humidity, and salt-air exposure of marine installations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-05-10-02-00?
All units carry a support terms confirmed by quotation from the date of shipment. Coverage includes functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify probe impedance, cable continuity, and connector integrity before dispatch.

Q2: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330103-05-10-02-00 is a factory-matched 8mm probe designed for use with the Bently Nevada 3300 XL 8mm Proximitor Sensor. It is fully compatible with 3500 Series monitor cards configured for 3300 XL probe/driver systems. No recalibration of the Proximitor is required when replacing a like-for-like probe of the same part number.

Q3: How is field safety ensured during probe replacement on live machinery?
Probe replacement on operating machinery should follow the plant’s machinery protection bypass and isolation procedures. The 3500 Series monitor supports channel bypass functions that allow maintenance personnel to inhibit trip outputs during probe changeout without disabling the full protection system. It is recommended to coordinate replacement with the control room and document the bypass event in the plant safety management system.

Q4: What is the long-term supply availability for this part number?
The 330103-05-10-02-00 is maintained as a stocked spare part to support both planned maintenance and emergency replacement requirements. Inventory is held to support rapid dispatch for critical plant situations. For facilities with large rotating equipment fleets, consult our team regarding volume pricing and consignment stock arrangements to ensure uninterrupted spare parts availability.
