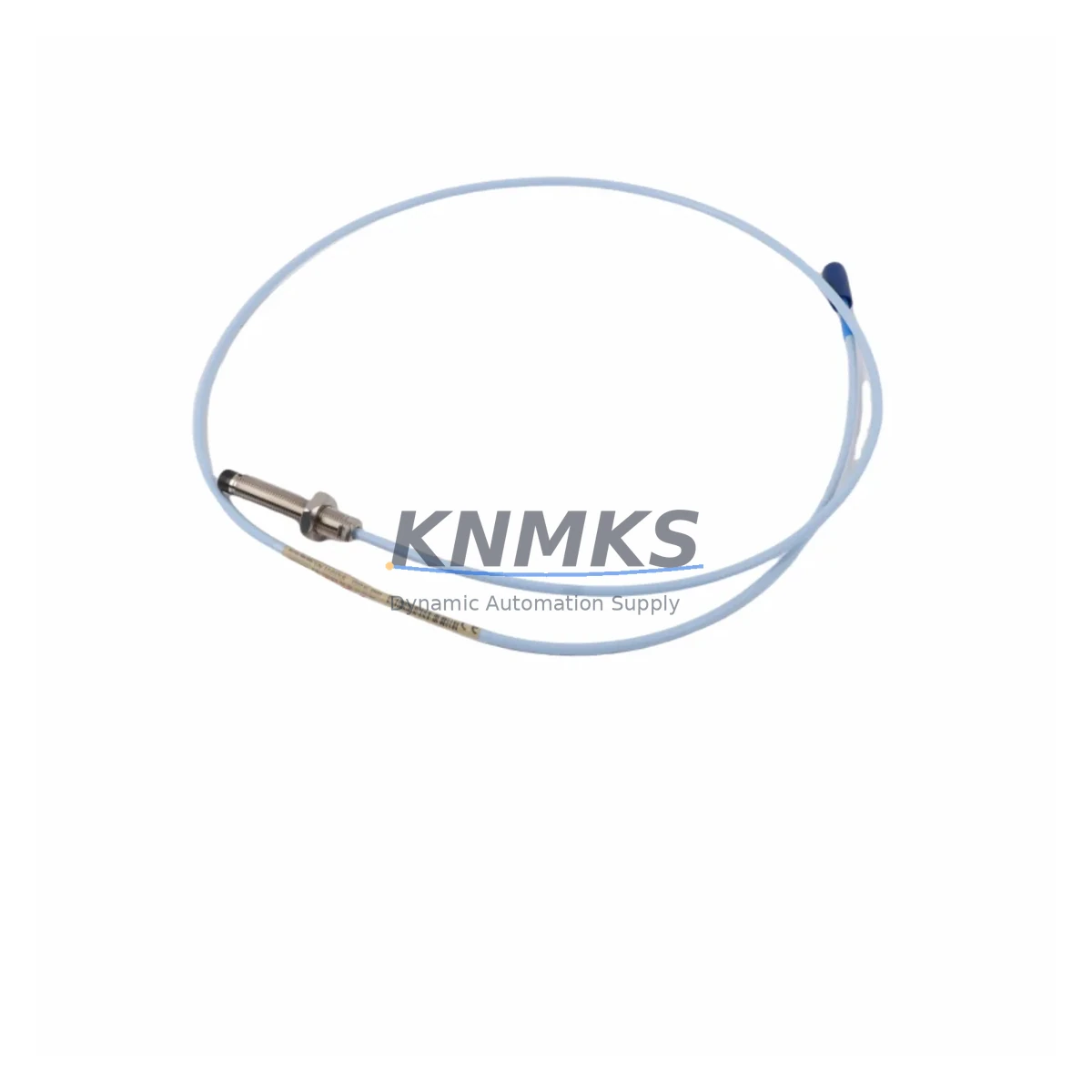

Bently Nevada 330103-04-13-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-04-13-10-02-00 Fail-Safe Proximity Probe: Control Loop Protection for Critical Industrial Sites

The Bently Nevada 330103-04-13-10-02-00 is an 8mm eddy-current proximity probe engineered for the Bently Nevada 3300 XL Proximity Transducer System. Designed to deliver continuous, fail-safe vibration and position monitoring in the most demanding industrial environments, this probe is a cornerstone component for rotating machinery protection in petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

Where unplanned shutdowns carry six-figure costs per hour and safety interlock failures can trigger catastrophic consequences, the 330103-04-13-10-02-00 provides the signal integrity and environmental resilience that engineering teams depend on. Its ruggedized construction resists electromagnetic interference (EMI), high-frequency electrical noise, shaft voltage transients, and the mechanical vibration inherent to heavy rotating equipment — ensuring that the proximity signal reaching your Bently Nevada 3300/16 Monitor or 3500/42M Proximitor Monitor remains accurate, stable, and actionable at all times.

Pre-shipment tested against Bently Nevada OEM calibration standards and backed by a support terms confirmed by quotation, this probe ships from multi-region stock to support both emergency replacement and scheduled outage programs worldwide.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully protected rotating machinery monitoring cabinet, the 330103-04-13-10-02-00 proximity probe operates as the primary sensing element within a layered protection architecture. The probe connects to the Bently Nevada 330180-91-00 Proximitor Sensor, which conditions the raw eddy-current signal into a clean DC voltage output before it reaches the monitoring rack. Signal integrity across long cable runs is maintained by pairing the probe with Bently Nevada 330130-045-00-CN extension cables, which preserve the calibrated scale factor across the full transmission distance.

Within the Bently Nevada 3500 Machinery Protection System rack, the conditioned proximity signal feeds into the 3500/42M Proximitor Monitor for radial vibration and eccentricity measurement, or the 3500/46M Position Monitor for axial thrust position monitoring. Both monitors provide relay-based trip outputs that integrate directly into the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic. For facilities running legacy 3300-series racks, the probe is equally compatible with the Bently Nevada 3300/16 Monitor, ensuring a direct drop-in replacement path without recalibration of the monitoring system.

Power supply stability for the Proximitor and monitoring rack is critical in high-EMI environments such as motor control centers and variable frequency drive (VFD) cabinets. Engineering teams routinely pair the 3300 XL system with dedicated DC power conditioners and surge protection modules to prevent supply transients from introducing signal noise or false trip events. This layered approach — probe, extension cable, Proximitor, monitor, and conditioned power — forms a complete, fail-safe proximity measurement chain that minimizes the risk of nuisance trips, missed alarms, and unplanned shutdowns.

Critical Industrial Safety Applications

The Bently Nevada 330103-04-13-10-02-00 is deployed across the full spectrum of rotating machinery-intensive industries where continuous operation and personnel safety are non-negotiable.

In petrochemical and refining facilities, this probe monitors radial shaft vibration on centrifugal compressors, process pumps, and steam turbines operating in hydrogen-rich, high-temperature, and corrosive atmospheres. Accurate proximity measurement is essential for detecting rotor instability, oil whirl, and bearing wear before they escalate to catastrophic failure or process release events.

In power generation — including coal-fired, gas turbine, and nuclear plants — the 330103-04-13-10-02-00 provides the vibration and position data that feeds turbine protection systems and automatic runback logic. A single missed trip signal on a large turbine-generator can result in shaft bow, bearing damage, or blade liberation, making probe reliability a direct safety-of-life concern.

In mining and mineral processing, the probe operates on large ball mills, SAG mills, slurry pumps, and conveyor drive systems in environments characterized by extreme dust loading, high ambient vibration, and wide temperature swings. Its IP67-equivalent sealing and armored cable construction ensure sustained measurement accuracy without signal degradation from ingress or mechanical damage.

In metallurgical and steel production facilities, the probe monitors rolling mill drives, continuous casters, and blast furnace blower trains where high radial loads and thermal cycling create demanding conditions for proximity measurement. In water and wastewater treatment plants, it protects large vertical turbine pumps and blower units that must run continuously to maintain regulatory compliance. Across all these applications, the 330103-04-13-10-02-00 delivers the measurement stability and fail-safe signal behavior that plant engineers require for both normal operations and emergency shutdown scenarios.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-04-13-10-02-00?
The support terms confirmed by quotation cover manufacturing defects, calibration drift beyond OEM tolerance, and signal output failures under normal operating conditions. Each unit is pre-shipment tested against Bently Nevada 3300 XL calibration standards before dispatch. Support requests are supported with direct technical assistance and priority replacement from multi-region stock.

Q2: How is the probe tested before shipment to ensure field reliability?
Every 330103-04-13-10-02-00 unit undergoes pre-shipment functional verification including scale factor measurement, linear range confirmation, and cable continuity and insulation resistance testing. Units that do not meet OEM-equivalent calibration tolerances are quarantined and not dispatched. Test records are available upon request for quality documentation requirements.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500-series monitors without recalibration?
Yes. The 330103-04-13-10-02-00 is a direct OEM-equivalent replacement for the Bently Nevada 3300 XL 8mm proximity probe system. It is calibrated to the standard 7.87 V/mm (200 mV/mil) scale factor and is fully compatible with 330180-series Proximitor Sensors and 3300/16, 3500/42M, and 3500/42E monitors without requiring system recalibration or parameter changes.

Q4: Can long-term supply agreements be arranged for scheduled outage and maintenance programs?
Yes. Multi-unit supply agreements with defined delivery schedules are available to support annual turnaround programs, spare parts standardization initiatives, and emergency stock programs. Contact our team to discuss volume pricing, lead time commitments, and consignment stock options for critical rotating machinery sites.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-04-13-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-04-13-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
