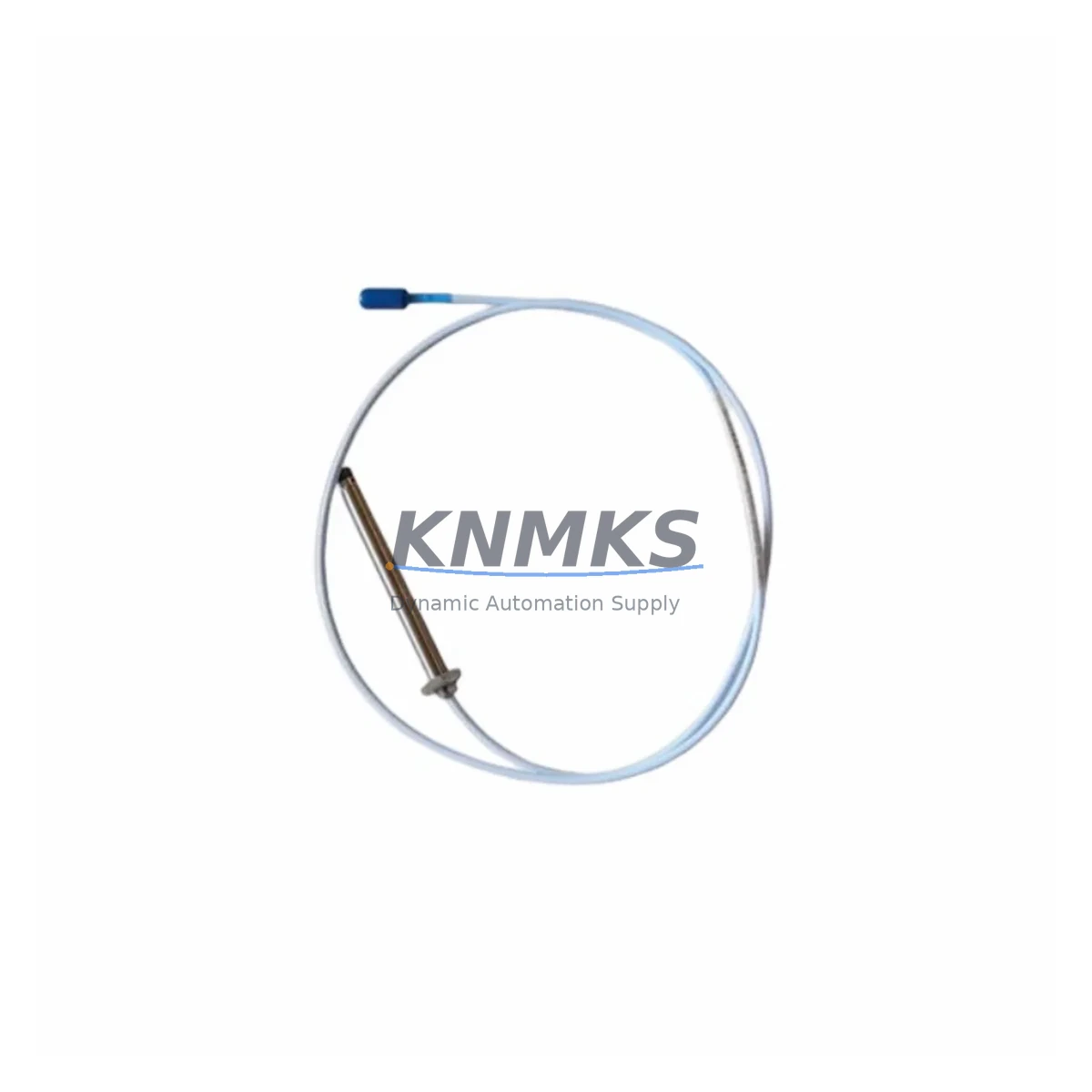

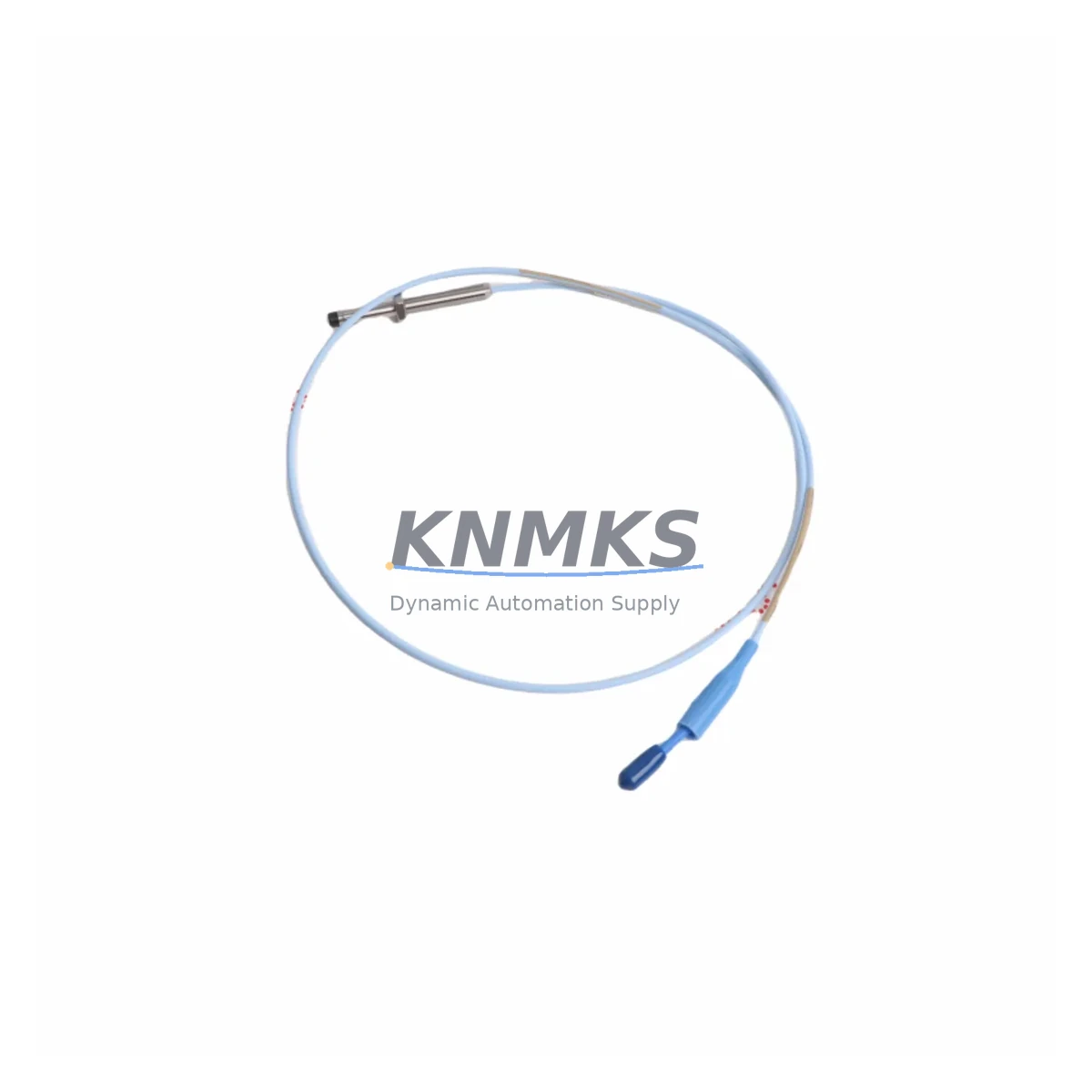

Bently Nevada 330103-03-08-10-01-00 8mm Proximity Probe

Overview

Bently Nevada 330103-03-08-10-01-00 8mm Proximity Probe: Migration-Ready Replacement for Legacy 3300 XL Vibration Monitoring Systems

The Bently Nevada 330103-03-08-10-01-00 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration, position, and eccentricity measurement in rotating machinery protection systems. As a core sensing element within the Bently Nevada 3300 XL Series, this probe is widely deployed in turbines, compressors, pumps, gearboxes, and motor-driven equipment across oil & gas, power generation, petrochemical, and heavy industrial facilities.

With the 3300 XL platform approaching end-of-active-support in many installed bases, maintenance engineers and reliability teams are increasingly sourcing verified replacement units to extend system life, avoid unplanned shutdowns, and defer full platform migration. The 330103-03-08-10-01-00 remains a direct, drop-in replacement for existing 3300 XL probe installations — no re-cabling, no re-ranging, and no monitor reconfiguration required when the full probe-cable-driver chain is matched correctly.

Each unit shipped from KNMKS is function-tested prior to dispatch, supplied with a support terms confirmed by quotation, and traceable to original Bently Nevada manufacturing specifications. In-stock inventory supports urgent spare requirements and planned outage windows alike.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe within an operating machinery protection system requires more than sourcing the correct part number. A successful retrofit of the 330103-03-08-10-01-00 into an existing 3300 XL installation begins with a full chain audit: probe, extension cable, and Proximitor® driver must be matched as a calibrated set. If the existing 330130-series extension cable is damaged or has been field-spliced, it should be replaced simultaneously to avoid introducing gap voltage errors that could trigger false alarms or mask real vibration events.

On the monitor side, engineers should confirm that the 3300 XL monitor card — whether a radial vibration, thrust position, or eccentricity channel — is configured for the 8mm probe sensitivity scale factor. If the installed monitor has been previously recalibrated for a different probe diameter (e.g., a 5mm or 11mm variant), the channel scale factor must be restored before the replacement probe is commissioned. This is a common source of post-replacement alarm setpoint drift that is frequently overlooked during rapid outage repairs.

For facilities running System 1 or System 1 Evolution condition monitoring software, the probe replacement should be logged as a configuration change event. The software’s asset hierarchy should reflect the new probe serial number to maintain data continuity and avoid false trend anomalies in the vibration history database. If the control room uses a Bently Nevada 3500 Series rack alongside legacy 3300 XL hardware — a common mixed-generation architecture in phased upgrade projects — ensure that the 3300 XL channel outputs feeding the DCS or safety system remain within the expected 4–20 mA or voltage range after probe swap.

In control cabinet environments where space is constrained, verify that the replacement probe’s integral cable routing does not create sharp bends within the conduit or cable tray. The 330103-03-08-10-01-00 uses a standard armored integral cable; maintain a minimum bend radius consistent with Bently Nevada installation guidelines to prevent signal degradation. If the probe is installed in a high-temperature zone near bearing housings or exhaust casings, confirm that the probe body and cable jacket ratings are appropriate for the ambient conditions at that measurement point.

Where the retrofit is part of a broader control system modernization — for example, migrating from a legacy relay-based trip system to a TMR safety controller or upgrading the HMI from a legacy panel to a modern SCADA workstation — the proximity probe signals typically remain unchanged at the field level. The analog DC voltage outputs from the Proximitor® drivers feed directly into the new I/O termination assemblies or marshalling panels without requiring signal conditioning changes, which significantly reduces retrofit complexity and commissioning time.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement is achievable with disciplined pre-outage preparation. Before the maintenance window opens, verify that the replacement 330103-03-08-10-01-00 unit has been bench-tested against a known-good Proximitor® driver to confirm gap voltage linearity across the full measurement range. This pre-commissioning step eliminates the most common cause of extended outages: discovering a suspect replacement unit only after the machine has been shut down and the original probe removed.

During the outage, follow a structured swap sequence: isolate the monitor channel, remove the original probe, install the replacement, set the air gap to the specified operating point (typically 50 mil / 1.27 mm for 8mm probes on steel shafts), and verify the gap voltage at the monitor terminal before re-enabling the channel. Document the as-found and as-left gap voltages for the maintenance record. If the machine’s original program logic includes vibration-based interlock trips, confirm that the trip setpoints remain valid for the replacement probe’s sensitivity before returning the machine to service.

For facilities with redundant probe installations (X-Y probe pairs on critical machines), consider a rolling replacement strategy: replace one probe per planned outage interval rather than both simultaneously. This approach preserves at least one active measurement channel throughout the maintenance period and reduces the risk of a complete loss of vibration protection during the transition. The 330103-03-08-10-01-00‘s direct drop-in compatibility with existing 3300 XL hardware makes this rolling strategy straightforward to execute without additional engineering changes.

Maintaining a small buffer stock of verified replacement probes — particularly for critical rotating equipment with long lead times on OEM spares — is a proven strategy for controlling unplanned downtime risk. KNMKS maintains in-stock inventory of the 330103-03-08-10-01-00 to support both emergency spare requirements and planned outage kitting, with fast dispatch to minimize the gap between order placement and on-site availability.

Retrofit Support FAQ

Q1: Is the 330103-03-08-10-01-00 a direct replacement for other 3300 XL 8mm proximity probes?
Yes, the 330103-03-08-10-01-00 is designed as a direct replacement within the Bently Nevada 3300 XL 8mm proximity transducer family. However, always verify the full part number against the installed probe, extension cable, and Proximitor® driver to confirm the probe-cable-driver set is correctly matched. Mixing components from different sensitivity or cable-length configurations can introduce calibration errors.

Q2: Do I need to reconfigure the monitor or update firmware after replacing the probe?
In a like-for-like replacement (same probe diameter, same cable length, same driver model), no firmware update or monitor reconfiguration is required. The 3300 XL system is calibrated at the probe-cable-driver set level. If any element of the set changes, re-verification of the gap voltage and scale factor is recommended before returning the channel to service.

Q3: How is the probe tested before shipment, and what does the support terms confirmed by quotation cover?
Each 330103-03-08-10-01-00 unit supplied by KNMKS is function-tested prior to dispatch to verify gap voltage linearity and signal integrity. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions. Units that fail within the confirmed support period are replaced or refunded. Support requests are supported by KNMKS technical staff at admin@knmks.com.

Q4: Can KNMKS supply the matching extension cable and Proximitor® driver for a complete set replacement?
Yes. KNMKS stocks compatible 330130-series extension cables and 330180-series Proximitor® drivers to support complete probe-cable-driver set replacements. Sourcing the full set from a single supplier simplifies compatibility verification and reduces the risk of mismatched components. Contact admin@knmks.com with your existing part numbers for a matched-set quotation.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-03-08-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-03-08-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
