Bently Nevada 330103-02-08-10-02-05 Maintenance Spare Part

Overview

Bently Nevada 330103-02-08-10-02-05 Maintenance-Proven Spare Part for Factory Uptime

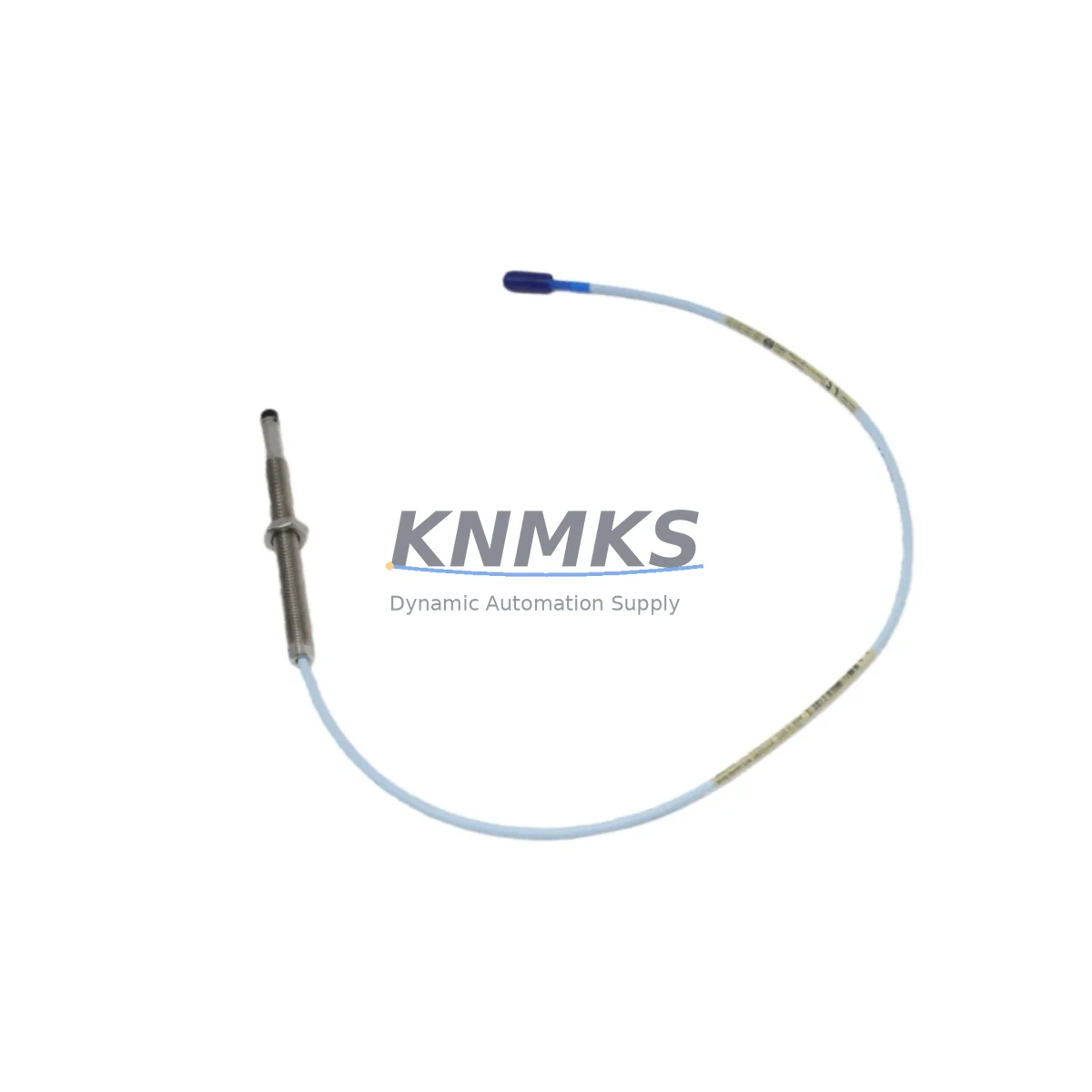

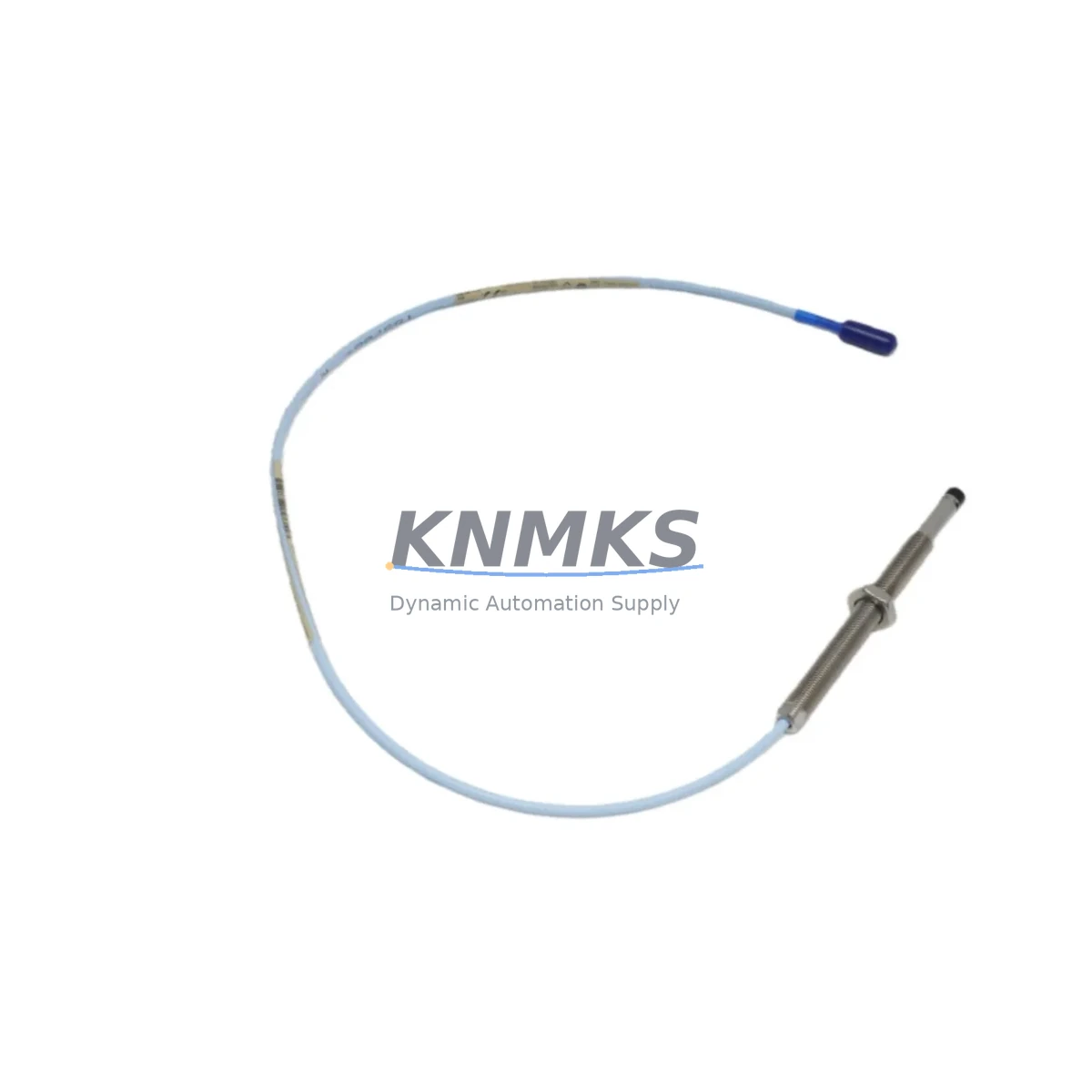

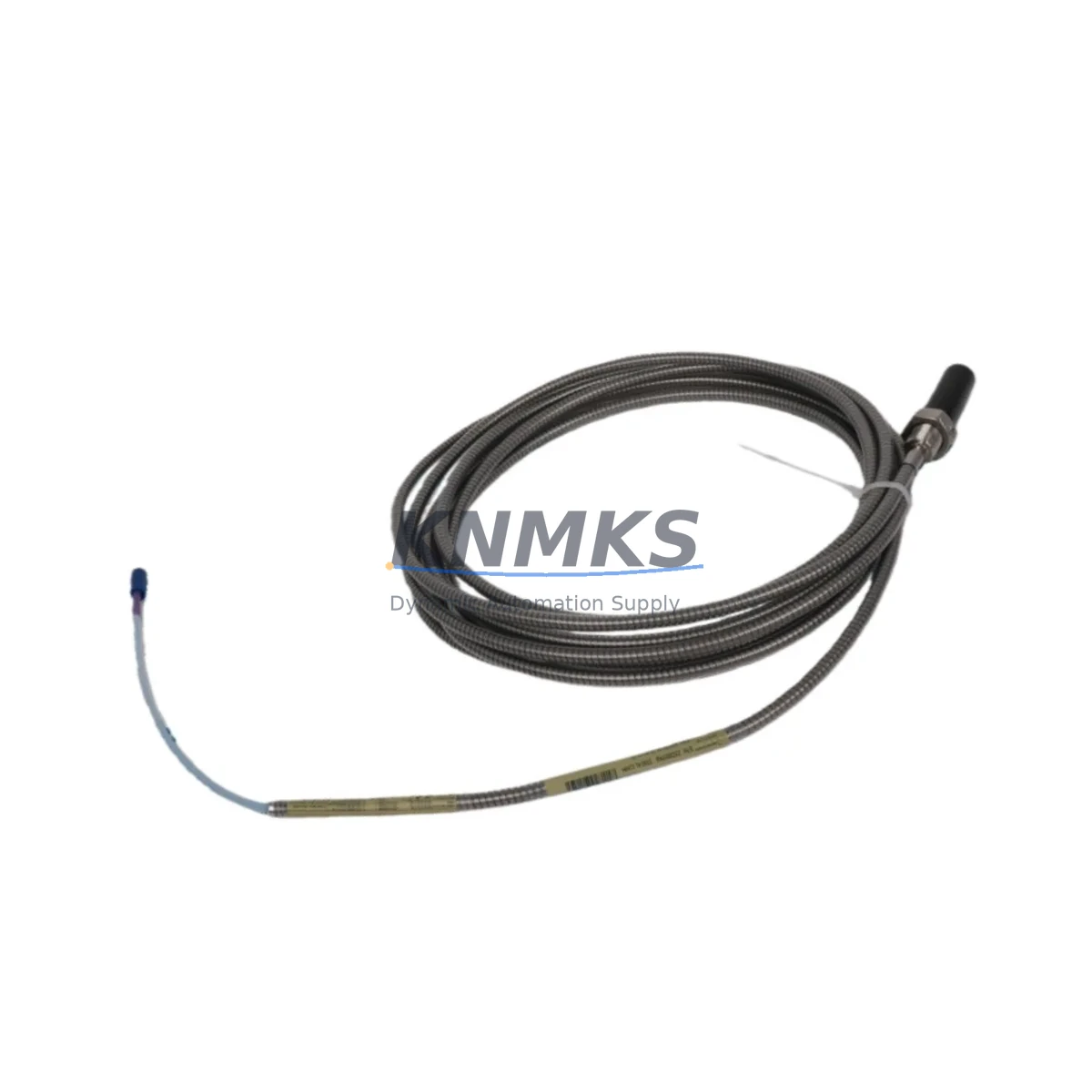

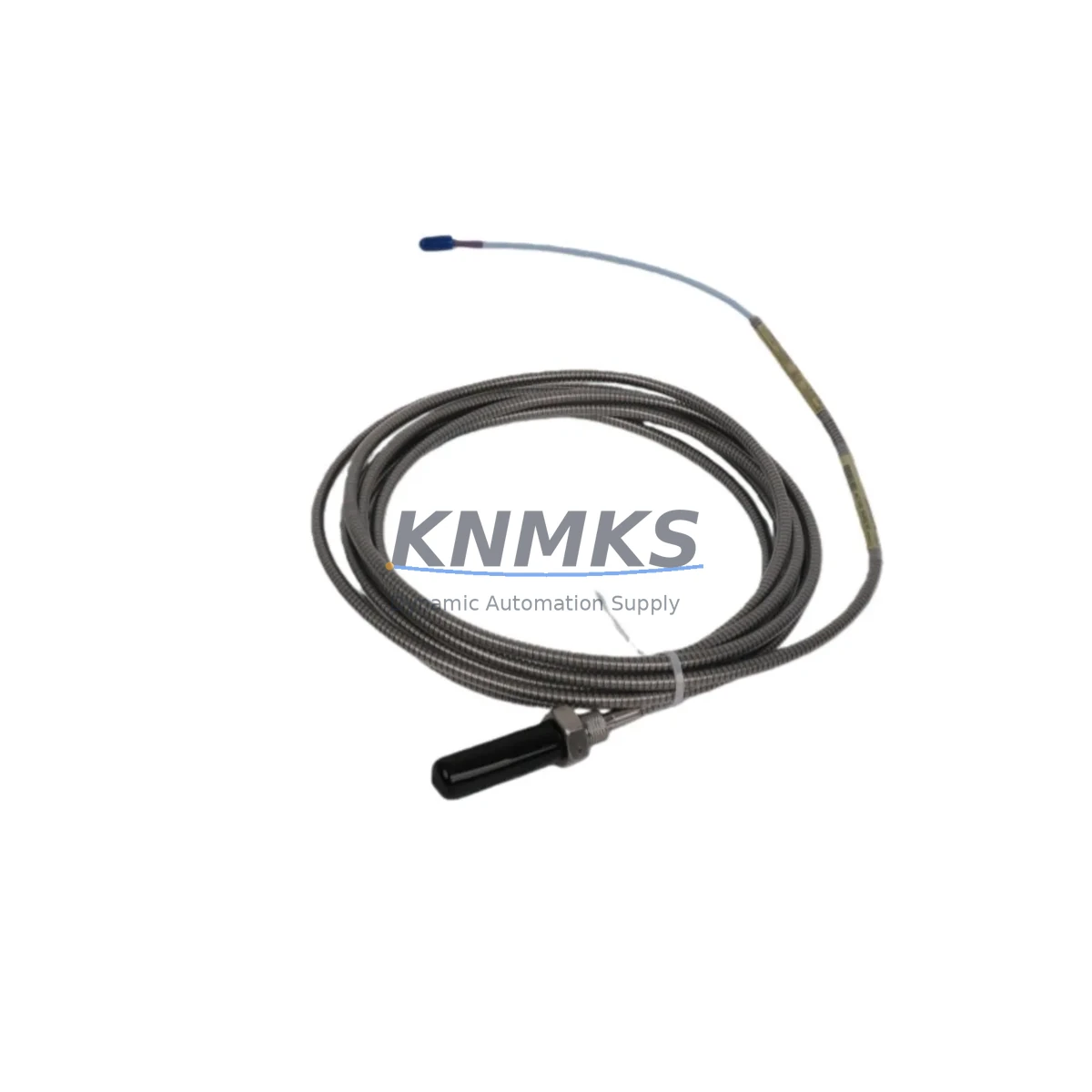

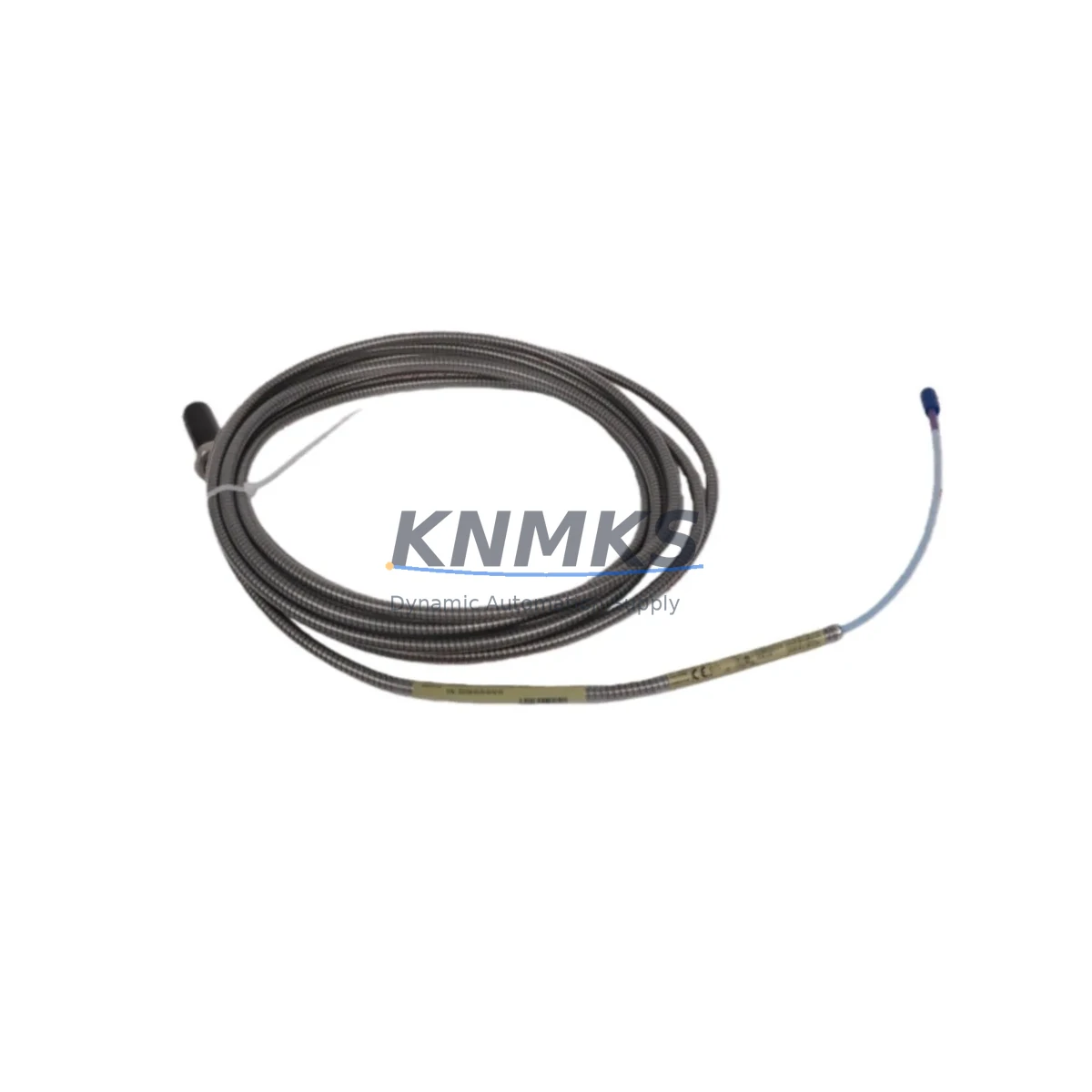

The Bently Nevada 330103-02-08-10-02-05 is a precision proximity probe engineered for continuous vibration and position monitoring within the 3300 XL Series machinery protection system. Designed to deliver reliable shaft displacement measurements in rotating equipment environments — including turbines, compressors, pumps, and motors — this probe is a critical component in any predictive maintenance and condition monitoring program. Sourced as an original spare, the 330103-02-08-10-02-05 is verified for direct compatibility with Bently Nevada 3300 XL monitor racks and associated signal conditioning infrastructure, ensuring seamless integration without system reconfiguration or calibration offset.

For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, having a verified stock of the 330103-02-08-10-02-05 on the shelf is a fundamental risk mitigation strategy. Proximity probe failures are among the leading causes of unplanned machinery trips and false shutdowns. A single unplanned outage in a process plant can cost tens of thousands of dollars per hour — far exceeding the cost of maintaining a proactive spare parts inventory. This unit ships fully tested, with dimensional and electrical verification completed prior to dispatch, and is backed by a support terms confirmed by quotation covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing or inspecting the 330103-02-08-10-02-05 proximity probe, a thorough site assessment of the surrounding measurement chain is essential to prevent repeat failures and ensure system integrity. Begin by inspecting the 3300 XL proximitor/driver module (such as the 3300/16 or 3300/20 series) — the signal conditioning unit that powers the probe and converts the eddy-current output into a usable voltage signal. A degraded or mismatched proximitor will produce erroneous gap readings even with a new probe installed.

Next, verify the extension cable connecting the probe to the proximitor. Bently Nevada extension cables are length-matched to the probe and driver combination; substituting an incorrect cable length will shift the system scale factor and introduce measurement error. Inspect the cable jacket, connector pins, and shielding continuity, particularly in high-vibration or high-temperature zones near the bearing housing.

At the monitor rack level, confirm that the 3300 XL monitor card assigned to this channel is functioning correctly. Check for alarm setpoint drift, OK relay status, and any active fault indicators on the front panel. If the monitor card has been in service for more than five years without calibration verification, schedule a bench check alongside the probe replacement.

For plants running integrated machinery protection, also inspect the I/O terminal blocks and field wiring routed from the monitor rack to the DCS or safety system. Loose terminations, corroded contacts, or ground loops in the signal wiring can introduce noise that masks real vibration events or triggers nuisance trips. A signal isolator or barrier module in the circuit should be tested for proper isolation resistance and output accuracy.

Finally, review the power supply module feeding the 3300 XL rack. Voltage sags or ripple on the 24 VDC rail can affect proximitor output stability. If the rack shares a power bus with high-inrush loads, consider installing a dedicated DIN-rail industrial power supply for the monitoring system. Documenting all findings in the maintenance log — including probe gap measurement at installation, OK voltage reading, and alarm setpoint confirmation — creates a traceable record that supports both reliability engineering and regulatory compliance audits.

Site Replacement Workflow

Before removing the 330103-02-08-10-02-05 from service, record the current gap voltage using the proximitor test point and compare it against the original commissioning baseline. A significant deviation from the expected –10 VDC to –18 VDC OK range may indicate probe wear, target surface damage, or cable degradation rather than probe failure alone — ruling out these causes before replacement avoids repeat callouts.

Isolate the channel at the monitor rack by placing the affected channel in bypass mode (if supported by the system configuration) to prevent a spurious trip during the swap. Remove the probe by unscrewing it from the bearing housing bracket, taking care not to damage the probe tip or the target area on the shaft. Clean the probe mounting threads and inspect the bracket for cracks or corrosion before installing the replacement 330103-02-08-10-02-05.

Install the new probe to the manufacturer-specified gap — typically 1.0 mm to 1.5 mm for standard 8 mm probes — and verify the OK voltage at the proximitor test point before restoring the channel to active monitoring. Update the asset management system with the new probe serial number, installation date, and gap measurement. This workflow minimizes downtime to under 30 minutes for a trained technician and ensures the replacement is fully documented for future reference.

For legacy systems where the 3300 XL series is approaching end-of-life, the 330103-02-08-10-02-05 remains a viable long-term spare due to its continued availability and backward compatibility with earlier 3300 series monitor hardware. Maintaining a minimum of two units per critical machine train in the site spare parts store is a widely adopted best practice in rotating equipment reliability programs.

Spare Parts Support FAQ

Q1: Is the 330103-02-08-10-02-05 compatible with both 3300 XL and earlier 3300 series monitor racks?
A: The 330103-02-08-10-02-05 is designed and verified for the Bently Nevada 3300 XL series. Compatibility with earlier 3300 series hardware depends on the specific monitor card and proximitor driver version. We recommend confirming the proximitor model number and cable length specification before installation in non-XL configurations. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on each unit?
A: Every 330103-02-08-10-02-05 unit undergoes dimensional inspection, tip condition verification, and electrical continuity testing before dispatch. Gap sensitivity and OK voltage output are confirmed against Bently Nevada factory specifications. A test report is available upon request for quality-critical applications.

Q3: How should this spare part be stored to maintain long-term reliability?
A: Store the probe in its original packaging in a dry, temperature-controlled environment away from strong magnetic fields and mechanical shock. Recommended storage conditions are 10°C to 40°C with relative humidity below 70% non-condensing. Inspect the probe tip and connector annually if held in long-term storage exceeding 24 months.

Q4: What is the support terms coverage and what does it include?
A: The 330103-02-08-10-02-05 is covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, electrical performance non-conformance, and physical integrity under normal installation and operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits. Support requests are processed with full technical support from our team.
