Bently Nevada 330103-00-60-05-02-05 Spare Part for Factory Uptime

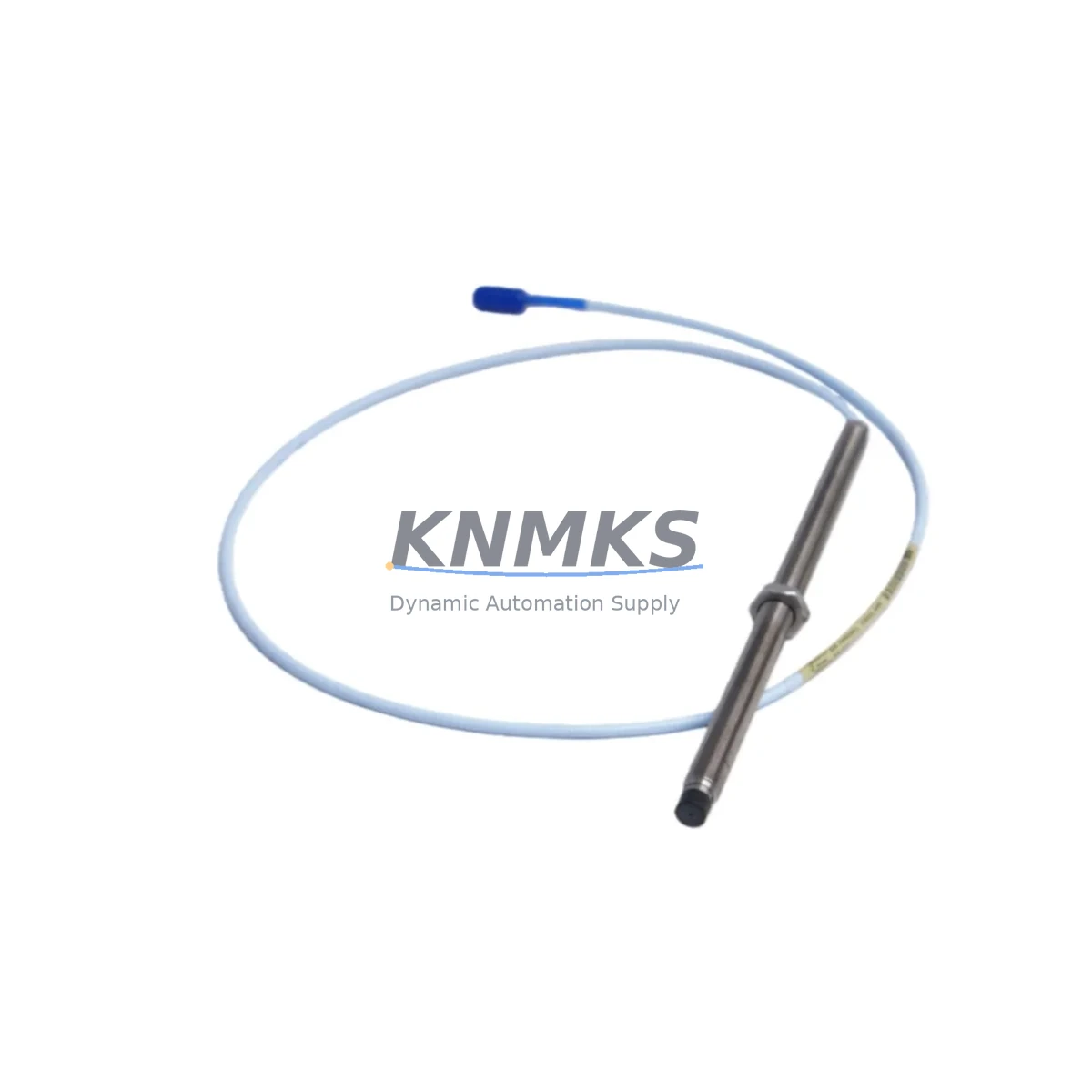

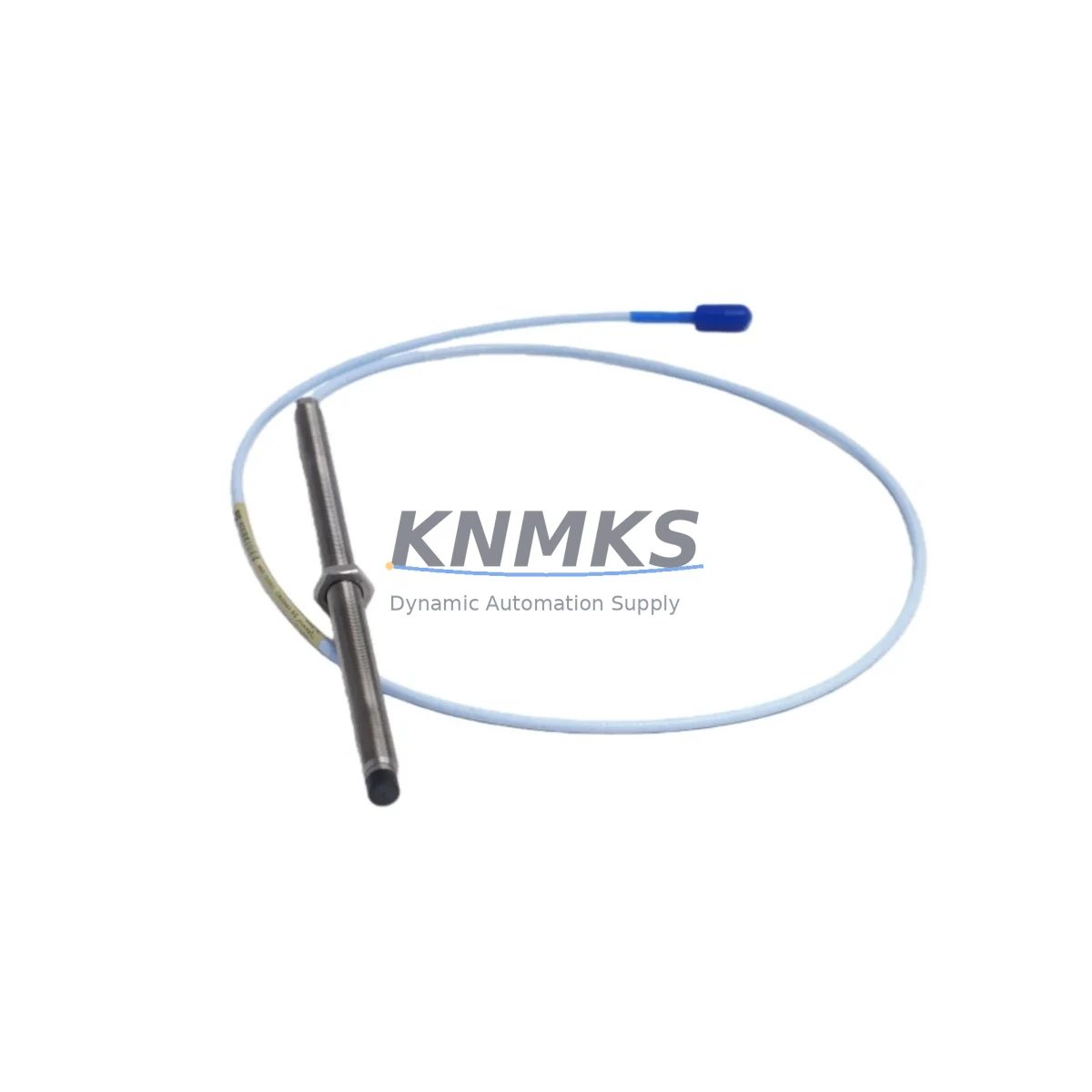

The Bently Nevada 330103-00-60-05-02-05 is an 8mm proximity probe designed for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery applications across energy, petrochemical, power generation, and heavy manufacturing. As a maintenance-proven spare part, this probe is engineered to deliver consistent, repeatable radial vibration and position measurements on critical rotating assets including steam turbines, gas compressors, centrifugal pumps, and large induction motors.

For maintenance engineers managing aging DCS or machinery protection systems, holding a verified stock of the 330103-00-60-05-02-05 is a fundamental risk mitigation strategy. Probe failures are among the most common causes of unplanned machinery trips. A single unplanned shutdown on a critical compressor train can cost tens of thousands of dollars per hour in lost production. Having this spare on the shelf — tested, documented, and ready to install — is the difference between a 30-minute swap and a multi-day outage.

Each unit shipped from KNMKS is sourced from verified supply channels, functionally tested prior to dispatch, and backed by a support terms confirmed by quotation. We support long-term supply commitments for MRO procurement teams managing multi-site industrial fleets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-60-05-02-05 proximity probe in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to inspect the entire vibration monitoring loop — not just the probe tip. The 3300 XL system is a matched-component architecture: the probe, extension cable, and Proximitor® sensor must be calibrated as a set. If the probe is being replaced due to physical damage or signal drift, the 330130-series extension cable and the 330180-series Proximitor® sensor should be inspected simultaneously. A degraded extension cable with micro-fractures in the coaxial shielding will introduce noise into the vibration signal even after a new probe is installed.

At the panel level, verify the 3300/16-channel monitor card (or equivalent rack-mounted I/O module) is receiving a clean -18 VDC bias voltage from the Proximitor. Fluctuations in the DC supply rail — often caused by aging 3300 Power Supply modules — can mimic probe failures and lead to unnecessary part replacements. Inspect the power supply output under load before condemning the probe.

For sites running integrated machinery protection with a System 1® Evolution or legacy ADRE® 408 DSPi data acquisition system, confirm that the channel configuration in the software matches the new probe’s sensitivity (typically 7.87 V/mm or 200 mV/mil). A misconfigured sensitivity factor will produce incorrect vibration amplitude readings and may trigger nuisance trips or, worse, mask a developing fault.

Procurement engineers should also consider stocking the 330103-00-60-05-02-05 alongside complementary spares: a matched extension cable set, at least one spare Proximitor® sensor per critical machine train, and a set of 3300 XL barrier isolators if the installation is in a hazardous area (Zone 1 / Division 1). For older installations using 7200-series probes, confirm whether the system has been migrated to 3300 XL architecture before ordering — the two systems are not interchangeable without recalibration.

Annual shutdown planning should include a full loop check: probe gap verification using a calibrated gap tool, Proximitor output voltage measurement at the monitor terminal, and a review of trend data from System 1 for any slow-developing bias shift that may indicate shaft centerline migration or bearing wear.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring system is in bypass mode to prevent spurious trips during probe removal.

Step 2 — Gap Measurement (Before Removal): Record the existing probe gap voltage from the Proximitor output. This baseline confirms whether the original probe was within specification or had drifted — critical data for root cause analysis.

Step 3 — Probe Removal: Unscrew the probe from the bracket using the appropriate spanner. Do not apply torque to the cable. Inspect the probe tip for physical damage, corrosion, or contamination from shaft contact.

Step 4 — New Probe Installation: Install the 330103-00-60-05-02-05 into the existing bracket. Set the probe gap per the OEM specification (typically 1.0–1.5mm for 8mm probes, yielding approximately -10 VDC at the Proximitor output). Use a calibrated gap tool — do not rely on voltage alone for initial gap setting.

Step 5 — Loop Verification: With the machine still isolated, verify Proximitor output voltage, confirm signal continuity at the monitor card, and check for alarm/trip setpoint integrity in the monitoring system. Clear bypass and restore normal monitoring.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS). Log the new probe serial number, installation date, gap voltage, and technician ID. This data supports support requests and future failure analysis.

This workflow is compatible with both hot-standby redundant monitoring configurations and single-channel installations. For redundant systems, the replacement can often be performed online on the standby channel without a full machine shutdown — consult your site safety procedures before proceeding.

Spare Parts Support FAQ

Q1: Is the 330103-00-60-05-02-05 compatible with both 3300 XL and older 3300/05 Proximitor sensors?
The 330103-00-60-05-02-05 is designed for the 3300 XL system architecture. While the physical connector may be compatible with older 3300/05 Proximitor sensors, the calibration curves and sensitivity factors differ between generations. KNMKS recommends verifying the Proximitor model number on-site before ordering. If you are running a legacy 3300/05 system, contact our technical team at admin@knmks.com to confirm compatibility or identify the correct replacement part number.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-60-05-02-05 unit shipped by KNMKS undergoes functional verification including coaxial cable continuity check, probe tip inspection, and output sensitivity confirmation against OEM specifications. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Can KNMKS support long-term or blanket purchase orders for this part?
Yes. KNMKS supports long-term supply agreements for MRO procurement teams managing multi-site or multi-unit installations. We can hold allocated stock against a blanket PO, provide scheduled delivery releases, and issue certificates of conformance for each shipment. Contact admin@knmks.com or call +86 18359268345 to discuss your annual consumption requirements.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, premature electrical failure under normal operating conditions, and any deviation from published OEM specifications confirmed by functional test. The support terms does not cover damage resulting from incorrect installation, shaft contact, chemical contamination, or operation outside the rated temperature range. Support requests are processed within 5 business days of receiving the returned unit.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-60-05-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-60-05-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
