Bently Nevada 330103-00-25-10-02-00 Maintenance Spare Probe

Overview

Bently Nevada 330103-00-25-10-02-00 Maintenance-Proven Spare Part for Factory Uptime

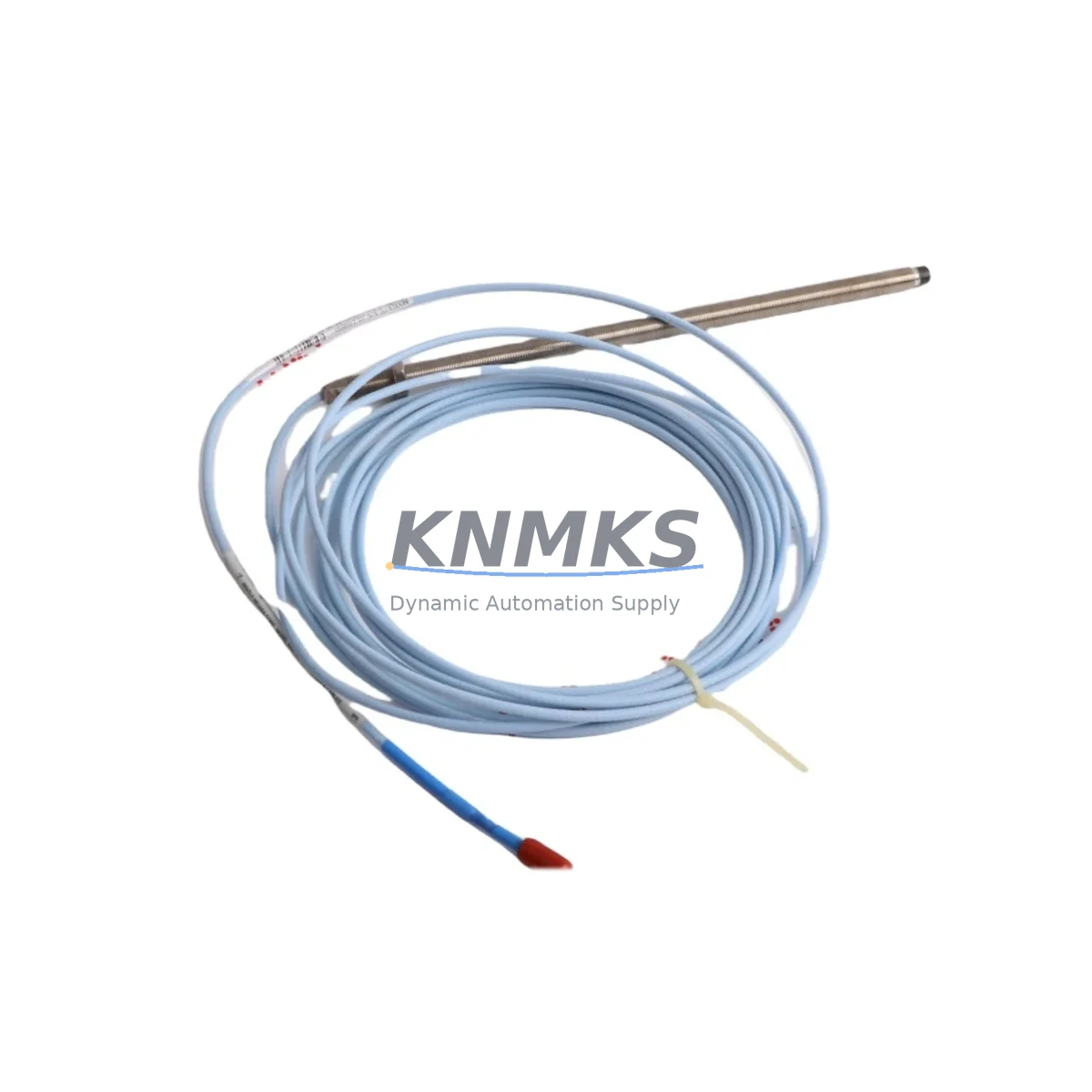

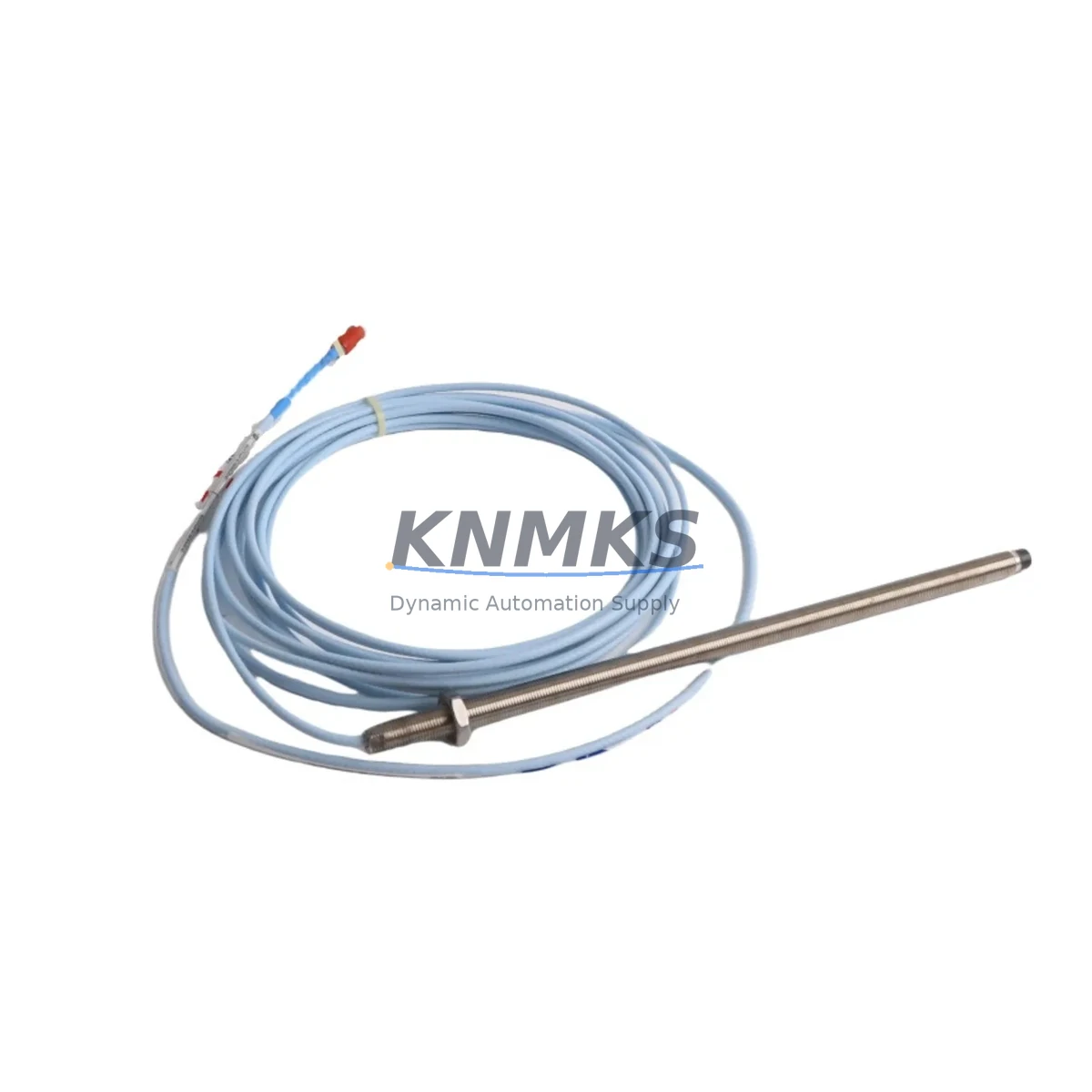

The Bently Nevada 330103-00-25-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Vibration Monitoring System. Designed for continuous-duty industrial environments, this probe delivers precise radial and axial shaft displacement measurements in rotating machinery applications including steam turbines, gas compressors, centrifugal pumps, and large electric motors. Maintaining a verified stock of this probe is a cornerstone of any predictive maintenance program built around Bently Nevada 3300 XL infrastructure.

For maintenance engineers managing aging DCS or machinery protection systems, the 330103-00-25-10-02-00 represents a direct, back-to-back compatible replacement for worn or damaged probes in existing 3300 XL probe loops. Each unit shipped from KNMKS undergoes pre-shipment functional verification and is backed by a support terms confirmed by quotation, giving procurement teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-25-10-02-00 probe is flagged for replacement during a routine vibration survey or after a high-vibration trip event, the replacement workflow should extend beyond the probe itself. A complete probe loop in the 3300 XL system consists of three interdependent components: the proximity probe, the 330130 series extension cable, and the 330180 series Proximitor Sensor. Maintenance engineers should inspect all three elements before returning the loop to service, as a degraded extension cable or a Proximitor with a drifted output can mask the root cause of a vibration alarm.

Inside the control cabinet, verify the condition of the 3300 XL monitor module (typically a 3300/16 or 3300/20 series rack card) that processes the probe signal. Loose or corroded terminal connections on the monitor card’s input terminals are a common source of intermittent vibration readings that are incorrectly attributed to probe failure. While the cabinet is open, inspect the 3300 XL power supply module — probe loops are sensitive to supply voltage ripple, and a degraded power supply can introduce noise into displacement readings.

For plants running integrated machinery protection alongside process control, also check the signal path to the DCS I/O card receiving the 4–20 mA or voltage output from the 3300 XL monitor. A faulty signal isolator or a damaged field terminal block between the 3300 XL rack and the DCS marshalling cabinet can cause false high-vibration indications even after a probe has been successfully replaced. If the plant uses a Keyphasor module (330180 or 3500/25 series) for phase reference, confirm its gap voltage is within specification at the same time — Keyphasor drift affects all vibration vectors displayed on the operator HMI.

Procurement engineers building annual MRO spare parts lists for 3300 XL-equipped trains should stock the 330103-00-25-10-02-00 probe alongside the matching extension cable and at least one spare Proximitor Sensor per critical machine. For plants with four or more monitored shafts, a minimum of two probe assemblies per shaft position is a widely adopted inventory benchmark to cover both scheduled outage replacements and unplanned emergency swaps without waiting on lead times that can exceed 8–16 weeks for new OEM orders.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures for the monitored machine. Bypass the vibration trip in the 3300 XL monitor or coordinate with the control room to inhibit the channel before disconnecting the probe.

Step 2 — Remove the Existing Probe: Disconnect the probe cable at the extension cable junction. Unthread the probe from its mounting bracket. Note the installed gap (typically 50 mil / 1.27 mm for 8mm probes) using a feeler gauge or the Proximitor output voltage before removal.

Step 3 — Install the 330103-00-25-10-02-00: Thread the new probe into the bracket. Set the gap to the machine-specific target (refer to the OEM alignment specification). Reconnect to the 330130 extension cable. Verify the Proximitor output voltage falls within the linear range (-10 VDC ±1 VDC at nominal gap is a common target).

Step 4 — Functional Verification: With the machine at rest, confirm the static gap voltage is stable. Remove the vibration bypass and confirm the 3300 XL monitor channel shows a healthy OK status. Check the DCS faceplate or operator HMI for correct vibration indication before releasing the machine for restart.

Step 5 — Documentation: Record the replacement in the CMMS with the new probe serial number, installation date, and gap voltage. Update the spare parts inventory to trigger a reorder for the consumed unit.

This workflow applies equally to planned turnaround replacements and emergency unplanned swaps, and is compatible with both original Bently Nevada 3300 XL installations and systems that have been partially migrated to the 3500 series rack architecture using legacy-compatible I/O modules.

Spare Parts Support FAQ

Q1: Is the 330103-00-25-10-02-00 a direct replacement for older 3300 XL probe assemblies with the same cable length?
Yes. The 330103-00-25-10-02-00 maintains the same 8mm tip geometry, 25 ft cable length, and 10-32 coaxial connector standard as earlier 3300 XL probe assemblies. It is back-to-back compatible with the 330130 extension cable and 330180 Proximitor Sensor without requiring recalibration of the monitor module, provided the installation gap is set correctly per the machine alignment specification.

Q2: How does KNMKS verify the condition of spare probes before shipment?
Every 330103-00-25-10-02-00 unit undergoes a pre-shipment functional check that includes coil resistance measurement, cable continuity verification, and connector integrity inspection. Units that do not meet Bently Nevada electrical specifications are quarantined and not shipped. A support terms confirmed by quotation cover any defects in materials or workmanship from the date of delivery.

Q3: What is the recommended inventory strategy for plants with multiple 3300 XL-monitored machines?
For critical rotating equipment (turbines, compressors, large pumps), maintain a minimum of one complete probe loop assembly — probe, extension cable, and Proximitor Sensor — per monitored shaft position as on-site hot spares. For plants with four or more monitored trains, a blanket stock agreement with KNMKS can lock in pricing and ensure priority allocation during industry-wide supply shortages, which are common for legacy Bently Nevada components.

Q4: Can this probe be used in a 3500 series rack system?
The 330103-00-25-10-02-00 is designed and specified for the 3300 XL system. While the 8mm probe tip and Proximitor interface are physically similar to some 3500 series configurations, compatibility with 3500 series monitor cards must be verified against the specific 3500 module’s input specification before installation. Contact KNMKS with your 3500 module part number for a compatibility assessment prior to ordering.
