Bently Nevada 330103-00-19-10-12-00 Migration-Ready 8mm Probe

Overview

Bently Nevada 330103-00-19-10-12-00 Migration-Ready 8mm Proximity Probe for Legacy Control Systems

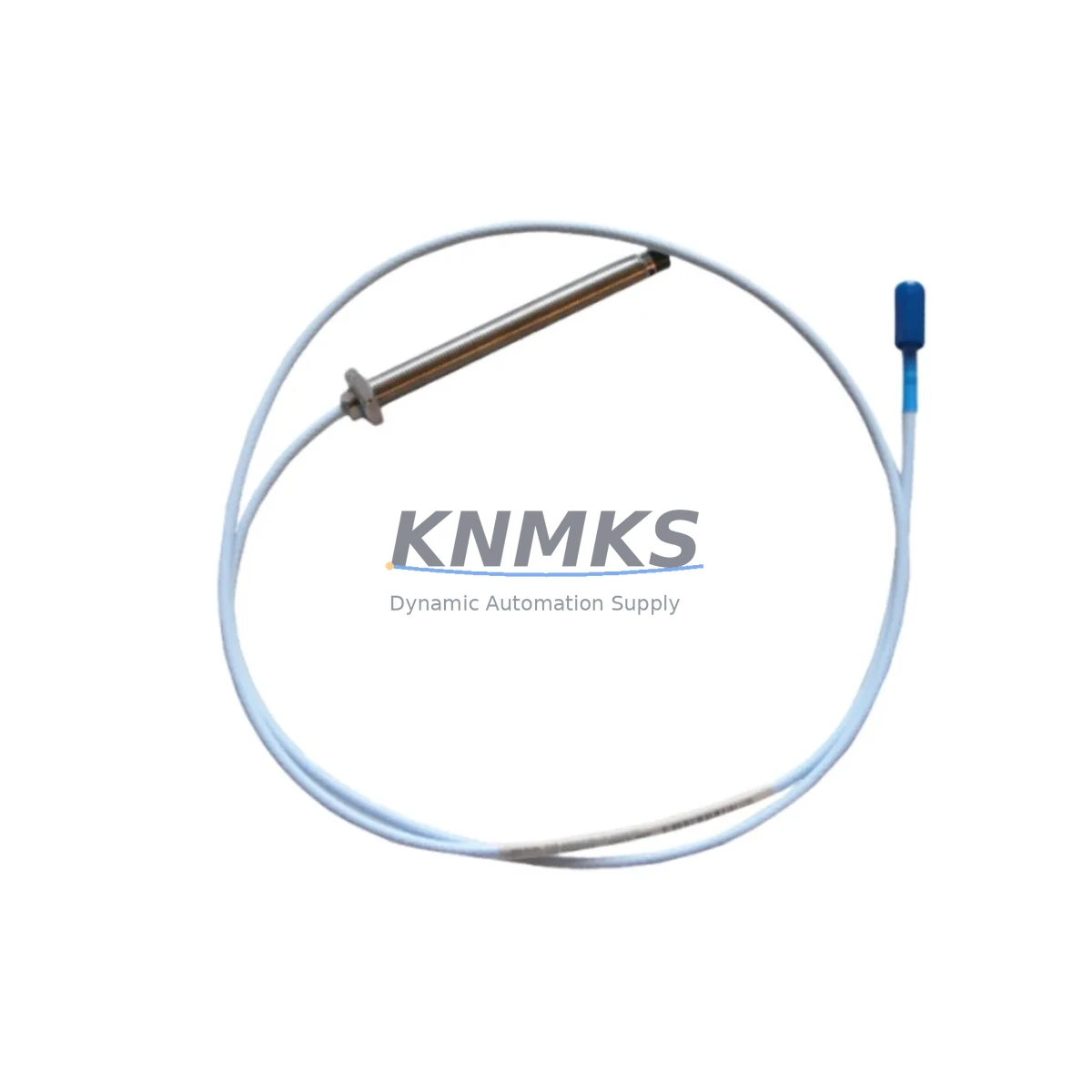

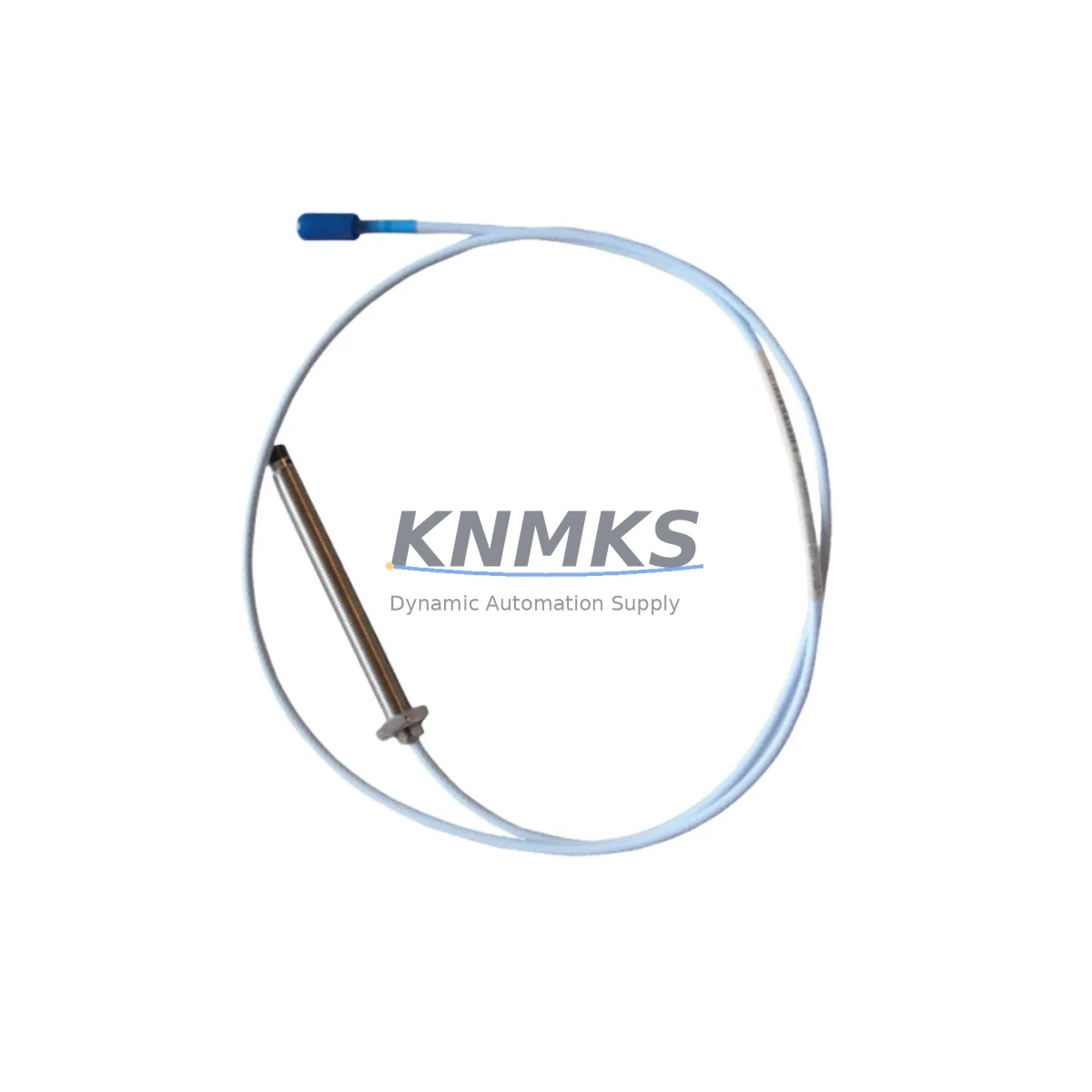

The Bently Nevada 330103-00-19-10-12-00 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed as a direct, migration-ready replacement for legacy 3300 XL monitoring systems, this probe supports plant engineers and reliability teams managing discontinued spare parts, aging control cabinets, and long-lead-time procurement challenges. With a support terms confirmed by quotation and pre-shipment functional testing, the 330103-00-19-10-12-00 is a proven solution for minimizing unplanned downtime during system retrofit and upgrade projects.

The 330103-00-19-10-12-00 operates within the Bently Nevada 3300 XL proximity transducer system, which includes the probe, extension cable, and proximitor sensor as a matched set. When planning a replacement, engineers must confirm that the existing proximitor — typically a 3300 XL 8mm proximitor such as the 330180-X1-05 or 330180-X1-CN — is compatible with the probe’s cable length and gap voltage range. Mismatched cable lengths between the probe body and the extension cable will shift the operating gap voltage and introduce measurement error, so the total system cable length must be verified against the proximitor’s calibration curve before installation.

For plants running legacy Bently Nevada 3500 series rack-based monitoring systems, the 330103-00-19-10-12-00 integrates directly with 3500/42M and 3500/44M vibration monitor modules, provided the proximitor output signal falls within the accepted –18 VDC gap voltage window. Retrofit teams should also verify the I/O terminal block wiring on the 3500 rack’s field wiring termination module, as terminal assignments for radial vibration, axial position, and speed channels differ between rack generations. Confirming the channel configuration in System 1 software before hot-swap replacement reduces the risk of false alerts or channel inhibit conditions during commissioning.

In DCS-integrated environments — particularly those using Emerson DeltaV or Honeywell Experion PKS as the supervisory layer — the 3500 rack communicates vibration data via Modbus RTU or OPC DA/UA to the process historian. During a probe replacement, the communication link between the 3500 rack and the DCS gateway should remain active to preserve continuous data logging. Engineers should inhibit the affected channel at the DCS level rather than powering down the rack, which avoids triggering a system-wide alarm cascade and preserves the integrity of the remaining monitoring channels.

Retrofit planning for the 330103-00-19-10-12-00 should also account for the physical installation envelope. The 8mm probe body requires a threaded mounting boss (M10 × 1 thread) machined into the bearing housing, and the probe tip-to-shaft gap must be set to the manufacturer’s recommended linear range — typically 0.25 mm to 2.25 mm (10 to 90 mil) for standard steel targets. Where the original probe was installed with a locking nut and jam nut arrangement, the replacement probe should use the same torque specification to avoid probe body rotation under vibration. Extension cables — such as the 330130-080-00-00 (2-meter) or 330130-045-00-00 (1.5-meter) — must be routed away from high-voltage conductors and secured with cable clamps at intervals consistent with the original installation to prevent signal noise from cable movement.

For facilities managing a broader control cabinet upgrade, the 330103-00-19-10-12-00 is frequently deployed alongside the Bently Nevada 3500/15 power supply module, which provides the –24 VDC rail required by the proximitor system. Where the existing power supply is end-of-life or showing output voltage drift, replacing it concurrently with the probe reduces the risk of a second unplanned outage within the same maintenance window. Similarly, plants upgrading from older 7200 series proximity systems to the 3300 XL platform should note that the 7200 series used a different cable impedance standard, and a direct probe swap without replacing the extension cable and proximitor will result in out-of-range gap voltage readings.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330103-00-19-10-12-00 begins with a systematic audit of the existing transducer system. The probe, extension cable, and proximitor must be treated as a matched set — replacing only the probe while retaining a degraded extension cable or an out-of-tolerance proximitor will not restore measurement accuracy. For most 3300 XL installations, the extension cable (such as the 330130-080-00-00 or 330130-045-00-00) connects the probe to the proximitor mounted in the junction box or on the rack, and the total cable length determines the proximitor’s calibration range.

Where the control cabinet also houses a Bently Nevada 3500/15 power supply module, engineers should measure the –24 VDC rail voltage under load before beginning the probe swap. A sagging supply rail — common in aging cabinets with multiple proximitor channels — will shift the gap voltage output and may cause the replacement probe to appear out of range during initial commissioning. If the power supply output is more than ±0.5 VDC from nominal, replacing the 3500/15 module concurrently is strongly recommended.

For plants where the 3500 rack interfaces with a Honeywell Experion PKS or Emerson DeltaV DCS via a Modbus RTU gateway, the channel inhibit procedure should be executed at the DCS level before disconnecting the probe. This prevents the monitoring rack from generating a “not OK” (NOK) signal that propagates to the DCS alarm management system and triggers a spurious process interlock. After the replacement probe is installed and the gap is set, the channel should be un-inhibited and the vibration reading verified against a reference measurement (e.g., a portable vibration analyzer) before returning the machine to service.

In I/O-intensive retrofit projects — such as upgrading a compressor train with multiple radial and axial probes — it is efficient to replace all 330103-series probes in the same maintenance window rather than scheduling individual outages. This approach also allows a single System 1 configuration backup and restore cycle, reducing the risk of configuration drift between channels. Signal isolators (such as the Bently Nevada 3500/20 or equivalent DIN-rail isolators) should be inspected and replaced if they show signs of output drift, as a faulty isolator will corrupt the vibration signal regardless of probe condition.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement requires preparation before the machine is taken offline. The replacement 330103-00-19-10-12-00 should be bench-tested against a reference proximitor and a steel target to confirm gap voltage output before it reaches the field. A pre-verified probe eliminates the most common source of commissioning delay — discovering a defective replacement after the machine is already shut down.

The original program logic in the 3500 rack’s configuration should be exported and saved before any hardware change. System 1 software allows a full rack configuration export, which captures channel assignments, alarm setpoints, scale factors, and communication parameters. This backup serves as the restoration baseline if a configuration error occurs during commissioning and also documents the pre-retrofit state for compliance and maintenance records.

During the physical swap, the probe cable should be labeled at both ends before disconnection to prevent wiring errors on multi-channel racks. The gap setting procedure — using a digital multimeter to measure proximitor output voltage while adjusting probe depth — typically takes 10 to 20 minutes per probe when performed by an experienced technician. After gap setting, the locking nut should be torqued to specification and the cable secured before the channel is un-inhibited at the DCS.

Post-installation verification should include a comparison of the new probe’s vibration reading against the adjacent channel or a portable analyzer to confirm the measurement is within expected range. Alarm setpoints should be re-confirmed in System 1 and at the DCS level. With a pre-tested replacement probe, a prepared configuration backup, and a clear inhibit/restore procedure, most single-probe replacements can be completed within a two-to-four-hour planned maintenance window, preserving control continuity on the remaining machine train channels throughout the process.

Retrofit Support FAQ

Q1: Is the 330103-00-19-10-12-00 a direct drop-in replacement for other 330103 series probes?
The 330103-00-19-10-12-00 is a specific configuration within the 330103 family, defined by its 0.5m (19-inch) probe body cable length and 8mm tip diameter. It is a direct mechanical and electrical replacement for other 330103-00-19-XX-XX-XX variants with the same cable length, provided the total system cable length (probe + extension) matches the proximitor’s calibration. Variants with different cable lengths (e.g., 330103-00-06-10-12-00) are not interchangeable without recalibrating the proximitor or replacing the extension cable to compensate.

Q2: What pre-shipment testing is performed on this probe?
Each 330103-00-19-10-12-00 unit undergoes functional verification prior to shipment, including gap voltage output measurement against a steel reference target and visual inspection of the probe tip, cable jacket, and connector. A test report is available on request. Units are shipped in anti-static packaging with protective tip covers to prevent damage in transit.

Q3: Can this probe be used with a 7200 series proximitor from an older installation?
No. The 330103-00-19-10-12-00 is calibrated for use with the 3300 XL proximitor system (330180 series). The 7200 series proximitors use a different cable impedance standard and calibration curve, and connecting a 3300 XL probe to a 7200 proximitor will produce out-of-range gap voltage readings and inaccurate vibration measurements. A full transducer system replacement — probe, extension cable, and proximitor — is required when migrating from 7200 to 3300 XL.

Q4: What is covered under the support terms confirmed by quotation, and what is the lead time for in-stock units?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage resulting from improper installation, incorrect gap setting, or use outside the specified operating parameters. In-stock units are available for prompt dispatch; lead time for stocked configurations is typically 1–3 business days. For bulk or blanket-stock orders supporting planned maintenance programs, contact admin@knmks.com to discuss allocation and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-19-10-12-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-19-10-12-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
