Bently Nevada 330103-00-18-05-02-05 Retrofit Proximity Probe

Overview

Bently Nevada 330103-00-18-05-02-05 Retrofit Proximity Probe: Migration-Ready Replacement for Legacy 3300 XL Vibration Monitoring Systems

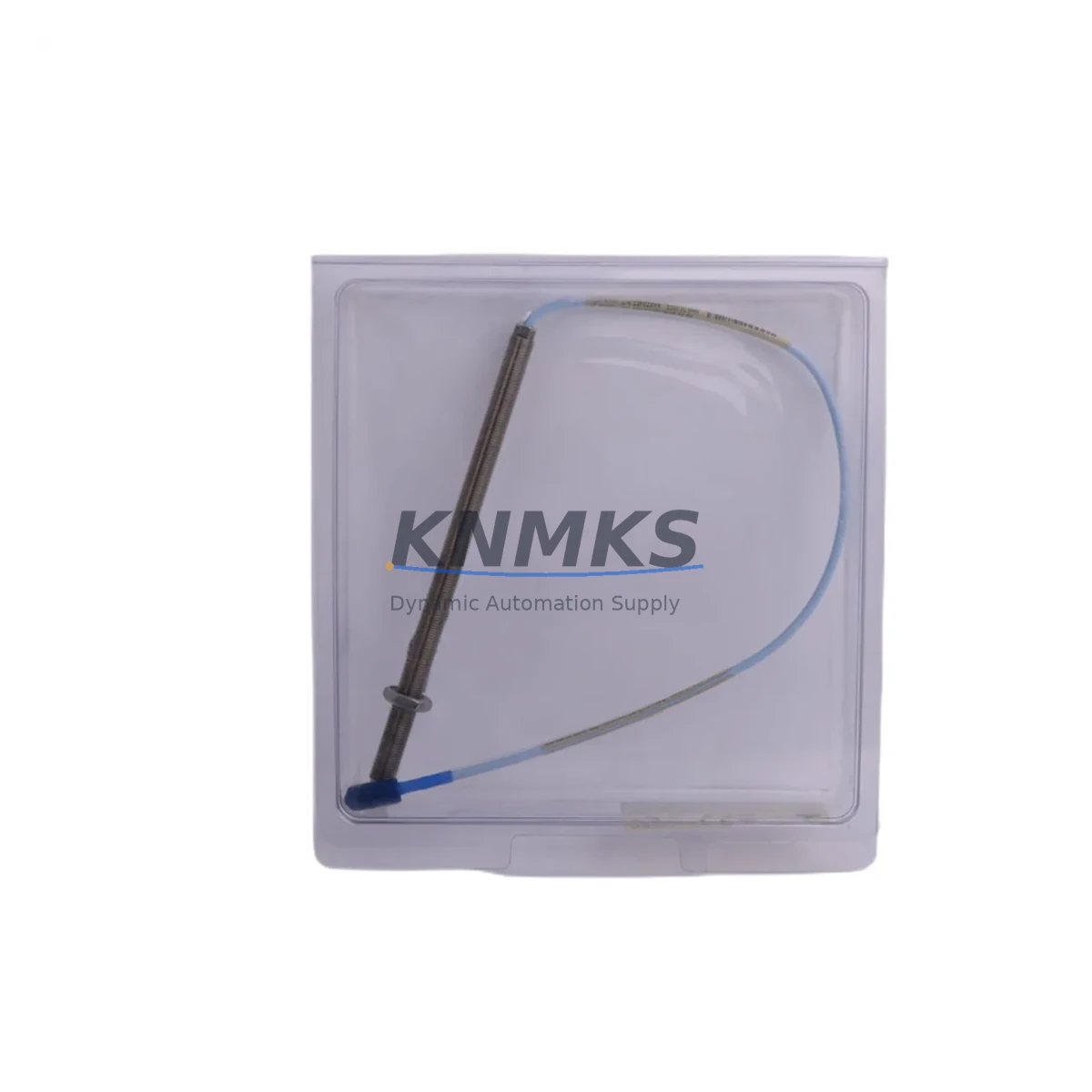

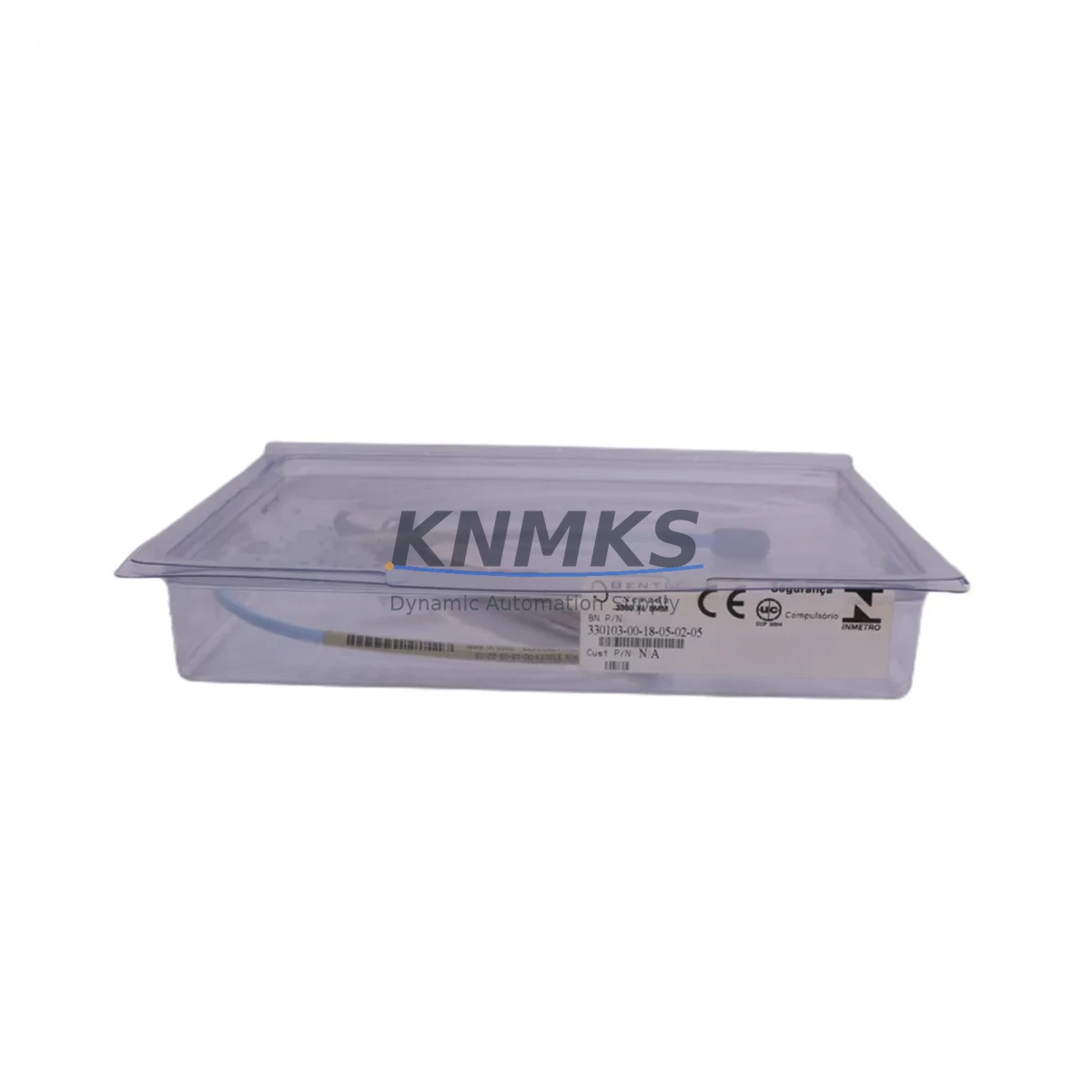

The Bently Nevada 330103-00-18-05-02-05 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-life and original spare parts become increasingly scarce, this probe serves as a verified, migration-ready replacement that allows maintenance teams to extend the operational life of existing control architectures without committing to a full platform overhaul.

Designed to interface directly with the Bently Nevada 3300 XL series signal conditioning system, the 330103-00-18-05-02-05 maintains the same 8mm tip diameter, 5-metre integral cable configuration, and -24 VDC bias voltage output characteristics as the original factory specification. This dimensional and electrical compatibility is critical when retrofitting into existing machinery pedestals, bearing housings, and proximity probe driver assemblies where re-machining or re-wiring would introduce unacceptable downtime risk.

For facilities operating turbines, compressors, pumps, or gearboxes under API 670 vibration monitoring requirements, replacing a failed or end-of-life probe with a non-verified substitute can introduce measurement offset errors, false trip events, or undetected rotor instability. The 330103-00-18-05-02-05 is tested against the original Bently Nevada sensitivity specification of 7.87 V/mm (200 mV/mil) to ensure that existing alarm and trip setpoints in the 3500 Series rack or legacy 3300 rack remain valid without recalibration.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a live rotating machinery protection system requires careful coordination across multiple interdependent components. When replacing the 330103-00-18-05-02-05 in a compressor train or turbine bearing pedestal, the first step is to confirm the condition and compatibility of the associated 330180 Series Proximitor Sensor, which conditions the raw eddy-current signal into the -24 VDC bias output consumed by the monitoring rack. If the Proximitor is also aged or showing drift, replacing both the probe and the driver simultaneously eliminates the risk of a second unplanned outage within the same maintenance window.

The signal cable routing from the probe tip through the machinery casing to the junction box must be inspected for insulation degradation, particularly in high-temperature or high-vibration environments. Where the integral 5-metre cable is insufficient to reach the marshalling panel, a 330130 Series Extension Cable is required — the total system cable length must remain within the calibrated range for the selected Proximitor to maintain sensitivity accuracy. Incorrect cable length is one of the most common sources of measurement offset errors during retrofit commissioning.

At the monitoring rack level, whether the facility operates a Bently Nevada 3500/42M Proximitor I/O Module or an older 3300 XL rack card, the channel configuration must be verified after probe replacement. This includes confirming the probe type selection (8 mm), sensitivity setting, and gap voltage alarm limits within the rack configuration software (System 1 or Rack Configuration Software). If the facility is simultaneously migrating from a 3300 XL rack to a 3500 Series rack as part of a broader control system modernisation, the channel mapping, OK relay wiring, and Modbus or FOUNDATION Fieldbus communication links to the plant DCS must all be re-verified before returning the machine to service.

For facilities that also monitor axial position or differential expansion alongside radial vibration, the 330500 Series Thrust Position Probe and its associated driver may be installed in the same bearing housing assembly. Coordinating the replacement schedule for both probe types during a single planned outage significantly reduces total downtime exposure. Similarly, if the plant uses a Bently Nevada 3500/22M Transient Data Interface for machinery diagnostics, the probe channel data streams must be re-validated in System 1 after any hardware swap to ensure waveform capture and spectrum analysis remain accurate.

Where the existing installation uses a 3300 XL 11 mm probe in an adjacent channel and the facility is standardising on 8 mm probes across the machinery train, the bearing housing bore diameter must be confirmed before ordering. Mixing probe tip sizes within the same machine requires individual gap calibration for each channel and cannot share a common sensitivity setting in the rack configuration.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement begins with pre-staging all replacement components before the machine is taken offline. For the 330103-00-18-05-02-05, this means having the replacement probe, the associated Proximitor sensor, and any required extension cable verified and bench-tested before the maintenance window opens. A bench test using a calibrated target disc confirms that the probe sensitivity and bias voltage output are within specification before installation, eliminating the risk of discovering a defective replacement unit after the machine is already offline.

During the swap, the original probe gap setting should be recorded from the monitoring rack’s gap voltage reading before disconnection. This value — typically between -10 and -18 VDC for an 8 mm probe at the correct air gap — serves as the target reference during re-installation. Re-gapping the new probe to match the recorded bias voltage, rather than relying solely on a mechanical feeler gauge, accounts for any minor variation in probe tip geometry between manufacturing batches and ensures the channel OK status is restored immediately upon power-up.

For facilities operating under continuous process requirements where even a brief machine trip is unacceptable, the monitoring rack’s bypass function should be engaged on the affected channel during the swap to prevent a spurious trip from the open-circuit probe signal. The bypass status must be logged, time-stamped, and cleared immediately after the new probe is confirmed in service. All alarm and trip setpoints should be re-verified against the original configuration record before the bypass is lifted.

Where the probe replacement is part of a broader migration from a 3300 XL rack to a 3500 Series rack, the original rack configuration file should be exported and archived before any hardware changes are made. This preserves the original setpoint database, channel descriptions, and communication link configuration as a recovery baseline. The 3500 Series rack configuration can then be built from this archive, reducing the risk of transcription errors in alarm limits or channel assignments that could compromise machinery protection after the migration is complete.

Retrofit Support FAQ

Q1: Is the 330103-00-18-05-02-05 a direct replacement for the original Bently Nevada part, and will it work with my existing Proximitor and rack without modification?
Yes. The 330103-00-18-05-02-05 is manufactured to the original Bently Nevada dimensional and electrical specification: 8 mm tip diameter, 5-metre integral cable, 7.87 V/mm sensitivity, and -24 VDC bias output. It is compatible with the 330180 Series Proximitor Sensor and both the 3300 XL and 3500 Series monitoring racks without mechanical modification. After installation, re-gap the probe to the correct air gap and confirm the channel OK status in the rack before returning the machine to service.

Q2: What commissioning checks are required after installing the replacement probe?
After installation, verify the probe tip-to-shaft gap using the bias voltage reading at the Proximitor output (target: -10 to -18 VDC for an 8 mm probe). Confirm the channel OK status in the monitoring rack, check that vibration readings are within the expected baseline range for the machine at rest, and verify that all alarm and trip setpoints remain active and correctly configured. If the rack was in bypass mode during the swap, confirm the bypass is cleared and log the restoration time.

Q3: Do you supply the 330103-00-18-05-02-05 from verified stock, and what is the lead time?
Yes. We maintain in-stock inventory of the 330103-00-18-05-02-05 to support urgent replacement and planned maintenance requirements. Orders are processed and dispatched promptly, with pre-shipment functional testing performed on each unit. All units are supplied with a support terms confirmed by quotation covering manufacturing defects and sensitivity drift. Contact admin@knmks.com or +86 18359268345 for current stock availability and lead time confirmation.

Q4: Can this probe be used if I am migrating from a 3300 XL rack to a 3500 Series rack as part of a broader control system upgrade?
Yes. The 330103-00-18-05-02-05 is compatible with both the legacy 3300 XL rack and the current 3500 Series rack platform. During a rack migration, the probe itself does not need to be replaced unless it is also at end-of-life. If you are replacing the probe and migrating the rack simultaneously, ensure the 3500 Series channel configuration matches the original sensitivity and gap voltage settings from the 3300 XL configuration record to maintain alarm and trip setpoint validity without recalibration.
