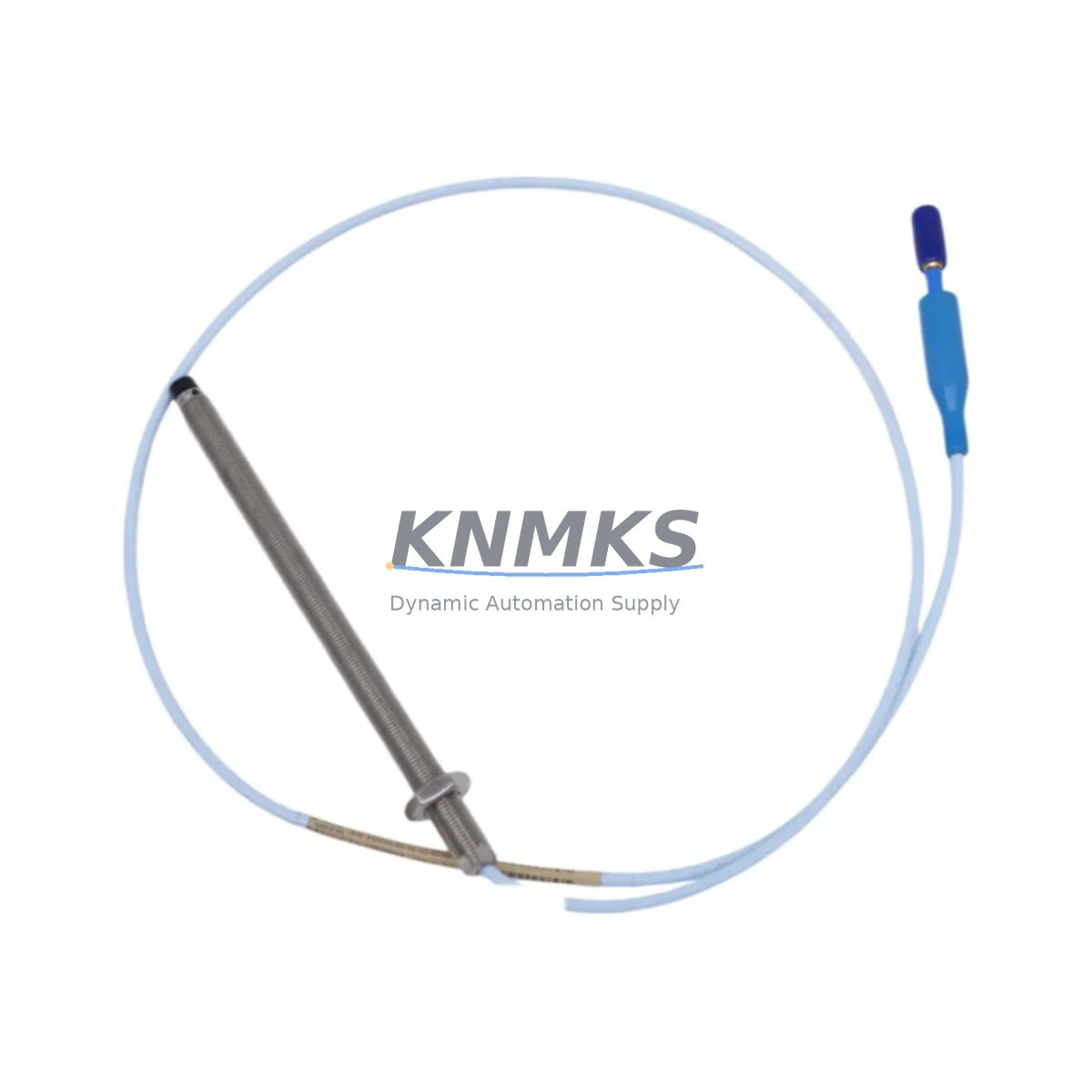

Bently Nevada 330103-00-16-50-12-RU Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-16-50-12-RU Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330103-00-16-50-12-RU is a ruggedized eddy-current proximity probe engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. As part of the proven Bently Nevada 3300 XL Series, this probe delivers exceptional signal stability, high electromagnetic interference (EMI) immunity, and long-term mechanical durability — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, metallurgical mills, water treatment stations, and marine propulsion systems.

In critical production environments where unplanned downtime carries catastrophic cost and safety consequences, the 330103-00-16-50-12-RU provides the measurement accuracy and environmental resilience required to keep machinery protection systems operating without interruption. Its ruggedized (RU) designation confirms compliance with enhanced mechanical and environmental protection standards, ensuring reliable performance under high vibration, thermal cycling, moisture ingress, and chemical exposure conditions common to heavy industrial control cabinets and field-mounted installations.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection architecture, the 330103-00-16-50-12-RU probe operates as the primary sensing element within a complete transducer chain. It is paired with the Bently Nevada 330130-080-00-00 extension cable to bridge the distance between the probe tip and the signal conditioning driver, maintaining signal integrity across long cable runs in high-noise environments. The driver module — typically from the Bently Nevada 3300 XL Driver series (e.g., 330180-91-00) — converts the raw eddy-current signal into a calibrated voltage output compatible with the plant’s Bently Nevada 3500 Series Machinery Protection System rack, which provides the centralized monitoring, alarming, and trip logic for critical rotating assets.

Within the control cabinet, the 3500 rack’s I/O modules interface with the plant DCS or safety PLC — often a Rockwell Automation ControlLogix or Siemens S7-400H redundant controller — to execute protective relay logic and interlock sequences. To safeguard the entire monitoring loop from power transients, surge events, and ground loops that are endemic to heavy industrial sites, dedicated signal isolators and surge protection devices (such as those from the Phoenix Contact TRABTECH or Pepperl+Fuchs Z-series) are installed at the cabinet entry points. Proper cabinet thermal management — including forced-air cooling modules and temperature monitoring — ensures that the sensitive signal conditioning electronics maintain calibration accuracy even when ambient temperatures inside the enclosure approach operational limits.

For facilities operating under IEC 61511 functional safety requirements, the 330103-00-16-50-12-RU can be integrated into a SIL-rated safety instrumented function (SIF) alongside a Bently Nevada 3500/42M Proximitor I/O Module, providing the redundant vibration measurement channels required for high-integrity machinery trip systems. This complete protection chain — from probe tip to safety relay — minimizes the risk of undetected dangerous failures and ensures that the machinery protection system responds correctly to abnormal shaft behavior before mechanical damage or catastrophic failure occurs.

Critical Industrial Safety Applications

The 330103-00-16-50-12-RU is deployed across a wide spectrum of critical industrial applications where continuous shaft monitoring is a non-negotiable safety and reliability requirement:

Petrochemical & Refining: Installed on high-speed centrifugal compressors, reactor feed pumps, and steam turbine-driven trains, where shaft displacement excursions can indicate imminent bearing failure, rotor instability, or seal degradation. Early detection via the 3300 XL probe system enables controlled shutdown before process containment is compromised.

Power Generation: Used on steam turbines, gas turbines, and boiler feed pumps in both conventional and combined-cycle power plants. The probe’s wide operating temperature range and ruggedized construction ensure reliable measurement even in the high-temperature, high-vibration environment adjacent to turbine casings.

Mining & Mineral Processing: Applied to large ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes operating in dusty, wet, and chemically aggressive environments. The IP67-rated ruggedized probe withstands wash-down, mineral dust accumulation, and mechanical shock without signal degradation.

Metallurgy & Steel Production: Monitors rolling mill drive motors, continuous caster pinch rolls, and blast furnace blower trains. High EMI immunity is critical in these environments due to the intense electromagnetic fields generated by large electric arc furnaces and variable-frequency drives.

Water & Wastewater Treatment: Protects large vertical turbine pumps and centrifugal blowers in water intake and treatment stations, where unplanned pump failure can disrupt municipal water supply. The probe’s corrosion-resistant construction is well-suited to humid, chemically dosed environments.

Marine & Port Machinery: Deployed on ship propulsion shaft lines, bow thrusters, and port crane hoisting drives, where the combination of salt air, vibration, and shock loading demands the highest levels of sensor mechanical integrity and signal reliability.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-16-50-12-RU?
The support terms confirmed by quotation cover all manufacturing defects, material failures, and functional performance deviations from Bently Nevada’s published specifications. If the probe fails to meet its specified scale factor, linearity, or operating range within the confirmed support period under normal installation and operating conditions, we will provide a replacement unit or documented resolution support. Support requests are processed promptly to minimize your site’s exposure to unprotected machinery operation.

Q2: What pre-shipment testing is performed on each probe?
Every 330103-00-16-50-12-RU unit undergoes functional verification prior to dispatch, including scale factor confirmation, cable continuity and insulation resistance testing, and connector integrity inspection. Units are shipped with individual test records available upon request, ensuring full traceability for your site’s quality management and safety documentation requirements.

Q3: Is the 330103-00-16-50-12-RU a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330103-00-16-50-12-RU is fully compatible with the Bently Nevada 3300 XL transducer system architecture, including existing 330130-series extension cables and 330180-series drivers. It can be installed as a direct replacement without recalibration of the driver or changes to the 3500 rack configuration, provided the target material and gap setting are consistent with the original installation. Always verify the gap voltage at commissioning to confirm correct probe positioning.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 330103-00-16-50-12-RU to support planned maintenance programs, emergency replacements, and multi-unit spare parts packages. For facilities with critical machinery protection requirements, we recommend establishing a consignment or blanket order arrangement to ensure immediate availability when a probe replacement is required during a planned outage or emergency shutdown. Contact our team to discuss long-term supply agreements tailored to your site’s maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-16-50-12-RU
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-16-50-12-RU
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
