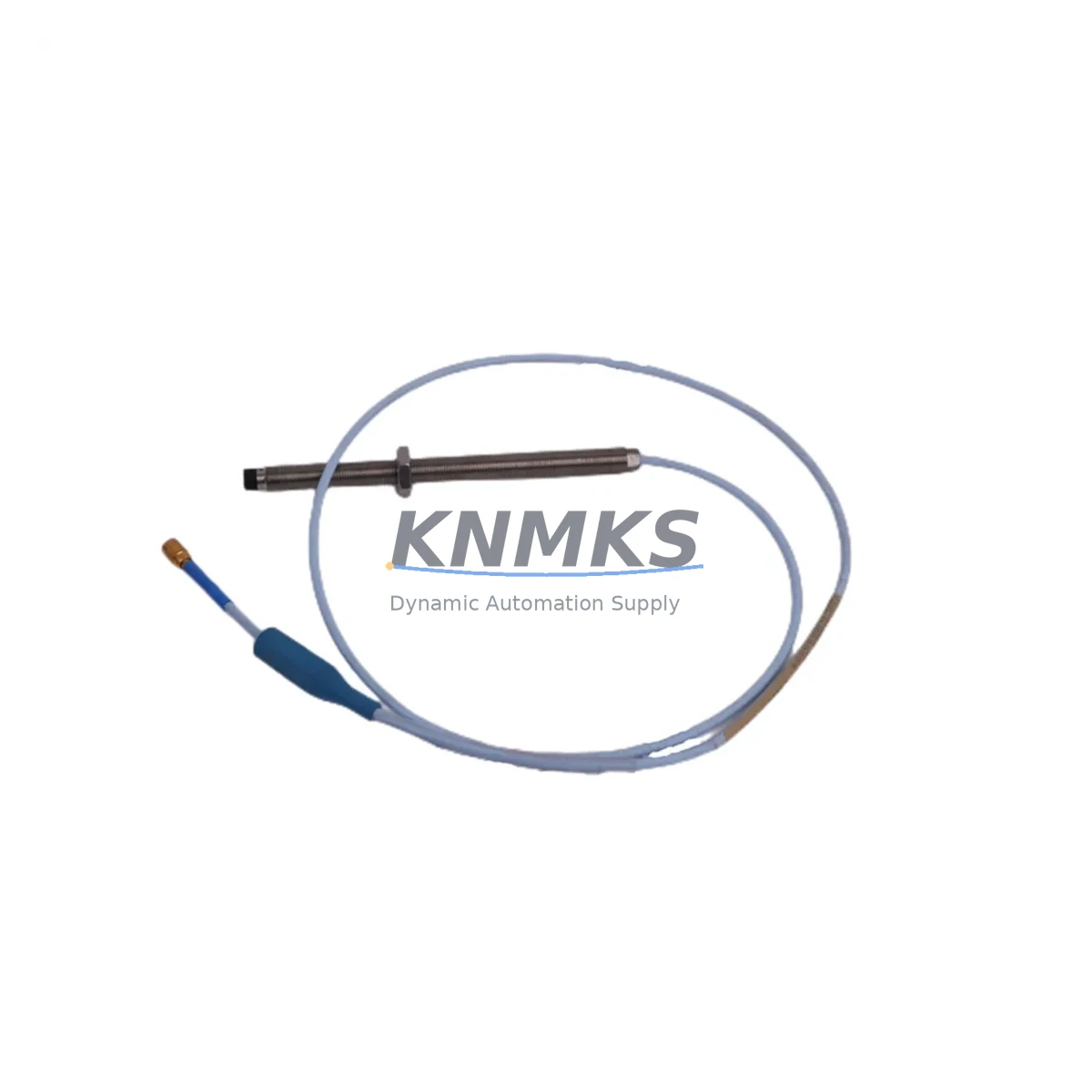

Bently Nevada 330103-00-14-10-01-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-14-10-01-00 Fail-Safe Proximity Probe: Critical Industrial Reliability & Fault Protection

The Bently Nevada 330103-00-14-10-01-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft displacement and vibration monitoring in the most demanding industrial environments. Designed to integrate seamlessly with Bently Nevada 3300 XL signal conditioning systems, this probe delivers the measurement accuracy and environmental resilience required to protect rotating machinery in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and marine propulsion systems.

In critical production environments where unplanned downtime carries severe operational and safety consequences, the 330103-00-14-10-01-00 provides the front-line sensing reliability that plant engineers and reliability teams depend on. Its non-contact eddy-current measurement principle eliminates mechanical wear, ensuring consistent signal output over extended service intervals without drift or degradation. Whether installed on a high-speed turbine shaft, a centrifugal compressor, a boiler feed pump, or a large induction motor, this probe maintains measurement integrity under high electromagnetic interference, heavy vibration, thermal cycling, and exposure to dust, moisture, and corrosive atmospheres.

Control interruptions, spurious trips, and signal drift are among the most costly failure modes in automated industrial plants. The 330103-00-14-10-01-00 addresses these risks directly through its robust IP67-rated stainless steel housing, wide operating temperature range of −35°C to +177°C, and EMI-shielded cable assembly. These characteristics make it suitable for installation inside high-density control cabinets where power electronics, variable frequency drives, and relay logic generate significant electromagnetic noise that can corrupt sensor signals and trigger false alarms or missed fault detection.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on a complete, matched signal chain throughout the control cabinet. The 330103-00-14-10-01-00 is designed to operate as part of a coordinated protection architecture. In a typical turbine or compressor protection panel, this probe pairs with the Bently Nevada 3300 XL 8mm Proximitor Sensor (such as the 330180-X1-05 series) to condition the raw eddy-current signal into a clean DC voltage proportional to shaft gap. That conditioned signal feeds into a Bently Nevada 3500/42M Proximitor / Seismic Monitor module, which performs real-time vibration and position alarming with relay output for safety interlock activation.

To protect the entire monitoring loop from power-related faults, the control cabinet should incorporate a Bently Nevada 3500/15 Power Supply or equivalent redundant DC power module, ensuring that voltage sags, surges, and transient spikes from adjacent VFDs or motor starters do not corrupt probe bias voltage or trigger nuisance trips. In high-EMI environments — common in steel mills, mining hoists, and offshore compressor platforms — the addition of shielded armored extension cables (such as the Bently Nevada 330130 series) between the probe and Proximitor further suppresses interference-induced signal noise.

For plants running integrated safety instrumented systems, the vibration data from the 330103-00-14-10-01-00 can be routed through a Bently Nevada 3500 Rack to a safety PLC or DCS — such as a Rockwell Automation GuardLogix or Emerson DeltaV SIS controller — where it participates in safety interlock logic for emergency shutdown (ESD) and process trip functions. Complementing the proximity probe system with a Bently Nevada 330400 series velocity transducer on the same machine train provides redundant vibration sensing across different frequency ranges, improving overall fault detection coverage and reducing the risk of missed bearing failures or rotor instability events.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process units such as crude distillation, catalytic cracking, and gas compression trains, unplanned machinery trips cause production losses measured in tens of thousands of dollars per hour. The 330103-00-14-10-01-00 provides the real-time shaft displacement data that allows condition monitoring systems to detect developing bearing wear, rotor imbalance, and misalignment before they escalate to catastrophic failure. Its IP67 rating and stainless steel construction resist hydrocarbon vapors, process fluids, and high-pressure wash-down cycles common in refinery environments.

Power Generation — Steam & Gas Turbines: Turbine shaft monitoring is a mandatory safety requirement in most power plant operating standards. The 3300 XL probe system, anchored by the 330103-00-14-10-01-00, delivers the API 670-compliant radial vibration measurement needed for turbine protection panels. Its wide temperature tolerance ensures stable operation near high-temperature bearing housings and steam admission zones where ambient temperatures frequently exceed 100°C.

Mining & Mineral Processing: Ball mills, SAG mills, conveyor drives, and slurry pumps in mining operations are subject to extreme vibration, heavy dust loading, and intermittent flooding. The IP67 protection and robust stainless housing of the 330103-00-14-10-01-00 allow reliable installation in these harsh conditions, providing early warning of drive-end bearing degradation and preventing unscheduled mill stoppages that disrupt ore processing throughput.

Water & Wastewater Treatment: Large centrifugal pumps and blower trains in water treatment facilities require continuous vibration monitoring to maintain service reliability and comply with environmental discharge commitments. The non-contact measurement principle of the 330103-00-14-10-01-00 eliminates the maintenance burden of contact-type sensors in wet, chemically aggressive pump rooms.

Metallurgy & Steel Production: Rolling mill drives, continuous caster pinch rolls, and blast furnace blowers operate under extreme thermal and mechanical stress. The 330103-00-14-10-01-00’s high-temperature rating and EMI resistance make it well-suited for integration into the vibration protection systems of these critical drives, where electromagnetic interference from large thyristor converters and arc furnaces is a persistent challenge.

Marine & Offshore: Propulsion shaft monitoring, diesel generator protection, and compressor train surveillance on FPSOs and LNG carriers demand sensors that withstand salt spray, high humidity, and continuous vibration from vessel motion. The 330103-00-14-10-01-00 meets these requirements and is compatible with marine-grade Bently Nevada monitoring racks used in offshore machinery protection systems.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-14-10-01-00?
Every unit is covered by a support terms confirmed by quotation against manufacturing defects and functional failures from the date of shipment. If the probe fails to perform within its specified parameters under normal operating conditions during this period, we provide replacement or documented resolution support support. Our support terms process is straightforward — contact our technical team with the failure description and we will coordinate resolution promptly.

Q2: How is each probe tested before shipment?
Each 330103-00-14-10-01-00 unit undergoes a full pre-shipment functional and calibration verification using matched 3300 XL driver electronics. We verify sensitivity (mV/mil output), linear range, cable continuity, and housing integrity before dispatch. Test records are available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL monitoring systems?
Yes. The 330103-00-14-10-01-00 is a direct-fit replacement for all standard 3300 XL 8mm proximity probe installations. It is designed to work with Bently Nevada 3300 XL Proximitor Sensors and 3500 Series monitoring racks without requiring recalibration of the existing system, provided the target material and gap setting match the original installation specification. Always verify target material compatibility (AISI 4140 or equivalent) before installation.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain dedicated stock of the 330103-00-14-10-01-00 and related 3300 XL series components to support both planned maintenance schedules and emergency replacement requirements. Our inventory management prioritizes fast-moving industrial safety components to minimize lead times. For plants with critical spare parts programs, we can discuss consignment stock or scheduled supply agreements to ensure zero-gap availability for your machinery protection systems.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-14-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-14-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
