Bently Nevada 330103-00-13-50-12-RU Migration-Ready Proximity Probe

Overview

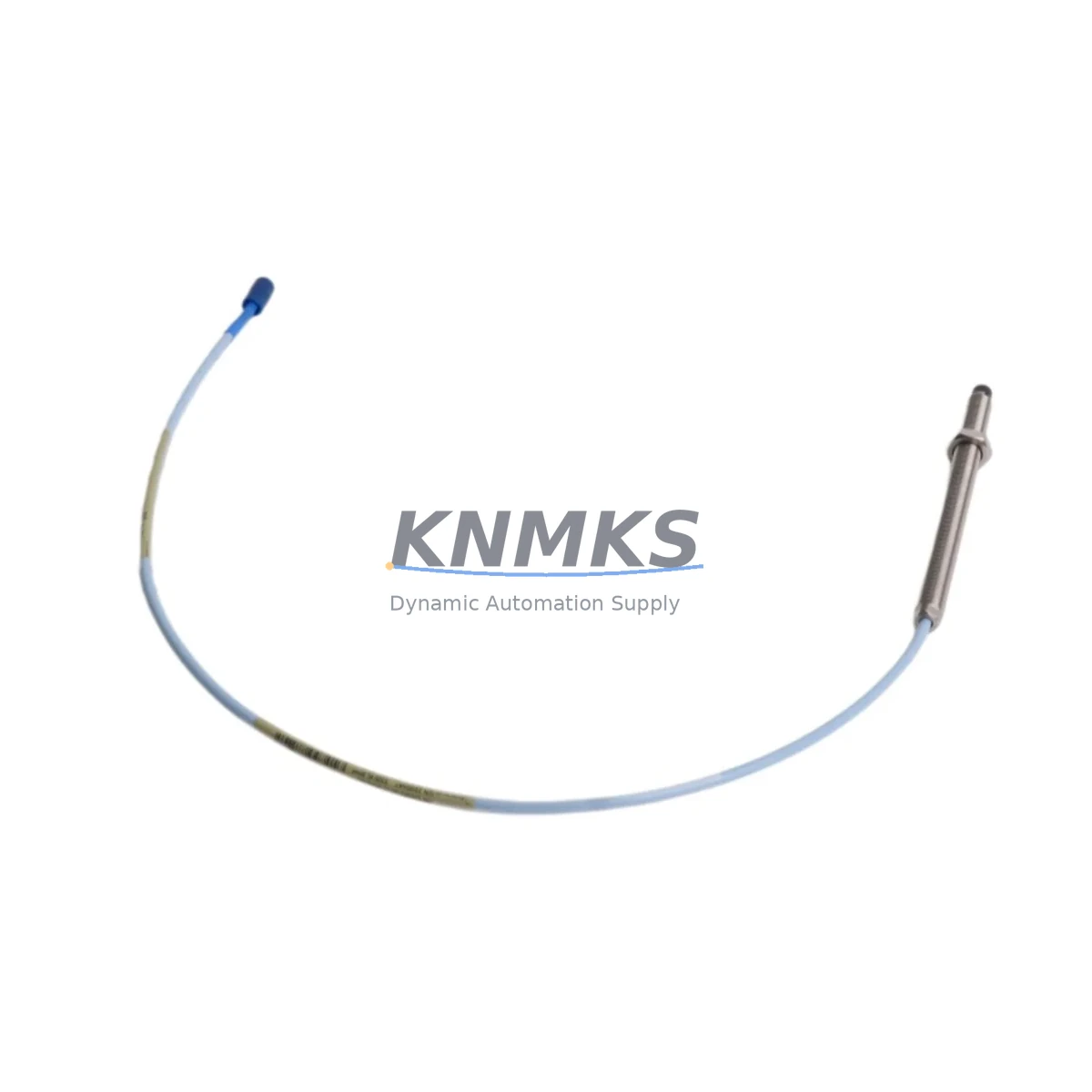

Bently Nevada 330103-00-13-50-12-RU Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-13-50-12-RU is a 3300 XL Series eddy-current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. With a 5-meter (50-cm probe + 450-cm extension) cable configuration, -18 mm tip diameter, and standard -18 VDC bias voltage output, this probe is fully compatible with existing 3300 XL monitor racks, junction boxes, and field wiring without requiring panel redesign or signal recalibration. For plant engineers managing aging rotating machinery protection infrastructure — turbines, compressors, pumps, and gearboxes — the 330103-00-13-50-12-RU provides a verified, immediately deployable spare that eliminates the sourcing risk associated with discontinued OEM part numbers.

When planning a retrofit or spare-parts replenishment around this probe, engineers must confirm several critical parameters before installation. The probe tip gap must be set to the OEM-specified air gap (typically 1.0–1.5 mm for 3300 XL probes) using a calibrated gap tool, and the output voltage at that gap should read approximately -10 VDC on the monitor’s front-panel meter. The extension cable — in this configuration the 330130-080-00-00 or equivalent 450 cm armored extension — must be verified for continuity and shield integrity before connection to the proximitor/driver. The 3300 XL Proximitor, such as the 330180-X1-05 or 330180-X1-CN, must be confirmed as compatible with the -18 mm probe body diameter and the RU (reverse-mount, unarmored) cable termination style. Incorrect proximitor pairing is the most common commissioning error during legacy probe replacement and will result in out-of-range gap voltage alarms immediately upon energization.

For installations where the original probe was mounted in a tight bearing housing or compressor casing with limited radial clearance, the 330103-00-13-50-12-RU’s standard body length and thread pitch (M10 x 1.0 or 3/8-24 UNF depending on configuration) must be cross-referenced against the existing probe boss dimensions. If the original probe boss was machined for an armored (AR) cable variant, a sleeve adapter may be required to maintain proper seating depth and prevent probe body rotation during operation. Always torque the locknut to the specified value — typically 20–25 N·m — to prevent vibration-induced loosening in high-cycle machinery environments.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit around the 330103-00-13-50-12-RU begins well before the probe arrives on site. The first step is a full audit of the existing 3300 XL monitor rack — typically a 3300/16 or 3300/20 chassis — to confirm available channel slots, current channel configuration (radial vibration, axial position, or speed), and the firmware revision loaded on each monitor module. If the rack is running an older firmware that predates the 3300 XL NSv architecture, a firmware update on the 3300 XL monitor card may be required to correctly interpret the probe’s scale factor (typically 7.87 V/mm or 200 mV/mil for 8 mm probes).

The 330180-X1-05 Proximitor driver module, which conditions the raw eddy-current signal from the 330103-00-13-50-12-RU before it reaches the monitor, should be inspected for corrosion on the BNC connector and verified for correct sensitivity setting. In installations where the original proximitor has been in service for more than ten years, proactive replacement of the proximitor alongside the probe is strongly recommended to avoid a second unplanned outage. Similarly, the 330130-080-00-00 extension cable — the 450 cm armored extension that bridges the probe to the proximitor in most turbine pedestal installations — should be meggered for insulation resistance before reuse; values below 100 MΩ indicate moisture ingress and mandate cable replacement.

For control cabinets that also house a 3500 Series rack alongside the legacy 3300 XL system, engineers should note that the 3500/42M position monitor accepts 3300 XL probes directly but requires a different scale factor entry in the rack configuration software (Rack Configuration Software, or RCS). If the plant is mid-migration from a 3300 XL to a 3500/42M platform, the 330103-00-13-50-12-RU can serve as an interim spare while the 3500 rack is being commissioned, provided the gap voltage and scale factor are re-entered in RCS before the 3500 rack goes live. This dual-platform compatibility makes the 330103-00-13-50-12-RU a particularly cost-effective inventory item for plants running mixed-generation Bently Nevada infrastructure.

In I/O-intensive installations where the 3300 XL rack feeds a DCS or safety system via a 3300/25 or 3300/32 I/O module, the retrofit plan must include verification of the 4–20 mA output scaling at the I/O module level. Any change in probe sensitivity or gap setting will shift the 4–20 mA output range and may trigger nuisance alarms or, worse, mask real vibration events at the DCS historian. Coordinate with the control system engineer to freeze alarm setpoints in the DCS during the probe swap window and restore them only after the new probe has been gapped and the output verified against a known reference target.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement on a running machine train requires a structured pre-outage preparation protocol. Before the maintenance window opens, the replacement 330103-00-13-50-12-RU should be bench-tested using a portable proximitor and a calibrated target disk to confirm output voltage, scale factor, and cable continuity. This pre-shipment bench test — which KNMKS performs on every unit before dispatch — eliminates the risk of discovering a defective spare after the machine has already been taken offline.

During the outage, the sequence should follow: (1) de-energize the proximitor supply rail on the 3300 XL rack, (2) disconnect the extension cable at the junction box, (3) remove the old probe using the correct spanner to avoid damaging the probe boss threads, (4) install the 330103-00-13-50-12-RU and set the air gap using a feeler gauge or gap voltage meter, (5) reconnect the extension cable and re-energize the proximitor, (6) verify gap voltage at the monitor front panel, and (7) confirm OK relay status and alarm setpoints before returning the machine to service. This sequence, when followed precisely, typically allows a single-probe replacement to be completed within a two-hour maintenance window on a well-prepared machine train.

For plants where the 3300 XL rack is also connected to a Bently Nevada System 1 condition monitoring platform, the probe replacement event should be logged in System 1 as a maintenance event to prevent the historian from flagging the gap voltage transient during installation as a process alarm. After the probe is installed and gapped, a 30-minute baseline data collection period in System 1 will confirm that vibration trend data has returned to pre-outage levels and that no new frequency components have been introduced by the replacement probe or its cable routing.

Retrofit Support FAQ

Q: Is the 330103-00-13-50-12-RU a direct replacement for the discontinued 330103-00-13-50-12-CN?
A: Yes. The RU (reverse, unarmored) and CN (reverse, armored) variants share identical probe body dimensions, tip diameter, sensitivity, and bias voltage specifications. The only difference is the cable jacket construction. In most installations, the RU variant can replace the CN variant without modification to the probe boss or proximitor wiring, provided the junction box entry fitting is compatible with the unarmored cable OD.

Q: What commissioning checks are required after installation?
A: After installation, verify the air gap voltage at the 3300 XL monitor front panel (target: -10 VDC ± 0.5 VDC at nominal gap), confirm the OK/Not OK relay is in the OK state, check that the 4–20 mA output at the I/O module reflects the correct vibration baseline, and review the System 1 trend screen for the first 30 minutes of operation to confirm stable readings. Document the as-found and as-left gap voltages in the maintenance record.

Q: Does KNMKS provide pre-shipment testing for this probe?
A: Yes. Every 330103-00-13-50-12-RU shipped by KNMKS is bench-tested against a calibrated target using a matched 330180-X1-05 Proximitor to verify output voltage, scale factor, and cable continuity before dispatch. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment against manufacturing defects, output drift beyond OEM specification, and cable integrity failure.

Q: What is the typical lead time and inventory availability?
A: KNMKS maintains stock inventory of the 330103-00-13-50-12-RU and associated 3300 XL accessories. In-stock units ship within 1–3 business days. For urgent plant shutdowns or emergency sparing requirements, expedited dispatch is available. Contact our team to confirm current stock levels and delivery timeline for your location.
