Bently Nevada 330103-00-13-20-12-05 Spare Part

Overview

Bently Nevada 330103-00-13-20-12-05 Spare Part for Factory Uptime

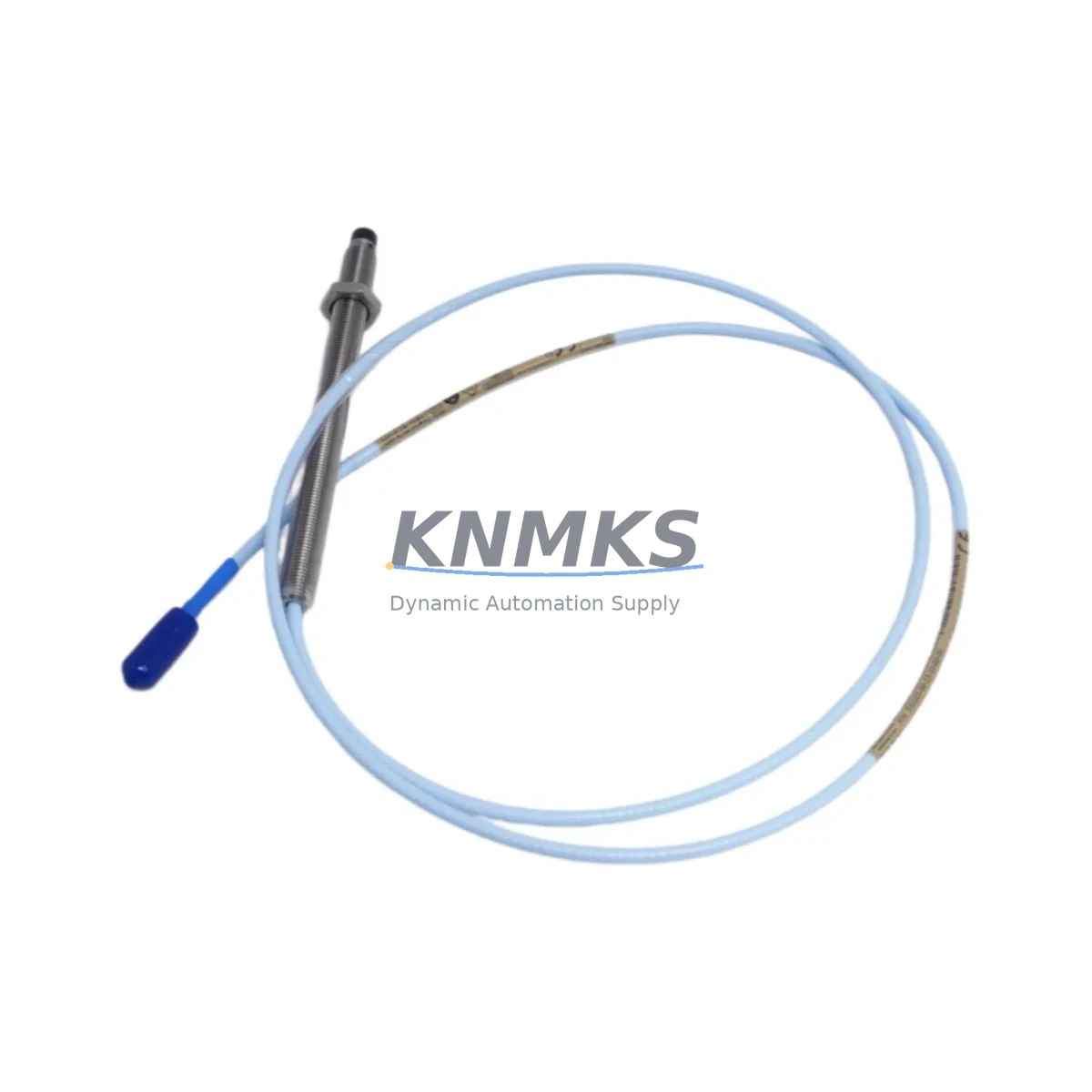

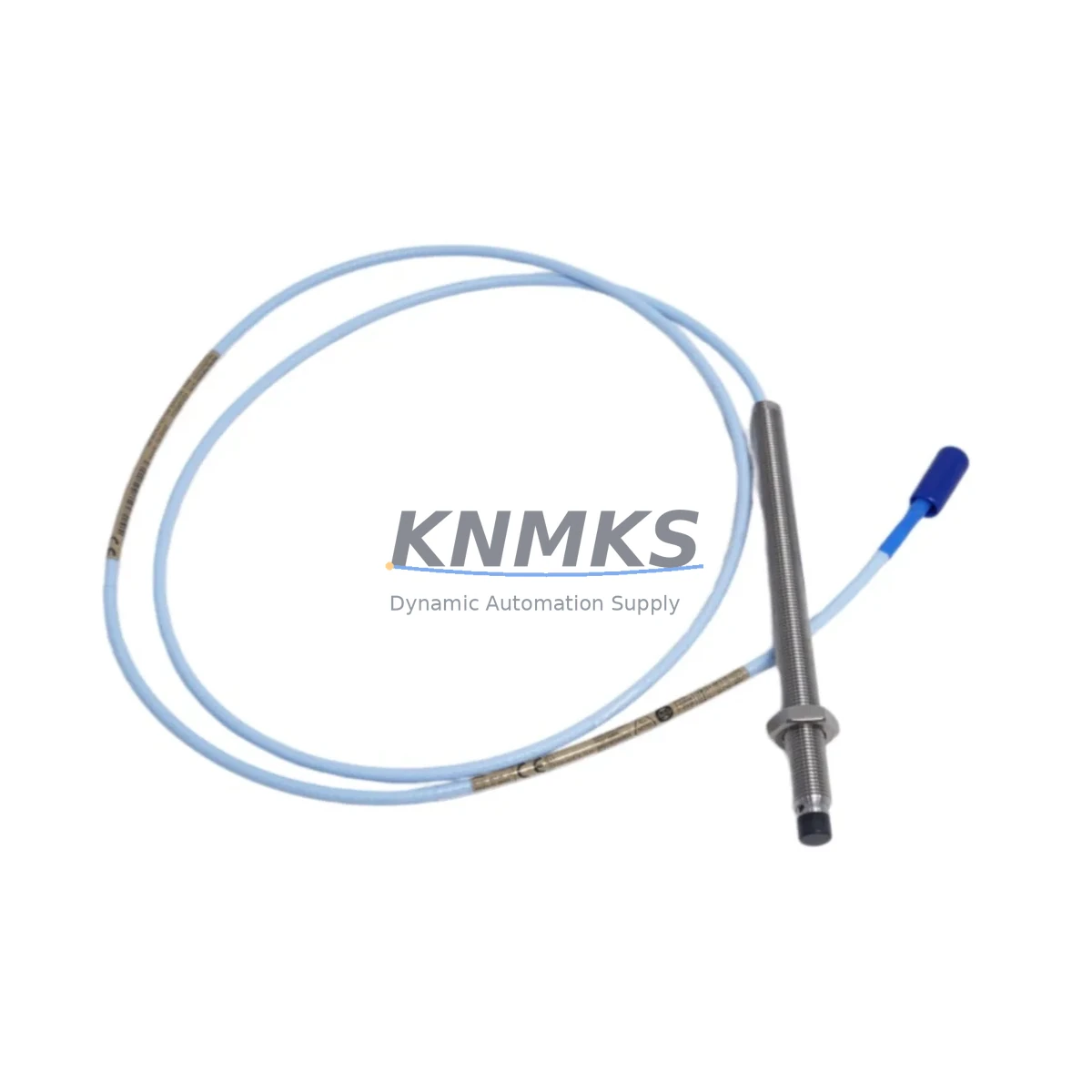

The Bently Nevada 330103-00-13-20-12-05 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As a core component of the 3300 XL Series condition monitoring system, this probe delivers the measurement accuracy and long-term reliability that maintenance engineers depend on to prevent unplanned shutdowns in turbines, compressors, pumps, and motors across oil & gas, power generation, petrochemical, and heavy manufacturing environments.

Stocking a verified replacement unit of the 330103-00-13-20-12-05 is a fundamental element of any proactive maintenance strategy. When a probe fails or drifts out of calibration, every minute of diagnostic delay translates directly into production loss. Having a tested, ready-to-install spare on the shelf eliminates that delay and restores system integrity within a single maintenance window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-13-20-12-05 probe is rarely an isolated task. In practice, maintenance engineers conducting a probe swap on a 3300 XL monitoring loop should simultaneously inspect the full signal chain to prevent repeat failures and ensure measurement integrity after restart.

Begin with the 3300 XL Proximitor / Seismic Monitor (such as the 330180 or 330130 series driver module) — the proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance, and a degraded driver will produce erratic readings even with a new probe installed. Verify output voltage at the recommended 1.27 mm (50 mil) gap and confirm the gap voltage falls within the –10 VDC to –18 VDC linear range.

Next, inspect the extension cable assembly (typically the 330130 series matched cable). The probe, extension cable, and proximitor form a tuned system — mismatched cable lengths or damaged shielding introduce signal noise that can trigger false vibration alarms or mask real machinery faults. Replace the extension cable if the outer jacket shows cracking, abrasion, or connector corrosion.

Within the control cabinet, check the 3500 Series rack power supply module and its associated terminal blocks. Unstable –24 VDC supply voltage is a common root cause of proximity system instability. Inspect fuse holders and verify that the dedicated circuit breaker for the monitoring rack is rated correctly and shows no signs of thermal stress.

For plants running integrated machinery protection, also review the 3500/42M Proximitor / Seismic Monitor card or equivalent I/O module seated in the 3500 rack backplane. Loose card seating, oxidized edge connectors, or backplane damage can cause intermittent channel dropouts that are difficult to distinguish from probe failures during fault isolation.

Finally, if the monitoring system feeds a DCS or PLC via 4–20 mA analog output or Modbus/RS-485 communication, verify signal continuity at the marshalling panel and confirm that the receiving I/O card registers the correct engineering-unit value after probe replacement. Signal isolators or barriers in the loop should also be tested for drift, particularly in hazardous-area installations where galvanic isolation is mandatory.

Procurement engineers should note that the 330103-00-13-20-12-05 is a long-lifecycle component, but availability from OEM channels can be inconsistent for older 3300 XL installations. Maintaining a minimum stock of one to two verified spare probes per critical machine train — alongside matched extension cables and a spare proximitor module — is the industry-standard approach to eliminating single-point-of-failure risk in rotating equipment monitoring.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 330103-00-13-20-12-05 probe matches the installed cable length and thread specification. Cross-reference the part number suffix (–13–20–12–05) against the original installation drawing to validate probe body length, cable length, and connector type before removing the failed unit.

Step 2 — Safe isolation: Coordinate with the control room to place the affected monitoring channel in bypass mode within the 3500 rack or 3300 XL system. This prevents spurious trips during the mechanical swap. Document the bypass in the permit-to-work system.

Step 3 — Mechanical removal and installation: Using the correct spanner, remove the old probe from the bearing housing. Clean the probe boss threads and inspect for fretting or corrosion. Install the new 330103-00-13-20-12-05 to the manufacturer-specified gap (typically 1.27 mm / 50 mil for standard steel targets) and torque to specification. Reconnect the extension cable, ensuring the connector is fully seated and the locking collar is secure.

Step 4 — Gap voltage confirmation: With the proximitor powered, measure the DC output voltage at the monitor terminal. Confirm the gap voltage is within the linear range (–10 VDC to –18 VDC). Adjust the probe gap if necessary.

Step 5 — System restoration and functional test: Remove the channel bypass, confirm the monitor displays a valid vibration reading at normal machine speed, and verify that no alarms are active. Log the replacement in the equipment maintenance record, including the new probe serial number and gap voltage reading.

This workflow is compatible with both direct 3300 XL panel installations and 3500 rack-based systems, minimizing downtime and ensuring the replacement is traceable for future audits.

Spare Parts Support FAQ

Q1: Is the 330103-00-13-20-12-05 compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330103-00-13-20-12-05 8mm probe is designed for use within the Bently Nevada 3300 XL system and is also compatible with 3500 Series racks when paired with the appropriate proximitor module. Always verify the full part number suffix to confirm cable length and connector compatibility with your specific installation.

Q2: What testing is performed before shipment?
Each 330103-00-13-20-12-05 unit is bench-tested for gap voltage linearity, oscillator frequency, and insulation resistance prior to dispatch. Units that do not meet OEM performance specifications are rejected. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: How should I manage long-term spare parts inventory for 3300 XL proximity systems?
For critical rotating equipment, we recommend stocking at least one complete probe-cable-proximitor set per machine train. Given the potential for OEM discontinuation of legacy 3300 XL components, purchasing a small buffer stock (2–3 units) of the 330103-00-13-20-12-05 is a cost-effective strategy to protect against extended lead times and unplanned downtime. Our team can support blanket order arrangements for volume procurement.

Q4: Can you supply the 330103-00-13-20-12-05 for an aging system that is no longer supported by the OEM?
Yes. We specialize in long-term supply of maintenance-critical spare parts for legacy industrial control and monitoring systems, including discontinued Bently Nevada 3300 XL components. Our inventory is sourced, inspected, and tested to ensure field-ready performance, and we maintain supply continuity for customers managing extended asset lifecycles beyond OEM support windows.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-13-20-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-13-20-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
