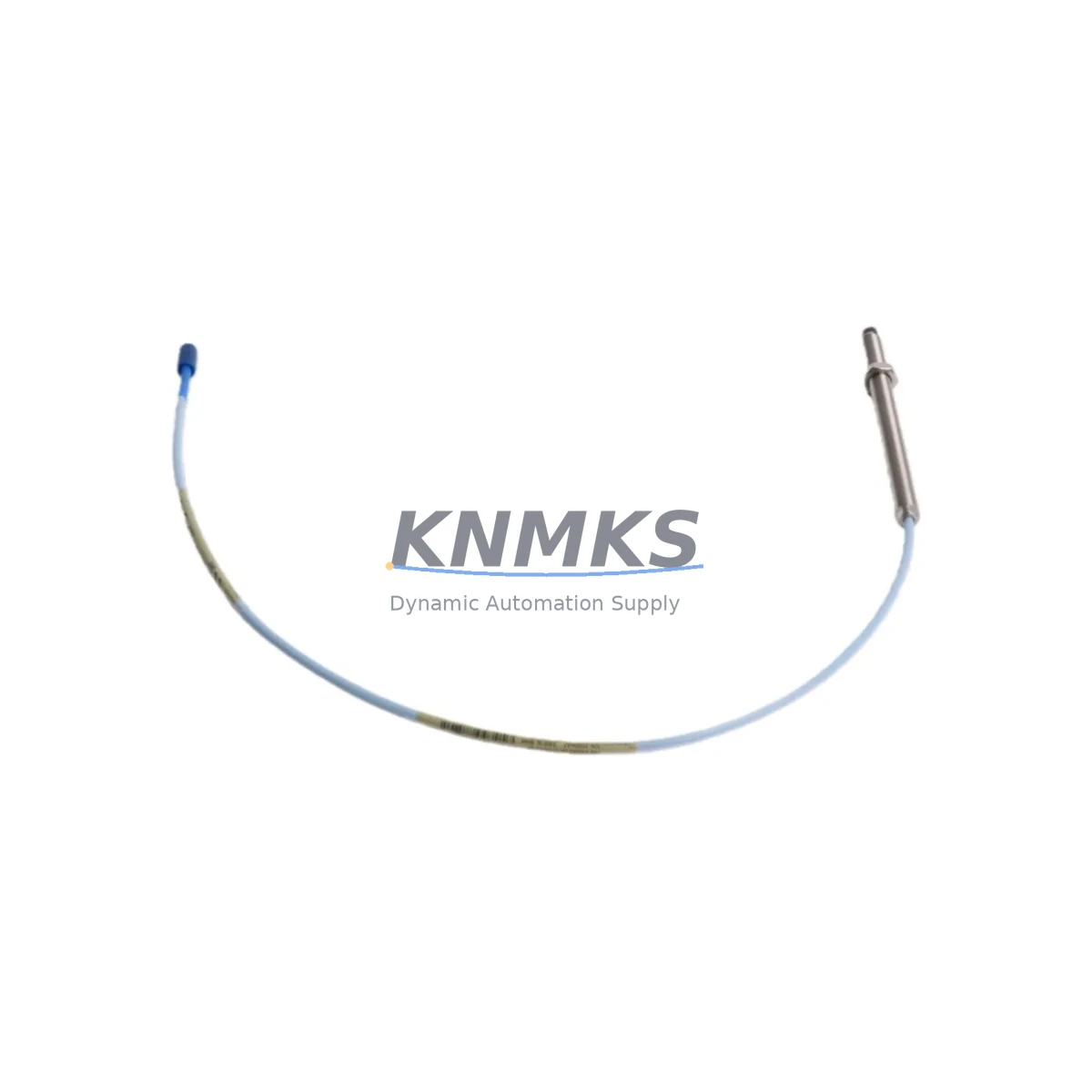

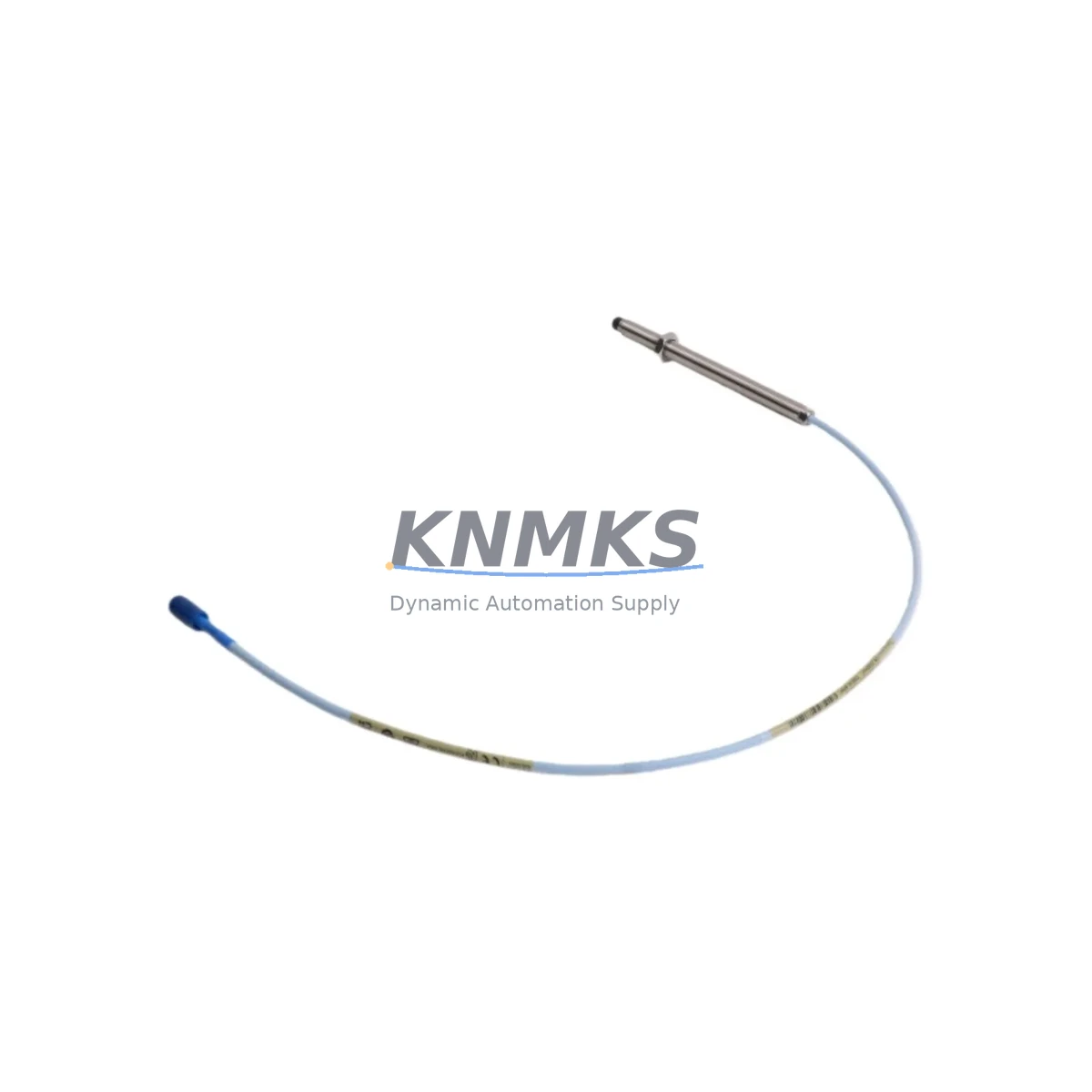

Bently Nevada 330103-00-13-05-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330103-00-13-05-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-13-05-02-05 is a 3300 XL Series eddy-current proximity probe engineered for direct drop-in replacement in legacy vibration monitoring and machinery protection systems. As original Bently Nevada 3300 Series hardware reaches end-of-life and spare parts become increasingly scarce, this migration-ready probe provides a verified, field-tested upgrade path for rotating machinery applications in energy generation, petrochemical processing, compressor trains, and heavy manufacturing environments.

Designed to maintain full signal chain compatibility with the Bently Nevada 3300 XL proximitor/seismic transducer system, the 330103-00-13-05-02-05 preserves existing wiring terminations, connector pinouts, and cable routing without requiring panel modifications. Engineers undertaking control cabinet upgrades or machinery protection system overhauls can integrate this probe while retaining existing Bently Nevada 3500 Series rack infrastructure, minimizing retrofit scope and reducing commissioning time on the plant floor.

When planning a migration from older 7200 Series or early 3300 Series proximity systems, the 330103-00-13-05-02-05 is a primary candidate for direct substitution. Its 5 mm tip diameter, 13 mm cable length configuration, and standard TNC connector interface align with the dimensional and electrical specifications of the original installed base, allowing maintenance teams to confirm fit before shutdown windows are scheduled.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-13-05-02-05 into an existing machinery protection architecture begins with a thorough audit of the installed system. Maintenance engineers should document the current proximitor model — typically a Bently Nevada 330180-51-05 or similar 3300 XL 8mm Proximitor — and verify that the replacement probe’s sensitivity curve and gap voltage specifications align with the proximitor’s calibration range. Mismatched sensitivity between probe and proximitor is the most common source of false alarm trips during post-retrofit commissioning.

Terminal wiring at the junction box or marshalling cabinet should be photographed and labeled before disconnection. The 330103-00-13-05-02-05 uses a standard three-conductor shielded cable arrangement (probe, extension, and proximitor), and existing Belden or equivalent shielded cable runs are typically reusable provided insulation integrity is confirmed with a megger test. Where cable runs exceed the probe’s rated length, a compatible Bently Nevada extension cable — such as the 330130 Series — must be inserted between probe and proximitor to maintain system accuracy.

For sites running Bently Nevada 3500 Series rack systems, the 3500/40M Proximitor I/O Module or 3500/42M Proximitor I/O Module will interface directly with the replacement probe without hardware changes. Engineers should confirm the rack’s channel configuration in System 1 software or the 3500 Rack Configuration Utility, verifying that probe type, gap voltage setpoints, and alert/danger thresholds are correctly mapped before energizing the new probe. Where the existing rack includes a 3500/20 Power Supply Module, confirm that the DC supply rail is within specification under the full channel load after probe replacement.

Sites migrating from older Bently Nevada 7200 Series proximity systems to the 3300 XL platform will need to address the signal conditioning differences between the two generations. The 7200 Series proximitor operates at a different bias voltage and sensitivity, meaning that DCS analog input scaling, SCADA historian tags, and HMI faceplate engineering units must all be reconfigured to reflect the 3300 XL signal chain. Coordinate with the control system integrator to update Modbus or HART register maps if the vibration data is transmitted digitally to a plant historian or condition monitoring platform.

Where the retrofit scope includes I/O expansion — for example, adding radial vibration channels alongside the existing axial position measurement — the 3500 rack’s available slot count should be confirmed before ordering additional 3500/40M or 3500/42M modules. Signal isolators may be required at the rack output if the vibration signal is distributed to multiple downstream systems, such as a safety instrumented system (SIS) and a condition monitoring workstation simultaneously.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-shutdown checklist and a clearly defined rollback procedure. Before the maintenance window opens, the replacement 330103-00-13-05-02-05 should be bench-tested against a known-good proximitor to confirm gap voltage output at the target air gap distance. This pre-shipment functional verification — which KNMKS performs on all outgoing units — reduces the risk of discovering a defective component after the machine is already offline.

During the shutdown window, the original probe should be removed and the replacement installed without disturbing the extension cable or junction box wiring where possible. After mechanical installation, the gap voltage should be set using a non-ferrous feeler gauge or a calibrated gap-setting tool, targeting the proximitor’s linear range midpoint. The system should be powered up in bypass mode within the 3500 rack to allow gap voltage verification before the channel is returned to normal monitoring service.

Original program logic in the DCS or safety PLC should not be modified during the probe swap unless the replacement probe’s sensitivity requires rescaling of the analog input. If rescaling is necessary, the existing logic should be backed up to a portable engineering workstation before any changes are made, and the modified program should be validated in simulation mode before download. This preserves the original control logic as a rollback baseline in the event that the new probe configuration produces unexpected alarm behavior during the initial run-up period.

For critical rotating machinery where continuous monitoring is contractually required, a temporary portable vibration analyzer can be connected to the probe junction box during the transition period, maintaining vibration data continuity in the plant historian while the permanent monitoring channel is reconfigured. This approach is particularly valuable during gas turbine or large centrifugal compressor retrofits where vibration trending data must be preserved for regulatory or insurance compliance purposes.

Retrofit Support FAQ

Q1: Is the 330103-00-13-05-02-05 a direct replacement for the original Bently Nevada 330103 Series probe?
Yes. The 330103-00-13-05-02-05 is a current-production 3300 XL Series probe that maintains dimensional, electrical, and signal chain compatibility with the original 330103 Series. It is suitable for direct substitution in existing 3300 XL proximity systems without modification to the proximitor, extension cable, or rack input card.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the proximitor’s recommended air gap (typically 1.0–1.5 mm for 5 mm probes), verify gap voltage output at the proximitor output terminals, confirm alert and danger setpoints in the 3500 rack configuration, and perform a channel function test by simulating target movement. Document the as-left gap voltage and setpoint values in the maintenance record.

Q3: Can existing field wiring and extension cables be reused?
In most cases, yes. Existing shielded extension cables are reusable provided they pass an insulation resistance test and the total cable length (probe + extension) falls within the 3300 XL system’s rated range. Inspect TNC connectors for corrosion or mechanical damage and replace if necessary. Do not mix extension cables from different Bently Nevada series (e.g., 7200 Series extension cables are not compatible with 3300 XL probes).

Q4: What support terms and supply terms apply?
All 330103-00-13-05-02-05 units supplied by KNMKS carry a support terms confirmed by quotation against manufacturing defects from the date of shipment. Units are pre-tested prior to dispatch. Stocking inventory is maintained to support urgent replacement requirements, and lead times for standard orders are confirmed at the time of inquiry. Contact admin@knmks.com or +86 18359268345 for availability and pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-13-05-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-13-05-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
