Bently Nevada 330103-00-12-10-02-CN 3300 XL Probe: Migration-Ready Proximity Sensor for Legacy Vibration Monitoring Systems

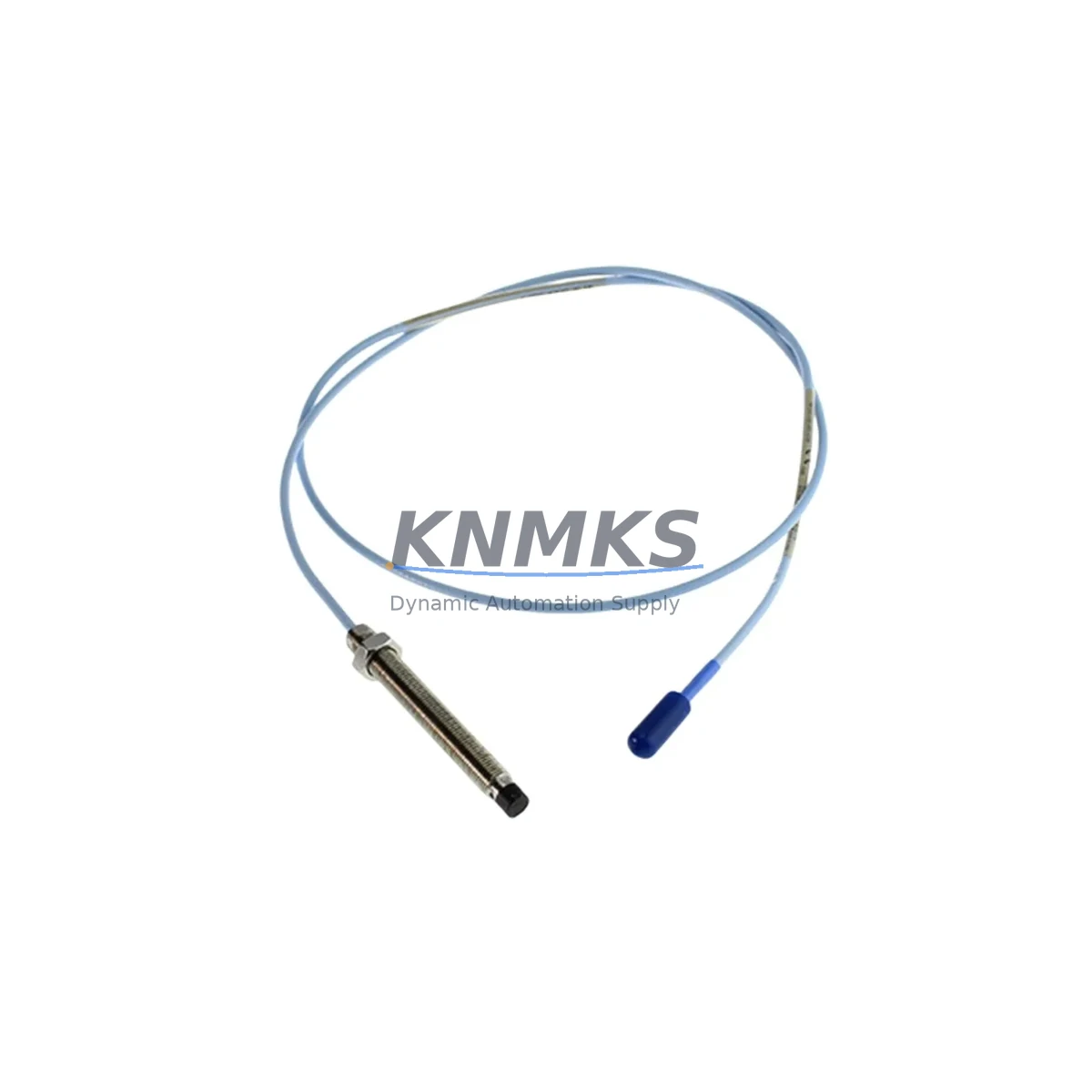

The Bently Nevada 330103-00-12-10-02-CN is an 8mm eddy-current proximity probe designed for the 3300 XL Series vibration monitoring platform. This unit serves as a direct replacement for discontinued or end-of-life probes in rotating machinery protection systems, including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Whether you are executing a planned spare parts replenishment, responding to an unplanned probe failure, or undertaking a full control cabinet retrofit, the 330103-00-12-10-02-CN delivers verified interchangeability with the original Bently Nevada 3300 XL probe family.

The probe ships pre-tested against Bently Nevada factory sensitivity specifications (typically 7.87 V/mm ± 10%) and is supplied with a support terms confirmed by quotation covering manufacturing defects and performance deviation. Each unit undergoes gap voltage verification, output linearity check, and cable continuity testing prior to dispatch, ensuring that field installation time is minimized and first-time commissioning success rates remain high.

In legacy system environments, the 330103-00-12-10-02-CN is commonly paired with the Bently Nevada 3300 XL 8mm Extension Cable (330130 series) and the 3300 XL Proximitor Sensor (330180 series) to form a complete proximity transducer system. When replacing probes in an existing installation, engineers must confirm that the total system cable length — probe plus extension cable — matches the Proximitor’s calibrated range. Mismatched cable lengths will shift the gap voltage baseline and may trigger false danger or trip alarms on the 3500/40M or 3500/42M monitor modules downstream.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-12-10-02-CN into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing transducer loop: probe model, extension cable part number and length, Proximitor model, and the monitor module slot assignment within the 3500 Rack. This audit prevents the most common retrofit error — substituting a probe without verifying that the Proximitor’s calibrated range matches the new total cable length.

In control cabinets where space is constrained, engineers should also confirm that the 330103-00-12-10-02-CN’s integral cable routing does not conflict with adjacent terminal blocks or cable trays. The Bently Nevada 3500 Rack system typically allocates one Proximitor per channel pair; if the rack is running a 3500/40M Proximitor I/O Module, the channel wiring terminations at the I/O module’s terminal block must be inspected for corrosion or loose connections before the new probe is energized.

For plants migrating from older 3300/16 monitor systems to the current 3500 platform, the probe itself is mechanically and electrically compatible, but the rack backplane interface and software configuration differ significantly. The 3500 Rack Configuration Software must be used to define the transducer type, gap voltage setpoints, and alarm thresholds before the system is returned to service. If the plant’s DCS or safety system receives 4–20 mA outputs from the 3500 rack, the analog output scaling must be re-verified after probe replacement to ensure that the process historian and HMI display screens reflect accurate vibration values.

Where the existing installation includes a Bently Nevada 3300/55 or 3300/65 I/O module for Keyphasor signals, the phase reference channel should be re-zeroed after the radial vibration probes are replaced, as any change in probe gap will shift the relative phase angle displayed on the operator HMI. Plants using System 1 condition monitoring software should also update the transducer configuration database to reflect the new probe serial number and installation date, preserving the integrity of the long-term vibration trend record.

For I/O expansion projects where additional measurement points are being added alongside the probe replacement, the 3500/20 Rack Interface Module and 3500/92 Communication Gateway Module are commonly installed in the same maintenance window to minimize total system downtime. Signal isolators may also be required if the new probe loop shares a common ground with instrumentation on a different power domain.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-shutdown checklist and a clearly defined restoration sequence. Before the machine is taken offline, the existing gap voltage reading should be recorded from the 3500 monitor front panel or System 1 software. This baseline value — typically between −9.5 VDC and −10.5 VDC for a correctly gapped 8mm probe — serves as the acceptance criterion for the new probe after installation.

The replacement sequence should follow a lock-out/tag-out procedure on the −24 VDC Proximitor supply before disconnecting the probe cable at the junction box or terminal strip. The new 330103-00-12-10-02-CN should be threaded into the probe boss by hand until contact, then backed out to the target gap (typically 1.0 mm ± 0.05 mm), and locked with the jam nut. After reconnecting the cable and restoring power, the gap voltage must be measured at the Proximitor output terminals before the monitor channel is returned to the trip-enabled state.

To protect the original control program logic during the migration, the 3500 monitor’s rack configuration file should be exported and archived before any hardware changes are made. This ensures that alarm setpoints, danger levels, and time-delay settings can be restored exactly if the rack configuration is inadvertently altered during the maintenance activity. For plants where the 3500 rack communicates with a Modbus RTU or Ethernet/IP host, the communication link should be verified after restoration to confirm that the SCADA or DCS is receiving valid data before the machine is restarted.

By staging the replacement probe on-site in advance, verifying all tooling and documentation before the shutdown, and following a written commissioning checklist, most 330103-00-12-10-02-CN replacements can be completed within a two-hour maintenance window, keeping production impact to a minimum.

Retrofit Support FAQ

Q1: Is the 330103-00-12-10-02-CN a direct replacement for other 3300 XL 8mm probe part numbers?
A: The 330103-00-12-10-02-CN is mechanically and electrically compatible with other 330103 series variants (e.g., 330103-00-12-10-02-05) provided the cable length and Proximitor model are matched. Always verify the full transducer system — probe, extension cable, and Proximitor — before substitution. If the suffix differs, confirm sensitivity specification and cable length with the original datasheet.

Q2: What commissioning steps are required after installation?
A: After physical installation, measure the gap voltage at the Proximitor output terminals with the machine stationary. Adjust the probe gap until the output falls within the acceptable range (typically −9.5 to −10.5 VDC for a 1.0 mm gap). Verify that the 3500 monitor channel displays a valid OK status and that no alert or danger alarms are active before enabling the trip function and restarting the machine.

Q3: Can this probe be used with non-Bently Nevada monitors?
A: The 330103-00-12-10-02-CN is calibrated for use with Bently Nevada 3300 XL Proximitor sensors. It may be used with third-party monitors that accept a −24 VDC-powered eddy-current probe input with 7.87 V/mm sensitivity, but compatibility must be verified against the monitor’s input specification. KNMKS does not warrant performance in non-Bently Nevada monitor configurations.

Q4: What does the support terms confirmed by quotation cover, and what is the supply lead time?
A: The support terms confirmed by quotation cover manufacturing defects and out-of-specification sensitivity performance from the date of shipment. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the rated temperature range. Stock is maintained for prompt dispatch; standard lead time is 3–7 business days for in-stock units. Contact [email protected] or +86 18359268345 to confirm current availability before placing an order.
