Bently Nevada 330103-00-11-10-12-00 Migration-Ready Proximity Probe

Overview

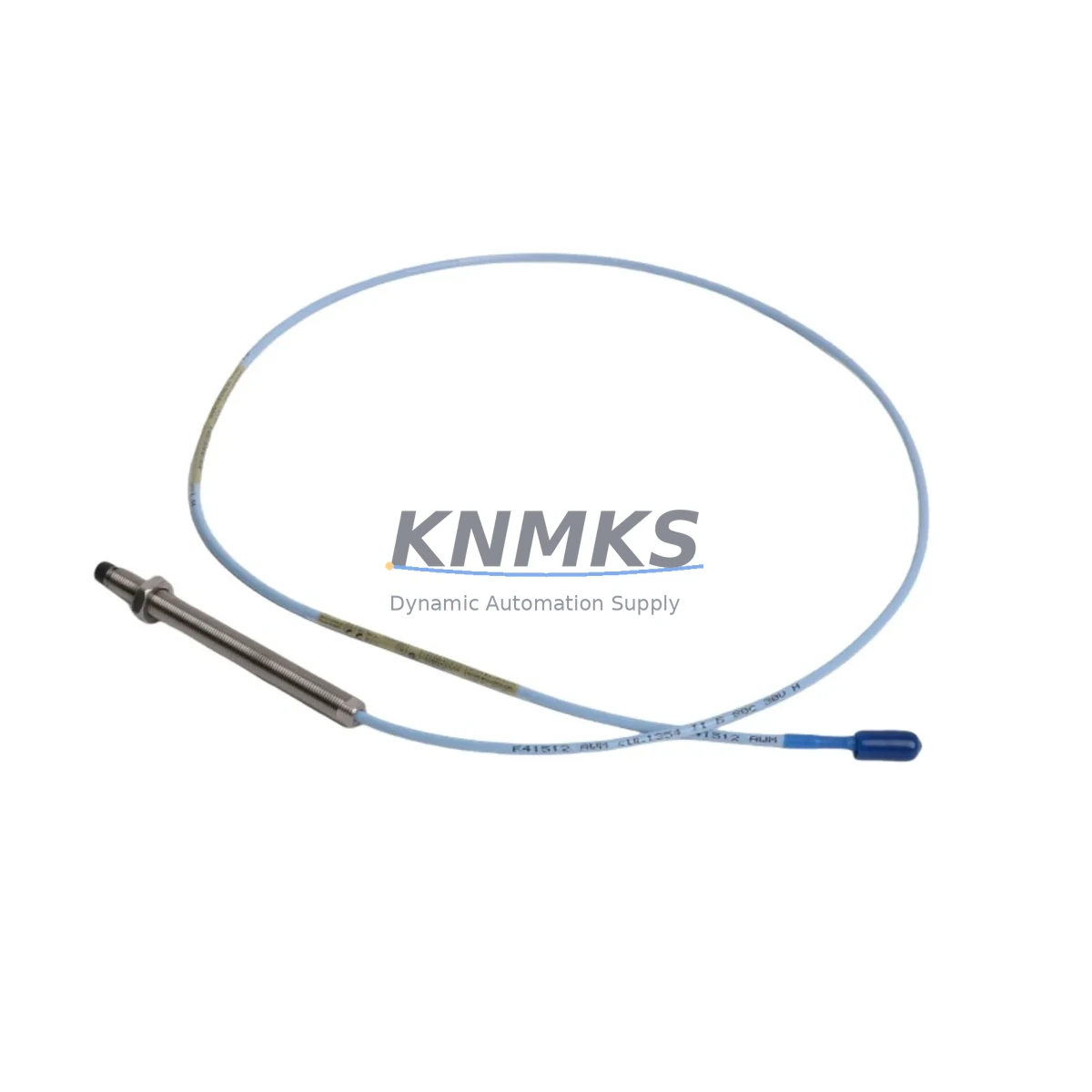

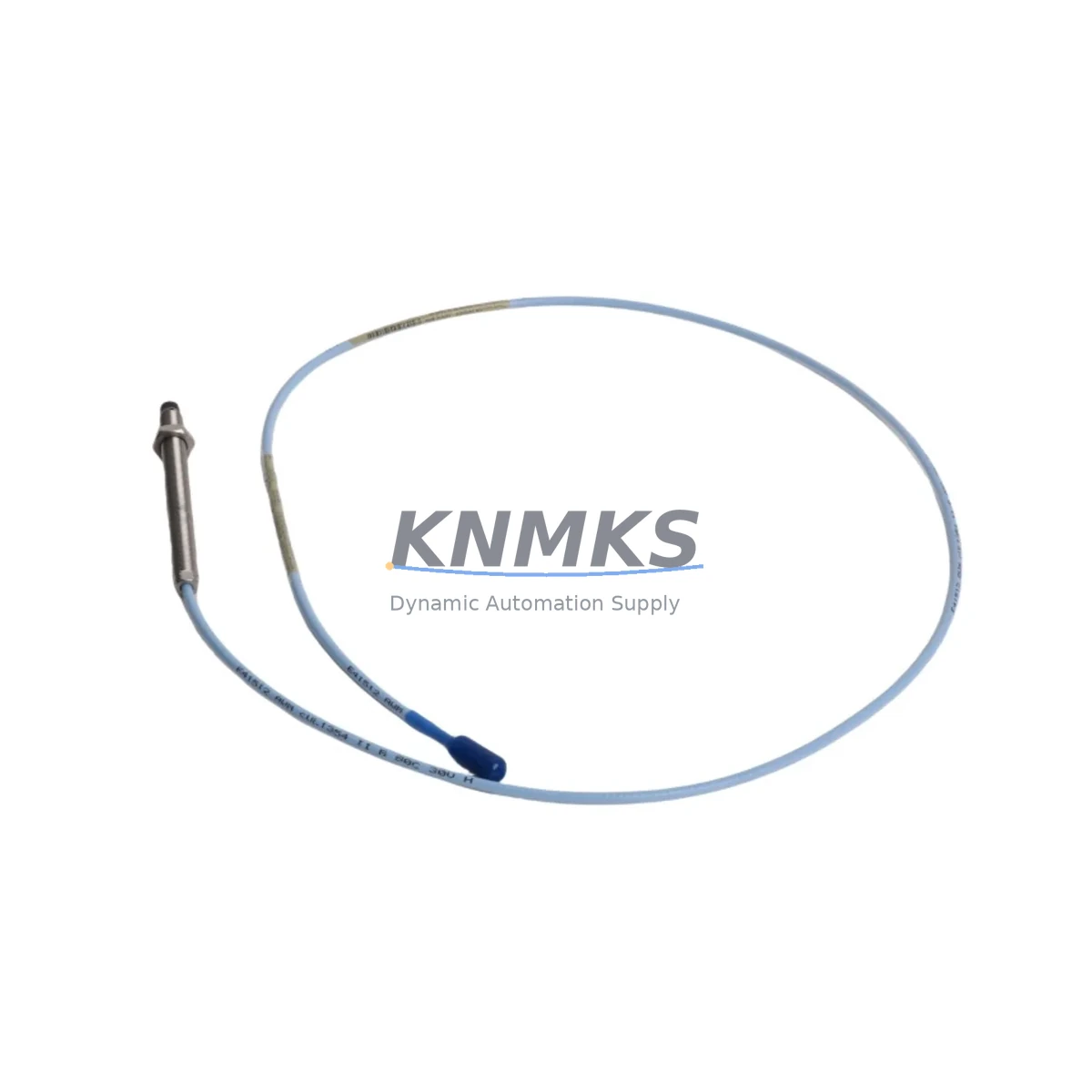

Bently Nevada 330103-00-11-10-12-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-11-10-12-00 is an 8mm proximity probe from the 3300 XL Series, engineered for eddy-current-based vibration and position monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series installations approach end-of-support milestones, maintenance engineers and reliability teams are increasingly required to source verified drop-in replacements that preserve existing wiring, signal conditioning, and monitoring logic without triggering a full system overhaul. This probe is stocked and tested to serve exactly that requirement — providing a direct retrofit path for plants running 3300 Series proximitor/extension cable assemblies across turbines, compressors, pumps, and gearboxes.

When planning a replacement for the 330103-00-11-10-12-00, the first checkpoint is confirming the existing extension cable pairing. This probe is designed to work with the 330130-Series extension cables (typically 5m or 9m lengths), and the combined system must be calibrated against the target material — most commonly AISI 4140 steel. If the plant is running a 3300 XL Proximitor such as the 330180-51-00 or 330180-91-00, the signal output range and gap voltage characteristics of the replacement probe must match the original calibration curve stored in the monitoring system. Deviating from the original probe-cable-proximitor combination without recalibration will introduce measurement error and may trigger false alarms or missed trips in the vibration monitoring loop.

For installations where the 3300 XL Proximitor is also being replaced as part of a broader migration to the Bently Nevada 3500 Series platform, additional planning is required. The 3500/42M Proximitor I/O Module uses a different signal conditioning architecture, and the probe-cable combination must be re-selected to match the 3500 Series calibration tables. In these cases, the 330103-00-11-10-12-00 may still be used as an interim probe during phased migration, allowing the field wiring and probe installation to remain unchanged while the rack-level hardware is upgraded in a separate maintenance window.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-11-10-12-00 begins well before the maintenance window opens. The engineering team should audit the existing probe holder geometry, confirm the M10 thread engagement depth, and verify that the armored integral cable routing has sufficient clearance for the replacement unit. In most 3300 XL installations, the probe is mounted in a bracket welded to the bearing housing, and the cable is routed through conduit to a junction box before connecting to the 330130-Series extension cable. This junction point is the most common source of signal degradation in aging installations and should be inspected and re-terminated during the replacement procedure.

At the rack level, the 330180-51-00 Proximitor module receives the probe signal and conditions it for the monitoring system. If the Proximitor itself is showing signs of drift or has exceeded its recommended service interval, it is advisable to replace both the probe and the Proximitor in the same maintenance window to avoid a second outage. The 3300 XL rack also typically houses power supply modules — confirm that the rack power budget accommodates the replacement hardware, particularly if additional I/O modules such as the 3300/16 Dual Voting Logic module are installed in adjacent slots.

For plants migrating from the 3300 Series to the 3500 Series platform, the 3500/22M Transient Data Interface and the 3500/42M Proximitor I/O Module are the most common rack-level destinations for probe signals. The migration plan should include a channel-by-channel mapping of existing probe assignments to new rack slots, with particular attention to the Keyphasor input — typically sourced from a dedicated 330180-Series Keyphasor Proximitor — which must be re-routed to the 3500/17 Keyphasor and Tachometer I/O Module. HMI screens configured in System 1 or third-party SCADA platforms will require tag remapping to reflect the new channel addresses after the rack migration is complete.

Where the control system includes a Bently Nevada 3300/55 Dual Relay Output module for trip and alarm functions, the relay setpoints and voting logic must be re-verified after probe replacement, as any change in gap voltage or sensitivity can shift the effective alarm threshold. This verification step is frequently overlooked in fast-turnaround replacements and is a leading cause of nuisance trips in the weeks following a retrofit.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the existing gap voltage readings for each probe channel should be recorded and archived — these serve as the baseline for post-installation verification and allow the commissioning engineer to confirm that the replacement probe is performing within the expected range before the machine is returned to service.

The replacement procedure itself should be sequenced to preserve the original program logic in the monitoring rack. If the 3300 XL rack is connected to a DCS or safety system via a hardwired relay or 4-20mA output, the receiving system should be placed in manual or bypass mode for the affected channels before the probe is disconnected. This prevents a spurious trip signal from propagating to the process control layer during the replacement window. Once the new probe is installed and the gap is set to the specified nominal value, the bypass should be released only after the gap voltage has been confirmed stable and within the calibrated range.

For multi-probe installations — such as those monitoring both X and Y vibration axes on a single bearing — it is best practice to replace both probes simultaneously rather than staging the replacement across two outages. This eliminates the risk of asymmetric sensitivity between channels and ensures that the calibration baseline is consistent across the bearing measurement plane. The total additional time required to replace the second probe is typically less than 30 minutes, which is far less than the cost of a second planned outage.

All replacement probes supplied by KNMKS are function-tested prior to shipment. Test records are available upon request and can be used to support the pre-commissioning documentation package required by many plant quality management systems.

Retrofit Support FAQ

Q1: Is the 330103-00-11-10-12-00 a direct replacement for my existing 3300 XL probe without recalibration?
In most cases, yes — provided the replacement probe is paired with the same 330130-Series extension cable and the same 330180-Series Proximitor that was used with the original probe. If any element of the probe-cable-proximitor combination has changed, a gap calibration check is required before returning the machine to service. KNMKS can provide the calibration data sheet for the supplied probe to support this process.

Q2: Can this probe be used with the Bently Nevada 3500 Series rack during a phased migration?
The 330103-00-11-10-12-00 probe can be used as an interim solution during a phased migration to the 3500 Series, but the 3500/42M Proximitor I/O Module requires a probe-cable combination that has been calibrated to the 3500 Series calibration tables. A full recalibration is required when the Proximitor is upgraded, and the probe selection should be confirmed against the 3500 Series probe compatibility list before the migration window.

Q3: What is included with the probe, and how quickly can it ship?
Each 330103-00-11-10-12-00 unit is supplied with a function test record and is packaged for safe transit. Standard lead time from confirmed order is 24–48 hours for in-stock units. KNMKS maintains buffer stock of 3300 XL Series probes to support emergency replacement requirements. Contact admin@knmks.com or +86 18359268345 to confirm current availability.

Q4: What support terms coverage applies to this replacement probe?
All proximity probes supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Support requests are processed directly through KNMKS. Units that fail within the confirmed support period are replaced or credited at no additional cost, subject to inspection. The confirmed support period begins from the date of shipment.
