Bently Nevada 330103-00-10-10-12-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330103-00-10-10-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

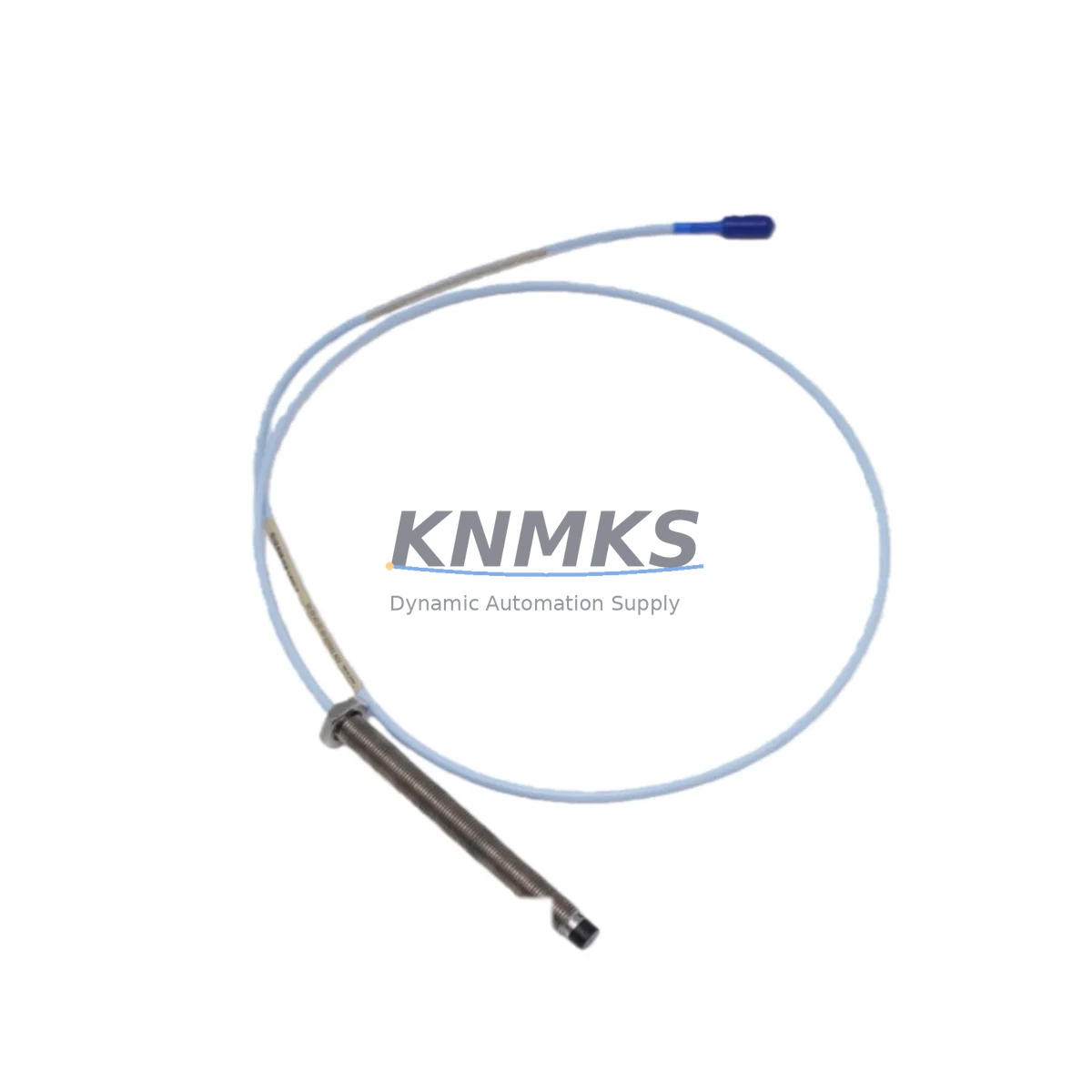

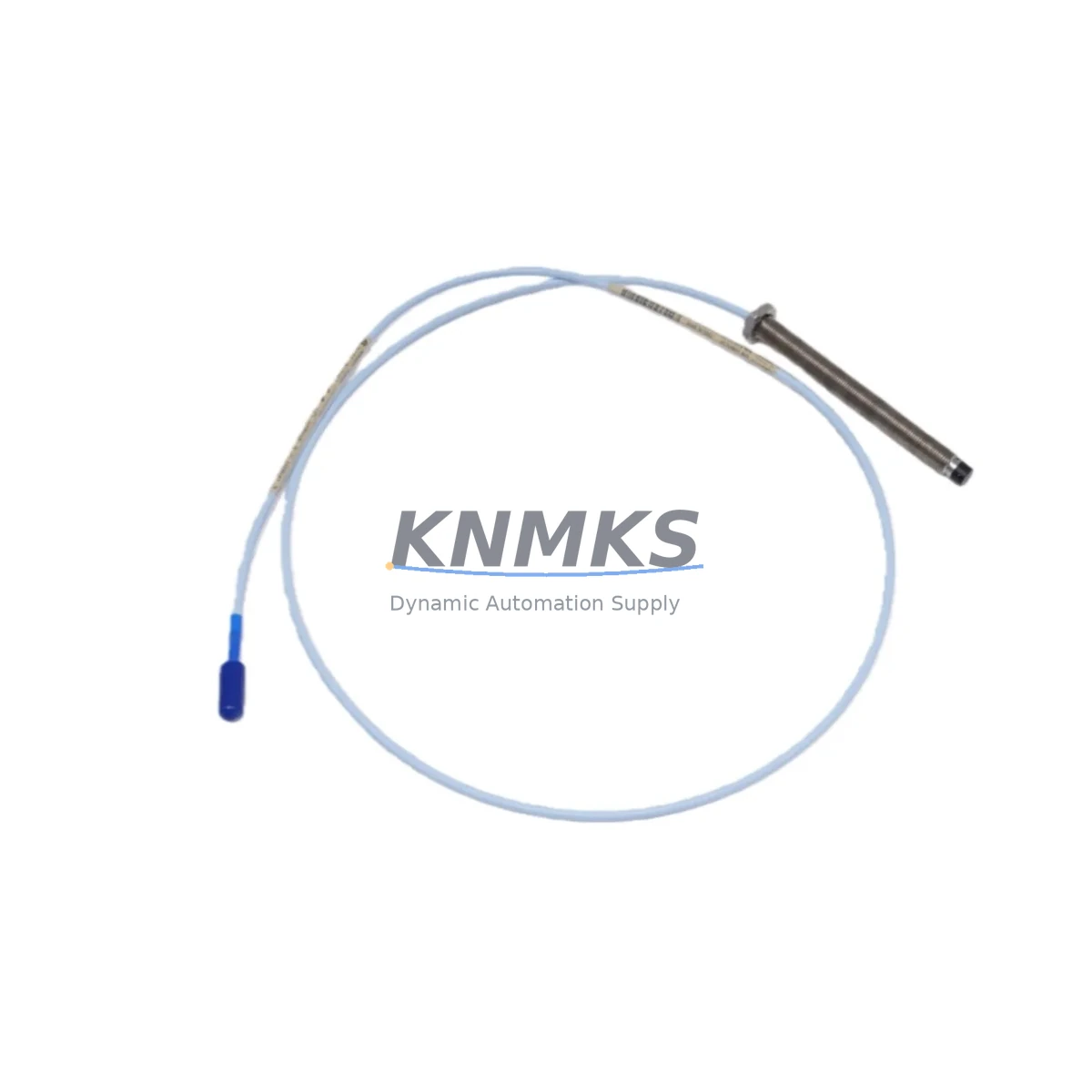

The Bently Nevada 330103-00-10-10-12-05 is an 8mm proximity probe designed for the 3300 XL Series continuous machinery monitoring system. As legacy Bently Nevada installations age and original spare parts become increasingly difficult to source, this migration-ready replacement unit provides a verified drop-in solution for facilities managing rotating machinery protection on turbines, compressors, pumps, and generators. Whether you are executing a planned retrofit of an aging vibration monitoring panel or responding to an unplanned failure of a discontinued probe assembly, this unit is pre-tested and ready for immediate field deployment.

The 330103-00-10-10-12-05 is a 10mm cable, 10mm extension cable, 12mm thread, 5mm gap proximity probe assembly compatible with the Bently Nevada 3300 XL monitoring system. It operates on the standard Bently Nevada eddy-current sensing principle and interfaces directly with 3300 XL series monitors, including the 3300/16 and 3300/20 rack-mounted monitor cards. When replacing this probe in an existing installation, engineers must verify the gap voltage setting at the monitor card — typically –10.0 VDC at the calibrated gap — and confirm that the existing extension cable, such as the 330130 series, remains within specification before reuse. If the extension cable shows signs of insulation degradation or connector wear, replacement with a matched 330130-080-00-00 or equivalent extension cable is strongly recommended to maintain signal integrity.

Before installation, confirm that the existing Proximitor sensor — commonly the 3300 XL 8mm Proximitor, model 330180 — is compatible with the replacement probe assembly. The Proximitor sensor, probe, and extension cable must be used as a matched system. Mixing components from different calibration groups will result in measurement errors that can trigger false alarms or, more critically, mask genuine shaft displacement events. If the Proximitor sensor is also approaching end-of-life, a simultaneous replacement using the 330180-51-05 or 330180-91-05 Proximitor is advisable to avoid a second outage within a short maintenance window.

For facilities migrating from older 3300 series racks to the current 3500 series platform, the probe itself remains mechanically and electrically compatible, but the monitor card interface and configuration software will differ. The 3500/42M Proximitor/Seismic Monitor accepts the same probe and extension cable assembly, but requires reconfiguration through System 1 Evolution software or the 3500 Rack Configuration Software to define the new transducer type, gap voltage, and alarm setpoints. During this migration, it is essential to export and archive the existing 3300 XL rack configuration before decommissioning, as alarm setpoints, OK limits, and channel assignments will need to be manually re-entered or imported into the new platform.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-10-10-12-05 proximity probe begins well before the maintenance window opens. The first step is a full audit of the existing probe installation: measure the installed gap voltage using a digital voltmeter at the Proximitor output terminals, document the current OK relay status on the 3300 XL monitor card, and photograph the existing terminal wiring before disconnection. This documentation protects against wiring errors during reinstallation and provides a baseline for post-installation verification.

In installations where the 3300 XL rack also houses a 3300/25 Keyphasor monitor or a 3300/46 Dual Voting Logic module, care must be taken to avoid disturbing adjacent card connections during probe replacement. The Keyphasor signal is used as a phase reference for vector measurements across all channels in the rack, and any interruption to the Keyphasor probe — typically a separate 330103 or 330900 series probe mounted on the shaft — will affect all synchronous vibration readings until the signal is restored. If the Keyphasor probe is also due for replacement, scheduling both replacements in the same outage window eliminates a second planned shutdown.

For facilities that have already migrated their DCS or safety system to a modern platform such as a Rockwell Automation ControlLogix or Siemens S7-400 series controller, the 3300 XL rack typically interfaces via a hardwired 4–20mA or relay output to the DCS I/O card. During a rack upgrade to the 3500 series, verify that the existing DCS I/O card — such as a 1756-IF16 analog input module in a ControlLogix rack — is still within its own service life and that the signal scaling configured in the DCS matches the new monitor card’s output range. A mismatch in engineering unit scaling between the 3300 XL and 3500 series output configurations is a common source of post-migration alarm nuisance trips.

If the retrofit also involves upgrading the HMI display, ensure that the System 1 Evolution historian tags associated with the old 3300 XL channels are remapped to the new 3500 series channel addresses. Failure to remap historian tags results in data gaps in the machinery health trending database, which can compromise predictive maintenance decisions in the months following the upgrade. The 3500 Rack Configuration Software provides an export function that generates a channel map report, which can be used as the basis for the HMI tag remapping exercise.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or full rack migration requires a structured pre-outage preparation process. Before the maintenance window begins, the replacement 330103-00-10-10-12-05 probe assembly should be bench-tested using a portable Proximitor test kit to confirm that the probe, extension cable, and Proximitor sensor produce the correct gap voltage curve across the full measurement range. This pre-installation verification eliminates the risk of discovering a defective replacement unit after the machine has already been taken offline.

During the outage, the recommended sequence is: isolate the monitor channel at the 3300 XL rack by placing the channel in bypass mode to suppress spurious alarms during probe removal; disconnect the extension cable at the Proximitor junction box; remove the probe from the bearing housing using the correct thread engagement tool to avoid damaging the probe tip or the housing threads; install the replacement probe to the specified torque and gap setting; reconnect the extension cable; and restore the channel from bypass mode only after confirming the gap voltage is within the OK window. This sequence keeps the overall probe replacement time under 30 minutes for a single channel, which is well within the typical planned maintenance window for rotating machinery.

For a full rack migration from 3300 XL to 3500 series, the critical path item is the rack configuration download and verification, not the physical hardware installation. Prepare the 3500 rack configuration file in advance using the 3500 Rack Configuration Software, perform a dry-run download to a spare rack in the workshop if possible, and have a printed copy of the channel configuration report available on-site during the migration. This approach allows the configuration download and verification to be completed in parallel with the physical wiring work, reducing the total outage duration by 30–50% compared to a sequential approach.

Retrofit Support FAQ

Q: Is the 330103-00-10-10-12-05 a direct replacement for the original Bently Nevada OEM part?
A: Yes. This unit is manufactured to the same dimensional and electrical specifications as the original Bently Nevada 330103-00-10-10-12-05 and is a verified drop-in replacement. It is compatible with the 3300 XL 8mm Proximitor (330180 series) and 330130 series extension cables. No modifications to the existing probe holder, extension cable, or monitor card are required for a like-for-like replacement.

Q: What pre-shipment testing is performed on each unit?
A: Each 330103-00-10-10-12-05 unit undergoes a full functional test prior to dispatch, including gap voltage calibration verification across the measurement range, insulation resistance check on the probe cable, and connector integrity inspection. A test report is available upon request. All units are shipped with a support terms confirmed by quotation covering manufacturing defects and calibration drift.

Q: Can this probe be used with the Bently Nevada 3500 series monitoring system?
A: Yes, the 330103-00-10-10-12-05 probe is electrically and mechanically compatible with the 3500/42M Proximitor/Seismic Monitor when used with the matching 330180 series Proximitor sensor. However, the 3500 monitor card must be configured for the 8mm probe type using the 3500 Rack Configuration Software, and the gap voltage setpoints must be re-entered to match the installation requirements. Consult the 3500/42M manual for configuration details.

Q: What is the lead time and inventory availability?
A: We maintain stock of the 330103-00-10-10-12-05 for immediate dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments. For urgent requirements, expedited shipping is available. Contact our sales team to confirm current stock levels and arrange priority dispatch for critical maintenance situations.
