Bently Nevada 330103-00-10-10-01-CN Spare Part: Maintenance-Proven Proximity Probe for Factory Uptime

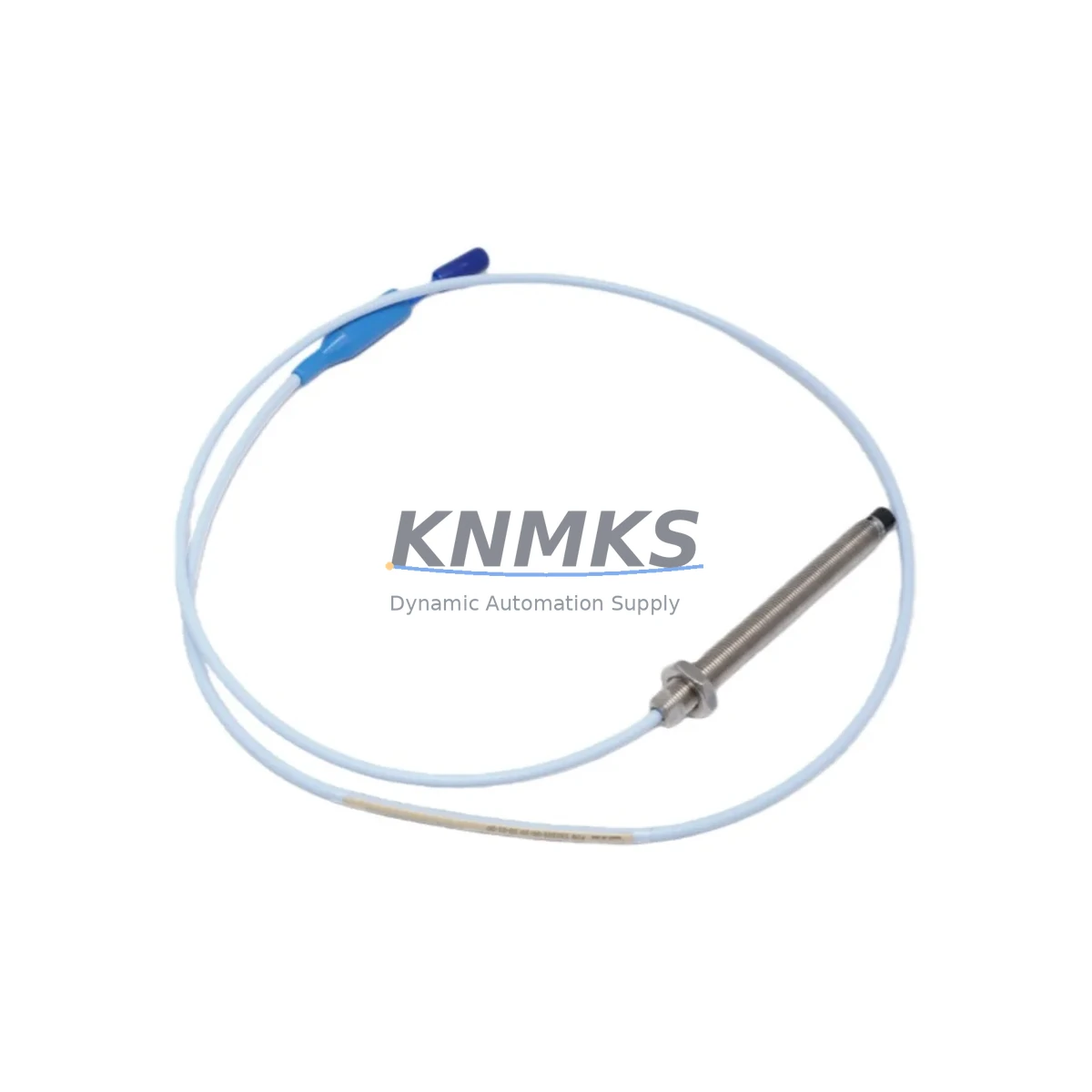

The Bently Nevada 330103-00-10-10-01-CN is an original eddy-current proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. Widely deployed across turbines, compressors, pumps, and generators in energy, petrochemical, and heavy manufacturing facilities, this probe is a critical component in any predictive maintenance and condition monitoring strategy. KNMKS maintains verified stock of this part to support emergency replacement, planned overhaul, and long-term spare parts inventory programs — with full testing prior to shipment and a support terms confirmed by quotation on every unit.

The 330103-00-10-10-01-CN features a metric-threaded housing with CN-style connector, designed for direct compatibility with Bently Nevada 3300 XL proximitor/seismic monitors and associated signal conditioning modules. Its eddy-current sensing technology delivers non-contact, high-resolution displacement measurement, making it indispensable for shaft orbit analysis, axial position monitoring, and differential expansion measurement in critical rotating assets.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-10-10-01-CN proximity probe in the field, a thorough inspection of the surrounding measurement chain is essential to ensure system integrity and avoid repeat failures. The probe does not operate in isolation — it is part of a tightly coupled signal path that includes the extension cable, proximitor module, and the 3300 XL monitor chassis.

Begin by inspecting the Bently Nevada 330130 extension cable that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation, particularly in high-vibration or high-temperature environments. A worn extension cable can introduce signal noise or offset errors that mimic probe failure. Replace the extension cable as a matched set whenever the probe is changed.

Next, verify the condition of the Bently Nevada 3300 XL Proximitor module (such as the 330180 or 330185 series). The proximitor provides the oscillator/demodulator function and must be calibrated to the specific probe-cable combination. If the proximitor has accumulated operating hours comparable to the failed probe, proactive replacement during the same maintenance window eliminates a second unplanned outage.

Inspect the 3300 XL monitor rack and backplane for signs of corrosion on card-edge connectors, loose seating of I/O modules, and integrity of the power supply rails. A degraded backplane connection can produce intermittent channel faults that are difficult to distinguish from probe failures during troubleshooting. Clean and reseat all modules before returning the system to service.

Check the 24 VDC instrument power supply feeding the 3300 XL system. Voltage ripple or transient dips caused by aging power supply capacitors can corrupt proximity signal baselines. Use a calibrated multimeter or oscilloscope to verify supply stability under load before commissioning the replacement probe.

For facilities running integrated condition monitoring, also audit the communication interface modules (such as Bently Nevada TDI or System 1 gateway cards) that relay vibration data to the plant DCS or historian. A probe replacement is an ideal opportunity to verify that channel mapping, engineering unit scaling, and alarm setpoints are correctly configured in the monitoring software.

Finally, inspect terminal blocks, signal wiring, and cable glands at the junction box. Loose terminations and moisture ingress at cable entries are common root causes of signal drift in proximity measurement systems. Torque all terminals to specification and apply appropriate sealing compound to cable glands in outdoor or wash-down environments.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Isolate the 3300 XL monitor channel associated with the failed probe. Note the current gap voltage reading and alarm setpoints before disconnection — these values will be needed for post-installation verification.

Step 2 — Probe Removal: Disconnect the extension cable CN connector at the probe body. Using the appropriate spanner, unthread the probe from the mounting bracket. Note the installed gap distance (number of turns from flush) for reference during reinstallation.

Step 3 — Inspection of Mounting Hardware: Inspect the probe mounting bracket, locknut, and target surface. Remove any debris, corrosion, or shaft scoring that could affect the new probe’s gap setting. Verify that the target area on the shaft meets the minimum diameter and surface finish requirements specified in the Bently Nevada installation manual.

Step 4 — New Probe Installation: Thread the 330103-00-10-10-01-CN into the bracket. Set the initial gap to the manufacturer-recommended starting distance (typically 1.0–1.5 mm for standard 3300 XL applications). Connect the extension cable and verify connector seating.

Step 5 — Gap Calibration and Verification: With the shaft stationary, measure the DC gap voltage at the proximitor output. Adjust probe position until the gap voltage falls within the linear range specified for the 3300 XL system (typically -10 VDC ± 1 VDC at nominal gap). Tighten the locknut and recheck gap voltage after torquing.

Step 6 — System Recommission: Restore power to the monitor channel. Verify that vibration readings are within expected baseline values for the machine at rest and at operating speed. Confirm alarm and trip setpoints are active. Document the replacement in the site maintenance management system (CMMS) with the new probe serial number and gap voltage.

This workflow is compatible with direct replacement of legacy Bently Nevada 330103 series probes and supports system continuity without requiring reconfiguration of the 3300 XL monitor or System 1 software.

Spare Parts Support FAQ

Q1: Is the 330103-00-10-10-01-CN compatible with all 3300 XL monitor configurations?
Yes. The 330103-00-10-10-01-CN is designed for use with the full range of Bently Nevada 3300 XL Proximitor/Seismic monitors. Compatibility is maintained across standard and extended-range configurations when used with the correct matched extension cable. Always verify the probe-cable-proximitor combination against the Bently Nevada system documentation for your specific monitor card revision.

Q2: What testing is performed before shipment?
Every 330103-00-10-10-01-CN unit supplied by KNMKS undergoes electrical continuity verification, insulation resistance testing, and functional output check against a reference proximitor before dispatch. Test records are available upon request. Units are shipped in anti-static protective packaging to prevent handling damage in transit.

Q3: Can KNMKS support long-term supply agreements for this part?
Yes. KNMKS offers long-term supply commitments for the 330103-00-10-10-01-CN and related 3300 XL series components to support annual maintenance contracts, turnaround planning, and strategic spare parts inventory programs. Contact our team to discuss volume pricing, lead time guarantees, and consignment stock arrangements tailored to your facility’s maintenance schedule.

Q4: What is the support terms coverage and what does it include?
All units carry a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failure under normal operating conditions as specified in the Bently Nevada 3300 XL installation and maintenance manual. Support requests are supported with direct technical assistance and expedited replacement dispatch to minimize any impact on plant availability.
