Bently Nevada 330103-00-10-05-01-00 Migration-Ready Probe

Overview

Bently Nevada 330103-00-10-05-01-00 Migration-Ready Probe: Legacy System Retrofit & Compatibility Upgrade

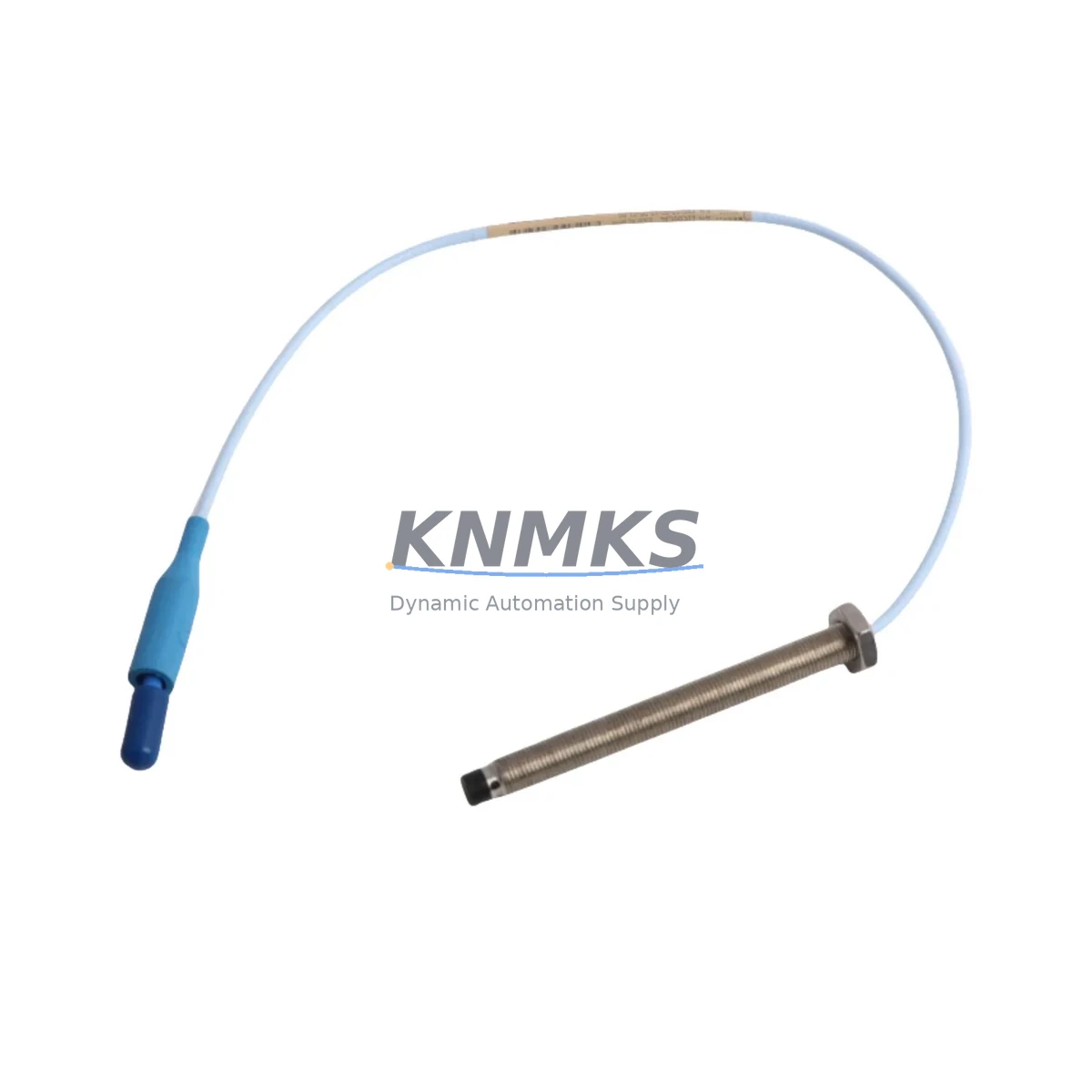

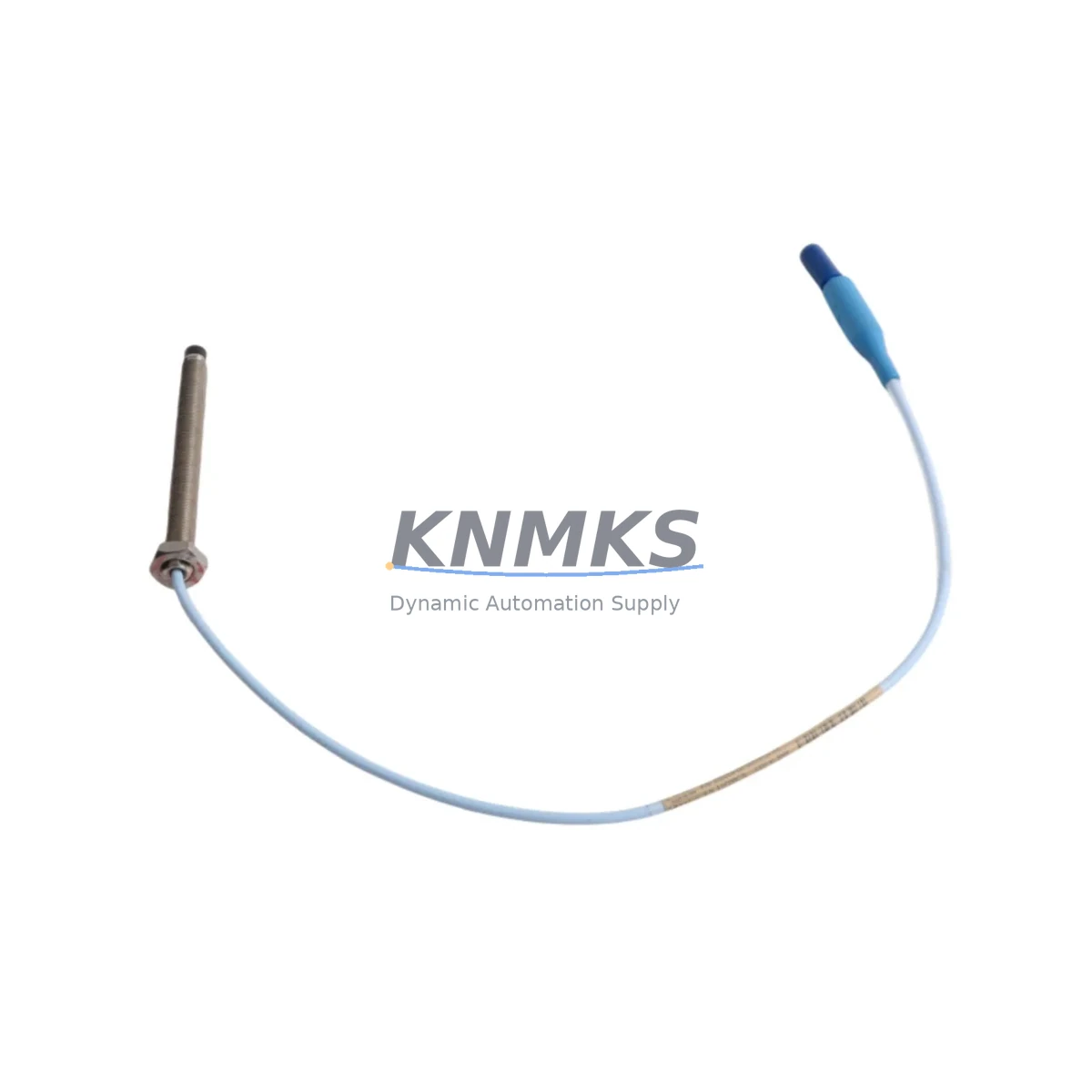

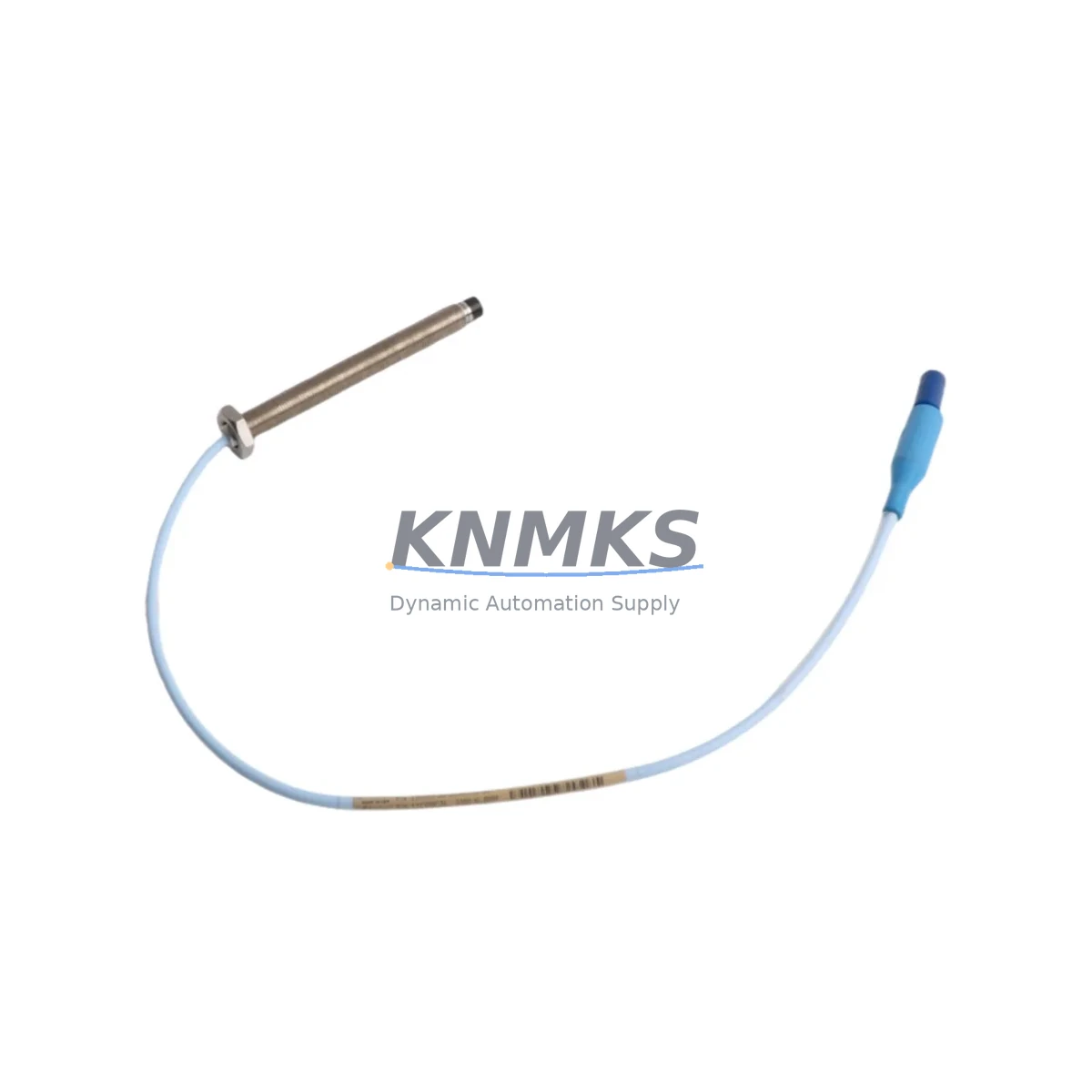

The Bently Nevada 330103-00-10-05-01-00 is an 8mm proximity probe engineered for direct integration into Bently Nevada 3300 XL Series vibration monitoring systems. As legacy machinery protection platforms approach end-of-support milestones, plant engineers and reliability teams increasingly rely on verified drop-in replacements to sustain continuous monitoring without triggering full-system overhauls. This probe is stocked, pre-shipment tested, and backed by a support terms confirmed by quotation — making it a dependable choice for both emergency spares and planned retrofit programs.

When migrating from earlier 3300 Series installations or decommissioning obsolete Bently Nevada 7200 Series probes, the 330103-00-10-05-01-00 provides a mechanically and electrically compatible upgrade path. Engineers replacing worn or failed probes in rotating machinery applications — including turbines, compressors, pumps, and gearboxes — can install this unit without modifying existing conduit runs, terminal blocks, or Proximitor® sensor housings. The 5-metre integral cable length and standard M8 thread match the original installation envelope, minimising downtime during scheduled turnarounds or unplanned outages.

Retrofit planning for this probe typically involves confirming the Proximitor® module type — commonly the 3300 XL 8mm Proximitor® Sensor (330180 series) — already installed in the field junction box or control cabinet. The probe’s output voltage range and sensitivity (7.87 V/mm) align with the 330180’s input specification, so no recalibration of the monitor card is required when performing a like-for-like swap. Where the existing installation uses a 3300/16-Channel Monitor or a 3300/20-Channel Monitor rack, the probe signal feeds directly into the existing I/O wiring without address reassignment or firmware changes to the monitor module.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the probe is removed from its packaging. Start by pulling the existing loop drawing to confirm the Proximitor® sensor model — typically a 330180-91-00 or 330180-51-00 — and verify the driver cable part number connecting the probe to the Proximitor® housing. In installations where the original driver cable has been routed through conduit shared with power conductors, signal integrity checks using a Bently Nevada 3300 XL Field Calibrator are recommended before declaring the new probe operational.

For control cabinets housing a 3500 Series rack alongside legacy 3300 XL modules, the 330103-00-10-05-01-00 probe can serve as an interim solution while a full migration to the 3500/42M Proximitor® I/O Module is planned. During this transitional period, the existing 3300/16-Channel Monitor continues to provide alarm and trip outputs to the DCS or safety PLC, preserving the original interlock logic without requiring HMI screen modifications or control narrative updates.

When the retrofit scope extends to I/O expansion — for example, adding radial vibration channels to a previously single-channel bearing measurement point — engineers should evaluate the 3300 XL I/O Module (330130 series) to accommodate additional probe inputs within the same rack footprint. Power supply capacity in the control cabinet must also be reviewed: each 330180 Proximitor® draws approximately 35 mA at −24 VDC, so adding channels requires confirming the existing 3300 Power Supply Module (330152 series) has sufficient headroom. Signal isolators may be required where probe outputs are shared between the machinery protection system and a condition monitoring data historian.

Where the legacy installation includes a Bently Nevada 3300 XL Keyphasor® Module, the retrofit plan should confirm that the new probe’s gap voltage at the installed air gap falls within the Keyphasor® trigger threshold window. This is particularly important in applications where the Keyphasor® signal feeds phase reference data to a vibration analyser or balancing instrument. Programming cables and configuration software (System 1 or Rack Configuration Software) should be on-site during commissioning to verify monitor setpoints after probe installation.

Downtime Control During System Migration

Minimising production impact during a probe replacement requires a structured pre-outage preparation sequence. Before the maintenance window opens, confirm that a verified spare 330103-00-10-05-01-00 probe is on-site, the Proximitor® housing is accessible without scaffold, and the monitor rack is in bypass mode to prevent spurious trips during the swap. Document the existing gap voltage reading — typically between −10 VDC and −12 VDC for most shaft materials at the nominal air gap — so the new probe can be gapped to the same setpoint without an extended commissioning period.

During installation, use a non-contact gap-setting tool or a calibrated DC voltmeter at the Proximitor® output terminals to set the air gap to the target voltage. This eliminates the need to power down the monitor rack, allowing adjacent channels to remain in service and preserving the continuous protection coverage required by most machinery safety plans. Once the gap is confirmed, restore the channel from bypass, verify the vibration reading against the baseline trend, and document the as-left gap voltage in the maintenance management system.

For sites operating under a process safety management (PSM) programme, the probe replacement should be captured as a Management of Change (MOC) record, even when the replacement is like-for-like. This protects the site’s compliance posture and ensures the updated loop drawing reflects the new probe serial number. With a pre-tested unit from stock and a disciplined gap-setting procedure, total installation time for a single probe channel is typically under two hours, keeping the maintenance window well within most planned outage budgets.

Retrofit Support FAQ

Q1: Is the 330103-00-10-05-01-00 a direct replacement for the Bently Nevada 330103-00-10-05-00-00?
The -01-00 suffix designates the armoured cable variant. Confirm the existing installation uses armoured cable before ordering; if the original probe used a non-armoured cable, the -00-00 suffix variant may be more appropriate. Both variants share the same probe tip geometry, sensitivity, and Proximitor® compatibility.

Q2: What commissioning steps are required after installation?
Set the air gap to achieve the target gap voltage (typically −10 VDC to −12 VDC) using a calibrated voltmeter at the Proximitor® output. Restore the monitor channel from bypass, verify the vibration reading against the pre-outage baseline, and confirm alarm and trip setpoints are active. No firmware changes or software configuration updates are required for a like-for-like replacement.

Q3: How is the probe tested before shipment?
Every 330103-00-10-05-01-00 unit undergoes a 100% functional test prior to dispatch, verifying sensitivity, gap voltage linearity, and cable continuity. Units that do not meet Bently Nevada specification are rejected before packaging. A support terms confirmed by quotation cover manufacturing defects from the date of shipment.

Q4: What is the lead time and stock availability?
This SKU is maintained in forward stock to support emergency replacement and planned maintenance programmes. Standard dispatch is within 1–3 business days. For bulk orders or long-term supply agreements, contact the sales team to discuss reserved stock arrangements and extended lead-time protection.
