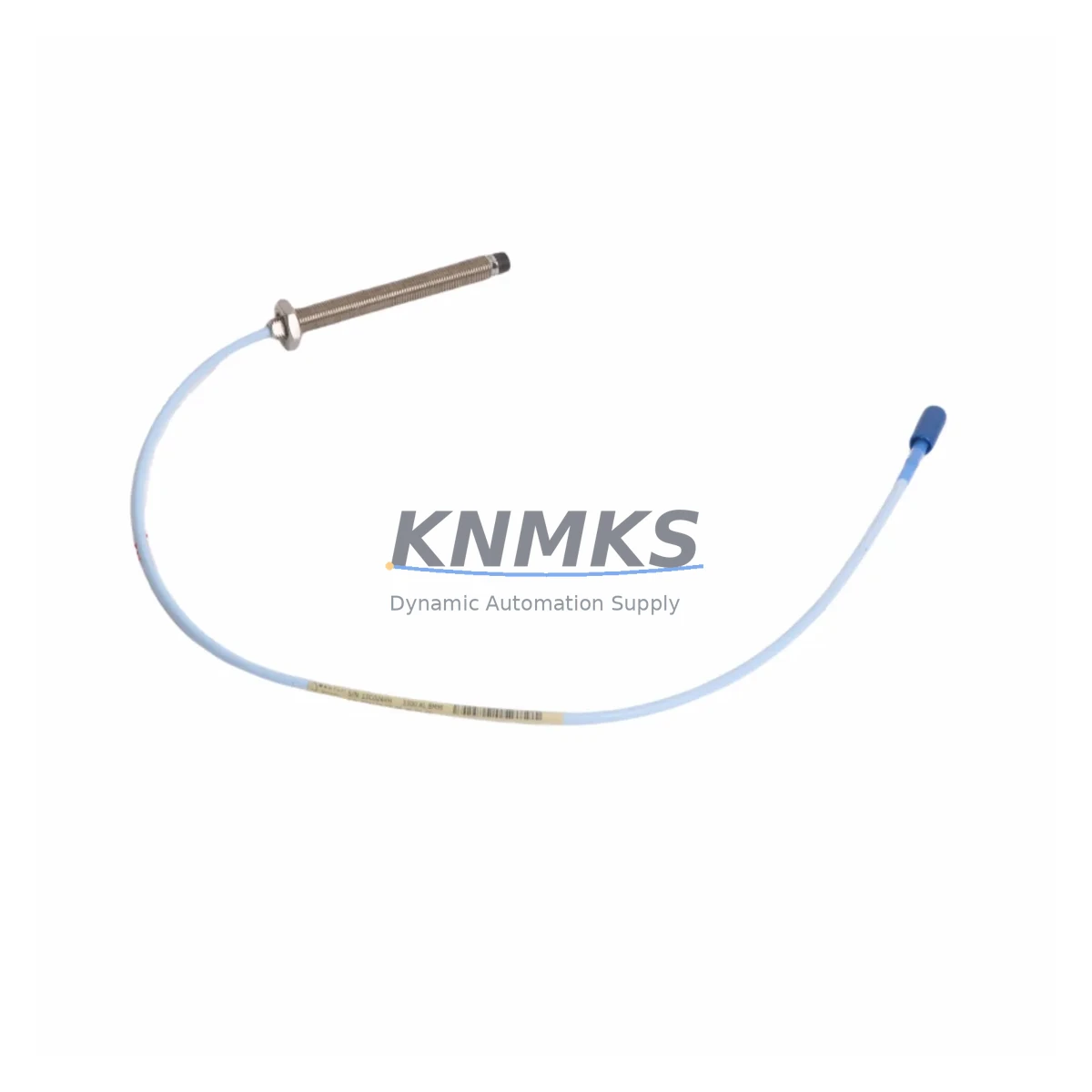

Bently Nevada 330103-00-09-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-09-05-02-00 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330103-00-09-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this probe delivers stable, drift-free output signals even under sustained exposure to high electromagnetic interference, shaft runout, mechanical vibration, elevated temperatures, and aggressive process fluids. For plant engineers managing critical turbines, compressors, pumps, and motors, the 330103-00-09-05-02-00 represents a proven, drop-in replacement that eliminates unplanned downtime and protects personnel and assets.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical mills, port machinery, and marine propulsion systems — control interruptions caused by sensor failure or signal drift can cascade into catastrophic equipment damage, safety incidents, and regulatory violations. The 330103-00-09-05-02-00 is built to prevent exactly these scenarios. Its hardened stainless steel housing and armored cable assembly resist mechanical shock, fluid ingress, and chemical attack, while the precision-wound sensing coil maintains calibrated sensitivity across the full operating temperature range. The probe integrates directly with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180 series) to form a complete, SIL-capable measurement loop without requiring recalibration or signal conditioning adjustments.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on the integrity of the entire signal chain back to the control system. The 330103-00-09-05-02-00 is designed to operate as part of a coordinated protection architecture. In a typical heavy-industry control cabinet, the probe pairs with the Bently Nevada 330180-X1-05 Proximitor® Sensor, which conditions the raw eddy-current signal into a clean DC voltage suitable for direct input to a Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module. This monitor card performs real-time alert and danger threshold evaluation, triggering relay outputs to the machine’s safety interlock system without operator intervention.

To protect the signal path from surge events — common in facilities with large motor starts, arc flash incidents, or lightning exposure — the installation should incorporate Bently Nevada 330130 Series extension cables with proper grounding discipline and, where required, dedicated signal surge suppressors rated for low-voltage instrumentation loops. In high-vibration environments such as reciprocating compressor skids or gearbox housings, the probe mounting hardware must be torqued to specification and verified with a Bently Nevada TK-3 proximitor calibration kit to confirm scale factor accuracy before commissioning.

For facilities running parallel redundant protection channels — a common requirement in API 670-compliant machinery protection systems — two 330103-00-09-05-02-00 probes may be installed at 90° orientation (X–Y configuration) to provide full radial vibration coverage. Each probe feeds an independent Proximitor® channel, ensuring that a single sensor failure does not compromise the protection loop. This architecture is particularly critical in steam turbine-generator sets, centrifugal compressor trains, and boiler feed pump applications where a missed vibration event can result in catastrophic mechanical failure.

Cabinet thermal management is equally important. Proximitor® sensors and associated signal conditioning modules should be mounted in enclosures with adequate ventilation or forced-air cooling to prevent ambient temperatures from exceeding module ratings. Pairing the 330103-00-09-05-02-00 system with a Bently Nevada 3500 rack power supply module that includes built-in voltage regulation and surge clamping further reduces the risk of measurement errors caused by power rail fluctuations during load switching events.

Critical Industrial Safety Applications

The 330103-00-09-05-02-00 proximity probe is deployed across a broad spectrum of critical industrial applications where continuous, uninterrupted vibration monitoring is a safety and regulatory requirement:

Petrochemical & Refining: Installed on process gas compressors, reactor charge pumps, and crude distillation column overhead compressors, the probe provides early warning of rotor instability, bearing wear, and seal degradation — enabling condition-based maintenance scheduling before a forced shutdown becomes necessary. In SIL 2 safety instrumented systems, the probe’s output feeds directly into the emergency shutdown logic for compressor trip on high vibration.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on API 670-compliant proximity probe systems to monitor shaft eccentricity, differential expansion, and radial vibration. The 330103-00-09-05-02-00 provides the measurement accuracy required to distinguish normal operational vibration from developing mechanical faults, reducing false trips while maintaining genuine protection sensitivity.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments characterized by extreme dust loading, high ambient vibration, and aggressive chemical exposure. The armored construction of the 330103-00-09-05-02-00 withstands these conditions while maintaining calibrated output, supporting predictive maintenance programs that reduce unplanned mill stoppages.

Water & Wastewater Treatment: High-service pumps and blower trains in water treatment facilities run continuously, often unattended. Proximity probe monitoring enables remote condition assessment and alarm generation, allowing maintenance teams to schedule bearing replacements during planned outages rather than responding to emergency failures.

Metallurgy & Steel: Rolling mill drive trains, continuous caster pinch rolls, and blast furnace blower compressors present severe vibration and thermal environments. The 330103-00-09-05-02-00’s wide operating temperature range and robust cable assembly make it suitable for installation close to high-temperature process equipment.

Marine & Port Machinery: Propulsion shaft monitoring, crane hoist motor protection, and port terminal conveyor drive systems benefit from the probe’s resistance to salt-laden humid air and mechanical shock, ensuring reliable operation in coastal and offshore environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330103-00-09-05-02-00?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects and functional performance. All probes undergo pre-shipment functional testing — including scale factor verification and insulation resistance checks — before dispatch. Documentation is available upon request for quality audit purposes.

Q2: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor® installations?
Yes. The 330103-00-09-05-02-00 is a direct replacement for existing 3300 XL 8mm probe installations. It is electrically and mechanically compatible with the 330180 Proximitor® Sensor and the 3500/42M monitor module. No recalibration of the Proximitor® is required when replacing a like-for-like probe, provided the extension cable length and target material remain unchanged.

Q3: How does KNMKS ensure long-term supply availability for this SKU?
KNMKS maintains multi-region stock of the 330103-00-09-05-02-00 to support both emergency replacement and scheduled outage requirements. For facilities with planned maintenance windows, we offer advance stock reservation and long-term supply agreements to guarantee availability. Contact our team at admin@knmks.com to discuss volume and scheduling requirements.

Q4: Can this probe be used in hazardous area (ATEX / IECEx) installations?
The 330103-00-09-05-02-00 is compatible with ATEX / IECEx-rated installations when used as part of a certified Bently Nevada 3300 XL system assembly. The complete system — probe, extension cable, and Proximitor® sensor — must be installed in accordance with the applicable hazardous area certification documentation. KNMKS can advise on zone-rated system configurations and supply certified assemblies where required.
