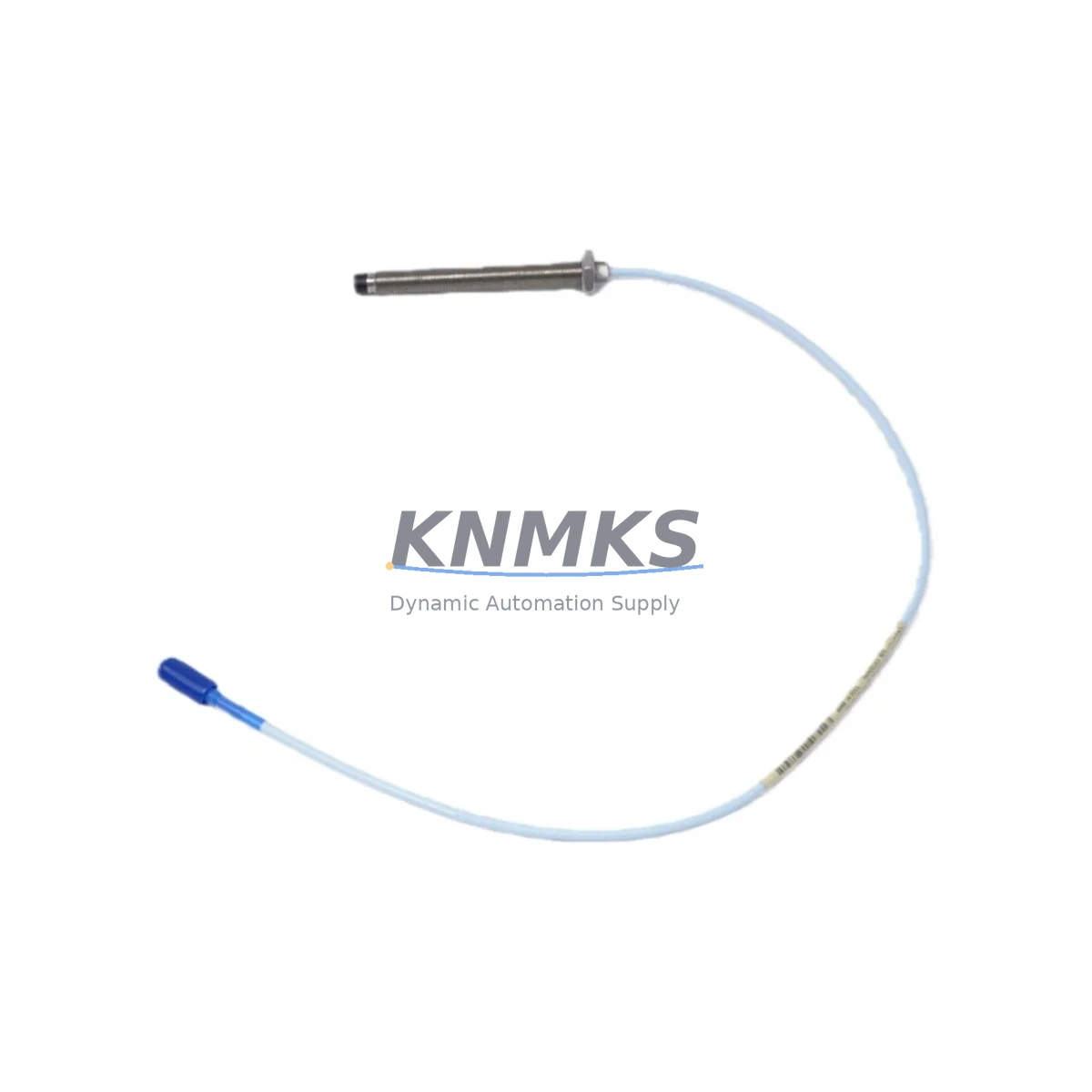

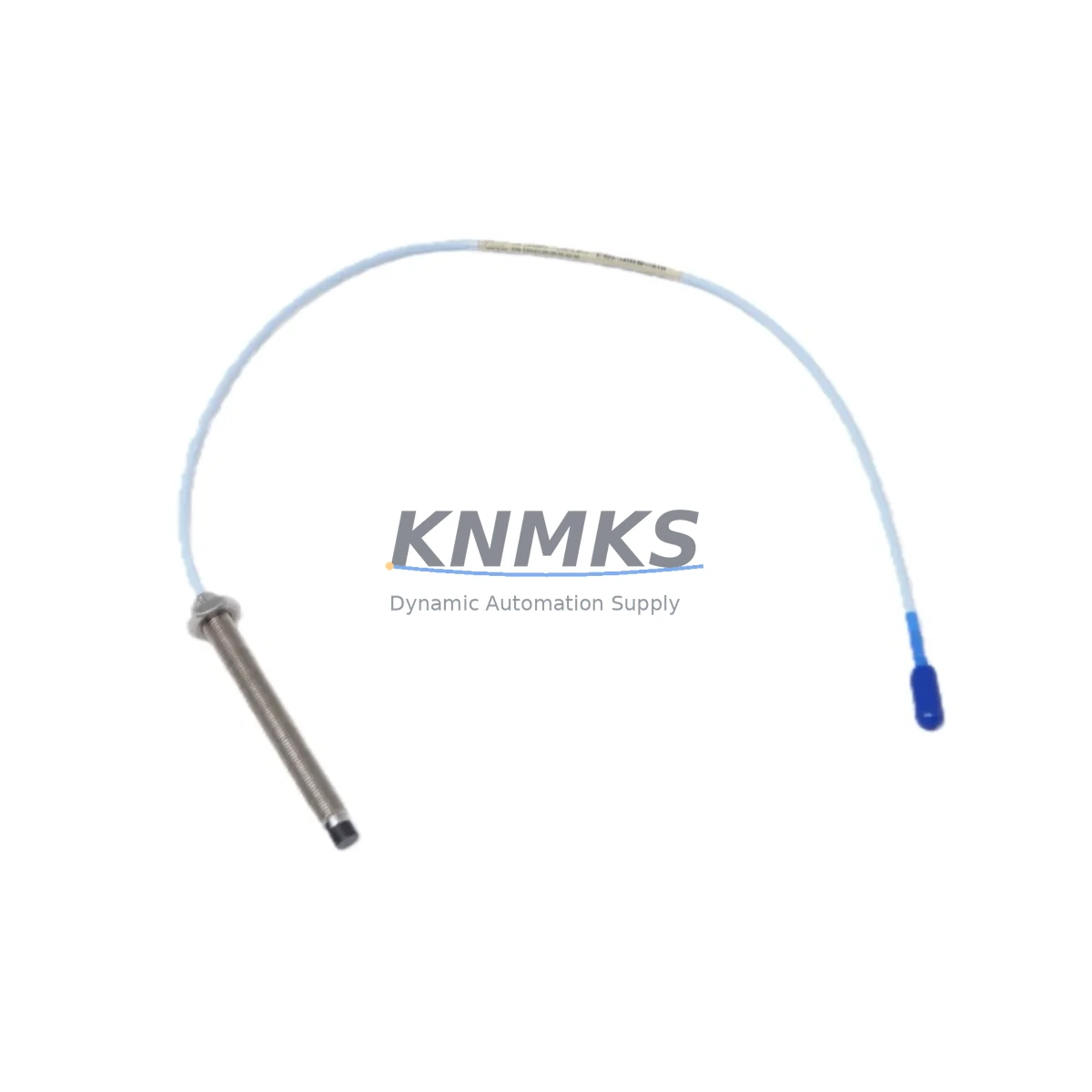

Bently Nevada 330103-00-09-05-01-00 Proximity Probe

Overview

Bently Nevada 330103-00-09-05-01-00 Proximity Probe: Migration-Ready Retrofit for Legacy 3300 XL Vibration Monitoring Systems

The Bently Nevada 330103-00-09-05-01-00 is an 8mm eddy current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery protection systems. As legacy 3300 XL installations approach end-of-support milestones, plant engineers and reliability teams are actively sourcing verified replacement units to sustain machinery protection coverage without triggering full system overhauls. This unit is stocked and tested to support direct retrofit into existing 3300 XL monitor racks, minimizing engineering rework and unplanned downtime.

The 330103-00-09-05-01-00 operates within the Bently Nevada 3300 XL proximity transducer system, which pairs the probe with a compatible extension cable and proximitor/oscillator-demodulator to deliver a calibrated DC voltage output proportional to the gap between the probe tip and the observed shaft surface. This signal chain is critical for turbine, compressor, pump, and gearbox protection loops where radial vibration, axial position, and differential expansion must be continuously monitored against trip and alarm setpoints programmed in the 3500 Series or legacy 3300 Series monitoring racks.

When replacing a worn or failed 330103-00-09-05-01-00 in the field, engineers must verify the complete signal chain before energizing the replacement unit. The extension cable — typically a Bently Nevada 330130 series cable matched to the total system length — must be confirmed for continuity and connector compatibility. The proximitor, such as the Bently Nevada 330180 or equivalent 3300 XL proximitor module, must be checked for output voltage range and gap voltage calibration against the new probe. Mismatched cable lengths or proximitor versions will shift the linear operating range and may cause false trips or missed alarms.

For installations where the original 3300 Series monitor cards are being retired in favor of the Bently Nevada 3500/40M proximitor I/O module or a full migration to the 3500 rack architecture, the 330103-00-09-05-01-00 probe remains mechanically and electrically compatible, provided the proximitor and cable assembly are updated to match the new rack’s input specifications. This makes the probe a cost-effective anchor point in phased migration strategies where the field-mounted transducer hardware is retained while the monitoring electronics are upgraded.

Terminal wiring at the junction box and monitor rack must be reviewed during any replacement. The standard coaxial signal path — probe body to extension cable to proximitor — uses a defined pinout at the rack terminal strip. If the existing installation uses a Bently Nevada 3300 XL I/O module with a dedicated terminal board, the replacement probe and cable assembly must be re-terminated to match the original channel assignment. Probe address and channel configuration in the monitor software should be documented before removal to ensure the replacement unit is assigned to the correct machinery protection channel without requiring a full rack reconfiguration.

Firmware compatibility is not a concern at the probe level, as the 330103-00-09-05-01-00 is a passive transducer. However, if the associated monitor rack is running legacy firmware that governs gap voltage acceptance windows or alarm setpoint scaling, the firmware version should be noted and preserved during the replacement procedure. Any HMI screens or DCS historian tags linked to the vibration channel should be verified post-replacement to confirm signal continuity and correct engineering unit display.

Physical installation requires confirmation of the probe mounting boss thread (8mm metric), the available armored cable routing path, and the clearance between the probe tip and the shaft surface at the target gap voltage — typically 10.0 VDC at 1.0 mm gap for standard 3300 XL calibration. If the mounting bracket or probe holder has been modified from the original OEM specification, the gap setting procedure must be repeated using a calibrated gap tool before the system is returned to service.

All units are function-tested prior to shipment. Stock is available for immediate dispatch to support emergency replacement and planned maintenance windows. support terms confirmed by quotation is included.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-09-05-01-00 begins with a complete audit of the existing signal chain. The probe body, extension cable, and proximitor must be treated as a matched system. In most 3300 XL installations, the extension cable is a Bently Nevada 330130-XX-XX series armored cable, where the suffix defines the cable length. The total probe-plus-cable length must fall within the proximitor’s specified operating range to maintain calibration accuracy. If the original cable is damaged or its length suffix is unknown, the replacement cable must be measured and matched before the new probe is installed.

The proximitor — typically a Bently Nevada 330180-X1-05 or equivalent — converts the probe’s impedance change into the DC voltage signal consumed by the monitor rack. During retrofit planning, the proximitor’s output voltage at the known shaft gap should be measured and compared against the monitor rack’s configured gap voltage window. If the proximitor is also being replaced as part of the upgrade, the new unit must be calibrated as a matched set with the probe and cable before installation.

Where the retrofit scope extends to the monitor rack, engineers migrating from legacy 3300 Series cards to the Bently Nevada 3500/40M Proximitor I/O Module will find that the 330103-00-09-05-01-00 probe and its associated cable assembly can be retained, reducing field rework. The 3500 rack accepts the same analog DC voltage signal from the proximitor, and the I/O module’s terminal board accommodates the existing field wiring with minimal re-termination. Channel configuration in the 3500 rack software must be set to match the probe’s sensitivity and gap voltage parameters.

For installations where the control cabinet also houses a Bently Nevada 3300 XL Power Supply module, the power supply’s output voltage and current capacity should be verified against the total transducer load after any channel additions or replacements. Adding replacement probes to a rack that is already near its power budget can cause measurement instability across all channels.

If the machinery protection system interfaces with a DCS or safety system via a Bently Nevada 3500/92 Communication Gateway or equivalent Modbus/FOUNDATION Fieldbus interface module, the channel mapping and tag assignments in the gateway configuration must be reviewed after any rack-level changes to ensure the vibration data is correctly reported to the control room historian and alarm management system.

Downtime Control During System Migration

Replacing the 330103-00-09-05-01-00 in an operating plant requires a structured approach to minimize exposure time and protect the integrity of the machinery protection system. The recommended sequence is: document all current gap voltages and alarm setpoints before de-energizing the channel; isolate the channel at the monitor rack using the rack’s bypass or inhibit function if available; remove the failed probe and install the replacement without disturbing the extension cable if it is undamaged; re-energize the channel and verify the gap voltage at the proximitor output before releasing the bypass.

If the extension cable must also be replaced, the cable routing path should be pre-planned and the new cable pre-cut and terminated before the machine is taken offline. This reduces the time the machinery protection channel is in bypass. For critical machines where continuous protection coverage is required, a temporary portable vibration monitor can be connected to the proximitor output during the replacement window to maintain alarm capability.

Original program logic in the monitor rack — including trip multipliers, time delays, and OK relay configurations — should be exported or photographed before any rack-level work begins. If the monitor rack is being replaced as part of the upgrade, the configuration file from the legacy rack should be used as the baseline for the new rack’s setup, with only the parameters that require updating for the new hardware being changed. This approach preserves the original protection philosophy and reduces the risk of misconfiguration during commissioning.

Post-replacement commissioning should include a full channel functional test: verify OK relay state, confirm gap voltage is within the linear range, check that the vibration signal responds correctly to a simulated shaft movement or calibration input, and confirm that the DCS historian is receiving the updated tag value. All test results should be documented in the plant’s maintenance management system before the machine is returned to service.

Retrofit Support FAQ

Q1: Is the 330103-00-09-05-01-00 a direct replacement for the original Bently Nevada unit?
Yes. This unit is a verified replacement for the original 330103-00-09-05-01-00 proximity probe. It is mechanically and electrically compatible with existing 3300 XL installations. No modifications to the mounting boss, extension cable connector, or proximitor are required for a direct swap, provided the extension cable and proximitor are in serviceable condition.

Q2: What commissioning steps are required after installation?
After installing the replacement probe, verify the gap voltage at the proximitor output with the shaft at its normal operating position. Confirm the gap voltage falls within the monitor rack’s configured linear range. Check the OK relay state and confirm the channel is not in alarm or trip. Verify that the DCS or historian is receiving the correct signal value. Document all readings before releasing the channel from bypass.

Q3: Can this probe be used with the Bently Nevada 3500 Series monitor rack?
Yes, with the appropriate proximitor and I/O module. The 330103-00-09-05-01-00 probe produces a standard analog DC voltage signal that is compatible with the 3500/40M Proximitor I/O Module. The proximitor must be matched to the probe and cable assembly, and the 3500 rack channel must be configured to match the probe’s sensitivity and gap voltage parameters.

Q4: What is the support terms and how are units tested before shipment?
All units carry a support terms confirmed by quotation from the date of shipment. Each unit is function-tested prior to dispatch to verify electrical continuity, coaxial connector integrity, and probe body condition. Units are packaged to prevent transit damage to the probe tip and cable connector. Stock is available for immediate shipment to support both emergency replacement and planned maintenance schedules.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-09-05-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-09-05-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
