Bently Nevada 330103-00-08-10-12-00 Maintenance-Proven Spare Part for Factory Uptime

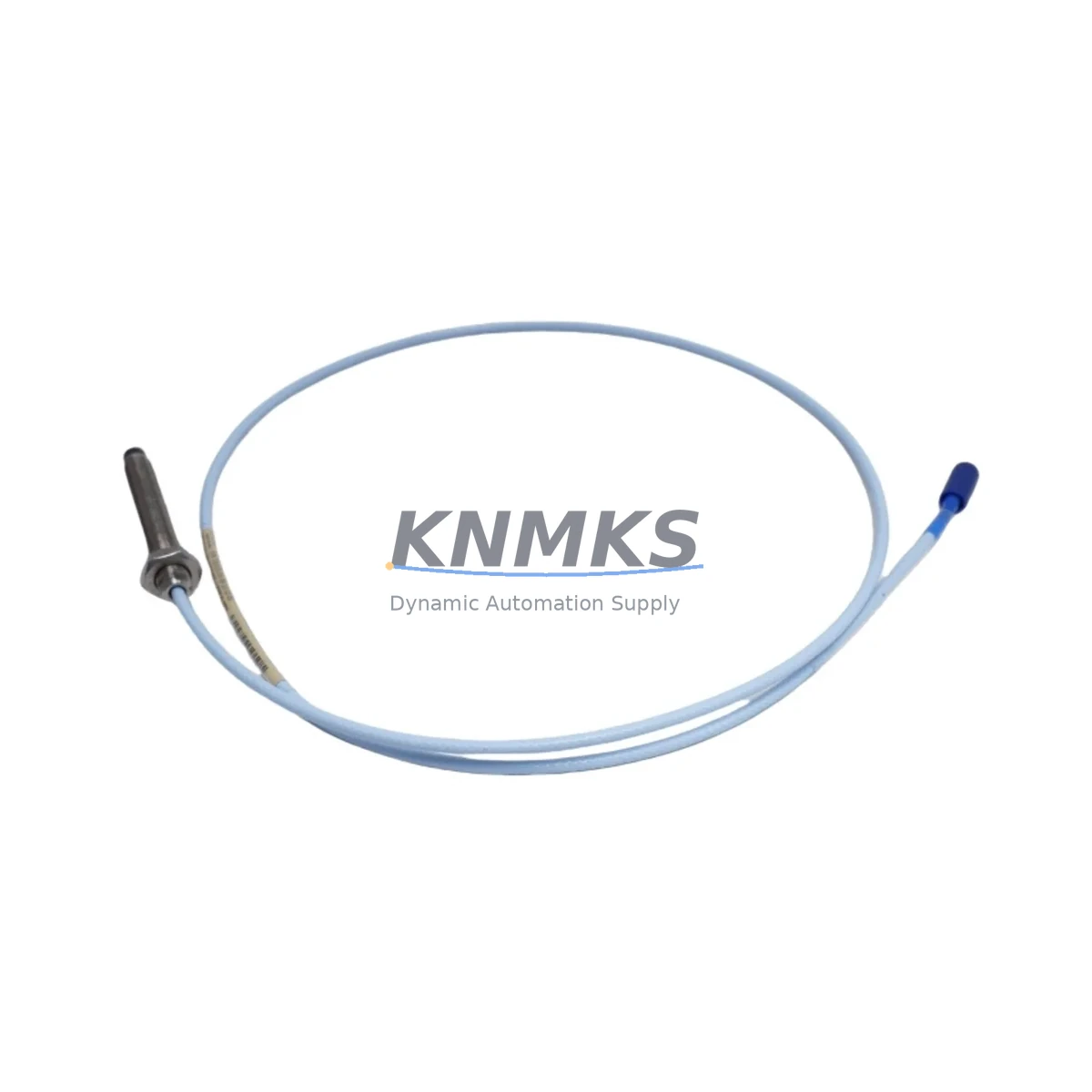

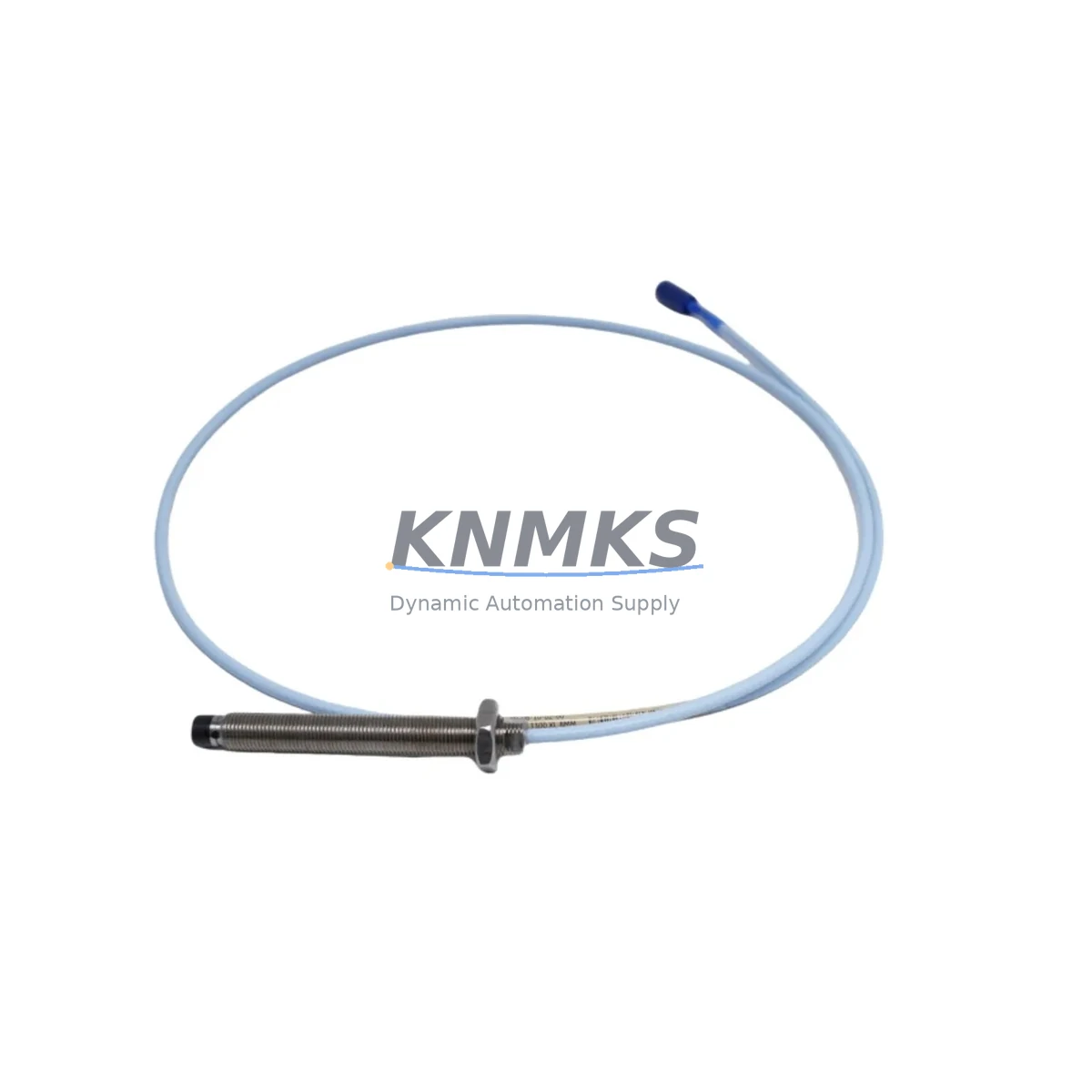

The Bently Nevada 330103-00-08-10-12-00 is an eddy current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery applications. Designed for use in turbines, compressors, pumps, and other critical rotating equipment, this probe delivers reliable non-contact displacement measurement essential to predictive maintenance programs and machinery protection systems. As a maintenance-proven spare part, the 330103-00-08-10-12-00 is stocked and tested to support rapid field replacement, minimizing unplanned downtime and protecting production continuity.

Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a DCS-integrated machinery protection system, the 330103-00-08-10-12-00 provides the dimensional and electrical compatibility required for direct back-to-back replacement in existing 3300 XL installations. Each unit is inspected and function-tested prior to shipment, backed by a support terms confirmed by quotation, and supported by long-term supply commitment for legacy system sustainment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-08-10-12-00 proximity probe in a 3300 XL machinery protection system, a thorough site inspection of the surrounding measurement chain is essential to ensure system integrity and prevent repeat failures. Maintenance engineers should treat probe replacement as an opportunity to audit the full vibration monitoring loop.

Begin by inspecting the Bently Nevada 330180 Proximitor® Sensor (driver/conditioner) paired with this probe. The Proximitor converts the probe’s raw eddy current signal into a calibrated voltage output; a degraded or mismatched Proximitor will produce erroneous readings even with a new probe installed. Verify the extension cable — typically a 330130 series armored extension cable — for continuity, insulation integrity, and connector condition. Damaged extension cables are a leading cause of probe system faults and are frequently overlooked during reactive maintenance.

Check the terminal block and field wiring connecting the Proximitor output to the monitoring rack. Loose terminations, corroded terminals, or undersized conductors introduce signal noise that can trigger false alarms or mask genuine machinery faults. At the monitoring rack, inspect the 3500 Series Machinery Protection System I/O module or the legacy 3300 Series monitor card receiving the probe signal — verify card seating, backplane connector condition, and firmware revision compatibility.

For systems integrated into a DCS or safety instrumented system (SIS), confirm that the 4–20 mA output isolator or signal conditioner downstream of the monitor is functioning correctly. Signal isolators protect the DCS analog input card from ground loops and transient voltages; a failed isolator can corrupt vibration data at the control system level. Also inspect the rack power supply module feeding the 3300/3500 monitoring system — power supply degradation is a common root cause of intermittent probe faults and should be part of any planned maintenance cycle.

Where the machinery protection system interfaces with a Bently Nevada System 1® condition monitoring platform or a third-party SCADA historian, verify communication module health and data pathway continuity. Gaps in vibration trend data during a probe replacement window can compromise predictive maintenance analysis and should be documented in the maintenance record.

Finally, review the proximity probe mounting hardware — probe holder, lock nut, and bracket — for wear, corrosion, or mechanical damage. Improper probe gap setting after installation is a frequent source of post-maintenance alarms; always re-gap the probe to the manufacturer-specified linear range (typically 1.0–2.0 mm for 8 mm probes) using a calibrated gap meter before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the machinery protection monitoring channel at the rack. Do not de-energize the full monitoring system unless required by site procedure — most 3300 XL and 3500 systems support hot-swap of probe assemblies with the machine offline.

Step 2 — Record As-Found Data: Before removal, document the existing probe gap voltage (DC bias) from the Proximitor output. This as-found reading confirms the previous installation gap and provides a baseline for the new probe setup.

Step 3 — Remove Old Probe Assembly: Disconnect the extension cable from the Proximitor. Unscrew the probe from the holder, taking care not to damage the probe tip or the machine journal surface. Inspect the probe holder threads and clean if necessary.

Step 4 — Install 330103-00-08-10-12-00: Thread the new probe into the holder. Set the probe gap to the target DC bias voltage specified in the system documentation (typically –10 VDC ±0.5 VDC for a 1.0 mm gap on 3300 XL systems). Lock the probe in position with the lock nut.

Step 5 — Reconnect and Verify: Reconnect the extension cable. Confirm the Proximitor output DC bias is within the linear range. Check the monitor display or System 1 trend for a clean, stable signal with no excessive noise floor.

Step 6 — Return to Service and Document: Clear the maintenance isolation, return the monitoring channel to normal operation, and log the replacement in the equipment maintenance record. Update the spare parts inventory to trigger replenishment of the consumed 330103-00-08-10-12-00 unit.

This workflow supports direct replacement of legacy 330103 series probes without system reconfiguration, preserving full compatibility with existing 3300 XL Proximitor sensors, extension cables, and monitoring racks. Downtime is typically limited to the machine offline period required for safe probe access.

Spare Parts Support FAQ

Q1: Is the 330103-00-08-10-12-00 a direct replacement for older 330103 series probes in my existing 3300 XL system?
Yes. The 330103-00-08-10-12-00 is dimensionally and electrically compatible with the 3300 XL Proximitor system. It can be installed as a back-to-back replacement without modification to the extension cable, Proximitor sensor, or monitoring rack configuration, provided the probe gap is correctly set during installation.

Q2: How is the probe tested before shipment?
Each 330103-00-08-10-12-00 unit undergoes functional inspection and electrical verification prior to dispatch. Testing confirms probe tip integrity, cable continuity, and connector condition. A test report is available upon request. All units are shipped with protective packaging to prevent transit damage to the probe tip and cable assembly.

Q3: What is the recommended spare parts holding strategy for this probe?
For critical rotating machinery applications, a minimum of one-for-one spare holding is recommended — one spare probe per installed probe per machine train. For high-criticality assets such as main steam turbines or process compressors, a two-unit buffer per measurement plane is advisable to cover both emergency replacement and the replenishment lead time. Probes should be stored in a dry, temperature-controlled environment and inspected annually for connector corrosion.

Q4: What support terms and long-term supply commitment applies to this part?
All 330103-00-08-10-12-00 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. KNMKS maintains ongoing stock of 3300 XL series components to support legacy system sustainment programs. Long-term supply agreements and blanket purchase orders are available for customers with multi-site or multi-unit maintenance programs.
