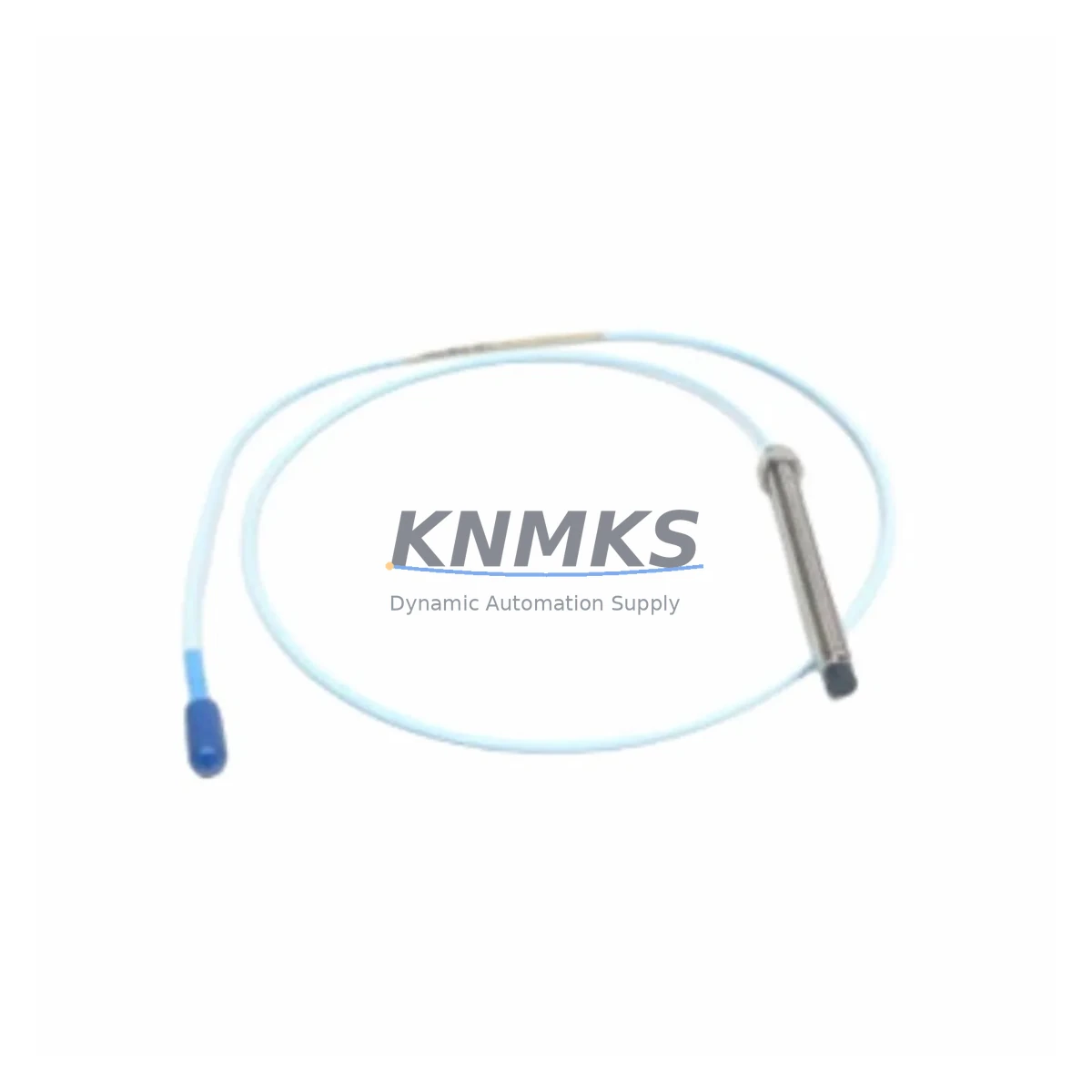

Bently Nevada 330103-00-08-10-02-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330103-00-08-10-02-00 Fail-Safe Proximity Transducer: Critical Industrial Field Reliability

The Bently Nevada 330103-00-08-10-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to meet the rigorous requirements of rotating machinery protection, safety instrumented systems (SIS), and critical interlock loops, this transducer delivers stable, drift-free signal output even under severe electromagnetic interference, high-temperature cycling, mechanical vibration, and moisture-laden or dusty field conditions.

In continuous production facilities — including petrochemical plants, power generation stations, metallurgical mills, and offshore platforms — unplanned machinery downtime caused by vibration signal loss or sensor drift can trigger cascading failures across entire process lines. The 330103-00-08-10-02-00 addresses this risk directly: its hardened coaxial cable assembly and precision-wound sensing coil maintain measurement integrity across the full operating range, eliminating the false trips and missed alarms that compromise both safety and productivity. When paired with the Bently Nevada 3300 XL Extension Cable and a compatible 3300 XL Proximitor® Sensor (such as the 330180 series), the system forms a complete, certified vibration monitoring chain that integrates seamlessly into existing DCS and SIS architectures.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Deploying the 330103-00-08-10-02-00 within a well-engineered control cabinet ecosystem is essential for achieving true fail-safe performance. In high-power drive cabinets and motor control centers, the transducer’s shielded coaxial cable must be routed away from VFD output conductors and high-current bus bars to prevent capacitive coupling and signal corruption. Grounding the shield at a single point — typically at the Bently Nevada 3300 XL Proximitor® Sensor housing — eliminates ground loops that would otherwise introduce noise into the 4–20 mA or voltage output signal feeding the safety PLC or DCS input card.

For installations in cabinets subject to surge events from nearby switchgear or lightning-prone outdoor substations, integrating a dedicated signal surge protection module (such as those from the Phoenix Contact TRABTECH or Weidmüller VARITECTOR series) on the transducer signal line provides an additional layer of protection against transient overvoltage that could damage the Proximitor® input stage. Power supply stability is equally critical: the 3300 XL system requires a clean, regulated –24 VDC supply, and using a high-quality DIN-rail power supply with active PFC — for example, a PULS or MEAN WELL industrial-grade unit — ensures the Proximitor® operates within its specified input voltage window even during grid fluctuations common in heavy industrial facilities.

In safety interlock architectures, the 330103-00-08-10-02-00 is frequently deployed alongside Bently Nevada 3500 Series rack-based monitoring systems, where its analog output feeds a dedicated vibration monitor card that triggers emergency shutdown (ESD) relays upon detecting shaft displacement beyond the danger setpoint. Complementing this with a Bently Nevada 330130 Proximitor® Sensor for the extension cable interface and a 3300 XL Armored Extension Cable in abrasive or high-vibration conduit runs ensures the entire signal chain maintains its rated accuracy from the machine bearing housing to the control room rack — with no single point of failure that could mask a developing fault or generate a spurious trip.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-08-10-02-00 proximity transducer is a trusted component across the most safety-critical rotating machinery applications in global heavy industry:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor charge pumps, and steam turbine trains, where continuous shaft radial vibration monitoring is mandated by API 670 machinery protection standards. Any signal interruption in these loops can delay shutdown decisions, risking catastrophic seal failures or bearing collapses in hydrogen or hydrocarbon service.

Power Generation: Used on turbine-generator sets and boiler feed pumps in coal, gas, and nuclear power plants. The transducer’s wide operating temperature range and EMI immunity make it suitable for installation near high-voltage generator terminals and excitation systems, where interference levels are extreme.

Mining & Mineral Processing: Applied to large ball mill pinion bearings, SAG mill trunnion shafts, and slurry pump impellers in dusty, wet, and high-vibration environments. The robust probe tip construction resists contamination from mineral slurries and abrasive dust that would degrade lesser sensors.

Water & Wastewater Treatment: Monitors vertical turbine pumps and blower shafts in pump stations and aeration basins, where undetected bearing wear leads to unplanned outages affecting municipal water supply reliability.

Metallurgy & Steel: Deployed on rolling mill drive spindles and continuous caster withdrawal rolls, where high-temperature radiant heat and intense electromagnetic fields from arc furnaces demand a sensor with proven thermal and EMI resilience.

Port & Marine: Fitted to ship propulsion shaft lines and crane hoist gearboxes, where saltwater corrosion resistance and vibration immunity under dynamic loading are non-negotiable for safe cargo handling and vessel operation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-08-10-02-00?
The support terms confirmed by quotation cover all manufacturing defects, including coil winding integrity, connector contact quality, cable insulation, and scale factor accuracy. If the transducer fails to meet Bently Nevada 3300 XL Series specifications within 12 months of shipment under normal operating conditions, we provide replacement or documented resolution support. Support requests are processed with priority to minimize your downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330103-00-08-10-02-00 unit undergoes a full functional inspection prior to shipment: connector continuity, coaxial cable shield integrity, probe tip dimensional verification, and static sensitivity check against the 7.87 V/mm scale factor specification. Units that do not pass all checkpoints are quarantined and not dispatched. A test record is available upon request for critical SIS applications.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330103-00-08-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor family and integrates directly with 3500 Series rack monitors using the standard 10-32 UNF coaxial interface. It is a direct replacement for legacy 330103 series probes in existing installations, requiring no recalibration of the Proximitor® when the cable length and gap voltage are set correctly per the system TDM.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
We maintain dedicated stock of the 330103-00-08-10-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, insurance spare inventories, and emergency replacement requirements. For facilities operating multiple machines with this transducer model, we recommend establishing a standing spare parts agreement to ensure availability without lead-time risk during critical turnaround windows.
