Bently Nevada 330103-00-08-05-02-00 Proximity Transducer Retrofit

Overview

Bently Nevada 330103-00-08-05-02-00 Proximity Transducer Retrofit: Migration-Ready Replacement for Legacy 3300 XL Control Systems

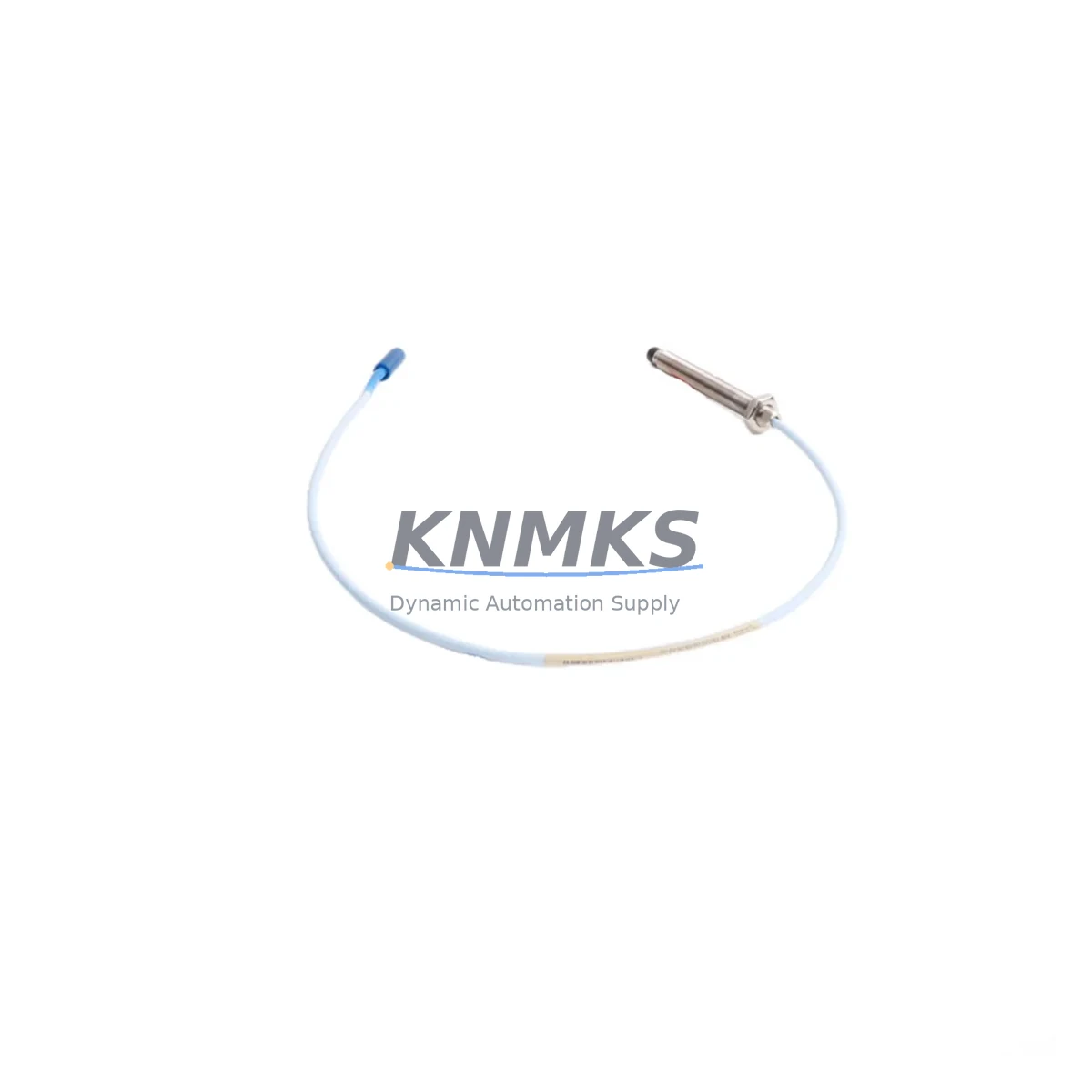

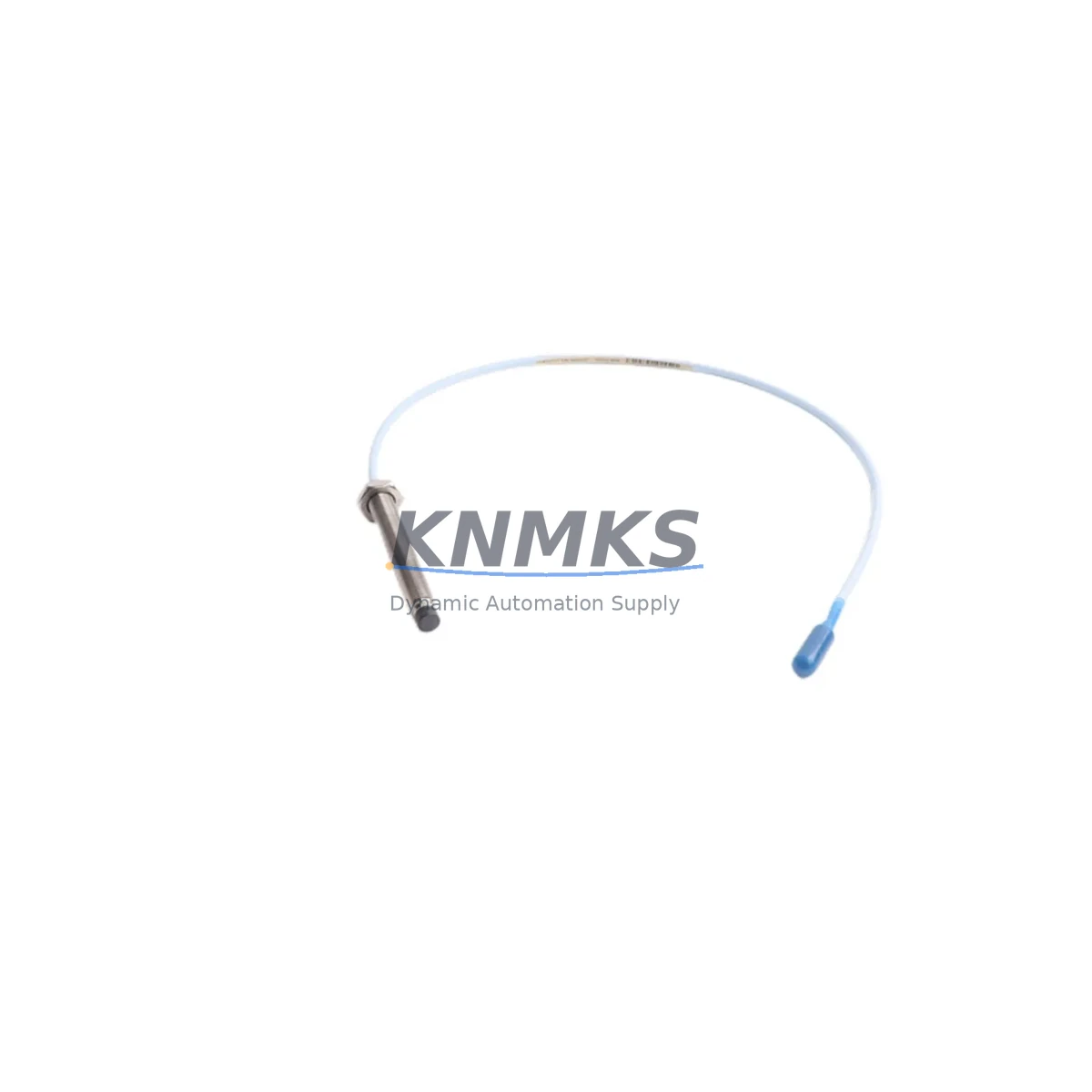

The Bently Nevada 330103-00-08-05-02-00 is an 8mm proximity transducer engineered for the 3300 XL Series vibration monitoring platform. As legacy turbomachinery protection systems approach end-of-life or face discontinued spare part availability, this transducer serves as a verified, drop-in replacement for aging eddy-current sensing assemblies in rotating equipment applications including steam turbines, gas compressors, centrifugal pumps, and gearboxes.

This unit operates within the standard Bently Nevada proximity system architecture, pairing directly with the 330130 extension cable and the 330180 proximitor/seismic transducer to form a complete sensing chain. The 330103-00-08-05-02-00 variant specifies an 8mm probe tip, 5-metre armored cable, and 2-metre extension, making it compatible with the majority of existing 3300 XL field installations without requiring conduit rework or terminal block rewiring.

For facilities migrating from older 7200 Series or 3300/16 rack-based systems to the current 3500 Series machinery protection platform, the 330103-00-08-05-02-00 can be retained as the field sensor while the signal conditioning is upgraded at the rack level. This approach preserves existing cable runs, minimizes installation downtime, and avoids the cost of full sensor replacement across multi-channel turbine protection panels.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-08-05-02-00 into an existing turbomachinery protection system requires a structured pre-installation review. Before removing the legacy transducer, engineers should document the current gap voltage reading at the proximitor output terminal — typically between -10 VDC and -18 VDC for a healthy sensing chain. This baseline confirms whether the existing 330130 extension cable and 330180 proximitor remain serviceable or require simultaneous replacement.

At the rack level, verify that the installed 3500/40M or 3500/42M monitor card firmware is current and that channel configuration in the System 1 software reflects the correct transducer scale factor for an 8mm probe. If the facility is operating an older 3300/16 rack, the analog signal wiring to the DCS — typically terminated at a marshalling cabinet using standard screw-type terminal blocks — can be preserved without modification, as the output signal characteristics of the 330103-00-08-05-02-00 are backward-compatible.

For control cabinets undergoing broader modernization, this transducer replacement is often performed alongside upgrades to the 3500/20 rack power supply module, replacement of aging I/O interface cables, and reconfiguration of the Modbus or OPC-DA communication link between the 3500 rack and the plant DCS. Where HMI screens display vibration trend data, confirm that the engineering unit scaling and alarm setpoints in the HMI configuration match the new transducer’s output range to avoid nuisance trips during commissioning.

In multi-machine installations — such as a compressor train with a driver, gearbox, and driven compressor — it is common to replace proximity transducers on all measurement planes simultaneously to standardize the spare parts inventory and eliminate mixed-generation sensing chains. This approach also simplifies future calibration cycles and reduces the risk of signal chain mismatch between radial and axial measurement channels.

Downtime Control During System Migration

Minimizing production downtime during a proximity transducer replacement requires advance preparation of the replacement unit, pre-verification of the extension cable and proximitor, and coordination with the control room to place the affected monitor channel in bypass mode before breaking the field connection. The 330103-00-08-05-02-00 should be bench-tested prior to installation: connect the probe, extension cable, and proximitor to a portable power supply and verify the output voltage at a known gap distance using a non-ferrous spacer block.

Once the replacement probe is installed and the gap set to the nominal value specified in the machine’s original alignment documentation, restore the channel from bypass and confirm that the System 1 or DCS trend display shows a stable, noise-free vibration reading before returning the machine to service. Where the original program logic includes vibration-based shutdown interlocks, verify that the new transducer’s signal is within the normal operating band before releasing the bypass to avoid spurious trips.

For facilities with strict change management requirements, the full replacement procedure — including gap setting, cable continuity check, signal verification, and alarm confirmation — can typically be completed within a two-to-four hour maintenance window, making it compatible with scheduled turnaround intervals without requiring extended outage planning.

Retrofit Support FAQ

Q: Is the 330103-00-08-05-02-00 a direct replacement for older 330103 variants with different cable lengths?
A: The 330103 series uses a standardized SKU structure where the fourth and fifth segments specify cable lengths. The -00-08-05-02-00 variant specifies an 8mm probe with a 5m armored cable and 2m extension. If your existing installation uses a different cable length variant, the probe tip and signal characteristics remain identical; only the cable run length differs. Confirm the total probe-plus-extension length matches your field installation before ordering.

Q: Can this transducer be used with a 3500 Series rack if we are migrating from a 3300/16 system?
A: Yes. The 330103-00-08-05-02-00 is compatible with both 3300 XL and 3500 Series monitor cards. When migrating to a 3500 rack, update the channel configuration in the rack software to reflect the 8mm transducer scale factor and verify the gap voltage at the new proximitor output terminal after installation.

Q: What pre-shipment testing is performed on this unit?
A: Each unit undergoes functional verification including output voltage linearity check across the measurement range and cable continuity testing prior to shipment. Units are supplied with a support terms confirmed by quotation covering manufacturing defects and signal chain performance under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: This SKU is maintained availability confirmed by RFQ for immediate shipment. Contact our sales team to confirm current inventory and lead time for your required quantity. Expedited shipping is available for urgent maintenance and unplanned outage requirements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-08-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-08-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
