Bently Nevada 330103-00-07-20-02-CN Migration-Ready Proximity Probe

Overview

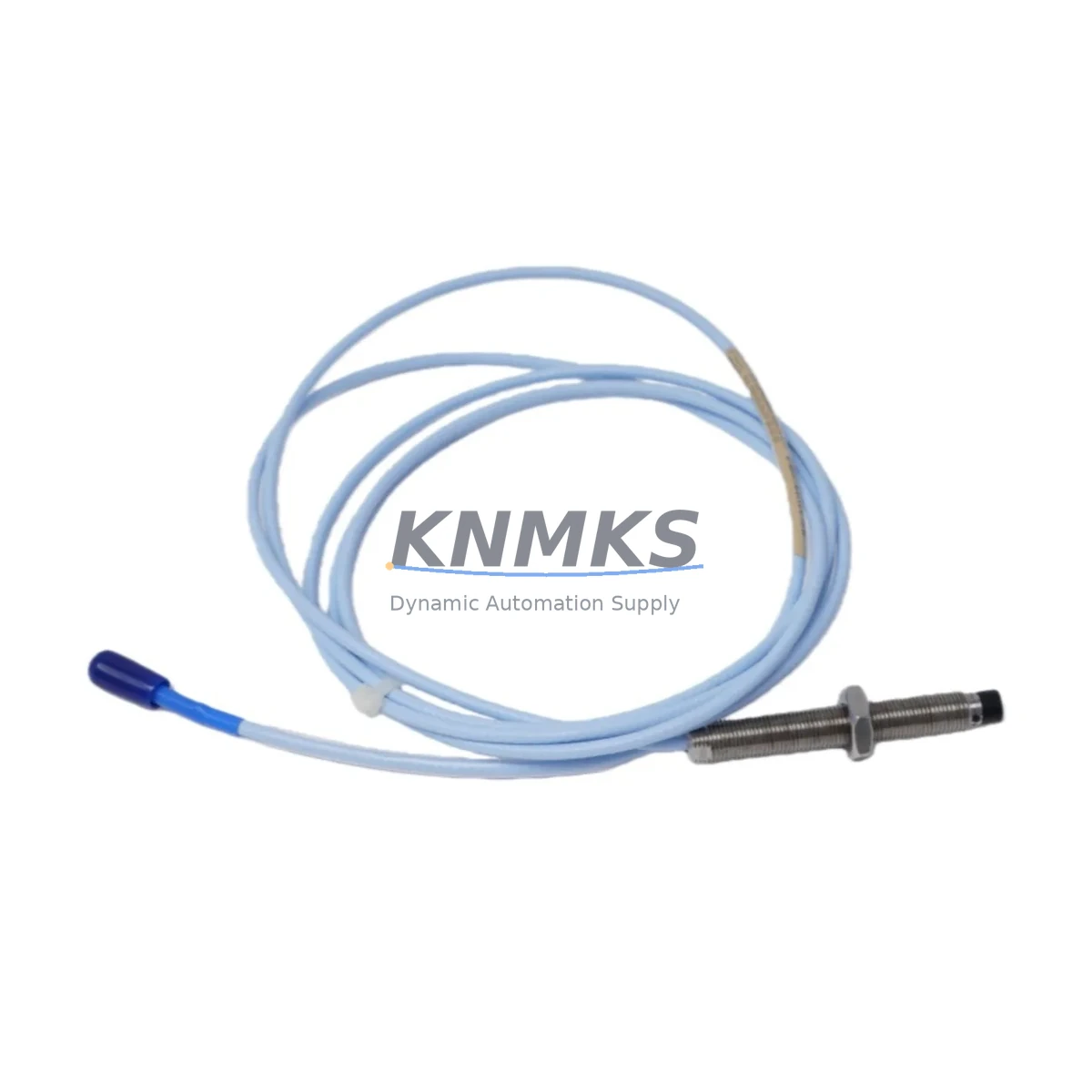

Bently Nevada 330103-00-07-20-02-CN Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330103-00-07-20-02-CN is a migration-ready eddy-current proximity probe engineered for direct replacement and retrofit integration within Bently Nevada 3300 XL vibration monitoring systems. As legacy rotating machinery protection platforms approach end-of-life, this probe provides a verified drop-in solution that preserves existing wiring, conduit routing, and signal chain integrity — minimising engineering rework and unplanned downtime during system modernisation projects.

Designed for continuous operation in high-temperature, high-vibration industrial environments including turbines, compressors, pumps, and gearboxes, the 330103-00-07-20-02-CN delivers the 5 mm nominal gap range and –24 VDC bias voltage output expected by the 3300 XL monitor rack. Engineers migrating from earlier 7200 Series probes or decommissioned 3300/5 assemblies will find the connector pinout, cable length (2 m), and extension cable interface fully compatible with existing field installations.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-07-20-02-CN into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing 3300 XL monitor rack — confirming which input cards (typically the 3300 XL 8-mm Proximity Transducer I/O Module) are installed and whether the rack’s power supply module is delivering stable –24 VDC and +24 VDC rails. Power supply degradation is a common root cause of false vibration trips during probe changeovers, and replacing an ageing power supply module alongside the probe eliminates one variable from post-installation diagnostics.

Terminal wiring should be documented before disconnection. The 330103-00-07-20-02-CN uses the same three-conductor arrangement (shield, signal, common) as its predecessors, but field technicians should photograph or sketch the existing termination at the junction box and at the monitor rack terminal block before removing any wires. Where the original installation used the 330130-080-00-00 extension cable, inspect the cable jacket and connector body for cracking or moisture ingress — a degraded extension cable will introduce noise that mimics a faulty probe.

Backplane and rack slot addressing do not change with a probe swap, but if the retrofit is part of a broader migration from a 3300/5 rack to a 3500 Series rack, the I/O module address must be re-entered in the System 1 configuration software. At the same time, any HMI screens displaying shaft vibration trends should be validated against the new channel mapping to ensure the operator display reflects the correct measurement point. Plants running GE System 1 Evolution or third-party SCADA platforms via Modbus or OPC-DA should verify that the tag names and engineering-unit scaling remain consistent after the rack change.

For sites integrating the 330103-00-07-20-02-CN into a 3500 Series rack alongside a 3500/42M Proximitor I/O Module, confirm that the module’s internal termination resistors are set for the 8 mm probe body. Where I/O expansion is planned — for example, adding shaft absolute vibration channels using a 3500/40M Proximitor I/O Module — the additional probe runs should be routed and terminated before the monitor rack is powered up, reducing the number of separate commissioning events. Signal isolators may be required where long cable runs or high electrical noise environments exist between the probe junction box and the control room rack.

Programming compatibility is straightforward for pure probe replacements: no changes to the PLC ladder logic or function block diagrams are required, because the 330103-00-07-20-02-CN presents an identical analogue signal to the monitor. However, if the site is simultaneously upgrading the vibration monitor firmware, the new firmware version should be staged and tested on a non-critical machine first. Firmware revision history for 3300 XL and 3500 Series monitors is available from Bently Nevada’s service documentation and should be reviewed for any changes to alarm setpoint handling or OK relay logic before the cutover.

Downtime Control During System Migration

Minimising production impact during a proximity probe replacement requires a structured pre-outage checklist and a clearly defined rollback path. Before the machine is taken offline, the existing probe should be trended for at least 48 hours to establish a baseline gap voltage and vibration amplitude. This baseline becomes the acceptance criterion for the replacement probe: if the new 330103-00-07-20-02-CN does not reproduce the same gap voltage (within ±0.5 VDC) at the same physical gap, the installation should be re-inspected before the machine is returned to service.

The physical swap itself — removing the old probe, cleaning the probe boss threads, installing the new probe to the correct gap (typically 1.0–1.5 mm for an 8 mm probe body), and re-terminating the extension cable — can be completed in under two hours by an experienced instrumentation technician. The monitor rack does not need to be de-energised for a probe swap on a 3300 XL system, provided the channel is placed in bypass mode before disconnection. Bypassing the channel prevents a spurious trip signal from reaching the turbine protection logic or the emergency shutdown system during the changeover.

After reconnection, the technician should perform a static gap check using a calibrated DC voltmeter at the monitor rack terminal, confirm the OK LED on the I/O module illuminates, and then release the channel from bypass. A short dynamic run at reduced load — if process conditions permit — allows the vibration trend to be compared against the pre-outage baseline before full-load operation resumes. All calibration records, gap settings, and terminal photographs should be filed in the plant’s maintenance management system to support future audits and spare-parts lifecycle planning.

Every 330103-00-07-20-02-CN shipped by KNMKS undergoes pre-shipment functional testing, including bias voltage verification and sensitivity confirmation, so that field commissioning time is predictable and the risk of receiving a non-conforming unit is eliminated. Stock is maintained to support same-week dispatch for urgent breakdown replacements, and the support terms confirmed by quotation cover the full performance specification from the date of delivery.

Retrofit Support FAQ

Q1: Is the 330103-00-07-20-02-CN a direct replacement for the Bently Nevada 330103-00-07-20-02?
Yes. The -CN suffix denotes the country-of-origin variant manufactured to the same dimensional and electrical specification as the standard part. The probe body diameter, cable length, connector type, sensitivity, and bias voltage output are identical, making it a drop-in replacement without any modification to the existing probe boss, extension cable, or monitor rack configuration.

Q2: What commissioning steps are required after installation?
After physical installation and terminal reconnection, verify the static gap voltage at the monitor rack terminal (target: –10.0 VDC ±1.0 VDC at 1.0 mm gap for a standard 8 mm probe). Confirm the OK relay on the I/O module is energised, check that no alarm or danger setpoints have been inadvertently altered, and compare the live vibration reading against the pre-outage baseline. No software changes are required for a like-for-like probe replacement.

Q3: Can this probe be used with a 3500 Series monitor rack?
Yes, the 330103-00-07-20-02-CN is compatible with the Bently Nevada 3500 Series rack when used with the appropriate 3500/42M or 3500/40M Proximitor I/O Module configured for an 8 mm probe. Confirm the module’s internal jumper or software setting matches the 8 mm probe body, and verify monitor firmware is at the revision level recommended by Bently Nevada for the installed I/O module version.

Q4: What is the support terms coverage and how is stock availability managed?
All units carry a support terms confirmed by quotation from the date of delivery, covering manufacturing defects and deviation from the published sensitivity and bias voltage specification. KNMKS maintains buffer stock of the 330103-00-07-20-02-CN to support urgent breakdown and planned shutdown requirements. Lead time for in-stock units is typically 3–5 business days to most destinations. Contact [email protected] or +86 18359268345 to confirm current availability before raising a purchase order.
