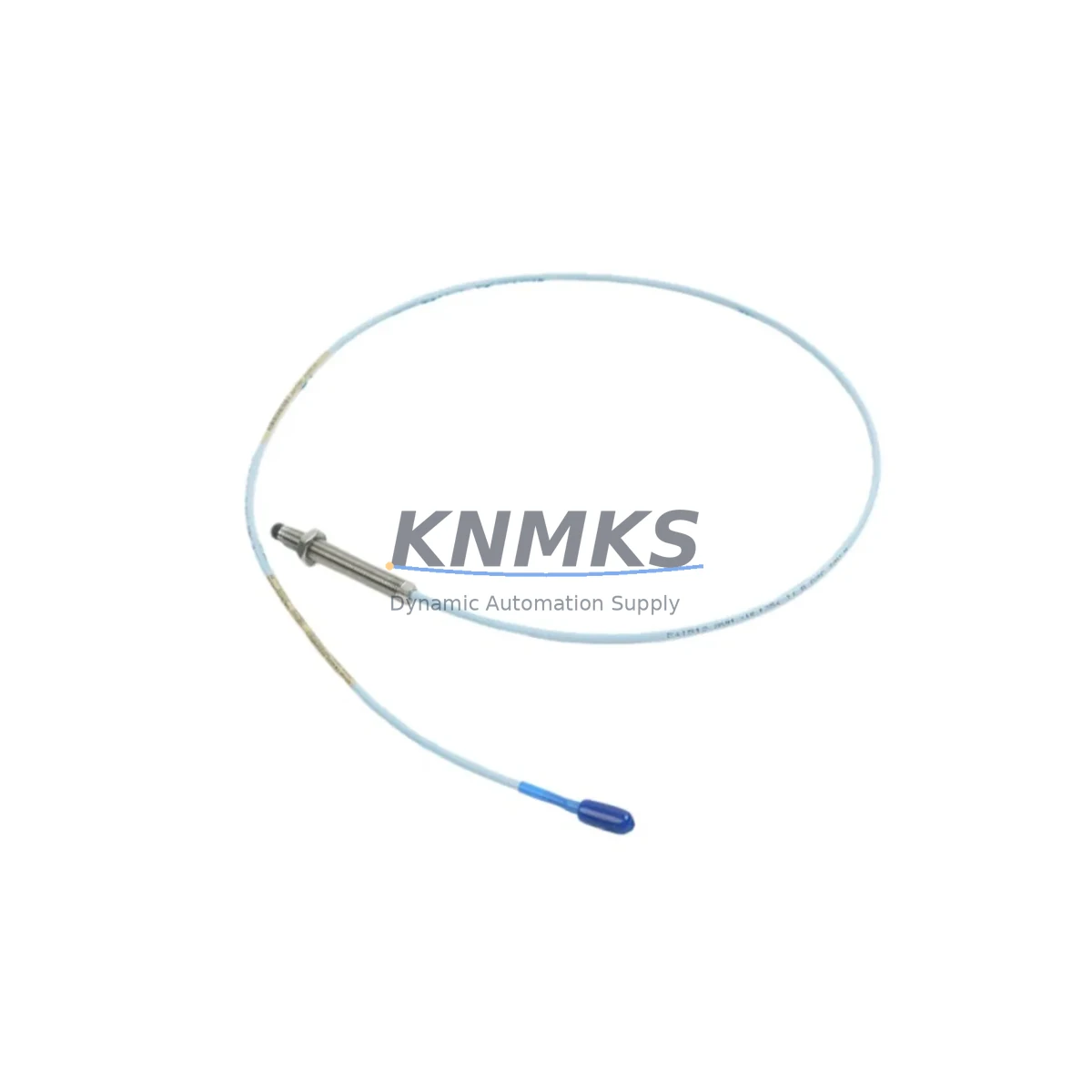

Bently Nevada 330103-00-07-10-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330103-00-07-10-02-CN Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Sites

The Bently Nevada 330103-00-07-10-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to deliver uninterrupted shaft displacement and radial vibration measurement in the most demanding industrial environments, this probe is a cornerstone of fail-safe machinery protection strategies across petrochemical, power generation, mining, water treatment, metallurgical, and continuous manufacturing facilities.

In critical rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — any interruption in vibration signal integrity can trigger unplanned shutdowns, cascade interlock failures, or catastrophic mechanical damage. The 330103-00-07-10-02-CN is purpose-built to eliminate these risks through robust construction, stable signal output, and full compatibility with the Bently Nevada 3300 XL monitoring architecture.

Its non-contact sensing principle eliminates mechanical wear, ensuring consistent gap voltage output over extended service intervals without signal drift. The probe’s stainless steel housing and armored cable construction provide reliable protection against coolant splash, hydraulic oil mist, high-humidity atmospheres, and mechanical vibration — conditions routinely encountered in turbine halls, compressor trains, and heavy-duty motor control centers.

Electromagnetic interference (EMI) is a persistent threat in industrial control cabinets housing variable frequency drives (VFDs), high-current contactors, and power bus bars. The 330103-00-07-10-02-CN’s shielded coaxial cable and precision-wound sensing coil maintain signal fidelity even in high-EMI environments, preventing false trips and nuisance alarms that can disrupt production continuity. When paired with the Bently Nevada 3300 XL 8mm Extension Cable and a compatible 3300 XL Proximitor Sensor, the system forms a complete, calibrated measurement chain that meets API 670 machinery protection standards.

For control cabinet integrators and reliability engineers, the probe’s standardized -18.5 VDC supply compatibility ensures seamless integration with existing 3300 XL Monitor Modules and System 1 Condition Monitoring Software without requiring additional signal conditioning hardware. This reduces commissioning time and eliminates potential signal chain mismatches that could compromise safety interlock response times.

In high-temperature environments such as hot gas expanders, steam turbine bearing housings, and furnace drive systems, thermal stability of the probe tip and cable assembly is critical. The 330103-00-07-10-02-CN is rated for continuous operation across a wide temperature range, maintaining gap sensitivity within specification even as ambient conditions fluctuate during load cycling or seasonal variation. This thermal resilience directly supports the reliability of overspeed protection circuits and high-vibration shutdown interlocks.

Replacement and spare parts management is a key concern for maintenance teams operating under planned turnaround schedules. KNMKS maintains verified stock of the 330103-00-07-10-02-CN with pre-shipment functional testing, ensuring that each unit delivered is confirmed operational before it reaches the field. Every probe is supplied with a support terms confirmed by quotation covering manufacturing defects and performance deviations, backed by long-term supply commitment to support multi-year maintenance contracts and critical spare parts programs.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection in critical control cabinets requires a coordinated approach across the entire signal and power chain. The 330103-00-07-10-02-CN proximity probe anchors the vibration measurement loop, but its reliability depends on the integrity of surrounding components. The Bently Nevada 3300 XL Proximitor Sensor (typically mounted in a junction box near the bearing housing) conditions the raw probe signal into a calibrated voltage output, isolating the monitor rack from field-level noise and ground loops that are common in large motor control centers and switchgear rooms.

In cabinets where multiple 3300 XL channels are deployed — such as a six-bearing steam turbine-generator train — power supply stability is paramount. A dedicated Bently Nevada 3300 XL Power Supply Module ensures that voltage fluctuations from adjacent VFD switching events or bus transfer operations do not propagate into the measurement chain, preventing false high-vibration alarms that could trigger unnecessary emergency shutdowns. Surge protection devices installed on the DC supply rails further guard against transient overvoltage events from nearby lightning strikes or capacitor bank switching.

For facilities integrating vibration data into their distributed control system (DCS) or safety instrumented system (SIS), the Bently Nevada 3300 XL Communication Gateway provides Modbus or Ethernet/IP connectivity, enabling real-time vibration trend data to feed into the plant historian and alarm management system without introducing additional latency into the safety interlock loop. Complementing this, Bently Nevada System 1 Condition Monitoring Software aggregates multi-channel vibration, temperature, and process data to support predictive maintenance decisions and reduce unplanned downtime across the entire rotating equipment fleet.

Cable routing discipline is equally critical: the 330103-00-07-10-02-CN’s coaxial extension cable should be routed away from high-voltage power cables and secured against mechanical abrasion at all conduit entry points. Where cable runs exceed the standard probe length, the Bently Nevada 3300 XL 5m or 9m Extension Cable maintains the calibrated system sensitivity without requiring field recalibration, preserving the accuracy of the overall measurement chain.

Critical Industrial Safety Applications

The 330103-00-07-10-02-CN is deployed across a broad spectrum of safety-critical rotating machinery applications. In petrochemical and refinery environments, it monitors radial vibration on process gas compressors and reactor feed pumps, where a missed high-vibration event can result in seal failure, process gas release, and fire risk. The probe’s resistance to hydrocarbon condensate and process fluid splash ensures continuous measurement availability throughout the production cycle.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 330103-00-07-10-02-CN provides the primary vibration signal for turbine shaft displacement monitoring, feeding directly into the turbine protection system’s overspeed and high-vibration trip circuits. Its API 670-aligned performance ensures compatibility with plant safety system requirements and simplifies third-party safety audits.

In mining and mineral processing operations, where large SAG mill drives, crusher motors, and slurry pump trains operate in high-dust, high-vibration environments, the probe’s robust housing and sealed cable assembly maintain measurement integrity without requiring frequent cleaning or recalibration. This reduces maintenance intervention frequency and supports extended run campaigns between planned shutdowns.

Water and wastewater treatment facilities rely on the 330103-00-07-10-02-CN for continuous monitoring of high-speed centrifugal blowers and vertical turbine pumps, where bearing failure can result in treatment process interruption and regulatory compliance risk. In metallurgical and steel mill applications, the probe operates reliably in the presence of high ambient temperatures, electromagnetic noise from arc furnaces, and mechanical shock from rolling mill operations. Port and marine installations use it on crane hoist motors and ship propulsion systems, where saltwater humidity and vibration from vessel motion demand the highest level of environmental sealing and signal stability.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330103-00-07-10-02-CN?
The support terms confirmed by quotation cover all manufacturing defects, including coil winding failures, connector integrity issues, cable insulation defects, and output sensitivity deviations from the published specification. Units that fail functional testing during the confirmed support period are replaced at no charge, with priority dispatch to minimize field downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-07-10-02-CN undergoes functional output verification prior to shipment, confirming that the probe produces the correct gap voltage response across its linear measurement range when powered by a standard 3300 XL Proximitor. This eliminates the risk of receiving a non-functional unit and reduces commissioning time at the installation site.

Q3: Is the 330103-00-07-10-02-CN compatible with existing 3300 XL monitor racks without recalibration?
Yes. The 330103-00-07-10-02-CN is a direct OEM-equivalent replacement for the standard Bently Nevada 8mm probe in the 3300 XL system. When used with the correct Proximitor Sensor and extension cable, the system sensitivity of 7.87 V/mm is maintained without field recalibration, provided the probe gap is set within the specified linear range during installation.

Q4: Can KNMKS support long-term supply commitments for critical spare parts programs?
Yes. KNMKS maintains ongoing inventory of the 330103-00-07-10-02-CN and can support multi-year supply agreements for facilities operating planned maintenance programs or requiring guaranteed spare parts availability for critical rotating machinery. Contact our team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
