Bently Nevada 330103-00-07-05-02-CN Maintenance-Proven Spare for Factory Uptime

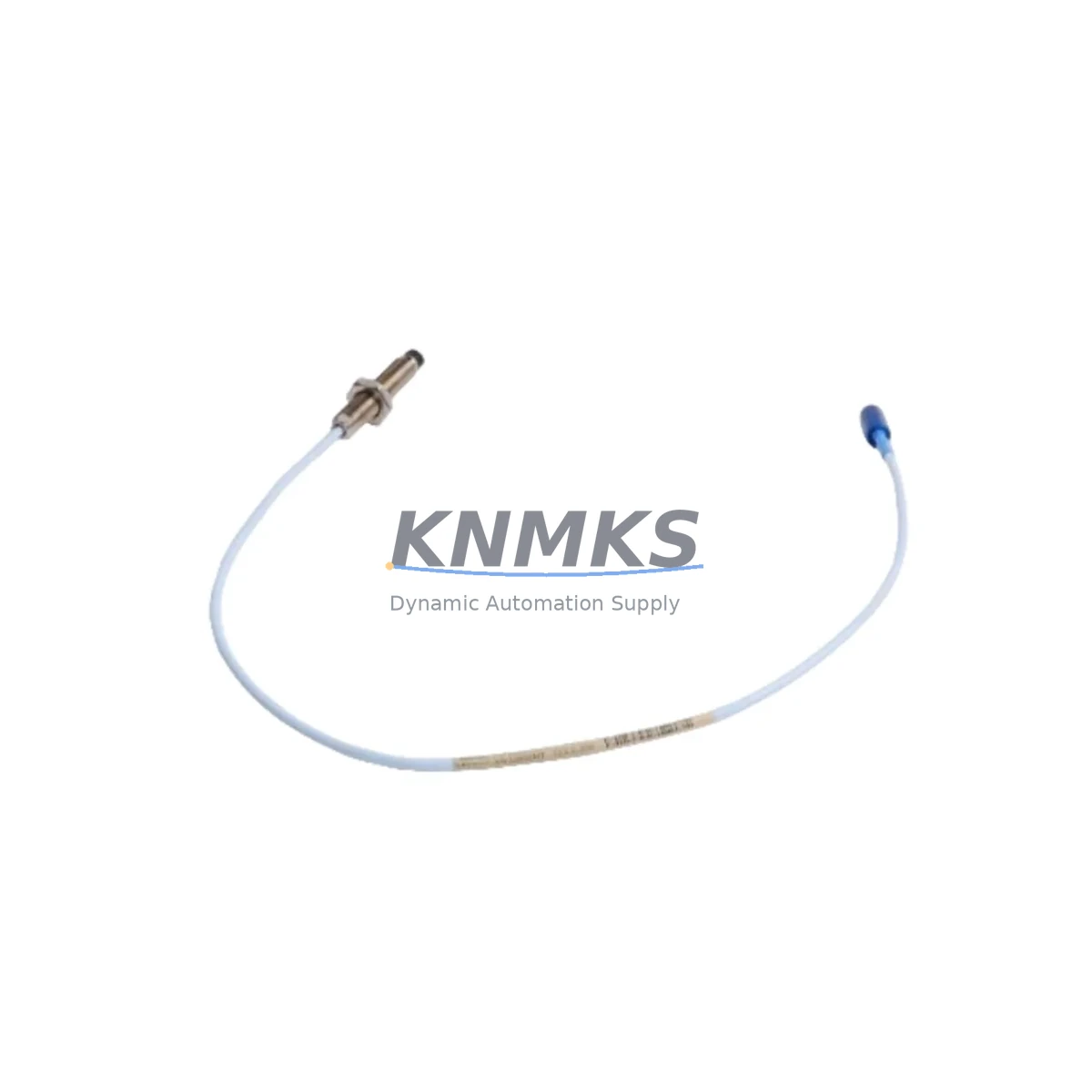

The Bently Nevada 330103-00-07-05-02-CN is a 3300 XL Series eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. With a 7.87 mm (5/16 in) probe tip diameter, 5-metre integral cable, and a 2-pin MIL-style connector, this probe integrates directly into existing 3300 XL monitoring loops without signal chain reconfiguration. It is widely deployed in turbines, compressors, pumps, and gearboxes across petrochemical, power generation, mining, water treatment, and metallurgical facilities where unplanned downtime carries severe operational and financial consequences.

KNMKS maintains verified stock of the 330103-00-07-05-02-CN, pre-shipment tested against Bently Nevada factory specifications, and backed by a support terms confirmed by quotation. Each unit undergoes gap voltage verification, sensitivity calibration check, and cable continuity testing before dispatch — ensuring the replacement probe performs identically to the original from the moment it is installed.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-07-05-02-CN proximity probe is flagged during routine vibration trending or fails a gap voltage check, the replacement event is an ideal opportunity to audit the entire measurement chain. Maintenance engineers should verify the condition of the paired 330130-080-00-00 extension cable, which connects the probe to the driver module; a degraded or kinked extension cable will introduce signal noise even with a new probe installed. The 330180-X1-05 3300 XL proximitor/driver should be bench-tested for output linearity and supply voltage stability — driver drift is a common root cause of false vibration alarms that are incorrectly attributed to probe wear.

At the rack level, confirm that the 3500/40M or 3500/42M proximity monitor card is seated correctly and that its channel configuration (gap, direct, 1× amplitude) matches the replacement probe’s calibration data. If the facility operates a 3300/16 Dual Vibration Monitor, inspect the backplane connector pins for corrosion, particularly in high-humidity or coastal environments. Procurement engineers sourcing the 330103-00-07-05-02-CN as a long-cycle spare should also consider stocking the 330101-00-07-05-02-CN (3 m cable variant) and the 330105-02-12-10-02-CN (12 mm probe, 10 m cable) to cover adjacent measurement points on the same machine train, reducing the number of emergency procurement events per outage cycle.

For facilities running Bently Nevada System 1 condition monitoring software, ensure that the replacement probe’s serial number and calibration factor are updated in the asset database immediately after installation. Failure to update this record can cause System 1 to apply incorrect engineering unit conversions, masking real vibration changes. Where the control cabinet also houses 3500/22M transient data interface cards or 3500/92 communication gateway modules, verify that rack power supply voltages (±24 VDC) remain within specification after the probe swap, as a marginal power supply may not be apparent until a new load is introduced.

Site Replacement Workflow

Step 1 — Pre-Shutdown Verification: Record the existing gap voltage (typically –10.0 to –18.0 VDC for a healthy 3300 XL probe at nominal gap) and the 1× vibration amplitude baseline from the monitor display or System 1 historian. This baseline is your acceptance criterion for the replacement probe.

Step 2 — Safe Isolation: Inhibit the monitor channel at the 3500 rack to prevent spurious trips during probe removal. Do not power down the rack unless required by site safety procedures — channel inhibit preserves the monitoring state of adjacent channels.

Step 3 — Probe Removal and Inspection: Remove the 330103-00-07-05-02-CN using the correct probe body wrench (M10 × 1 thread). Inspect the probe tip for mechanical damage, target surface contact marks, or oil contamination. Inspect the extension cable connector for pin corrosion or bent contacts before discarding the old assembly.

Step 4 — New Probe Installation: Install the replacement 330103-00-07-05-02-CN and set the probe gap to the manufacturer-specified nominal gap (typically 1.0 mm / 40 mil for 7.87 mm probes). Verify gap voltage at the driver output. Acceptable range: –10.4 to –11.6 VDC at nominal gap.

Step 5 — Functional Verification: Remove channel inhibit and confirm that the monitor displays a gap voltage and vibration amplitude consistent with the pre-shutdown baseline. Log the new probe serial number, installation date, and gap voltage in the site CMMS. Update the System 1 asset record if applicable.

This workflow minimises machine downtime to under 60 minutes for a trained technician and eliminates the risk of re-tripping caused by incorrect gap setting — the most common commissioning error when replacing 3300 XL proximity probes.

Spare Parts Support FAQ

Q1: Is the 330103-00-07-05-02-CN a direct drop-in replacement for older 330103 series probes?
Yes. The 330103-00-07-05-02-CN is backward-compatible with all 3300 XL 8 mm probe mounting arrangements and uses the same sensitivity (200 mV/mil) and linear range as earlier 330103 variants. No recalibration of the driver or monitor is required provided the extension cable length is unchanged.

Q2: What does KNMKS pre-shipment testing include?
Every 330103-00-07-05-02-CN shipped by KNMKS undergoes gap voltage output verification at nominal gap, cable continuity and insulation resistance check, connector pin integrity inspection, and sensitivity spot-check against Bently Nevada factory calibration data. A test report is available upon request.

Q3: How should this probe be stored as a long-term spare?
Store the probe in its original packaging or an anti-static bag in a dry environment (10–40 °C, <70% RH, non-condensing). Avoid coiling the integral cable tighter than a 50 mm bend radius. Inspect the connector pins annually and apply a light coat of contact protector if the spare is held for more than 18 months. KNMKS recommends a maximum shelf storage period of 5 years before functional re-verification.

Q4: Can KNMKS supply the 330103-00-07-05-02-CN on a long-term supply agreement for multi-site maintenance programmes?
Yes. KNMKS supports blanket purchase orders and scheduled release agreements for facilities managing multiple machine trains or multi-site turnaround programmes. Contact our team to discuss volume pricing, reserved stock allocation, and consolidated shipment scheduling to reduce per-unit logistics costs.
