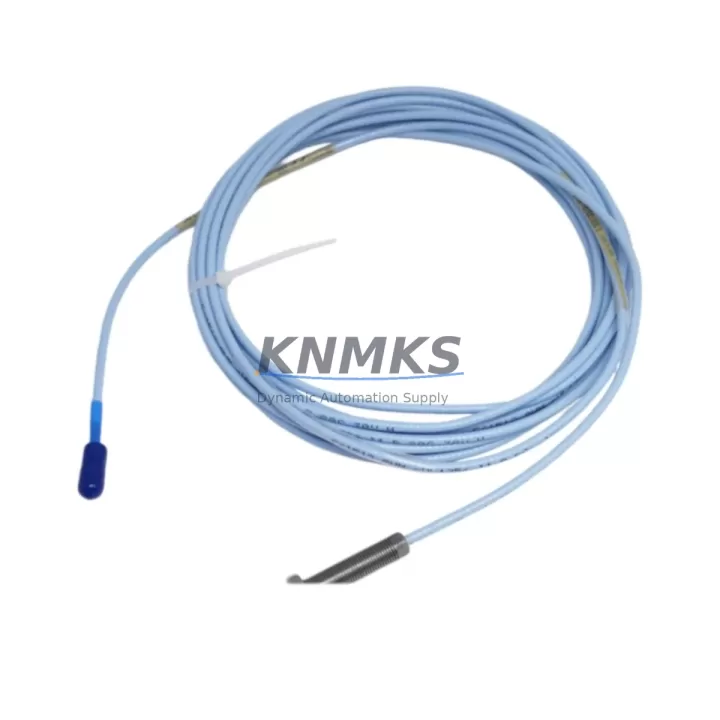

Bently Nevada 330103-00-06-50-02-RU 3300 XL Spare Probe

Overview

Bently Nevada 330103-00-06-50-02-RU 3300 XL Spare Probe: Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330103-00-06-50-02-RU is an 8mm proximity probe designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this probe is a direct OEM-grade replacement that restores system integrity without reconfiguration or recalibration of the monitoring rack.

Maintenance engineers working on Bently Nevada 3300 XL systems understand that proximity probe replacement is rarely an isolated task. The 330103-00-06-50-02-RU operates as part of a complete measurement chain, and its performance depends on the condition of every connected component. Before or during replacement, a thorough site inspection should include the extension cable (typically a 330130-series cable matched to the probe’s overall system length), the proximitor/driver module installed in the 3300 XL rack, and the barrier or signal conditioner if the installation is in a hazardous area. Verifying the gap voltage at the proximitor output — typically between −10 VDC and −18 VDC for a properly gapped 8mm probe — is the first functional check after installation.

In practice, a probe replacement event is also the right moment to inspect the 3300 XL monitor module itself. Modules such as the 3300/16 or 3300/20 series should be checked for alarm setpoint integrity, OK relay status, and any latched trip conditions that may have been masked by the probe fault. If the system includes a 3500 Series rack in parallel or as a migration path, confirming channel-to-channel consistency between the two platforms prevents false differential readings during the transition period.

For procurement engineers, the 330103-00-06-50-02-RU is a high-turnover spare in facilities operating steam turbines, gas compressors, centrifugal pumps, and large induction motors. Stocking a minimum of two probes per critical machine train — alongside matched extension cables and at least one spare proximitor module — is a widely accepted practice in reliability-centered maintenance programs. This approach ensures that a single probe failure does not extend into a multi-day outage while waiting for parts to arrive. All units supplied by KNMKS are tested prior to shipment and covered by a support terms confirmed by quotation against manufacturing defects.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan for a 3300 XL proximity probe installation goes well beyond the probe itself. During a scheduled outage or corrective maintenance event involving the 330103-00-06-50-02-RU, the following components should be inspected or replaced as part of the same work order to prevent repeat failures and reduce future downtime risk.

The 330130-series extension cable is the most common companion item. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments. A probe in good condition paired with a degraded extension cable will produce erratic gap voltage readings that mimic probe failure — always inspect the cable continuity and connector seating before condemning the probe itself.

The 330180 or 330185 proximitor module should be verified for output linearity and OK relay function. A proximitor that is beginning to drift will cause the system to report false vibration amplitude changes even after a new probe is installed. If the proximitor has been in service for more than five years in a high-temperature environment, proactive replacement during the same outage window is cost-effective.

In systems where the 3300 XL rack feeds a DCS or safety system via 4–20 mA output, the signal isolator or barrier between the rack and the control system should be checked for loop resistance and isolation integrity. A degraded isolator can introduce ground loops that corrupt vibration data at the historian level without triggering any rack-level alarm.

For installations near variable frequency drives or high-current bus bars, ferrite cores or shielded conduit on the probe cable run are worth inspecting. EMI-induced noise on the probe signal is a known cause of nuisance trips in motor-driven compressor applications. Additionally, the rack power supply module — typically a 3300/05 or equivalent — should be checked for output ripple, as power supply degradation is a leading cause of unexplained OK relay dropouts in aging 3300 XL installations.

Finally, if the machine is equipped with a keyphasor probe (such as the 330980 series), its gap and signal quality should be verified at the same time, since keyphasor data is used for phase reference in all synchronous vibration measurements across the rack.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the machine is in a safe state. Note the current gap voltage reading from the proximitor output before disconnecting the probe — this serves as a baseline for the new installation.

Step 2 — Probe Removal: Disconnect the probe from the extension cable at the junction box. Remove the probe from the bearing housing, taking care not to damage the probe tip or the target surface. Record the probe-to-target gap (typically 1.0–1.5 mm for an 8mm probe) using a feeler gauge or the proximitor voltage reading.

Step 3 — New Probe Installation: Thread the 330103-00-06-50-02-RU into the probe holder. Set the gap to the value specified in the machine’s vibration monitoring datasheet. Reconnect to the extension cable and verify connector seating and locking.

Step 4 — Functional Verification: Power the proximitor and confirm the gap voltage falls within the −10 VDC to −18 VDC OK window. Check that the OK relay is energized and that the monitor module is displaying a valid vibration reading with no latched alarms.

Step 5 — System Restoration: Reset any latched trip conditions in the 3300 XL monitor. Confirm DCS or safety system is receiving a valid 4–20 mA signal. Document the replacement in the maintenance management system with the new probe serial number and gap voltage.

This workflow is compatible with both direct replacement of a failed probe and planned replacement during scheduled outages. The 330103-00-06-50-02-RU is a drop-in replacement for earlier 330103-series probes in the same system length configuration, requiring no changes to proximitor settings or monitor alarm setpoints.

Spare Parts Support FAQ

Q1: Is the 330103-00-06-50-02-RU compatible with both 3300 XL and earlier 3300 Series monitors?
The 330103-00-06-50-02-RU is designed for the 3300 XL Series and is electrically compatible with earlier 3300 Series monitors that use the same 8mm probe standard. However, always verify the total system length (probe + extension cable) matches the proximitor’s calibrated range before installation. If the existing system uses a non-standard cable length, the overall system length must be maintained to preserve calibration accuracy.

Q2: What is included in the support terms confirmed by quotation and pre-shipment testing?
Every unit supplied by KNMKS undergoes functional testing prior to shipment, including gap voltage verification and OK relay confirmation. The support terms confirmed by quotation cover manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits. Support requests are supported with replacement or refund at KNMKS’s discretion.

Q3: How should I manage long-term spare parts inventory for 3300 XL proximity probes?
For critical rotating machinery, a minimum stock of two probes per machine train is recommended, along with matched extension cables and at least one spare proximitor module. Probes should be stored in their original packaging in a dry, temperature-controlled environment away from strong magnetic fields. Shelf life for unused probes in proper storage is typically five or more years. KNMKS maintains ongoing stock of 330103-series probes and can support blanket purchase orders for facilities with multiple machine trains.

Q4: Can KNMKS supply replacement probes for legacy systems where the original part is discontinued?
Yes. KNMKS specializes in sourcing and supplying spare parts for legacy industrial automation and machinery protection systems, including discontinued Bently Nevada product lines. Where an exact part number is no longer available from the OEM, KNMKS can advise on compatible replacement options that maintain the same system length, sensitivity, and connector configuration. Contact our technical team with your system configuration details for a compatibility assessment.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-50-02-RU
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-50-02-RU
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
