Bently Nevada 330103-00-06-50-01-00 Maintenance-Proven Spare Part for Factory Uptime

Overview

Bently Nevada 330103-00-06-50-01-00 Maintenance-Proven Spare Part for Factory Uptime

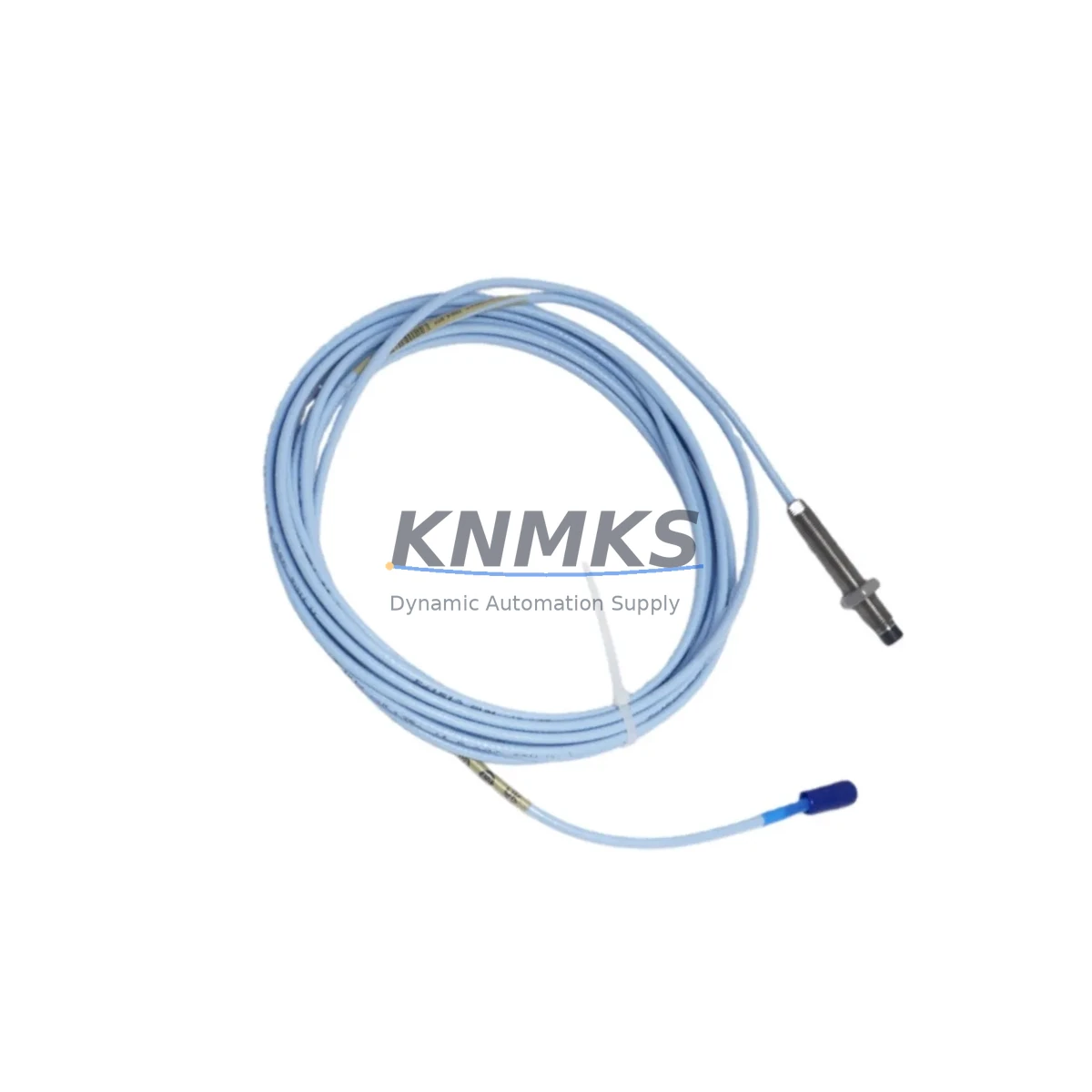

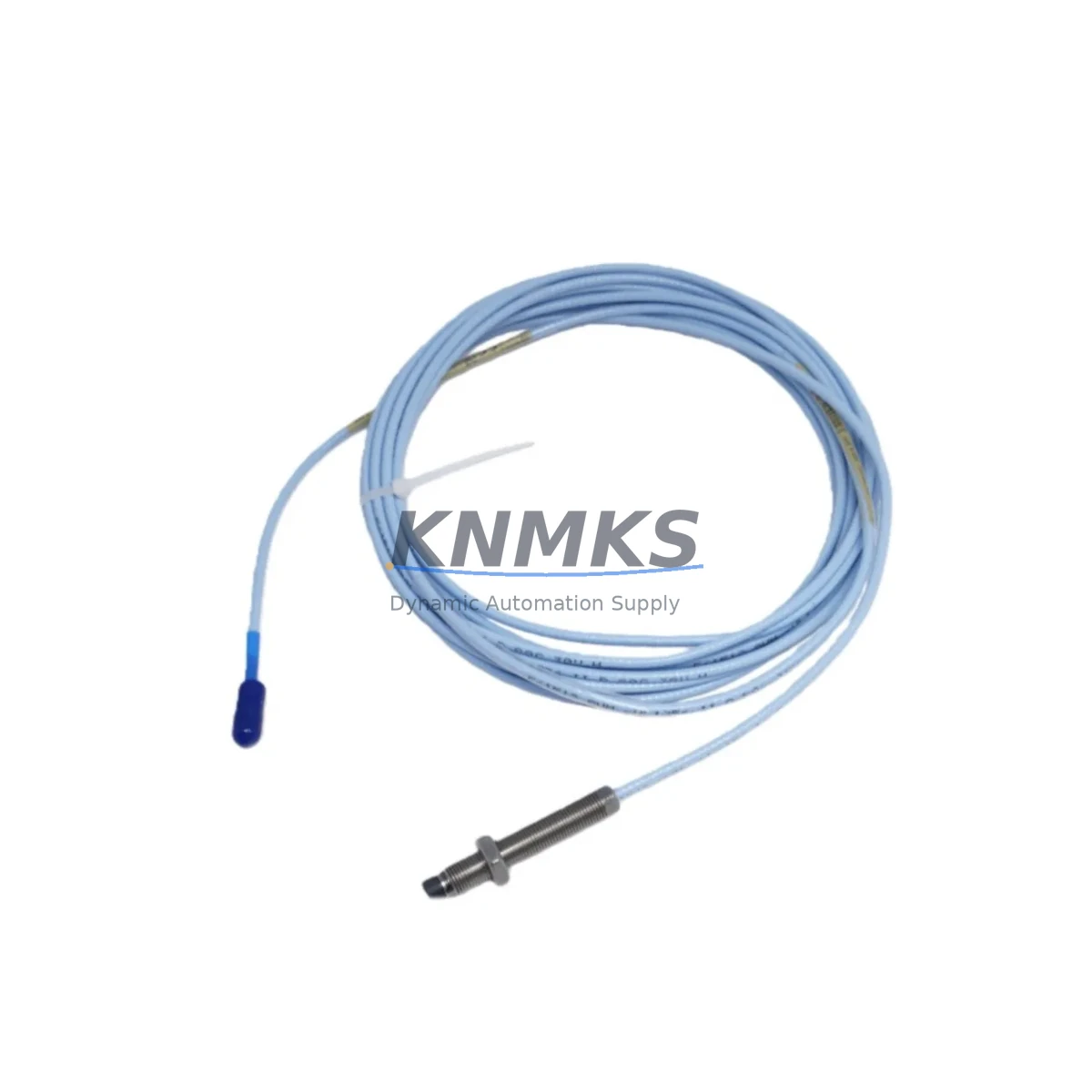

The Bently Nevada 330103-00-06-50-01-00 is an original proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned shutdown, or building a strategic spare parts inventory for your control room, this probe delivers the dimensional accuracy, signal integrity, and system compatibility that maintenance engineers and procurement teams depend on to restore production quickly and confidently.

Designed for non-contact displacement measurement, the 330103-00-06-50-01-00 operates as part of a complete proximity transducer system, working in conjunction with the extension cable and proximitor/oscillator driver to deliver a calibrated output signal to the 3300 XL monitor rack. Its 5 mm tip diameter, 6-inch armored cable, and 50-ohm coaxial termination make it a direct fit for installations where the original probe has reached end-of-life or suffered mechanical damage during maintenance access. Procurement engineers sourcing this part can confirm compatibility by cross-referencing the 3300 XL system documentation and the probe’s -50-01-00 suffix, which denotes the standard 5 mm probe with 1-meter extension and standard connector configuration.

At KNMKS, every unit is inspected and tested prior to shipment. We supply this part with a support terms confirmed by quotation covering manufacturing defects and functional performance, giving your maintenance team the assurance needed for both emergency replacement and long-term inventory planning.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-06-50-01-00 proximity probe in the field, a thorough maintenance engineer will treat the probe swap as an opportunity to inspect the entire transducer loop and associated monitoring infrastructure. The probe alone does not operate in isolation — its signal quality depends on the condition of the paired extension cable (typically a 330130-series armored cable) and the proximitor/oscillator driver module mounted in the 3300 XL rack, such as the 3300/16 or 3300/20 monitor card. If the proximitor shows drift in gap voltage or erratic OK relay behavior, it should be replaced concurrently to avoid a repeat callout.

Beyond the transducer loop itself, maintenance teams should inspect the 3300 XL rack’s power supply module — commonly the 3300/05 or equivalent — for output voltage stability, since a degraded rack power supply can introduce noise into proximity channels and trigger false alerts. Terminal blocks and field wiring connections within the junction box should be checked for corrosion, loose terminations, and moisture ingress, particularly in outdoor or high-humidity installations. If the machine is also equipped with a keyphasor probe (such as the 330180-series), its gap voltage and cable continuity should be verified at the same time, as keyphasor signal integrity directly affects phase-referenced vibration analysis.

For plants running integrated condition monitoring, the 3300 XL rack’s communication interface — whether a Modbus RTU card or a System 1 data acquisition module — should be confirmed operational after any probe replacement to ensure vibration data continues to flow to the plant historian or DCS. Procurement engineers building a spare parts kit for a 3300 XL-equipped train should consider stocking at minimum: one spare 330103-series probe, one matched extension cable, one proximitor module, and a set of terminal block connectors. This kit approach eliminates the most common causes of extended downtime during emergency maintenance windows.

Site Replacement Workflow

Replacing the 330103-00-06-50-01-00 in the field follows a structured procedure that minimizes downtime and ensures system compatibility is maintained from the first power-on after installation. Begin by de-energizing the 3300 XL rack channel associated with the probe being replaced and confirming the OK relay has dropped out. Remove the existing probe by unscrewing it from the mounting bracket, taking care not to damage the armored cable during extraction. Inspect the mounting threads and bracket for wear or corrosion before installing the replacement unit.

Thread the new 330103-00-06-50-01-00 into the bracket and set the initial gap distance per the 3300 XL calibration specification — typically 50 mils (1.27 mm) for standard steel targets, verified using a calibrated gap-setting tool or feeler gauge. Connect the extension cable to the probe and route it to the junction box, ensuring the cable is secured with appropriate clamps to prevent vibration-induced fatigue at the connector. At the proximitor end, verify the gap voltage reads within the specified linear range (typically -10 VDC ±0.5 VDC at the nominal gap) before re-energizing the monitor channel.

Once the channel is live, confirm the OK relay has picked up and that the vibration reading is within the expected baseline range for the machine at its normal operating speed. Document the as-left gap voltage and vibration amplitude in the maintenance record. This workflow applies equally to direct replacements of legacy 330103-series probes from older 3300 system generations, making the 330103-00-06-50-01-00 a reliable cross-generation spare that reduces the need to maintain multiple probe variants in inventory.

Spare Parts Support FAQ

Q: Is the 330103-00-06-50-01-00 compatible with both older 3300 and current 3300 XL monitor racks?
A: Yes. The 330103-series probe is designed for use with the 3300 XL proximitor/oscillator system and is backward-compatible with earlier 3300-series monitor racks when used with the correct extension cable and proximitor. Always verify the gap voltage calibration range matches your specific monitor card specification before commissioning.

Q: How does KNMKS verify the condition of spare probes before shipment?
A: Each 330103-00-06-50-01-00 unit supplied by KNMKS undergoes functional inspection including coaxial connector integrity check, cable continuity verification, and visual inspection for tip damage or thread wear. Units that do not meet our quality standard are not shipped. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q: What is the recommended inventory strategy for this probe in a rotating equipment maintenance program?
A: Industry best practice for critical rotating machinery is to maintain a minimum of one spare probe per monitored machine train, plus one additional unit as a general pool spare for the site. For plants with multiple 3300 XL-equipped trains, a consolidated spare parts kit — including matched extension cables and a spare proximitor module — is recommended to support rapid response to unplanned outages without waiting for emergency procurement lead times.

Q: Can KNMKS support long-term or blanket purchase orders for the 330103-00-06-50-01-00?
A: Yes. KNMKS supports long-term supply agreements and blanket purchase orders for maintenance-critical spare parts including the 330103-00-06-50-01-00. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your plant’s maintenance schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: admin@knmks.com | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-50-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-50-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
