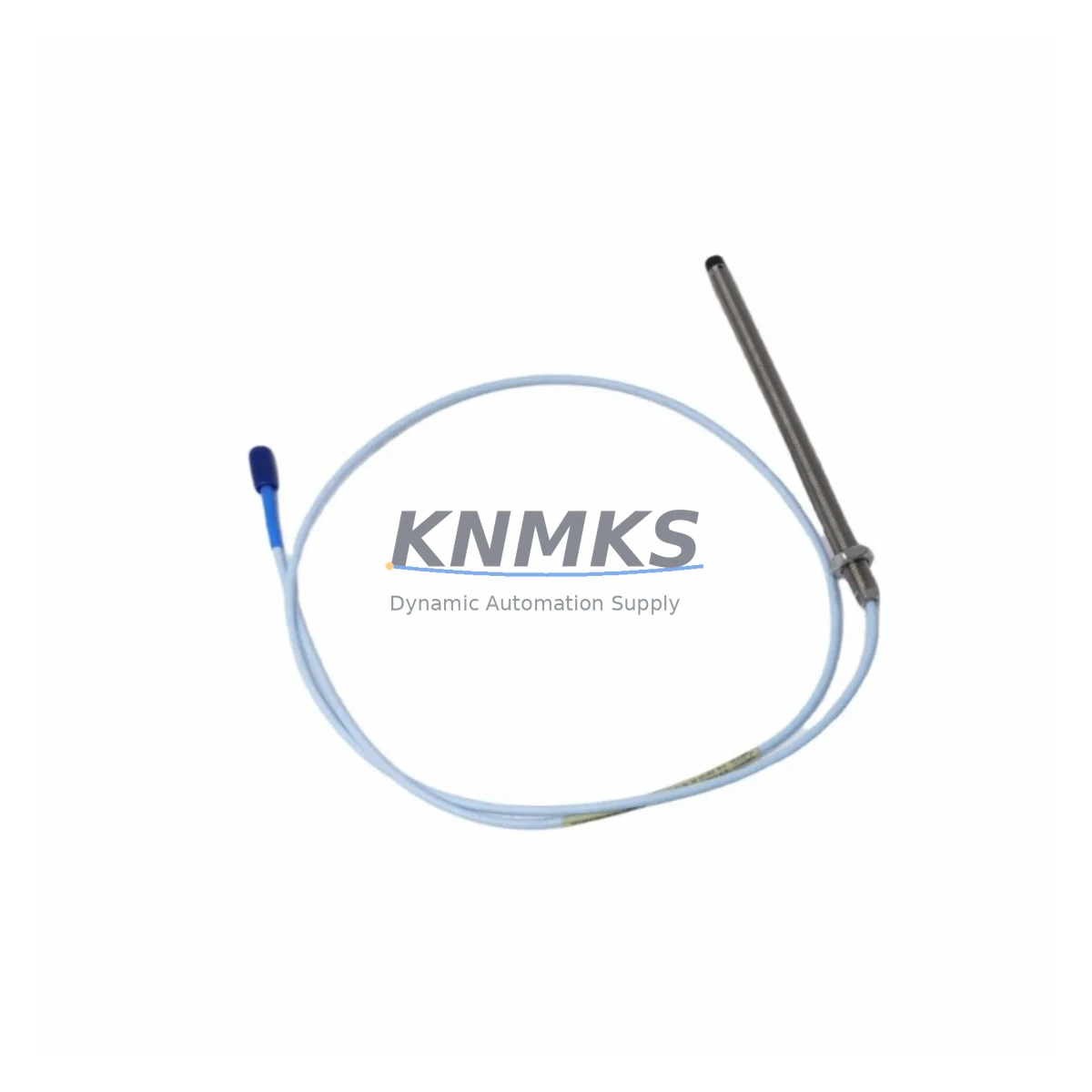

Bently Nevada 330103-00-06-15-02-05 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330103-00-06-15-02-05 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330103-00-06-15-02-05 is an 8mm proximity transducer engineered for the 3300 XL series vibration monitoring platform. As industrial facilities worldwide accelerate the retirement of aging DCS and machinery protection systems, this transducer has become a critical component in legacy system migration projects — particularly in plants still operating original Bently Nevada 3300 series racks that predate the current 3500 platform architecture. Whether you are executing a phased upgrade, restoring a mothballed production line, or sourcing a verified drop-in replacement for a failed unit, the 330103-00-06-15-02-05 delivers the dimensional accuracy, signal output, and connector compatibility required to maintain continuous vibration monitoring without reprogramming your existing Keyphasor or monitor modules.

In retrofit scenarios, engineers frequently encounter the challenge of matching the original transducer’s gap voltage, sensitivity (typically 200 mV/mil), and cable length to the installed Bently Nevada 3300 XL proximitor/driver — such as the 330180 series proximitor — without disturbing the calibrated measurement chain. The 330103-00-06-15-02-05 is factory-configured to integrate directly with these proximitor assemblies, preserving the 4–20 mA output loop and the –24 VDC power supply rail already present in the control cabinet. This eliminates the need to reconfigure the Bently Nevada 3500/22M or 3500/42M monitor cards that may be installed downstream in a hybrid rack environment.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330103-00-06-15-02-05 into an aging machinery protection system requires a structured pre-installation review. Begin by auditing the existing 3300 XL rack configuration: confirm the number of occupied monitor slots, the installed proximitor model (commonly the 330180-51-05 or 330180-91-00), and the current –24 VDC power supply loading. If the cabinet also houses a Bently Nevada 3500/20 rack interface module or a 3500/15 power supply, verify that the additional transducer load does not exceed the rated output current of the power module before proceeding.

Terminal wiring is a frequent source of commissioning delays in retrofit projects. The 330103-00-06-15-02-05 uses a coaxial signal path from the probe tip through the extension cable to the proximitor input. When replacing a failed unit in the field, label and photograph the existing cable routing before disconnection. If the plant uses a Bently Nevada 3300 XL field wiring terminal block or a third-party marshalling panel, confirm that the shield drain wire is terminated at one end only to prevent ground loops that can corrupt the vibration signal and trigger false alarms on the 3500/42M four-channel monitor card.

For facilities migrating from the older Bently Nevada 7200 series transducer system to the 3300 XL platform, the physical probe body dimensions differ and a new mounting adapter may be required. In these cases, the retrofit scope typically also includes replacement of the proximitor driver, recalibration of the gap voltage reference, and — if the plant DCS is a legacy Honeywell TDC 3000 or Foxboro I/A Series — updating the analog input scaling in the historian or safety instrumented system to reflect the new sensitivity constant. The 330103-00-06-15-02-05 simplifies this process by delivering a factory-verified output that matches the expected input range of the Bently Nevada 3500 series monitors without additional signal conditioning.

Where I/O expansion is part of the upgrade scope, engineers often install additional Bently Nevada 3500/22M transient data interface modules alongside the new transducers to capture waveform data for predictive maintenance programs. This is also an appropriate time to audit the Keyphasor signal source — typically a Bently Nevada 330980 Keyphasor transducer — and confirm that the once-per-revolution reference pulse is correctly routed to all monitor cards that require phase reference for vector measurements.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any machinery protection system retrofit. When replacing the 330103-00-06-15-02-05 on a running machine, the preferred approach is a hot-swap procedure using the monitor card’s bypass relay — available on the Bently Nevada 3500/42M and 3500/45 — which holds the last valid measurement and suppresses the NOT OK output during the transducer exchange. This prevents nuisance trips to the emergency shutdown system while the new probe is being gapped and the signal verified.

Before initiating the swap, export the current monitor configuration from the Bently Nevada System 1 software or the 3500 Rack Configuration Utility. This preserves the alert and danger setpoints, the full-scale range, the transducer type selection, and the OK limit settings. If the replacement transducer is installed on a machine that feeds a safety instrumented system (SIS) with IEC 61511 compliance requirements, coordinate the bypass window with the SIS engineer and document the deviation in the management of change (MOC) record.

Post-installation, perform a static gap check using a calibrated DC voltmeter before energizing the monitor. Confirm the gap voltage falls within the linear range specified in the Bently Nevada gap voltage chart for the 330103 series. Then verify the dynamic signal by observing the 1X and 2X vibration vectors on the System 1 or Orbit software display during machine run-up. A clean, stable orbit plot with no excessive noise floor confirms that the transducer, extension cable, proximitor, and monitor card are functioning as an integrated measurement chain. Ship-test certificates and outgoing inspection records are provided with every unit to support this commissioning process and to satisfy plant quality assurance requirements.

Retrofit Support FAQ

Q1: Is the 330103-00-06-15-02-05 a direct replacement for the discontinued 330103-00-06-10-02-05?
A: Yes. The 330103-00-06-15-02-05 (5 m cable) supersedes the shorter 10 ft cable variant in most 3300 XL installations. Confirm the required cable length against your field routing before ordering. If the original installation used a 330130 extension cable to reach the proximitor, the 5 m probe cable is typically sufficient without an additional extension.

Q2: What commissioning steps are required after installation?
A: Set the probe gap to achieve a gap voltage within the linear range (typically –10 VDC at the nominal gap for a 200 mV/mil system). Verify the OK relay output on the monitor card, confirm the vibration signal is noise-free at the System 1 workstation, and document the as-left gap voltage in the maintenance record. No firmware changes are required on the 3300 XL or 3500 monitor cards.

Q3: Can this transducer be used with a Bently Nevada 3500 series rack?
A: Yes, with the appropriate 3500/22M or 3500/42M monitor card configured for the 330103 transducer type. The analog output signal and sensitivity are compatible with the 3500 platform input specifications. Confirm the transducer type selection in the rack configuration software matches the 330103 series parameters.

Q4: What support terms and supply terms apply?
A: Every 330103-00-06-15-02-05 unit ships with a support terms confirmed by quotation from the date of shipment, an outgoing test certificate, and a DOA replacement guarantee. Stock is maintained for immediate dispatch to support emergency breakdown and planned shutdown schedules. Contact [email protected] or +86 18359268345 for lead time and volume pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330103-00-06-15-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330103-00-06-15-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
